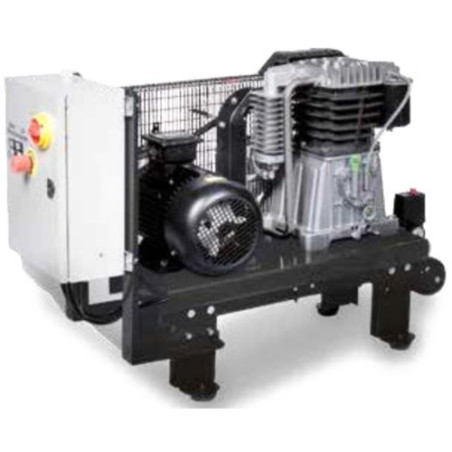

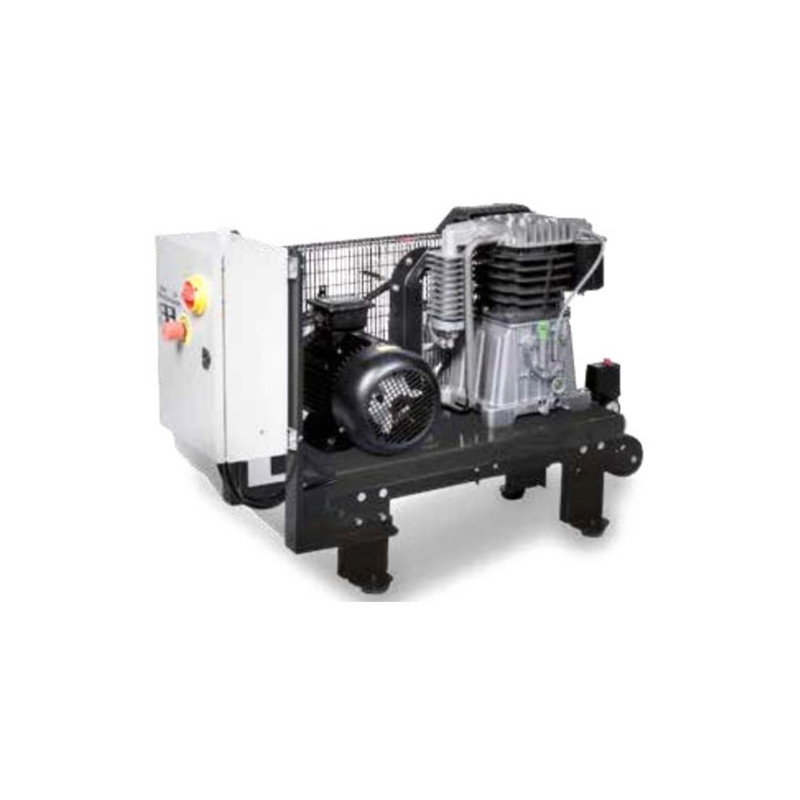

Lubricated Pump Unit for Compressor Belt Driven EBS 678

Lubricated Pump Unit for Compressor Belt Driven EBS 678

Complete base with support. The EBS series distinguishes the oil lubricated twin cylinder compressor pumps with single and two stage belt drive. The Fiac compressor pumps have been designed and tested in compliance with the strictest international standards. Special research has been dedicated to the containment of the noise level and elimination of heat generated during operation. * Available with automatic star / delta starter.

Code: 2030570000
EBS 678
Brand: FIAC
Category: Pump Unit EBS 678
Air compressor Lubricated air compressor belt driven pump unit

Ordered item will be shipped within 10/15 working days.

Technical Features :

l /min (Air displ.)	CFM (Air displ.)	m3/h (Air displ.)	bar	psi
650	23	39	10	145
kW	Grup# / Pump	Cil# / St#	min-1	LxPxH_mm / in
4	AB 678	02-feb	1000	750x400x590 29.6x15.8x23.2
Volt/Hz/ph	HP	kg_lb
400/50/3	5,5	70 154
