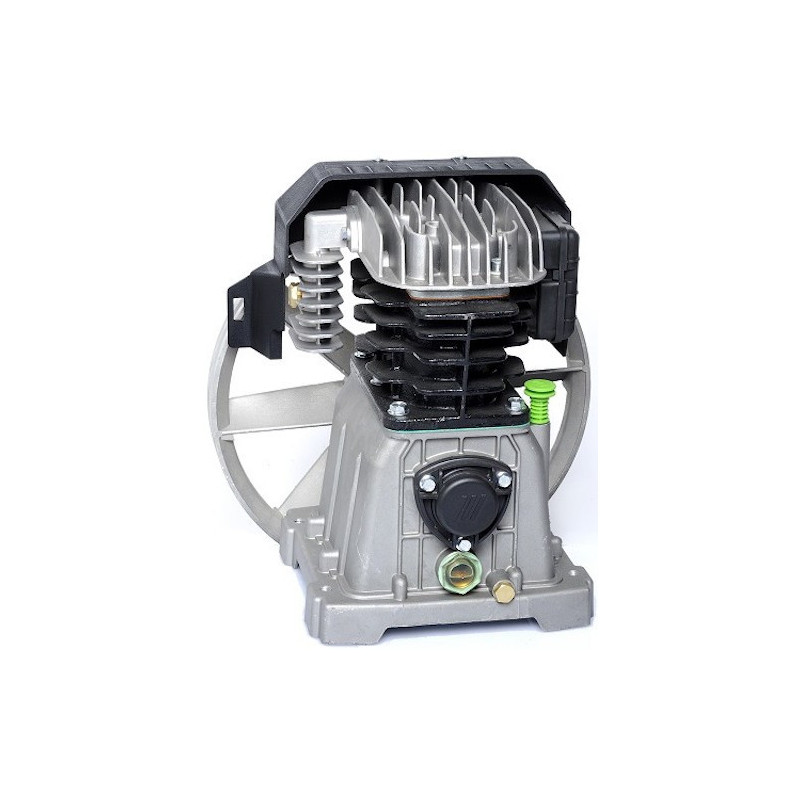

Pumping unit for air compressor Mod. AB 360

Pumping unit for air compressor Mod. AB 360

Pump unit for air compressors Fiac 100/150/200 Liters lubricated single-stage belt drive.

- System-head with large ciindro fins for heat dissipation
- Ductile iron crankshaft carefully equiibrato for improved stability
- Stainless steel valves with high flow of air
- Conveyor ventilation
- Flywheel with high air flow to concentrated flow
- Suction filter equipped with high-yield maze to the decrease in noise level
- Suitable for both single-phase motors (220V) and three phase (400V)
- Splash lubrication, forced ventilation
- Die-cast aluminum valve plate
- Ciindro monobloccoin iron
- Manifold for refrigeration del'aria final input to the tank
- Single stage 3 HP Model

Technical features:
- Code AB360 : 1129740084 old 9101880000
- Cilinders : 2
- For engines: 3 Hp
- Step Air: 350 L/min.
- Max Bar: 10/145 P.S.I
- RPM: 1500 RPM
- Noise: 76 dB
- Pack Weight: kg 12
- Genuine Spare Parts Fiac AB360
