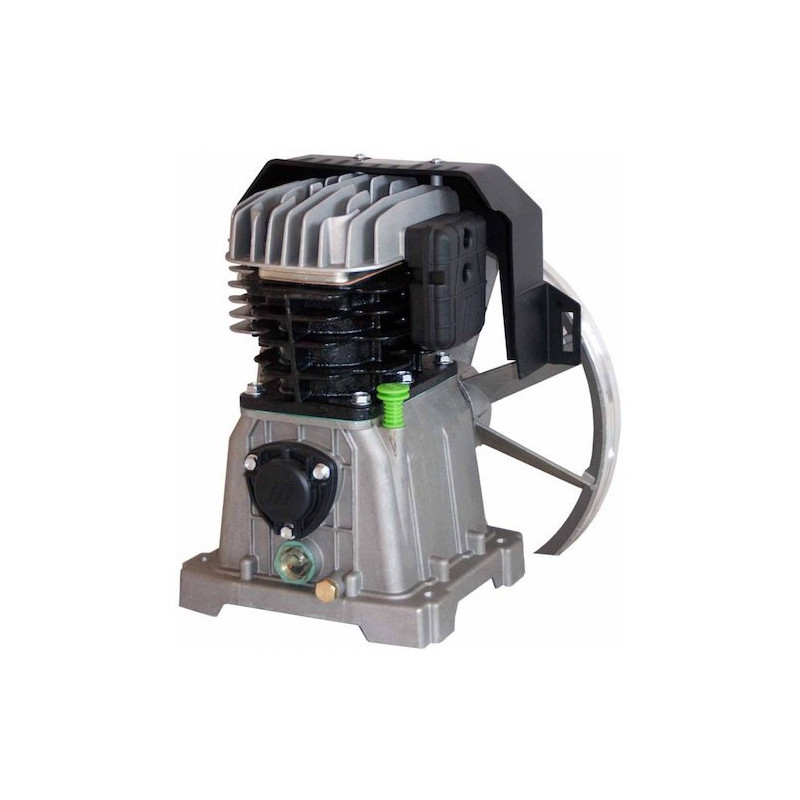

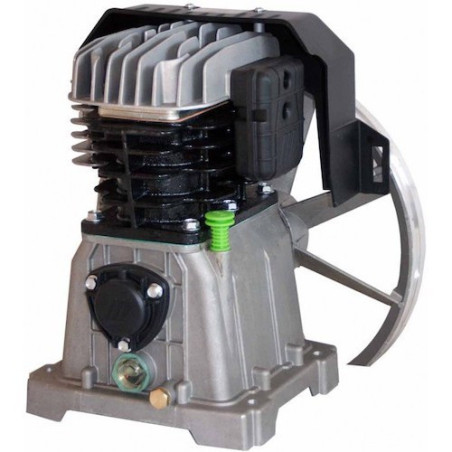

Pump unit for air compressor Mod. AB 515

Pump unit for air compressor Mod. AB 515

Pump unit for air compressors Fiac 150/200/300 Liters lubricated single-stage belt drive.

The AB series distinguishes the two-cylinder compressor units with single-stage belt transmission and oil-lubricated two-stage transmission. The Fiac compressor units have been designed and tested in compliance with the strictest international standards. A particular research has been dedicated to the containment of the sound level and to the disposal of the heat generated during operation.

 Technical data:

- Code AB 515 : 1123020504
- Cylinder #/Stage: 2/1
- For Motor : 4 Hp
- Air Intake <-: 510 L/Min.
- CFM : 18.2
- m3/h : 30.6
- Max Bar : 10 / 145 P.S.I
- Giri : 1000 RPM
- ø FLYWHEEL ø_mm 350/ in
- 345x1/3V 13.58x1/3V
- Nois : 76 db
- Weight : Kg 12
