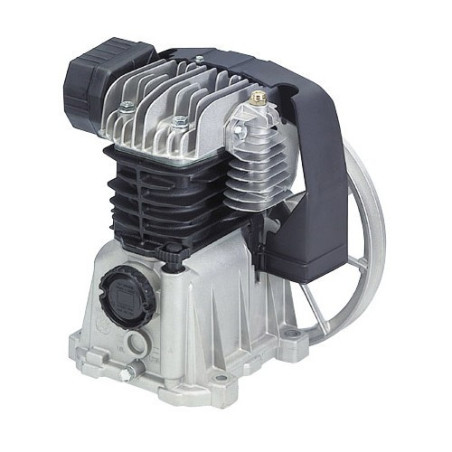

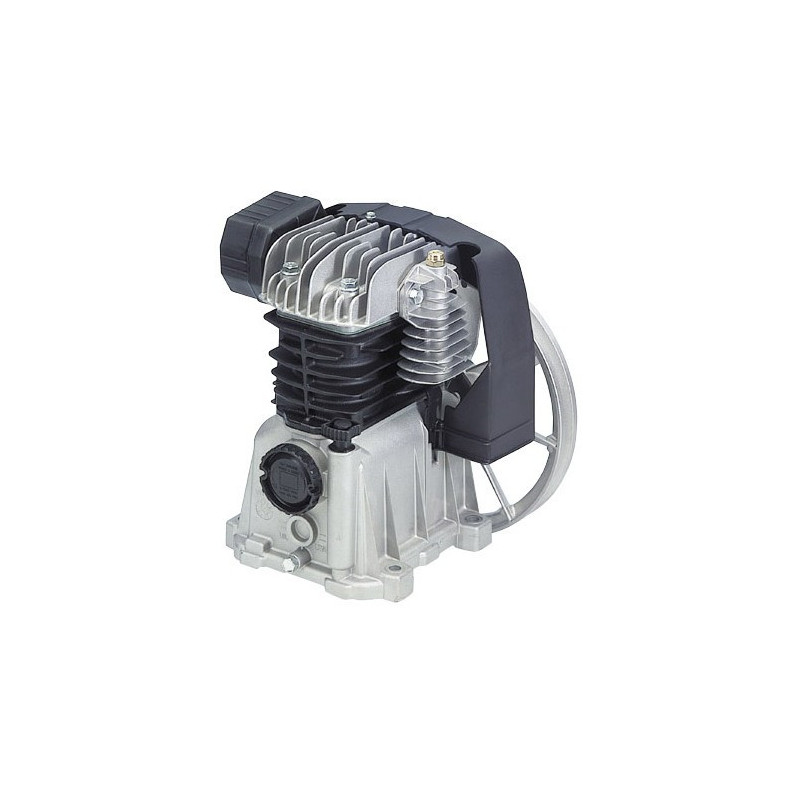

Pumping Unit for Air Compressors Mod MK103/150-200 Lt-200 Lt

Pumping Unit for Air Compressors Mod MK103/150-200 Lt-200 Lt

Pumping unit for compressor Fini/Dari/Fiac 150-200 Liters- single stage, lubricated belt drive.
- System-cylinder head with large fins for heat dissipation
- Tree Elbow ductile iron carefully balanced for greater stability
- Valves made of stainless steel with a high flow of air
- Conveyor ventilation
- Flywheel with high flow rate of concentrated air flow
- Suction filter with high yield with labyrinth for the decrease of the sound level
- Suitable for both single phase motors (220V) and three phase (400V)
- Splash lubrication, forced ventilation
- Cast aluminum valve plate
- Ciindro monobloccoin cast
- Final manifold for air refrigeration at tank inlet
- Modelo stage 2 HP

Technical data:
- MK 103 Code: 5131670510
- For engines: 2.2 / 3 Hp
- Air flow: 365 L / Min.
- Max Bar: 10/145 P.S.I
- RPM: 1370 RPM
- Noise level: 76 db
- Dimensions WxDxH (cm): 27x26x30
- Engine Weight: Kg 9.5 to 20.9 Lbs
- Package Weight: Kg 12 to 18.9 Lbs
