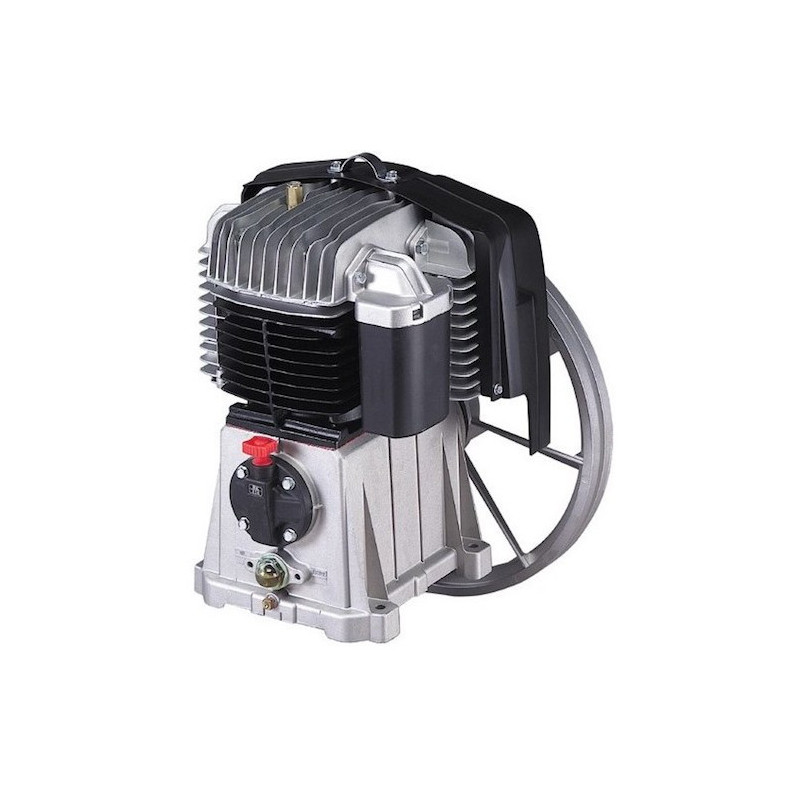

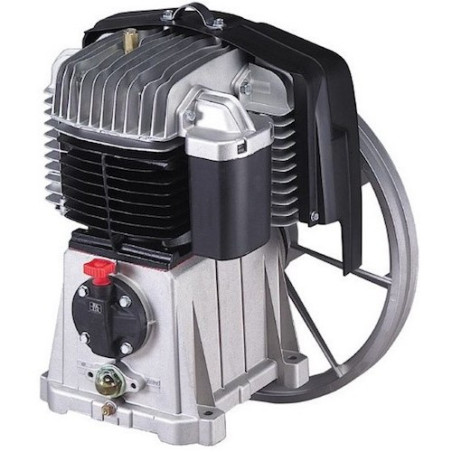

Pumping unit for compressor belt Mod BK114

Pumping unit for compressor belt Mod BK114

Pumping unit for compressor Fini / Dari 200-270-500 Lt-lubricated belt drive.
- System-cylinder head with large fins for heat dissipation
- Tree Elbow ductile iron carefully balanced for greater stability
- Valves made of stainless steel with a high flow of air
- Conveyor ventilation
- Flywheel with high flow rate of concentrated air flow
- Suction filter with high yield with labyrinth for the decrease of the sound level
- Suitable for both single phase motors (220V) and three phase (400V)
- Splash lubrication, forced ventilation
- Cast aluminum valve plate
- Cylinder block in cast iron prerodato
- Final manifold for refrigeration del'aria at tank inlet
- Two-stage 5.5 HP Model

Technical data:
- BK 114 Code: 5131780600
- For motors: 4 Kw
- For motors: 5.5 Hp
- Number of cylinders: 2
- Number of stages: 2
- Air flow: 585 L / Min.
- Max Bar: 10/145 P.S.I
- RPM: 1370 RPM
- Noise level: 82 db
- Dimensions (WxDxH): 35x40x43 cm
- Engine Weight: Kg 32.5 to 71.6 Lbs
