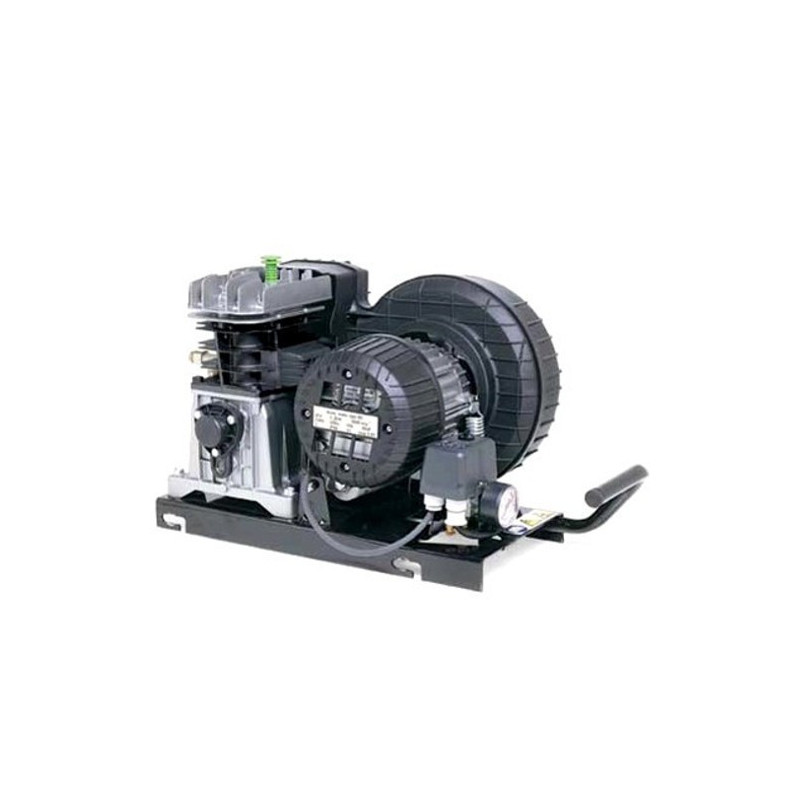

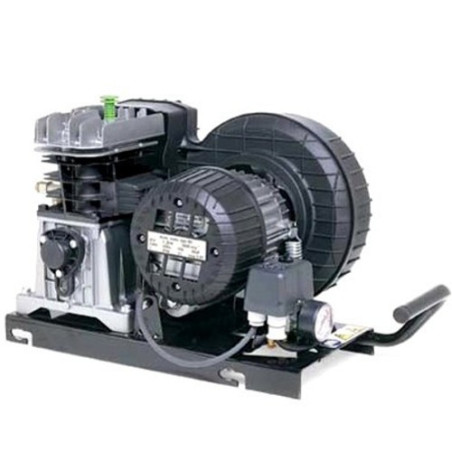

Lubricated Air Compressor Belt Driven Pump Fiac CCS 360-M

Lubricated Air Compressor Belt Driven Pump Fiac CCS 360-M

The CCS series distinguishes the oil lubricated twin cylinder compressor pumps with single and two stage belt drive. The Fiac compressor pumps have been designed and tested in compliance with the strictest international standards. Special research has been dedicated to the containment of the noise level and elimination of heat generated during operation. The version denominated CCS (Controlled Cooling System) equipped with single stage AB units of 2 and 3 HP exploits a forced cooling system that FIAC has patented. The front dent-proof casing has been especially designed to convey all the cooling air to parts that are usually hotter, such as the cylinder, valve plates and head. The electric motor with forward/backward oscillation system, has been studied and built to run continuously and is equipped with a large co-axial fan that cools both the pumping unit and the motor itself. A steel spring automatically keeps the transmission belt perfectly tensioned at all times.

Code: 2031403000
CCS 360 M
Brand: FIAC
Category: Air compressor pump unit CCS
Lubricated air compressor belt driven pump unit

Ordered item will be shipped within 10/15 working days.

Technical Features :

l /min (Air displ.)	CFM (Air displ.)	m3/h (Air displ.)	bar	psi
350	12.4	21	10	145
HP	kW	Grup# / Pump	Cil# / St#	min-1
3	2,2	AB 360	02-gen	1500
LxPxH_mm / in	kg_lb	Volt/Hz/ph
510x330x340 20.1x13x13.4	27 59	230/50/1
