Lavor Original Parts for Cleaner ED 230/50 - 80270701-1
Fix Your High Pressure Cleaner ED 230/50 -G- TS 2 LANCE-EU- (LWS) - 80270701-1. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

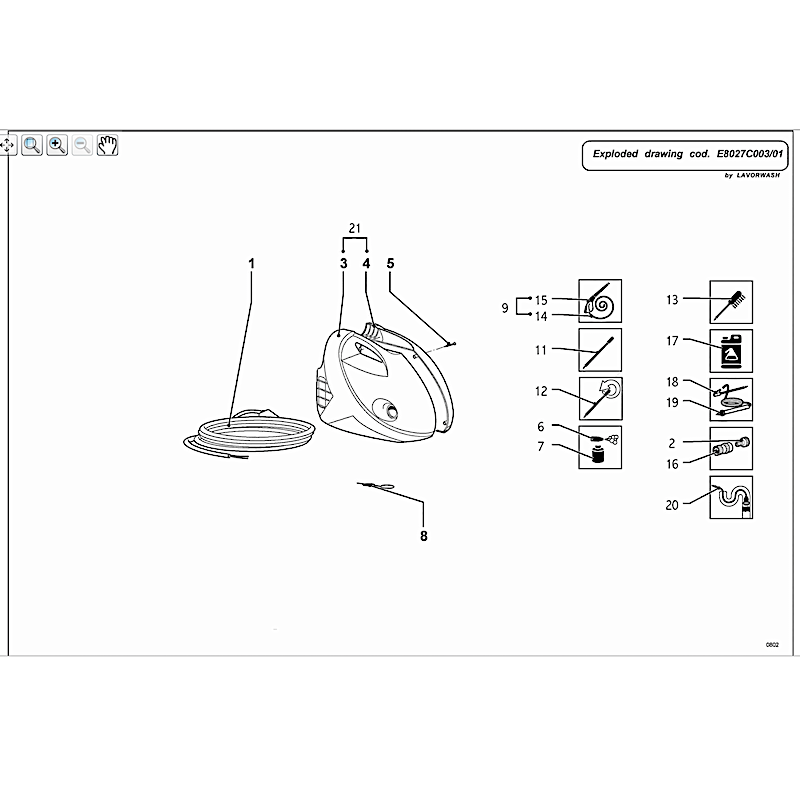

In the following tables, look for the spare part and its respective code.
| 80270701-1 - IDRO ED 230/50 -G- TS 2 LANCE-EU- (LWS) - Pag.1 | ||
| # | Part Num. | Description |
| 001 | 4.012.0157 | CABLE H05VV-F 3X0,75 MT.5,2 F/ F PLUG SCHUKO |
| 002 | 3.100.0082 | QUICK COUPLING INLET CONNECTOR (THREAD=11.5) |
| 003 | 4.013.0250 | YELLOW INLET COVER ED (PANT.108C) |
| 004 | 4.013.0251 | YELLOW OUTLET ED COVER (PANT.108C) |
| 005 | 3.002.0112 | CROSS HEAD -TORX SCREW 3,9x25 HI-LO ZNT |
| 006 | 5.011.0061 | FOAM LANCE |
| 007 | 4.008.0529 | YELLOW FOAM SPRAYER BOTTLE |
| 008 | 4.007.0114 | NOZZLE CLEANING PIN |
| 009 | 6.001.0049 | GUN S'02 WITH 3MT HOSE |
| 011 | 6.002.0238 | LANCE S'02 1,10 (GREEN DOT) |
| 012 | 6.002.0252 | LANCE ROTOX S02 1,10 (GREEN) |
| 80270701-1 - IDRO ED 230/50 -G- TS 2 LANCE-EU- (LWS) - Pag.2 | ||
| 000 | 5.001.0218 | MOTOPOMPA ED'97 D.110H75 230/5 0 1200W+TS |
| 001 | 4.008.0401 | FAN COVER LAVOR 12 |
| 002 | 4.008.0416 | AIR CONVEYOR LAVOR 12 |
| 003 | 4.008.0092 | FAN FB80 WITH HOLE D.16,5 (PARTNER) |
| 004 | 5.002.0103 | MOTOR '99 D.110 H60 230-240/ 50 2P |
| 005 | 3.001.0020 | RADIAL BEARING FOR MOTOR SHAFT 17X40X12 6203 2RS |
| 006 | 5.005.0042 | ROTOR SHAFT |
| 007 | 3.002.0115 | SCREW TC M5X35 SWAGEFORM ZNT |
| 008 | 4.005.0118 | MOTOR FLANGE D.110 LAVOR 12 |
| 009 | 3.200.0060 | O-RING 2325 NBR 70SH 82,28X1,78 |
| 010 | 3.200.0040 | O-RING 32,99X2,62 |
| 011 | 3.404.0032 | CAPACITOR 17mF 450V D.40X73 F/M |
| 012 | 4.008.0008 | CAPACITOR CHOCK |
| 013 | 4.008.0323 | AIR CONVEYOR COVER FOR UNIVERS AL MOTOR |
| 014 | 5.009.0213 | SWITCH WITH PROTECTION 12(10) |
| 015 | 3.201.0016 | OIL SEAL 17X28X7/7,5 |
| 016 | 3.001.0022 | BEARING 17X40X12 |
| 017 | 4.005.0119 | INCLNED PLATE 9' CORS.=6,65 LAVOR12 |
| 018 | 3.001.0023 | THRUST RING AS3552 |
| 019 | 3.001.0024 | ROLLER-CAGE AXK 3552 |
| 020 | 4.007.0138 | BEARING WASHER D.54x28x4 |
| 023 | 4.007.0163 | VALVE BODY HOLDING PIN LAVOR 12 |
| 024 | 3.200.0077 | OR GASKET 64,39X1,78 NBR SH70 |
| 025 | 5.009.0282 | PISTON/HOLDING PISTON ASSEMBLY DIAM.12 LAVOR 12 |
| 026 | 4.007.0162 | PISTON SPRING LAVOR 12 IN C98 |
| 027 | 4.005.0127 | PISTON GUIDE BODY D.12 LAVOR12 |
| 030 | 5.009.0475 | FLAT VALVE ASSY ED-SD |
| 031 | 4.007.0229 | HEXAGON SOCKET HEAD CAP SCREW WITH COLLAR 6X70 |
| 033 | 4.008.0747 | HEAD ED'99 FLAT VALVE |
| 034 | 4.008.0031 | INLET WATER FILTER H2O D.16 CONICAL |
| 035 | 3.201.0020 | WATER SEAL 12X18X5 |
| 036 | 4.008.0745 | PISTON'S RING D.12 |
| 037 | 3.201.0014 | OIL SEAL RING D.12X20X5/7 |
| 042 | 5.009.0462 | VALVE ASSY TS |
| 043 | 4.007.0169 | SPRING D.7,2X9,8 |
| 044 | 4.007.0146 | VALVE |
| 045 | 4.008.0467 | ASS SPRING HOLDER |
| 046 | 3.200.0073 | OR GASKET |
| 047 | 5.009.0254 | CAP+OR TOTAL STOP VALVE ASSY |
| 048 | 5.009.0460 | MICROSWITCH BOX COMPLETE |
| 049 | 3.099.0049 | LOCKING RING D.23 FAN FB80 |
| 050 | 5.006.0141 | MOTOR 99 D.110 H60 230-240/50 |
| 051 | 5.007.0081 | GUIDE BODY 12 PIST.D.12 |
| 052 | 5.008.0157 | FIBER HEAD ED 99 TS |
