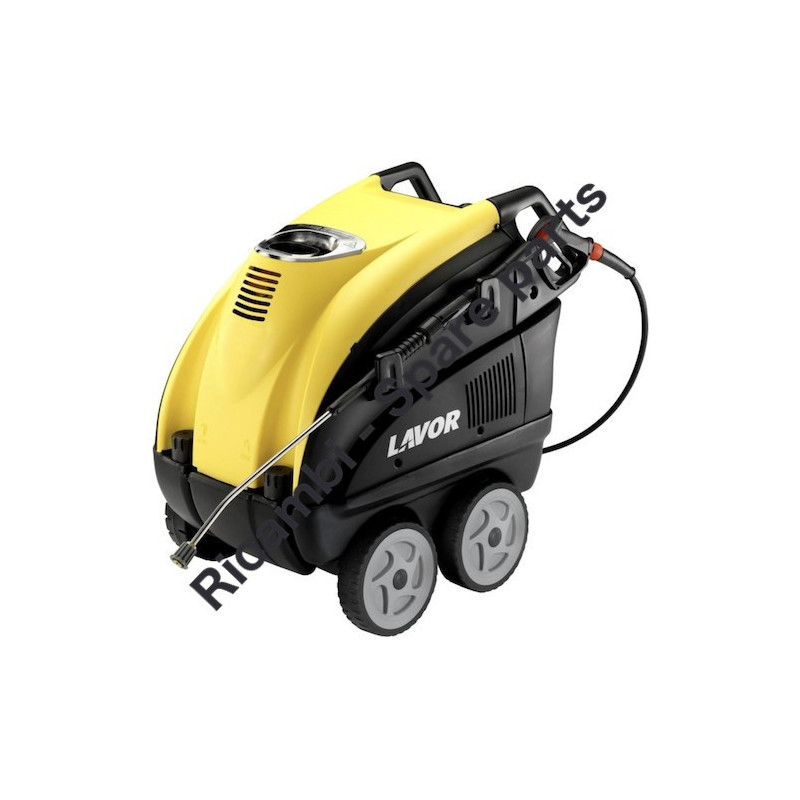

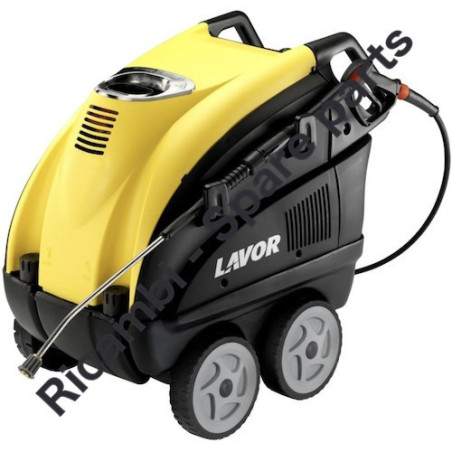

Lavor Pressure Cleaner LKX 2015LPT Parts
€53.25
Tax included
Lavor Pressure Cleaner LKX 2015LPT Parts
Fix Your Hot Water High Pressure Cleaner LKX 2015LP T 400/50(COLL.220/50)-GR-C/VASCH+LANCIA A/B-LAVOR. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Pressure Cleaner LKX 2015LPT Parts
Fix Your Hot Water High Pressure Cleaner LKX 2015LP T 400/50(COLL.220/50)-GR-C/VASCH+LANCIA A/B-LAVOR. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
In the following tables, look for the spare part and its respective code.
| LKX 2015LPT- 8.621.2991 | ||
| Pag.1 | ||
| # | Part Num | Description |
| 0 | 8.621.X175 | LKX4 2015LP 400/50 (COLL. 220/50) TS (CL 3.5) R.A.C. W/BDF TANK |
| 1 | 5.611.0285 | LEF SIDE PANEL NPX-LKX-BLACK-W/HOOKS W/BUFFER-PROF. WORKING |
| 2 | 4.613.0182 | REAR FAIRING NPX-LKX'04-BLACK- |
| 3 | 4.608.0184 | COVER CAP FOR WINDOW REGULATOR SEAT NPX'04 BLACK |
| 4 | 4.607.0726 | STAINLESS STEEL CHIMNEY PROTECTION PLATE NPX/LKX |
| 5 | 4.613.0289 | TOP FAIRING NPX-LKX04-GR-RAL 7046 |
| 6 | 4.608.0082 | FUEL TANK CAP-CHEM-N- |
| 7 | 3.200.0038 | SEAL OR 53.65X2.62 REF. 3212 |
| 8 | 5.611.0286 | RH SIDE PANEL NPX-LKX-BLACK-W/HOOK WITH BUFFER-PROF. WORKING |
| 10 | 7.700.0596 | MANUAL LKX/HYPER L-LR/HLR+CE LAVOR A5 196F 19L |
| 11 | 3.700.0030 | AL55 GUN 350BAR 45L/MIN 160GR+SW8 3/8M+S7+M22 (30129100) |
| 12 | 4.618.0143 | HOSE 5/16 R1 - 315 bar (31.5 MPa) 10M W/QUICK CONNECTOR 1/2 GIR-3/8 |
| 13 | 3.701.0015 | STAINLESS STEEL LANCE L.700 COATED+RED+QUICK CONNECTOR M22 41102850 |
| 14 | 5.611.0078 | PLASTIC SUCTION HOSE HOLDER KIT 3/4 D.19 |
| 15 | 3.103.0050 | NOZZLE A.P. 1/8M 15045 |
| LKX4 2015LP 400/50(COLL.220/50)TS(CL3.5)R.A.C/VASCH.BDF Pag.2 | ||
| 0 | 5.611.0169 | BOILER EXTERNAL COVER FOR DRILLED CONE BAND |
| 0 | 5.609.0232 | LKX4 TANK ASSEMBLY WITHOUT FILTER + TUBES FOR LW18 THERMOSTAT |
| 0 | 5.609.0128 | LKX/NPX'04 THERMOSTAT BULB BODY ASSEMBLY WITH CONNECTOR OUTLET, ZNT BRASS |
| 0 | 5.601.0794 | MTP THERMOSTAT 400/50 4P HP7.5 LH TS WITHOUT INLET FOR HOT (CL3.5) |
| 0 | 5.611.0192 | COMPLETE BURNER FLANGE 1.50-45B (RILSAN) WITH PRE-PRECED FLAME CONTROL |
| 0 | 5.611.0293 | ELECTRICAL SYSTEM ASSEMBLY, TS2 KN12 BOARD 230V RELAY 17-25 |
| 1 | 5.609.0344 | ACCESS TRANSFORMER 220-240V 50/60Hz C/PIPET.NPX-LKX+CABLE(POWER) |
| 2 | 4.608.0271 | ISOL.GASKET FOR PROF.H.T. TRANSFER |
| 3 | 5.611.0192 | COMPLETE BURN FLANGE 1.50-45B(RILSAN)C/PREAD.CONTR.FLAME |
| 4 | 3.099.0719 | HEIGHT BAND/330/G8 BOILER COVER FIXING'04 |
| 5 | 5.611.0169 | BOILER EXTERNAL COVER FOR PERFORATED CONE BAND |
| 6 | 5.613.0028 | COP.INT.CAM.COMB.CHIMN O L=120 |
| 7 | 4.604.0003 | LOW COIL H.415 L=30MT |
| 8 | 5.613.0396 | BOILER BODY LKX'04 MOTOR CL4 PUMP |
| 9 | 3.099.0028 | FAN 146X72 LEFT. HOLE DM 12.7 |
| 10 | 3.300.0003 | BURNER MOTOR 100W/230-240/50HZ C80 IP55 |
| 11 | 6.605.0173 | PLASTIC JOINT KIT FOR DIESEL PUMP (3 PCS.) |
| 12 | 3.100.0075 | M 1/8 CONICAL FEMALE D.4 CURVED CONNECTOR |
| 13 | 4.606.0088 | 1/4 G M D.7 HOSE HOLDER |
| 14 | 3.551.0063 | DUAL-PIPE DIESEL PUMP RH 24V 50/60HZ |
| 15 | 5.611.0067 | TEKNA'95-LKX FUEL FILTER (NYLON) |
| 16 | 4.608.0536 | VERMICULITE PANEL THICKNESS 20MM DIAM. 290MM 2 HOLES |
| 17 | 4.607.0006 | COOLER FASTENING BAND 15/10 STAINLESS STEEL SHEET METAL |
| 18 | 4.608.0162 | INSULATING CORD FOR BOILER BASE L=975 |
| 19 | 5.613.0116 | JOLLY 5/LKX BOILER BASE - PAINTED |
| 20 | 3.403.0078 | FUEL LEVEL GAUGE L=185 WITH CABLE L=1320 WITH FASTON |
| 21 | 4.608.0073 | SHORT SPACER FOR JOLLY 4/93 TANK |
| 22 | 6.605.0168 | WHEEL KIT 30060155 + STUD + LOCK COLUMBIA - HYPER C - HYPER L |
| 23 | 5.613.0402 | FRONT AXLE NPX/LKX |
| 24 | 5.613.0403 | NPX/LKX REAR AXLE |
| 25 | 4.608.0203 | NPX4/LKX4 DIESEL/DETERGENT TANK |
| 26 | 4.008.0031 | WATER FILTER D.16 CONICAL |
| 27 | 4.006.0088 | SUMPTION CONNECTOR ADAPTER L=26 M22-3/4G |
| 28 | 4.606.0019 | SUMPTION CONNECTOR L=60 M22-3/8G |
| 29 | 4.618.0043 | HOSE R1 3/8 L=375 C.1/2F. 90' ROTARY SHAFT / C.3/8F. 90' ROTARY SHAFT |
| 30 | 4.608.0448 | LONG SPACER FOR JOLLY TANK 4/93 MM 57.5 |
| 31 | 4.608.0448 | LONG SPACER FOR JOLLY TANK 4/93 MM 57.5 |
| 32 | 4.606.0013 | SPECIFIC 1/2" OT COIL FIXING NUT |
| 33 | 3.004.0015 | FLAT WASHER D.22X39 TH.3 ZNT UNI6592 |
| 34 | 5.609.0023 | FAN PROTECTION GRILLE ASSEMBLY |
| 35 | 4.606.0136 | INLET CONNECTOR WITH DET. SUCTION 3/8-1/2 G - 3/4 G |
| 36 | 4.606.0182 | DIAMETER REDUCING BUSHING FOR DET. SUCTION |
| 37 | 4.618.0210 | R1 250 BAR HOSE L=600 W/CONNECTOR 1/2-3/8 F 90 GROUP (OFFSET CONNECTOR 60 GROUP) |
| 38 | 5.609.0128 | THERMAL BULB BODY ASSEMBLY LKX/NPX'04 CONNECTOR OUTLET RAPID BRASS GALVANIZED |
| 39 | 4.618.0126 | R1 B.P. HOSE L=400 CONNECTOR 3/8 M - ELBOW (R.A. MOTOR - LKX INLET) |
| 40 | 4.618.0138 | B.P. HOSE L=810 INLET - HOT STATION MOTOR |
| 41 | 6.605.0223 | HOSE RETAINING KIT FOR R.A. MOTOR (46080480/482) |
| 42 | 3.403.0003 | THERMAL PROTECTOR L01.080.05. UL CABLES L=1200 |
| 43 | 3.704.0009 | PS2 PRESSURE SWITCH 1/4 M 25 BAR RED |
| 44 | 4.608.0071 | DASHBOARD CABLE GLAND COVER '93 |
| 45 | 4.612.0032 | CABLE POWER SUPPLY H05VV-F 4X2.5 L=6700 |
| 46 | 4.608.0199 | SHIM BUSHING FOR NEW HANDLES, PROF. |
| 47 | 4.608.0170 | LEFT HANDLE NPX'04-GR-RAL.7021 |
| 48 | 4.608.0191 | DASHBOARD FRAME NPX'04 BLACK |
| 49 | 4.608.0169 | RIGHT HANDLE NPX'04-GR-RAL.7021 |
| 50 | 5.613.0192 | DASHBOARD/HANDLE SUPPORT NPX/LKX'04 |
| COP.EST.CALDAIA X FASCIA CONO FORATO Pag.3 | ||
| 1 | 5.613.0200 | EXTERNAL COVER FOR BOILER '04 |
| 2 | 5.610.0105 | DEFLECTOR WITH CONE D.82 W/HOLES |
| ASSIEME VASCHETTA LKX4 S/FILTRO+TUBI X R.A.LW18 Pag.4 | ||
| 1 | 4.608.0231 | TRAY COVER LWS FOR PROF. |
| 2 | 3.749.0493 | FLOAT TAP 3/4 M (FOR TEKNA) |
| 3 | 4.608.0230 | LWS TANK FOR PROFESSIONAL (3 LT) |
| 4 | 3.099.1320 | 20-32 SCREW CLAMP |
| 5 | 4.618.0104 | HOSE L.P.L.=390 3/4 90GR ID. 19 TANK/PUMP |
| 6 | 4.506.0063 | WASHER 3/4 FOR OR 4112 |
| 7 | 3.200.0124 | SEAL OR 4112 ID=28.17 ID. SECTION=3.53 |
| 8 | 4.607.0325 | TANK SUPPORT BRACKET LKX4 |
| ASS.CORPO BULBO TERMOST.LKX/NPX'04 USC.INN.RAP.OTTONE ZNT Pag.5 | ||
| 1 | 4.606.0087 | THERMOSTAT BULB BODY PROFESSIONAL |
| 2 | 3.004.0004 | ALUMINUM WASHER 21X30XTHICKNESS 1.5 |
| 3 | 3.100.0020 | NIPPLE 1/2G-3/8G |
| 4 | 5.613.0191 | THERMOSTAT BULB SUPPORT/STARTER NPX/LKX'04 |
| 5 | 3.100.0018 | QUICK CONNECTOR 3/8M-1/2M 08 ZNT |
| MTP.R.A.400/50 4P HP7,5 SX TS S/IN X CALDO(CL3.5) Pag.6 | ||
| 0 | 5.705.0002 | CL3.5 200/15 1450 LH D.18CERT.W/IN.W/TS-OUT.3/8 (HOT) |
| 0 | 5.606.0104 | LW MOTOR R.A.400/50 D152X135 LAVOR LINEA |
| 1 | 5.606.0104 | LW MOTOR R.A.400/50 D152X135 LAVOR LINEA |
| 2 | 4.605.0070 | M22 CABLE GLAND FOR R.A. MOTOR |
| 3 | 4.605.0071 | FRONT FLANGE MOTOR D152 FOR PUMP D.90 MACHINED (ORANGE1) |
| 4 | 5.705.0002 | CL3.5 200/15 1450 LH D.18 CER. S/IN. W/TS-OUT.3/8 (HOT) |
| FLANGIA BRUC.COMPL.1,50-45B(RILSAN)C/PRED.CONTR.FIAMMA Pag.7 | ||
| 1 | 4.614.0004 | PAIR OF PROFESSIONAL ELECTRODES WITH BRACKET |
| 2 | 3.100.0075 | M 1/8 TAPERED FEMALE D.4 CURVED CONNECTOR |
| 3 | 3.555.1098 | ZJ TYPE SEEGER D22 |
| 4 | 3.555.1099 | TP FLAME CENTRE D.21.75X2 (GLASS) |
| 5 | 4.605.0223 | STANDARD BURNER FLANGE |
| 6 | 3.104.0027 | FUEL NOZZLE 1.50 45/B |
| ASS.IMP.ELETTR.SCHEDA TS2 KN12 230V RELE' 17-25 Pag.8 | ||
| 0 | 5.611.0155 | LKX4-T4 DASHBOARD ASSEMBLY FOR TS2 (TAMP.-EN-) |
| 1 | 3.403.0171 | TS2 TOTAL STOP CARD |
| 2 | 3.402.0053 | KN22 RELAY SWITCH 230/50HZ 4 KW AC3 |
| 3 | 4.607.0230 | DIN RAIL FOR BOX ELECTRIC L=50 |
| 4 | 3.402.0046 | THERMAL RELAY KNR1-D1322 17-25A |
| 5 | 3.403.0172 | LED BOARD TS2 |
| 6 | 4.608.0168 | ELECTRIC BOX NPX4/LKX4/TEKNA4 |
| CL3.5 200/15 1450 SX D.18CER.S/IN.C/TS-USC.3/8(X CALDO) Pag.9 | ||
| 0 | 5.008.0365 | BRASS HEAD LWS 1808 WITHOUT INLET 3/8 OUTLET WITHOUT TS (HOT) |
| 0 | 5.609.0399 | PUMP KIT CL3.5 D.18CER 1450RPM 15LT WITHOUT OIL AND SOCKETS |
| 1 | 5.008.0365 | BRASS HEAD LWS 1808 WITHOUT INLET 3/8 OUTLET C/TS (HOT) |
| 2 | 6.605.0259 | PUMP CRANKCASE KIT CL3.5 D.18CER. 1450RPM 15L |
| MOTORE LW R.A.400/50 D152X135 LAVOR LINEA Pag.10 | ||
| 1 | 5.602.0044 | HOUSING R.A. 400/50 4P D152 H135 |
| 2 | 3.099.0805 | COMPENSATION RING 61X51X0.4 H.3.5-62D- |
| 3 | 3.001.0066 | BALL RADIAL BEARING 6305 2RS (25X62X17) (KBC) FOR ELECTRIC MOTOR |
| 4 | 5.605.0055 | ROTARY SHAFT 90X135 R.A. LINEAR WASHER |
| TESTATA OTT.LWS 1808 S/IN. USC.3/8 C/TS (X CALDO) Pag.11 | ||
| 1 | 6.005.0120 | PRESSURE REGULATOR KIT TESTED OCT. '99 |
| 2 | 6.005.0289 | LW BYPASS REPAIR KIT 264 TS LINE WASHER |
| 3 | 6.605.0123 | KIT OF 3 PUMP BUSHINGS 1808 |
| 4 | 6.005.0305 | LW WATER SEAL KIT 277 LWS1808 |
| 5 | 6.005.0571 | MICRO SWITCH KIT 2 WIRES + SCREWS (GREY MICRO) |
| 6 | 6.005.0631 | VALVE GUIDE KIT - CHECK VALVE S/S INLET (LWS18) |
| 7 | 4.607.0311 | CHECK VALVE SPRING LAVOR 18 |
| 8 | 5.609.0143 | CHECK VALVE ASSEMBLY WITH O-RING |
| 9 | 4.606.0223 | HEAD LAVOR LINE 1808 |
| 10 | 4.606.0160 | T.E. CAP 1/2 GAS |
| 11 | 6.005.0578 | KIT OF 6 AUTO SUCTION VALVES (OR COMP.) TESTED OCT. '99 |
| 12 | 5.009.0101 | INLET/DELIVERY VALVE CAP WITH O-RING MOUNTED |
| 13 | 5.609.0064 | ASSEMBLY OF VALVE CAP, INLET, DISCHARGE, CAPILLARY VALVE + O-RING |
| 14 | 3.100.0025 | ELBOW CONNECTOR 1/8 M-1/8 F |
| 15 | 3.714.0071 | SAFETY VALVE VLP 100-250 BAR - 12-17 L/MIN 110 GPM 1/8 M |
| KIT GR.POMPA CL3.5 D.18CER.1450RPM 15LT S/OLIO E S/BUSSOLE Pag.12 | ||
| 1 | 4.605.0096 | BEARING COVER |
| 2 | 3.200.0219 | OR SEAL 44.04X3.53 NBR SH.70 |
| 3 | 3.001.0096 | BALL BEARING 6305 (25X62X17) - NSK- |
| 4 | 4.606.0161 | TEE CAP 3/8 GAS |
| 5 | 4.605.0171C | CL4-18 IN-LINE PUMP CASE, MACHINED FOR CERAMIC PISTONS |
| 6 | 6.605.0258 | KIT OF 3 CERAMIC PISTONS FOR CL3.5-18 PUMP |
| 7 | 4.607.0826 | PIN FOR PISTON GUIDE PIN FOR CL4-15 PUMP |
| 8 | 4.605.0156C | ALUMINUM CONNECTING ROD FOR CL4-15 PUMP |
| 9 | 3.200.0249 | SEAL OR 98.02X3.53 NBR SH.70 |
| 10 | 4.605.0174C | REAR COVER FOR CL4 PUMP CASE WITH OR SEAT |
| 11 | 3.099.1480 | TP CRCO OIL FW3 |
| 12 | 4.607.0533 | IN-LINE PUMP SHAFT C=14.4 MACHINED X 1808 |
| 13 | 3.001.0097 | RAD. BALL BEARING 6304 (20X52X15) HIGH QUALITY - NSK |
| 14 | 6.605.0113 | KIT OF 5 SEEGER RINGS D.25 FOR SHAFTS |
| 15 | 6.605.0114 | KIT OF 3 SEEGER RINGS D.62 |
| 16 | 3.201.0058 | SEAL RING D.25X62X10 DIN AS |
| 17 | 6.005.0306 | KIT 278 LW OIL SEALS + OR LWS1508/1808 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
