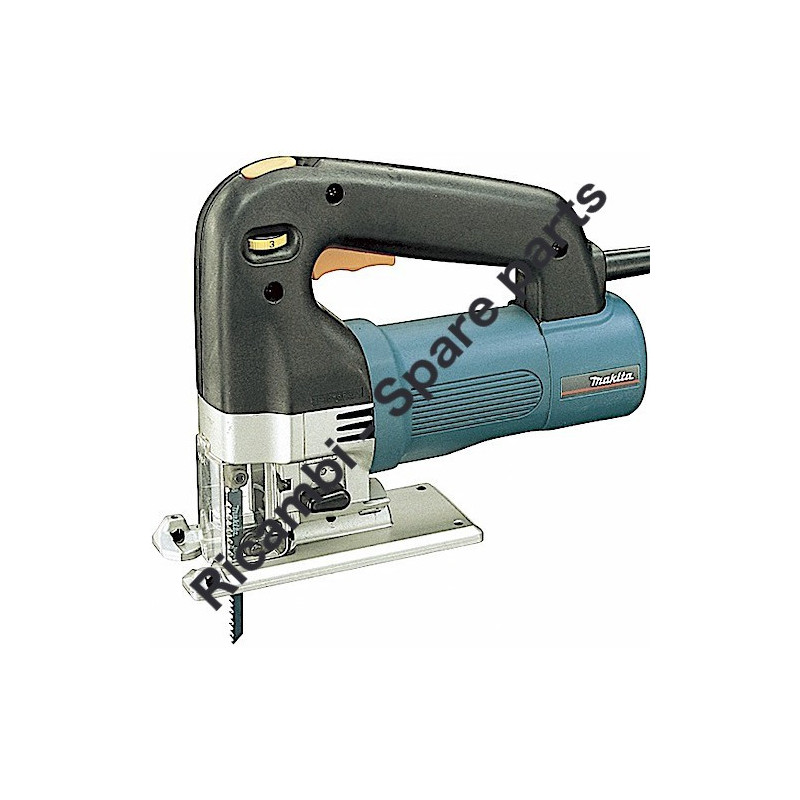

Makita Jigsaw 4304 Spare Parts
€32.81
Tax included
Makita Jigsaw 4304 Spare Parts
We have the original Makita Spare Parts for Jigsaw 4304, the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Jigsaw 4304. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Jigsaw 4304 Spare Parts
Fix Your Jigsaw 4304. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Jigsaw and the respective parts of the code.
| MAKITA 4304 - JIG SAW PARTS Pag.1 | ||
| # | Part Num. | Description |
| 1 | 651922-3 | SWITCH TG71B PC5000/5001C/KP0 |
| 2 | 182680-5 | HANDLE SET 4304/4306 |
| 3 | 265995-6 | *TAPPING SCREW 4X18 |
| 5 | 682502-4 | CORD GUARD 8-85 3707/N1923B |
| 6 | 687124-5 | STRAIN RELIEF UH4570/55/5580/ |
| 7 | 265995-6 | TAPPING SCREW 4X18 |
| 8 | 645253-0 | *CAPACITOR 0.22UF 4304T |
| 9 | 256221-4 | PIN 3 DST111/DST112/JR3020 |
| 10 | 415158-6 | SWITCH LEVER JR3020/4304 |
| 11 | 415159-4 | SPACER 8406C/4304/PP200 |
| 12 | 233101-1 | COMPRESSON SPRING 4 4304/DUX60 |
| 13 | 415534-4 | LOCK-ON LEVER 4304 |
| 14 | 631678-4 | *CONTROLLER 4304/4305 240V |
| 15 | 265995-6 | *TAPPING SCREW 4X18 |
| 16 | 266034-5 | CT SCREW M4X16 HS6100/DLS714 |
| 17 | 153389-6 | *GEAR HOUSING COVER COMP 4304/ + CT43-1 |
| 18 | 316608-3 | HOLDER 4304/4305/4331D/4333D |
| 19 | 310028-3 | SLIDER 4304/4305/T/4331D/4333D |
| 20 | 265035-0 | COUNTERSUNK HEAD SCREW M4X10 |
| 21 | 344232-2 | THRUST PLATE 4304/4305/4331D |
| 22 | 212010-7 | NEEDLE BEARING 607 4304T/43BA |
| 23 | 152454-8 | CRANK COMP 4331D/4304/4305/T |
| 24 | 253792-2 | BLUE NARROW WASHER 26 4304 |
| 25 | 344330-2 | *BALANCE PLATE 4304/4305 + CT43-1 |
| 26 | 344330-2 | *BALANCE PLATE 4304/4305 + CT43-1 |
| 27 | 344134-2 | PUSH PLATE 4304/4334D/4331D |
| 28 | 253792-2 | BLUE NARROW WASHER 26 4304 |
| 29 | 212043-2 | NEEDLE BEARING 810 4305/9920 |
| 30 | 226428-6 | HELICAL GEAR 51 4304/4305/4331 |
| 31 | 212043-2 | NEEDLE BEARING 810 4305/9920 |
| 32 | 253139-0 | THIN WASHER 8 LC1230/TW0350 |
| 33 | 322691-0 | GEAR SHAFT 4304/4305/4334D |
| 34 | 211021-9 | BALL BEARING HP1631/607LLB/43 |
| 35 | 681636-0 | INSULATION WASHER MT814/815 |
| 37 | 240039-3 | FAN 54 4334D/4304/4305 |
| 38 | 210005-4 | BALL BEARING 608LLB(/608VV) 6 |
| 39 | 911111-5 | PAN HEAD SCREW M4X10 BO3710/1 |
| 40 | 253715-0 | HARD WASHER 6 EA3500/3501 |
| 41 | 253811-4 | WASHER 5 5012B |
| 42 | 961011-9 | STOP RING E4 |
| 43 | 253715-0 | HARD WASHER 6 EA3500/3501 |
| 44 | 151594-9 | GEAR HOUSING COMPL. 4304/4305 + CT43-1 |
| 45 | 265995-6 | PT SCREW 4X20 TRILOBULAR 6833 |
| 46 | 442123-2 | *PACKING 4304/4305 + CT43-1 |
| 47 | 961004-6 | EXT DIN CIRCLIP-8 HM1317C/CB |
| 48 | 911526-6 | CAP HD SCREW M4X16 EN4951 |
| 49 | 231314-8 | *COMPRESSION SPRING 4 |
| 50 | 961017-7 | EXT E-RING JIS JE-3 BPJ140/81 |
| 51 | 256693-3 | PIN 4 4304/4305/4333D/4334D |
| 52 | 266066-2 | PT SCREW 4X55 4306/6826/27 |
| 53 | 152947-5 | *RETAINER COMP 4304/4305/4334D |
| 54 | 266048-4 | PT SCREW 4X35 VC3211M/BSS501 |
| 56 | 165089-6 | ROD 4304/4305/4331D/4333D |
| 57 | 265894-2 | *CUP POINT GRUB SCRW M6X8 |
| 58 | 344137-6 | SLIDE PLATE 4304/4305/4331D |
| 59 | 272231-3 | LEVER 17 4304/4305/4331D |
| 60 | 231314-8 | *COMPRESSION SPRING 4 |
| 61 | 216008-6 | STEEL BALL 4 5008MB/JV101D |
| 62 | 961018-5 | EXT E-RING JIS JE-5 DLS714 |
| 63 | 263002-9 | RUBBER PIN 4 GA7050/9050/5021 |
| 64 | 316883-1 | *BASE 4304/4305 + CT46-1 |
| 65 | 331435-7 | CLAMP PLATE 4304/4305/4331D |
| 66 | 922146-1 | *CAP HD SCREW M4X25 |
| 67 | 344443-9 | *BASE PLATE 4304/4305 |
| 68 | 415535-2 | BAFFLE PLATE 4304/4305 |
| 69 | 633288-3 | FIELD 240V 4304/4305 |
| 70 | 266055-7 | *COUNTERSUNK SCREW M5X8 |
| 71 | 415748-5 | MOTOR HOUSING |
| 72 | 191962-4 | CARBON BRUSH CB-419 SET HP164 |
| 73 | 643923-5 | BRUSH HOLDER UH4860/4304/4305 |
| 75 | 415532-8 | REAR COVER 4304/4306 |
| 76 | 266050-7 | PT SCREW 4X30 BUC121/122 |
| 78 | 415538-6 | CAP 4304 |
| 79 | 266052-3 | PT SCREW 4X60 TRILOBULAR HR24 |
| 80 | 421494-0 | RUBBER RING 19 4305/T/3707/HP |
| 81 | 443106-5 | SAFETY WIRE 4304/T/4305/4331D |
| 82 | 344784-3 | SEAL PLATE 4304/4305/4331D + CT43-1 |
| 83 | 268074-9 | FELT 4304/4305/4331D |
| 84 | 152950-6 | ROLLER CPL X 4304 |
| 85 | 253310-6 | WASHER 10 56DW/HR3850B |
| 86 | 421821-1 | DUST SEAL 8 |
| EXTRA ACCESSORIES Pag.2 | ||
| 501 | 783201-2 | HEX WRENCH 3 |
| 502 | 410048-8 | |
| 503 | 415524-7 | ANTI-SPLINTERING DEVICE 4304/4 |
| 504 | 415525-5 | PLASTIC COVER |
| 505 | 415887-1 | PROTECTOR 4304T/4306/4331D |
| 506 | 792522-1 | JIG SAW BLADE B-22 |
| 507 | A-85737 | JIGSAW BLADE B22 (5PK) 4301BV |
| 508 | 792538-6 | JIG SAW BLADE B-10 |
| 509 | A-85628 | JIGSAW BLADE B10 (5PK) 4301BV |
| 510 | A-02294 | JIG SAW BLADE BR-13 |
| 511 | A-85793 | JIGSAW BLADE BR13 4301BV PK5 |
| 512 | 413068-1 | BASE PLATE 4304/4305/4304T/06 |
| 513 | 415537-8 | BASE PLATE |
| 514 | 824536-3 | PLASTIC CARRYING CASE |
| 515 | 824662-8 | PLASTIC CARRYING CASE |
| 516 | 824809-4 | PLASTIC CARRYING CASE |
| 517 | 655030-2 | |
| 518 | 654091-9 | NON INSULATED TERMINAL GD0801 |
| 519 | 654128-2 | EARTH TERMINAL 9520NB/952/682 |
| 520 | 646067-0 | CHOKE COIL CH9-5 4304 |
| 521 | 192547-9 | VACUUM HEAD |
| 522 | 033909-1 | MARKING TAPE (1PC= 1M) |
| 523 | 654556-1 | CONNECTOR 4304T/HP2032/HP1641 |
