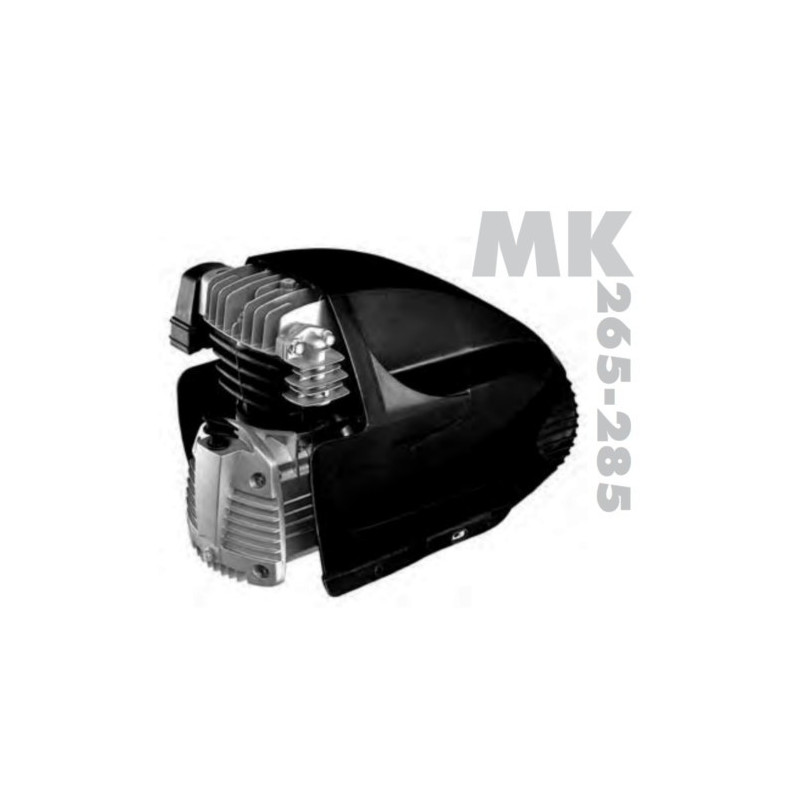

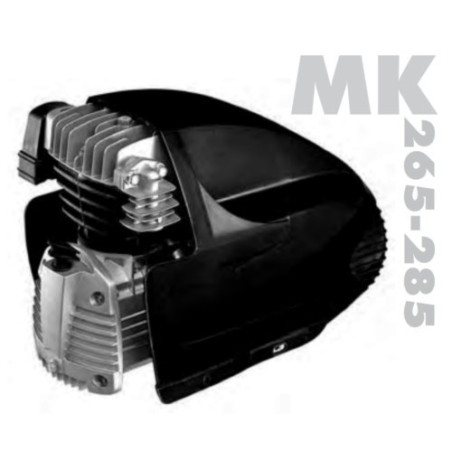

Lubrificated Coaxial Pumping Unit Fini MK 265-285 M

Lubrificated Coaxial Pumping Unit Fini MK 265-285 M

- Compressor pumps with coaxial direact drive from 1.1 to 2.2 kW.
- Self-lubricated, non-toxic and approved materials guarantee
   the use of these compressors even in the medical and dental field.
- Unique compressor/motor crankshaft.
- Maximum mechanical yield.
- No transmission elements.
- High-ef ficiency conveyed ventilation.
- High yield lamellar valves.
- Front and additional ventilation for maximum durability.
- Anti-corrosion sur face treatment.

- For Air Compressors
- Shuttle 265M
- Pioneer/l 265M
- Big Pioneer/l 285M
- Tiger/l 265M
- Tiger/l 285M
- Super Tiger /l 265M
- Super Tiger /l 285M

Tecnical Features: MK 265 - 2M

Code	Name	Poles	Volt/Ph	kw	Hp	l/min.
41P0010SGL	MK 265 - 2M	2	230/1	1,5	2	250
m3/h	c.f.m.	bar	p.s.i	R.P.M	Kg	Lbs
15	8,8	10	145	2850	13,3	29,3

Tecnical Features: MK 285 - 2,5M

Codice	Nome	Poli	Volt/Ph	kw	Hp	l/min.
41P0012SGL	MK 285 - 2,5M	2	230/1	1,8	2,5	260
m3/h	c.f.m.	bar	p.s.i	R.P.M	Kg	Lbs
15,6	9,2	10	145	2850	14,5	31,9

Delivery times 7 working days.
