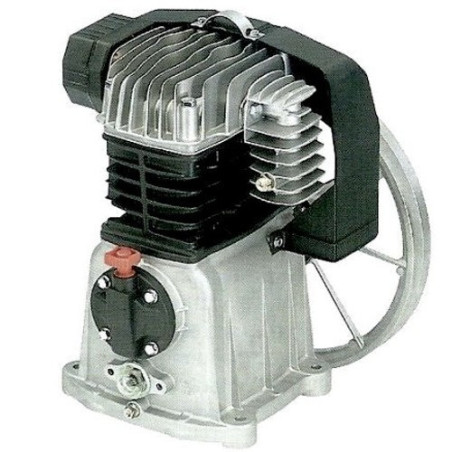

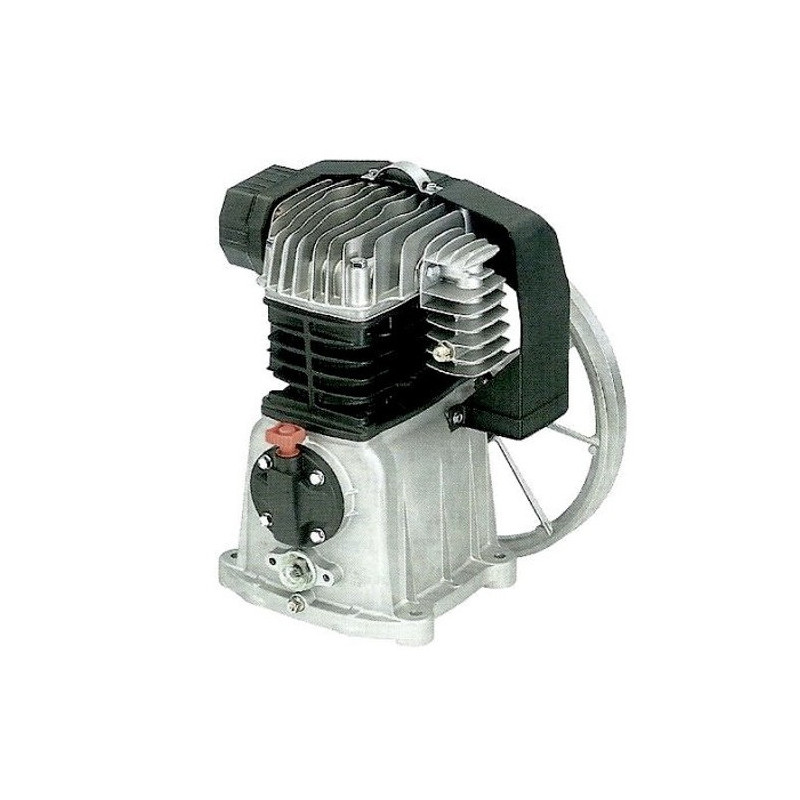

Pumping unit for air compressors Mod MK102/100 Lt

Pumping unit for air compressors Mod MK102/100 Lt

Pumping unit for air compressors Fini/Dari/Fiac 100 Lt lubricated single-stage belt drive.
- System-head with large ciindro fins for heat dissipation
- Ductile iron crankshaft carefully equiibrato for improved stability
- Stainless steel valves with high flow of air
- Conveyor ventilation
- Flywheel with high air flow to concentrated flow
- Suction filter equipped with high-yield maze to the decrease in noise level
- Suitable for both single-phase motors (220V) and three phase (400V)
- Splash lubrication, forced ventilation
- Die-cast aluminum valve plate
- Ciindro monobloccoin iron
- Manifold for refrigeration del'aria final input to the tank
- Single stage 2 HP Model
Technical data:
- MK 102 Code: 5131690510
- For engines: 1.5 / 2 Hp
- Step Air: 235 L / min.
- Max Bar: 10 / 145 P.S.I
- RPM: 1040 RPM
- Noise: 76 dB
- Dimensions WxDxH (cm): 27x26x28
- Engine Weight: kg 7.3 to 16 Lbs
- Pack Weight: kg 8.5 to 18.9 Lbs
