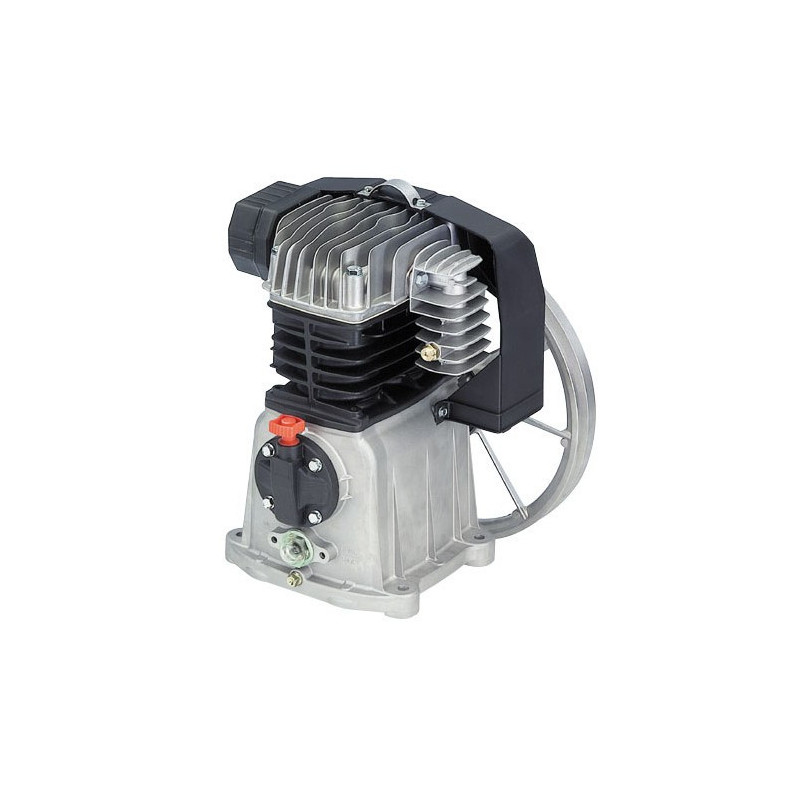

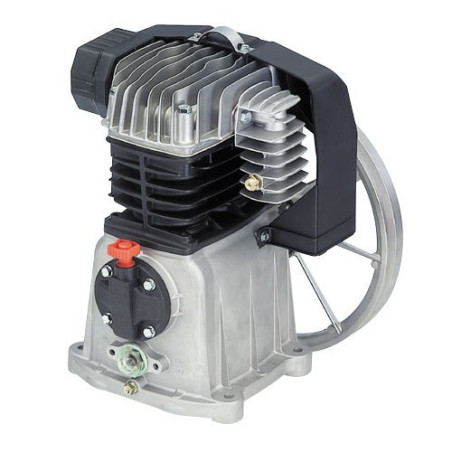

Pumping Unit for Air Compressors Mod MK113/200-270 Lt

Pumping Unit for Air Compressors Mod MK113/200-270 Lt

Pump unit for Air compressor Fini/Dari/Fiac 200-270 Liters-lubricated, belt drive.
- System-cylinder head with large fins for heat dissipation
- Crank Shaft ductile iron carefully balanced for greater stability
- Valves made of stainless steel with a high flow of air
- Conveyor ventilation
- Flywheel with high flow rate of concentrated air flow
- Suction filter with high yield with labyrinth for the decrease of the sound level
- Suitable for both single phase motors (220V) and three phase (400V)
- Splash lubrication, forced ventilation
- Cast aluminum valve plate
- Ciindro monobloccoin cast
- Final manifold for refrigeration del'aria at tank inlet
- Modelo stage 5.5 HP
Technical data:
- MK 103 Code: 41P0028SGL
- For engines (kW - HP) : 4 / 5,5 Hp
- Air flow: 556 L / Min.
- Max Bar: 10/145 P.S.I
- RPM: 1300 RPM
- Noise level: 76 db
- Dimensions WxDxH (cm): 30x31x37
- Engine Weight: Kg 18,3 to 40,3 Lbs
- Package Weight: Kg 20 to 42 Lbs
