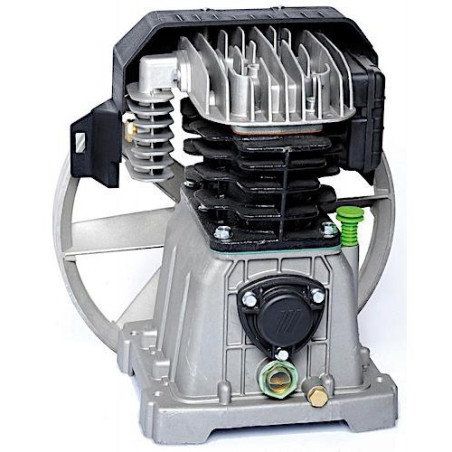

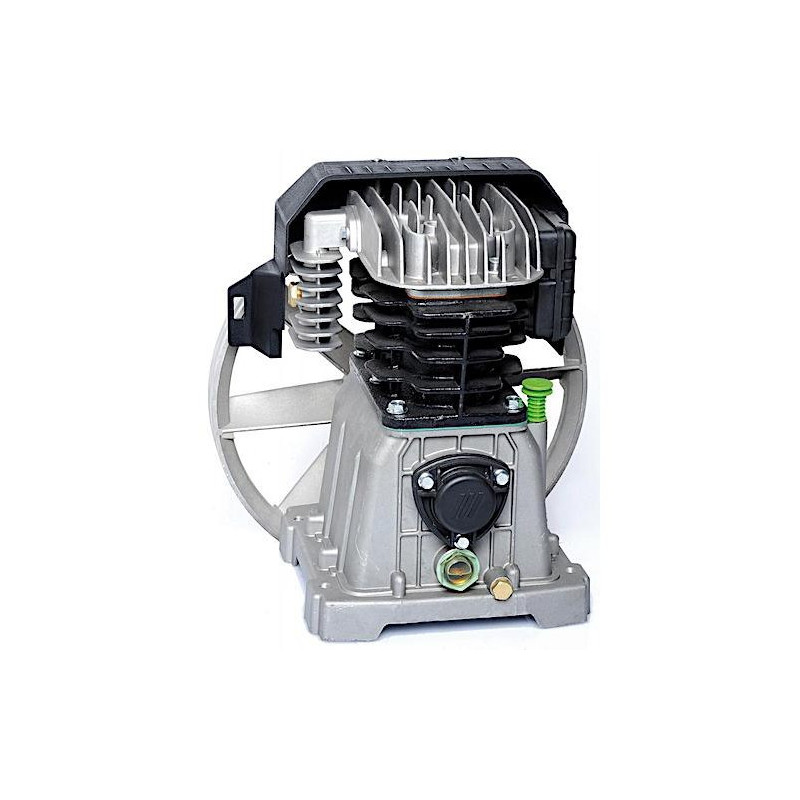

Pumping unit for air compressor Mod. AB 415/515

Pump unit for air compressor Mod. AB 415/515

Pump unit for air compressors Fiac 150/200/300 Liters lubricated single-stage belt drive.

 - System-head with large ciindro fins for heat dissipation
 - Ductile iron crankshaft carefully equiibrato for improved stability
 - Stainless steel valves with high flow of air
 - Conveyor ventilation
 - Flywheel with high air flow to concentrated flow
 - Suction filter equipped with high-yield maze to the decrease in noise level
 - Suitable for both single-phase motors (220V) and three phase (400V)
 - Splash lubrication, forced ventilation
 - Die-cast aluminum valve plate
 - Ciindro monobloccoin iron
 - Manifold for refrigeration del'aria final input to the tank
 - Single stage 4 HP Model

 Technical data:

 - Code AB 415/515 : 1129740082 - 3020041000
-  Cilinders # : 2
 - For engines: 3/4 Hp
 - Step Air: 482 L/min.
 - Max Bar: 10/145 P.S.I
 - RPM: 1470 RPM
 - Noise: 76 dB
 - Pack Weight: kg 12
