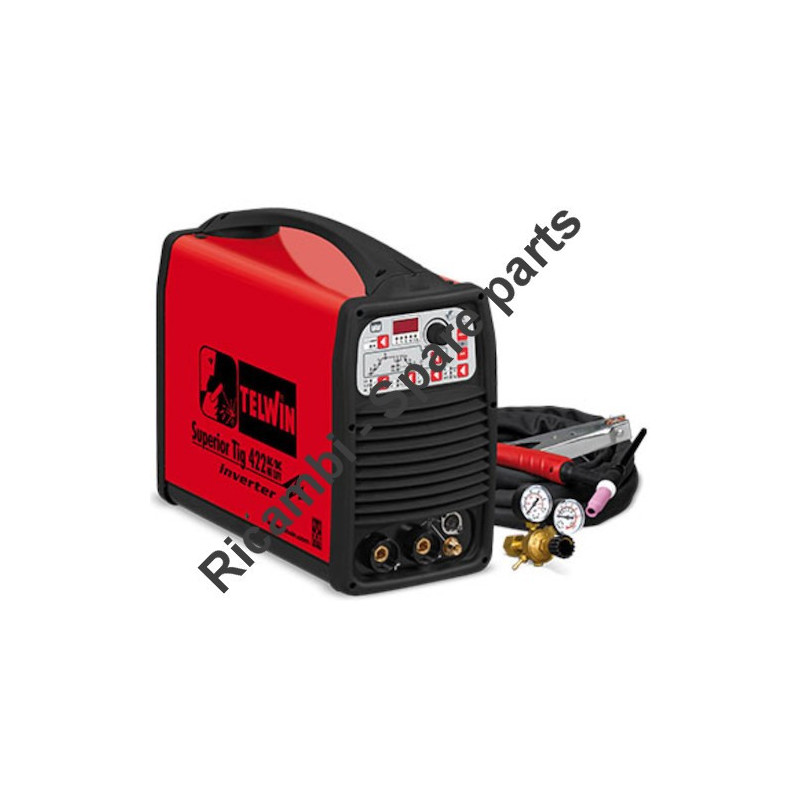

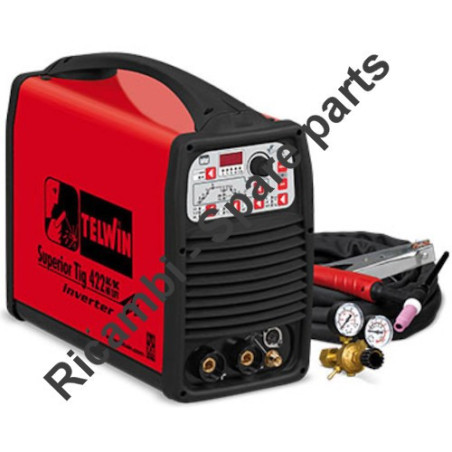

Telwin Parts for Inverter SUPERIOR TIG 422 AC/DC-HF/LIFT 400V+ACC

€4.87
Tax included

Telwin Parts for Inverter SUPERIOR TIG 422 AC/DC-HF/LIFT 400V+ACC

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Inverter Welding SUPERIOR TIG 422 AC/DC-HF/LIFT 400V – 816105

SUPERIOR TIG 422 AC/DC – 816105
ITEM CODE: 111092
Quantity
on 10 Business Days Approx

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Telwin Parts for Inverter SUPERIOR TIG 422 AC/DC-HF/LIFT 400V+ACC

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Inverter Welding SUPERIOR TIG 422 AC/DC-HF/LIFT 400V+ACC – 816105.

In the following table, look for the model of the Welding and the respective parts of the code.
SUPERIOR TIG 422 AC/DC – 816105

SUPERIOR TIG 422 AC/DC-HF/LIFT 400V+ACC – 816105 Pag.1
# Part NUm. Description
0 742427 ST26 TIG TORCH 4 M 220 A
0 712231 TOLEDO 300 CLAMP MASS
0 123467 CABLE 25 MMQ 3 M
0 712040 PLUG DX 50
0 722119 REDUCING PRESSURE GAUGE 2
0 432036 ADAPTOR CYLINDER ARGON IT
1 113233 RELAY '
2 113603 IGBT
3 113870 SENSOR HALL
4 116603 IGBT
5 116740 CAPACITOR
6 111249 DIODE 55A 600V
7 116747 REACTOR
8 116759 RESISTANCE
9 116836 SENSOR HALL
10 121029 SOLENOID
11 121429 THERMOSTAT
12 122017 SWITCH
13 122159 FUSE
14 122437 FUSE
15 122571 THERMOSTAT
16 122713 JACK FOR TORCH
17 124321 WIRING CONTROL
18 124324 WIRING G.R.A.
19 132026 CABLE ALIM. 4G2.5 2 M
20 152000 FAN
21 169411 AUTOTRANSFORMER
22 169550 REACTOR
23 169627 TRANSFORMER
24 314357 FRONT PANEL
25 322881 FRONT
26 322882 RETRO
27 322883 HANDLE
28 323001 FOOT
29 323101 TOGETHER FOR SWITCH KNOB
30 602052 WATER CONNECTION
31 656029 COAT
32 712036 JACK DX 50
45 112828 CAPACITOR
46 112949 PHASE RECTIFIER
47 113603 IGBT
48 113747 DIODE
49 111092 DIODE
50 116967 CAPACITOR
51 116325 DIODE
52 116442 DIODE
53 116465 RESISTANCE
54 116521 IGBT
55 116821 REACTOR
56 116937 TRANSFORMER X booster
57 116940 CAPACITOR
TORCIA PER SUPERIOR TIG 422 AC/DC-HF/LIFT 400V+ACC – 816105 Pag.2
1 802247 KIT 10 CERAMIC NOZZLES NR.8
1 802248 KIT 10 CERAMIC NOZZLES NR.10
1 802245 KIT 10 CERAMIC NOZZLES NR.6
1 802246 KIT 10 CERAMIC NOZZLES NR.7
1 802244 KIT 10 CERAMIC NOZZLES NR.4
2 722248 INSULATION
4 802222 KIT 10 ELETTR.TUNGSTENO CERIUM D.1,6 MM
4 802233 KIT 10 ELETTR.TUNGSTENO CERIUM D.3,2 MM
4 802220 KIT 10 ELETTR.TUNGSTENO CERIUM D.1 MM
4 802235 KIT 10 ELETTR.TUNGSTENO PURE D.1,6 MM
4 802236 KIT 10 ELETTR.TUNGSTENO PURE D.2,4 MM
4 802238 KIT 10 ELETTR.TUNGSTENO PURE D. 4 MM
4 802232 KIT 10 ELETTR.TUNGSTENO CERIUM D.2,4 MM
4 802237 KIT 10 ELETTR.TUNGSTENO PURE D.3,2 MM
5 802241 KIT 3 CLAMP ELECTRODE D.2,4 MM SERRA
5 802240 KIT 3 CLAMP ELECTRODE D.1,6 MM SERRA
5 802239 KIT 3 CLAMP ELECTRODE D.1,0 MM SERRA
5 802243 KIT 3 CLAMP ELECTRODE D.4 MM SERRA
5 802242 KIT 3 CLAMP ELECTRODE D.3,2 MM SERRA
6 722192 HOOD SHORT
7 722193 HOOD LONG
9 981443 KIT CONNECTION 50
12 722999 PLUG 3P
14 452089 CONTACT BUTTON
16 722061 RING OR
17 742042 BUTTON
18 722944 BODY TORCH
19 802250 KIT 3 SPEAKER ELECTRODE D.1,6 MM
19 802251 KIT 3 SPEAKER ELECTRODE D.2,4 MM
19 802253 KIT 3 SPEAKER ELECTRODE D.4 MM
19 802252 KIT 3 SPEAKER ELECTRODE D.3,2 MM
19 802249 KIT 3 SPEAKER ELECTRODE D.1 MM
ACCESSORIES SUPRIOR TIG 422 AC/DC-HF/LIFT 400V+ACC – 816105 Pag.3
0 722119 REDUCING PRESSURE GAUGE 2
0 742427 ST26 TIG TORCH 4 M 220 A
0 712231 TOLEDO 300 CLAMP MASS
0 432036 ADAPTOR CYLINDER ARGON IT
0 123467 CABLE 25 MMQ 3 M
0 712040 PLUG DX 50

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
SUPERIOR TIG 422 AC/DC – 816105
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS APPROX.
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
New

Download

SUPERIOR TIG 422 AC/DC Drawing

SUPERIOR TIG 422 AC/DC Drawing

Download (924.37KB)
