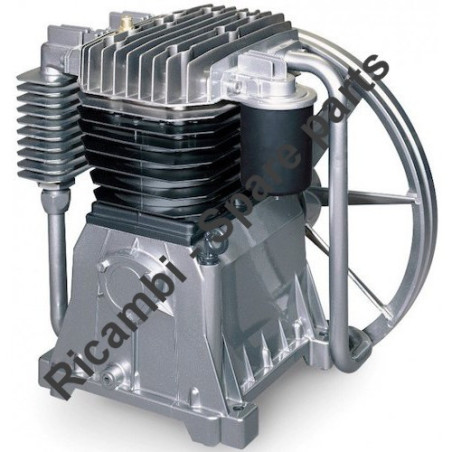

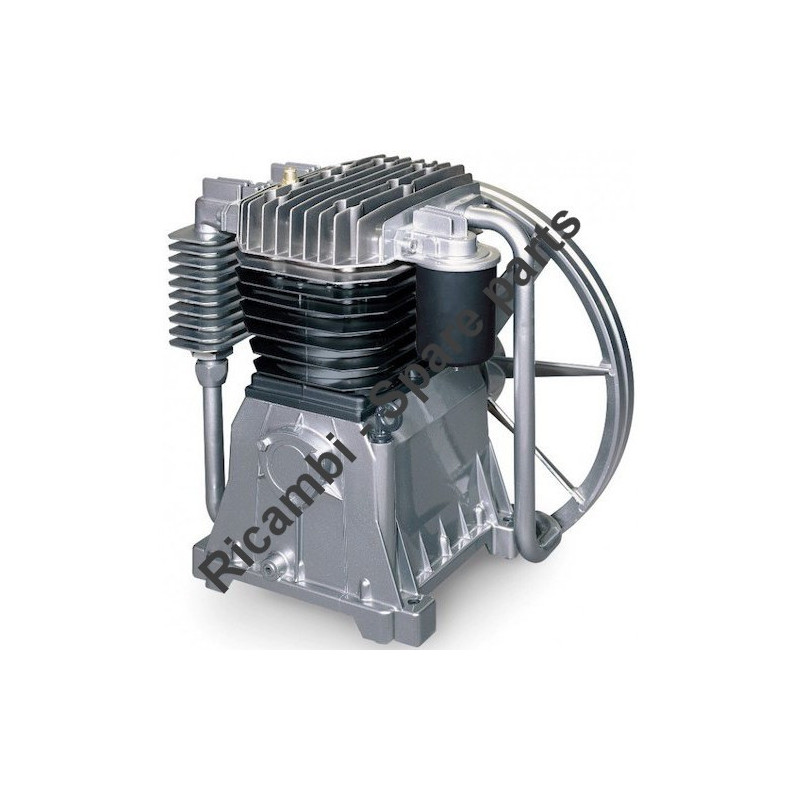

FIAC Spare Parts for Pump Unit AB 550 1123020052
€71.21
Tax included
FIAC Spare Parts for Pump Unit AB 550 1123020052
Genuine Parts FIAC for piston Air Compressors and spare parts for to repair components for Pump Unit AB 550 2001-05-2003 1123020052.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Spare Parts for Pump Unit AB 550 1123020052
Genuine Parts FIAC for piston Air Compressors and spare parts for to repair components for Pump Unit AB 550 2001-05-2003 1123020052.
In the following table, look for the model of the pumping unit and the respective parts code.
| FIAC AB 550 2001-05-2003 1123020052 | ||
| # | Part Num. | Description |
| 1 | 4190190008 | HIGHT PRESSURE CONROD |
| 2 | 4190200008 | LOW PRESSURE CONROD |
| 3 | 7011680000 | SCREW T.E. M8X45 UNI5737 |
| 4 | 7022040000 | SELF-LOCKING NUT M8 DIN980 |
| 5 | 7011220000 | SCREW T.E. M6X40 UNI 5737 |
| 6 | 7022030000 | SELF-LOCKING NUT |
| 7 | 5041030008 | CRANKSHAFT |
| 8 | 7060150000 | BEARING 6206 |
| 9 | 7060060000 | BEARING 6205 |
| 10 | 7071060000 | OIL SEAL SMIM 32X62X10 |
| 11 | 5071020008 | CARTER |
| 12 | 7090090000 | PLUG M1 / 4 - BRASS |
| 13 | 7079160000 | GASKET |
| 14 | 7650070000 | CRACKCASE REAR COVER |
| 15 | 7011460000 | SCREW M6 × 16 |
| 16 | 7181100000 | DIPSTICK |
| 17 | 7650080000 | CRANCKCASE FRONT COVER |
| 18 | 7051520000 | KEY 6X9 |
| 19 | 7079190000 | GASKET |
| 20 | 7650090000 | LOWER COVER |
| 21 | 7011440000 | SCREW M5X18 UNI 8111 |
| 22 | 7079150000 | GASKET |
| 23 | 7575260000 | CYLINDER |
| 24 | 7220110000 | PISTON LOWER PRESSION |
| 25 | 7050120000 | PIN |
| 26 | 7040130000 | RING |
| 27 | 4080100000 | PISTON RING KIT LOWER PRESSION |
| 28 | 4291080000 | PISTON GROUP LOWER PRESSION |
| 29 | 7220120000 | PISTON |
| 30 | 7050130000 | PISTON PIN Ø18 |
| 31 | 7040140000 | SEEGER Ø18 UNI-7437 |
| 32 | 4080080000 | PISTON RING SET HP |
| 33 | 4291090000 | PISTON GROUP HIGH PRESSION |
| 34 | 7079170000 | CYLINDER PLATE GASKET |
| 35 | 4231100000 | VALVE PLATE KIT - EX 4231230000 NEW 1124230123 |
| 36 | 7199100000 | FLAP VALVE |
| 37 | 7160160000 | SPRING |
| 38 | 7458920000 | VALVE GUIDE |
| 39 | 7014140000 | SCREW T.S.C.E. M6X22 UNI5933 |
| 40 | 7022030000 | SELF-LOCKING NUT |
| 41 | 7458930000 | VALVE GUIDE |
| 42 | 4231100000 | VALVE PLATE GROUP - EX 4231230000 NEW 1124230123 |
| 43 | 7079180000 | HEAD PLATE GASKET |
| 44 | 5030530008 | HEAD |
| 45 | 7010430000 | SCREW |
| 46 | 7192350000 | SAFETY VALVE M1 / 4-6BAR |
| 47 | 5130020008 | MANIFOLD |
| 48 | 7015150000 | ROD |
| 49 | 7210240000 | FILTER |
| 50 | 7210250000 | FILTER CASE - DISCONTINUED - BUY 4250020000 |
| 51 | 7031030000 | WASHER Ø6 UNI3703 |
| 52 | 7024150000 | NUT M6 UNI5448 / 71 |
| 53 | 4250020000 | FILTER CASE ASSEMBLY |
| 54 | 7010050000 | SCREW T.C.C.E. M8X20 UNI5931 |
| 55 | 5130010008 | COOLER |
| 56 | 7079090000 | SEAL |
| 57 | 5131000008 | FITTING |
| 58 | 7031010000 | TOOTHER WASHER |
| 59 | 4251080000 | REFRIGERATOR GROUP |
| 60 | 7079100000 | SEAL |
| 61 | 7081220000 | FITTING |
| 57A | 7085580000 | FITTING (FOR SA) |
| 62 | 7070120000 | RING OR 2075 |
| 63 | 4251060000 | REFRIGERATOR GROUP |
| 64 | 7458430000 | ADAPTER |
| 65 | 7070260000 | RING OR 3068 NBR 70SH |
| 66 | 7010070000 | SCREW T.C.C.E. M8X40 UNI5931 |
| 67 | 7230700000 | REFRIGERATOR PIPE |
| 68 | 7458420000 | PLATE |
| 70 | 7201050000 | THEY FLY |
| 71 | 7030270000 | WASHER 8.5 × 30 × 4 |
| 72 | 7011100000 | SCREW |
| 73 | 7043050000 | BRACKET |
| 74 | 7012280000 | SCREW M5X10 - UNI8112 |
| 78 | 7010090000 | SCREW TCEI M8X25 - UNI5931 |
| 79 | 4082550000 | GASKETS KIT |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac AB550 - 1123020052
5 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- MORE INFO:
- info@bricoutensili.com
