FIAC SA550/300 Spare Parts
Genuine Parts FIAC for piston Air Compressors and spare parts for to repair components for Air Compressor SA550/300 THREE PHASE V380-50/3 cod. 1704420000.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC SA550/300 Spare Parts
Genuine Parts FIAC for piston Air Compressors and spare parts for to repair components for Air Compressor SA550/300 THREE PHASE V380-50/3 cod. 1704420000.

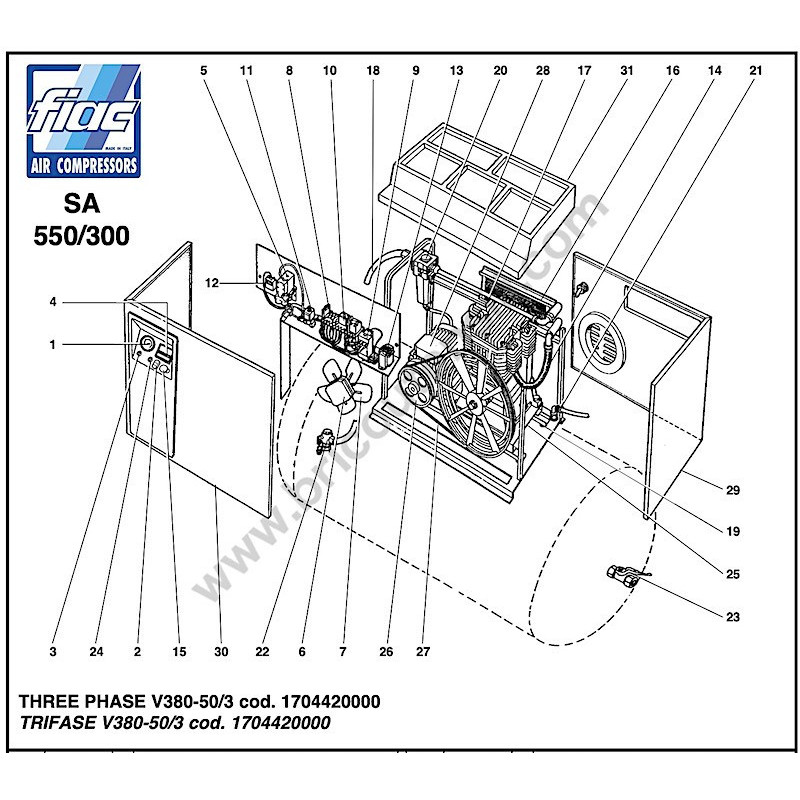

In the following table, look for the model of the pumping unit and the respective parts code.
| FIAC AIR COMPRESSOR SA550/300 | ||
| THREE PHASE V380-50/3 cod. 1704420000 | ||
| # | Part Num. | Description |
| 1 | 7110060000 | Pressure gauge - Manometro |
| 2 | 7300190000 | ON/OFF switch - Pulsante ON/OFF |
| 3 | 7432060000 | Warning lamp - Spia emergenza |
| 4 | 7563510000 | Hour meter - Contaore |
| 5 | 7250410000 | Pressure switch - Pressostato |
| 6 | 7381800000 | Electric motor fan - Motore elettroventola |
| 7 | 7200110000 | Fan - Ventola |
| 8 | 7431700000 | Contactor B12 - Contattore B12 (220 V) |
| 9 | 7550060000 | Thermal relay - Relè termico |
| 10 | 7431650000 | Coil contactor - Bobina contattore (220 V) |
| 11 | 7194070000 | Solenoid valve - Elettrovalvola |
| 12 | 7563760000 | Fan thermostat - Termostato ventola |
| 13 | 7564040000 | Transformer - Trasformatore |
| 14 | 7234240000 | Rubber hose - Tubo gomma |
| 15 | 7300080000 | Emergency push button - Pulsante emergenza |
| 16 | 7517040000 | Radiator - Radiatore |
| 17 | 7236800000 | Pipe - Tubo |
| 18 | 7234250000 | Rubber hose - Tubo gomma |
| 19 | 7364210000 | Shock absorber - Antivibrante |
| 20 | 7100360000 | Filter discharger - Filtro scarico condensa |
| 21 | 4092880000 | Condensate discharge valve - Valvola scarico condensa |
| 22 | 7190150000 | Non return valve - Valvola ritegno |
| 23 | 7130150000 | Tap - Rubinetto |
| 24 | 7432050000 | Warning lamp - Spia emergenza |
| 25 | 3020530000 | AB 550 Unit - Gruppo AB 550 |
| 26 | 7408570000 | Pulley - Puleggia |
| 27 | 7370120000 | Belt - Cinghia |
| 28 | 7380850000 | 5,5 HP Motor - Motore 5,5 HP |
| 29 | 5163070008 | Rear cover - Guscio posteriore |
| 30 | 5163060008 | Front cover - Guscio anteriore |
| 31 | 4093660000 | Plastic cover - Coperchio |
| FIAC AB 550 2001-05-2003 1123020052 | ||
| # | Part Num. | Description |
| 1 | 4190190008 | HIGHT PRESSURE CONROD |
| 2 | 4190200008 | LOW PRESSURE CONROD |
| 3 | 7011680000 | SCREW T.E. M8X45 UNI5737 |
| 4 | 7022040000 | SELF-LOCKING NUT M8 DIN980 |
| 5 | 7011220000 | SCREW T.E. M6X40 UNI 5737 |
| 6 | 7022030000 | SELF-LOCKING NUT |
| 7 | 5041030008 | CRANKSHAFT |
| 8 | 7060150000 | BEARING 6206 |
| 9 | 7060060000 | BEARING 6205 |
| 10 | 7071060000 | OIL SEAL SMIM 32X62X10 |
| 11 | 5071020008 | CARTER |
| 12 | 7090090000 | PLUG M1 / 4 - BRASS |
| 13 | 7079160000 | GASKET |
| 14 | 7650070000 | CRACKCASE REAR COVER |
| 15 | 7011460000 | SCREW M6 × 16 |
| 16 | 7181100000 | DIPSTICK |
| 17 | 7650080000 | CRANCKCASE FRONT COVER |
| 18 | 7051520000 | KEY 6X9 |
| 19 | 7079190000 | GASKET |
| 20 | 7650090000 | LOWER COVER |
| 21 | 7011440000 | SCREW M5X18 UNI 8111 |
| 22 | 7079150000 | GASKET |
| 23 | 7575260000 | CYLINDER |
| 24 | 7220110000 | PISTON LOWER PRESSION |
| 25 | 7050120000 | PIN |
| 26 | 7040130000 | RING |
| 27 | 4080100000 | PISTON RING KIT LOWER PRESSION |
| 28 | 4291080000 | PISTON GROUP LOWER PRESSION |
| 29 | 7220120000 | PISTON |
| 30 | 7050130000 | PISTON PIN Ø18 |
| 31 | 7040140000 | SEEGER Ø18 UNI-7437 |
| 32 | 4080080000 | PISTON RING SET HP |
| 33 | 4291090000 | PISTON GROUP HIGH PRESSION |
| 34 | 7079170000 | CYLINDER PLATE GASKET |
| 35 | 4231100000 | VALVE PLATE KIT - EX 4231230000 NEW 1124230123 |
| 36 | 7199100000 | FLAP VALVE |
| 37 | 7160160000 | SPRING |
| 38 | 7458920000 | VALVE GUIDE |
| 39 | 7014140000 | SCREW T.S.C.E. M6X22 UNI5933 |
| 40 | 7022030000 | SELF-LOCKING NUT |
| 41 | 7458930000 | VALVE GUIDE |
| 42 | 4231100000 | VALVE PLATE GROUP - EX 4231230000 NEW 1124230123 |
| 43 | 7079180000 | HEAD PLATE GASKET |
| 44 | 5030530008 | HEAD |
| 45 | 7010430000 | SCREW |
| 46 | 7192350000 | SAFETY VALVE M1 / 4-6BAR |
| 47 | 5130020008 | MANIFOLD |
| 48 | 7015150000 | ROD |
| 49 | 7210240000 | FILTER |
| 50 | 7210250000 | FILTER CASE - DISCONTINUED - BUY 4250020000 |
| 51 | 7031030000 | WASHER Ø6 UNI3703 |
| 52 | 7024150000 | NUT M6 UNI5448 / 71 |
| 53 | 4250020000 | FILTER CASE ASSEMBLY |
| 54 | 7010050000 | SCREW T.C.C.E. M8X20 UNI5931 |
| 55 | 5130010008 | COOLER |
| 56 | 7079090000 | SEAL |
| 57 | 5131000008 | FITTING |
| 58 | 7031010000 | TOOTHER WASHER |
| 59 | 4251080000 | REFRIGERATOR GROUP |
| 60 | 7079100000 | SEAL |
| 61 | 7081220000 | FITTING |
| 57A | 7085580000 | FITTING (FOR SA) |
| 62 | 7070120000 | RING OR 2075 |
| 63 | 4251060000 | REFRIGERATOR GROUP |
| 64 | 7458430000 | ADAPTER |
| 65 | 7070260000 | RING OR 3068 NBR 70SH |
| 66 | 7010070000 | SCREW T.C.C.E. M8X40 UNI5931 |
| 67 | 7230700000 | REFRIGERATOR PIPE |
| 68 | 7458420000 | PLATE |
| 70 | 7201050000 | THEY FLY |
| 71 | 7030270000 | WASHER 8.5 × 30 × 4 |
| 72 | 7011100000 | SCREW |
| 73 | 7043050000 | BRACKET |
| 74 | 7012280000 | SCREW M5X10 - UNI8112 |
| 78 | 7010090000 | SCREW TCEI M8X25 - UNI5931 |
| 79 | 4082550000 | GASKETS KIT |
