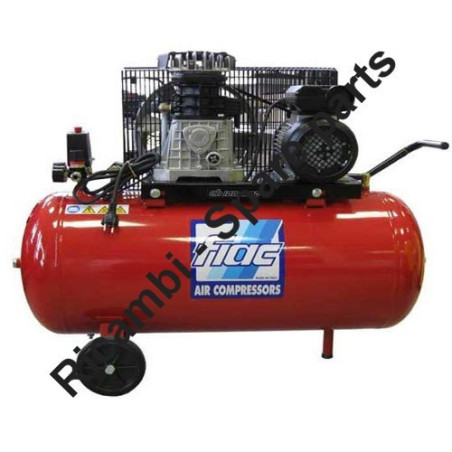

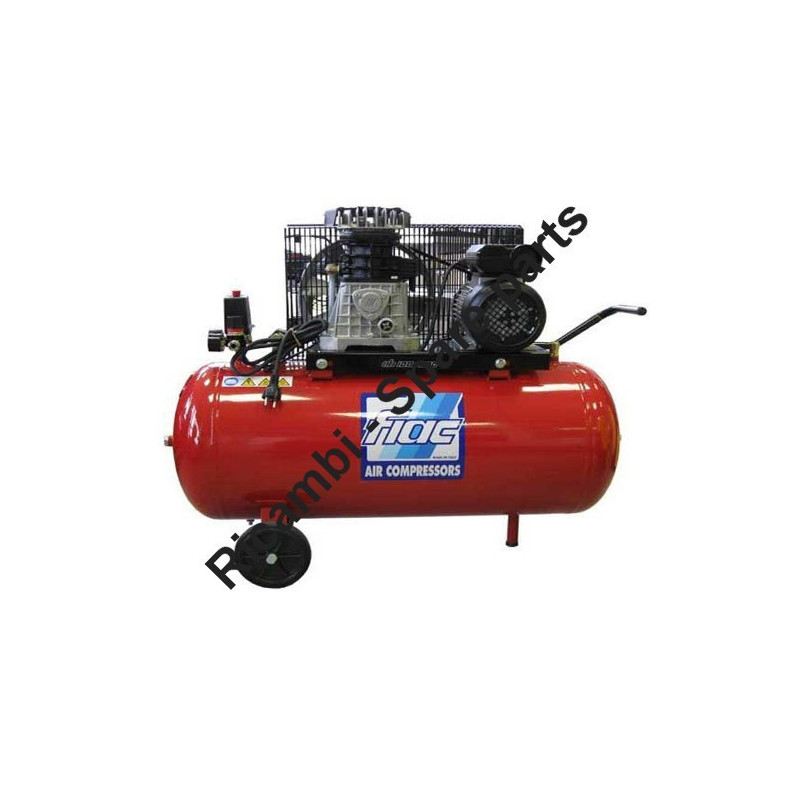

FIAC Spare Parts for Piston Air Compressor AB 300 530-670-850
€0.62
Tax included
FIAC Spare Parts for Piston Air Compressor AB 300 530-670-850
Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB 300 530-670-850 + Wheels validity date from 16/05/03.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Spare Parts for Piston Air Compressor AB 300 530-670-850
Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB 300 530-670-850 + Wheels validity date from 16/05/03.
In the following table, look for the type of the air compressor and the respective parts of the code .
| AB 300 530-670-850 + Wheels validity date from 16/05/03 | ||
| Rif. | Cod. | Descrizione |
| 1 | 7030040000 | Washer Ø10 UNI-6592 |
| 2 | 7011170000 | Screw M10x35 UNI-5739 |
| 3 | 7380840000 | Three-phase motor |
| 4 | 7370230000 | Strap SPZX 1637 |
| 5 | 7408050000 | Pulley Øp120 3V F28 |
| 6 | 5010460008 | basis |
| 7 | 5140140008 | handle |
| 8 | 7020080000 | Nut M10 UNI-5588 |
| 9 | 7030040000 | Washer Ø10 UNI-6592 |
| 10 | 7011160000 | Screw M10x30 UNI-5739 |
| 11 | 7030060000 | Washer Ø10X30 UNI-6593 |
| 12 | 3020811000 | Pump unit AB 671 |
| 3020500000 | Pump unit AB 550 | |
| 13 | 7011120000 | Screw M10x45 UNI-5739 |
| 14 | 7190150000 | Check valve FM 1.2" |
| 15 | 7232070000 | extension tube |
| 16 | 7085110000 | Fitting 1"-1/2" MF |
| 17 | 7100440000 | Pressure reducer |
| 18 | 7081170000 | Fitting 1/2" |
| 19 | 7130150000 | MF ball valve 1/2 " |
| 20 | 7020100000 | Nut M12 UNI-5588 |
| 21 | 7030140000 | Washer Ø12 UNI-6592 |
| 22 | 4170200000 | belt guard Kit |
| 23 | 7260030000 | Rotate pivot Ø100X24 |
| 24 | 7011230000 | Screw M12x80 UNI-5739 |
| 25 | 7030200000 | Washer Ø12X36X2,5 UNI-6593 |
| 26 | 7330010000 | wheel spacer |
| 27 | 7260080000 | Wheel Ø250X70 F20 |
| 28 | 7030140000 | Washer Ø12 UNI-6592 |
| 29 | 7020100000 | Nut M12 UNI-5588 |
| 30 | 7130160000 | Draining tap M3/8" |
| 31 | 7090030000 | Cap M1/2" |
| 32 | 7030060000 | Washer Ø10X30 UNI-6593 |
| 33 | 7020080000 | Nut M10 UNI-5588 |
| 34 | 7328690000 | Cable Pressure Switch / Motor |
| 35 | 7328700000 | power cable |
| 36 | 7082690000 | A fitting "T" 8.3 MFM |
| 37 | 7110060000 | manometer |
| 38 | 7192090000 | Valve Sic. 3.8" 10,4 BAR |
| 39 | 7250490000 | pressure Switch |
| 40 | 7085460000 | Fitting 1/2" F-3/8" M |
| 41 | 7235620000 | tube feeding |
| 42 | 7085020000 | Fitting 1/2"-3/8" MF |
| 43 | 5159560008 | 270lt tank |
| 44 | 7230010000 | Rilsan tube Ø6X4 |
| 45 | 7090070000 | Cap M1/4" |
| 003A | 7380850000 | Three-phase motor |
| 003B | 7380120000 | Three-phase motor |
| 004A | 7370140000 | TRAP belt. A 68 |
| 005A | 7408040000 | Pulley Øp140-DE144 1-3V F28 -->> 2901320501 |
| 005B | 7408830000 | Pulley Øp180 2-A F28 |
| 012A | 3020791000 | Pumping unit AB 851 |
| 017A | 7100230000 | Pressure reducer Ted |
| 017B | 7100240000 | Pressure reducer Orion |
| 039A | 7250500000 | pressure Switch |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AB 300 530-670-850
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- MORE INFO:
- info@bricoutensili.com
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
