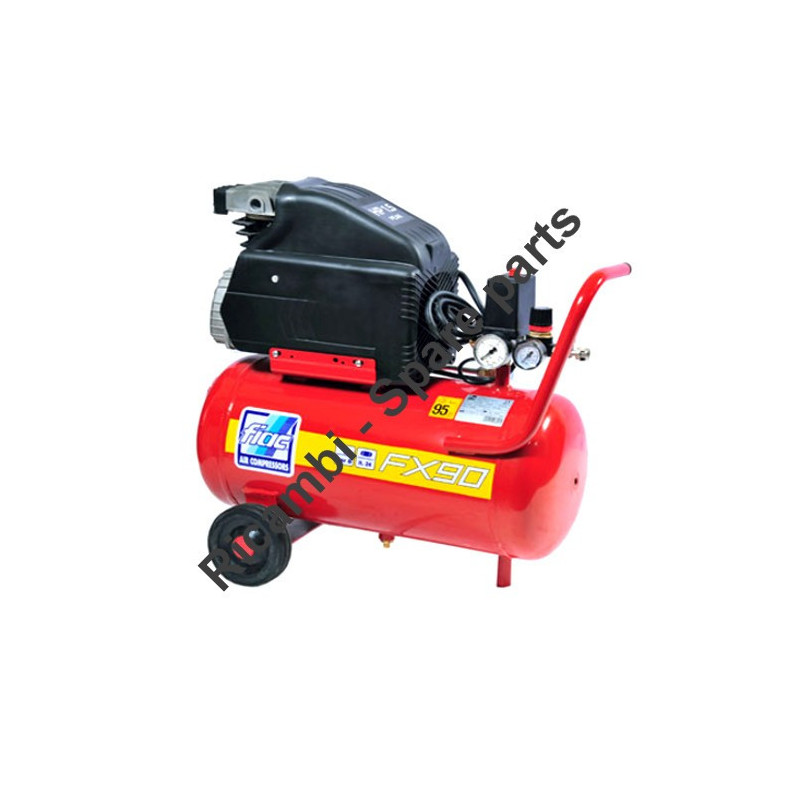

FIAC Spare Parts for Piston Air Compressor FX 90 1300 W
€27.32
Tax included
FIAC Spare Parts for Piston Air Compressor FX 90 1300 W
Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor FX 90 1300 W.Fix Your Piston Air Compressor FX 90 1300 W. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Spare Parts for Piston Air Compressor FX 90 1300 W
Fix Your Piston Air Compressor FX 90 1300 W. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the type of the air compressor and the respective parts of the code .
| Air Compressor FX 90 1300 W | ||
| # | Part Num. | Description |
| 1 | 7011220000 | Screw M6x40 UNI-5737 |
| 2 | 9100010470 | The Fitting M3 / 8-Tube 10 |
| 3 | 7458340000 | Filter Plate |
| 4 | 9100010210 | Filter Element |
| 5 | 7210430000 | Filter Cover |
| 6 | 7012100000 | Screw Ø3,9X16 |
| 7 | 9100010190 | Valve Start |
| 8 | 9100010320 | Head |
| 9 | 9100010310 | Gasket |
| 10 | 9100010240 | Plate |
| 11 | 9100010080 | Gasket |
| 12 | 9100010370 | Valve |
| 13 | 9100020150 | Gasket |
| 14 | 7575240000 | Cylinder - DISCONTINUED |
| 15 | 7020070000 | Nut M8 UNI-5587 |
| 16 | 9100010300 | Gasket |
| 17 | 9100010130 | PISTON RING AC50 GM192/244 |
| 17A | 9100010140 | PISTON RING ROS 50 GM192/244 |
| 17B | 9100010150 | Ring ROF 50 GM192 / 244 |
| 18 | 7220020000 | Piston |
| 19 | 9100010070 | Pin |
| 20 | 9100010480 | Clip Ø12 |
| 21 | 5050150008 | Piston Connecting Rod |
| 23 | 7060060000 | Bearing 6205 |
| 24 | 9100010280 | CRANKSHAFT GM-192 IMPORT |
| 25 | 9100010290 | Crankshaft |
| 26 | 9100030090 | Plastic Cover |
| 27 | 9100010170 | Dipstick |
| 28 | 7650020000 | Crankcase Cover |
| 29 | 7012160000 | Screw |
| 30 | 7012100000 | Screw Ø3,9X16 |
| 31 | 9100010100 | Gasket |
| 32 | 9100010430 | Oil Seal |
| 33 | 9100010020 | Crankcase |
| 34 | 9100010040 | Rotor |
| 35 | 9100010010 | Stator |
| 36 | 7060010000 | Bearing 6203 ZZ 17:40:12 QE6 |
| 37 | 7310100000 | Capacitor MF.20 V450 |
| 39 | 7012290000 | Screw M5X20 TAP-TITE |
| 40 | 9100010060 | Studbolt M6x139 |
| 41 | 9100010200 | Cooling Fan |
| 42 | 7013060000 | Screw M4X8 UNI-8112 |
| 43 | 9100010050 | Studbolt |
| 44 | 9100010030 | Cover |
| 50 | 5157310008 | Tank 24lt |
| 51 | 7041060000 | Ogive Tube Ø10 |
| 52 | 7360020000 | Rubber Ø16 |
| 53 | 7130160000 | Bleeding Tap M3 / 8 " |
| 54 | 7260160000 | Ø125X35 Wheel-F15 |
| 55 | 7018290000 | Pin Wheel |
| 56 | 7329070000 | Power Cord |
| 57 | 7020080000 | Nut M10 UNI-5588 |
| 58 | 7090030000 | Cap 1/2 |
| 59 | 7190180000 | Check Valve MM 1/2 "X3 / 8" -Sx |
| 60 | 7230010000 | Rilsan Tube Ø6X4 |
| 61 | 7230430000 | Tube Feeding |
| 62 | 7192020000 | Safety Valve M1 / 4-8,5Bar |
| 63 | 7250740000 | Pressure Switch |
| 64 | 7012290000 | Screw M5X20 TAP-TITE |
| 65 | 7081140000 | Fitting 1/4 "MM |
| 66 | 7110300000 | Ø50-1 Gauge 1/ 4 " |
| 67 | 7100640000 | Pressure Reducer |
| 68 | 7130010000 | Tap M1 / 4 " |
| 69 | 7024140000 | Nut 3/8 " |
| 70 | 7110240000 | Gauge Ø40-1/8 " |
| 71 | 7023040000 | Nut 1/4 " |
| 72 | 7081090000 | Fitting 1/4 "MM |
| 017A | 9100010140 | Ring ROS 50 GM192 / 244 |
| 017B | 9100010150 | Ring ROF 50 GM192 / 244 |
