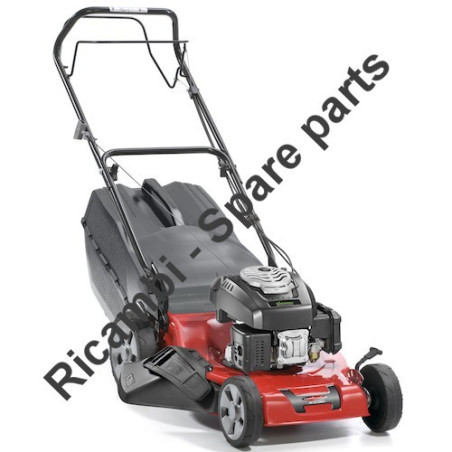

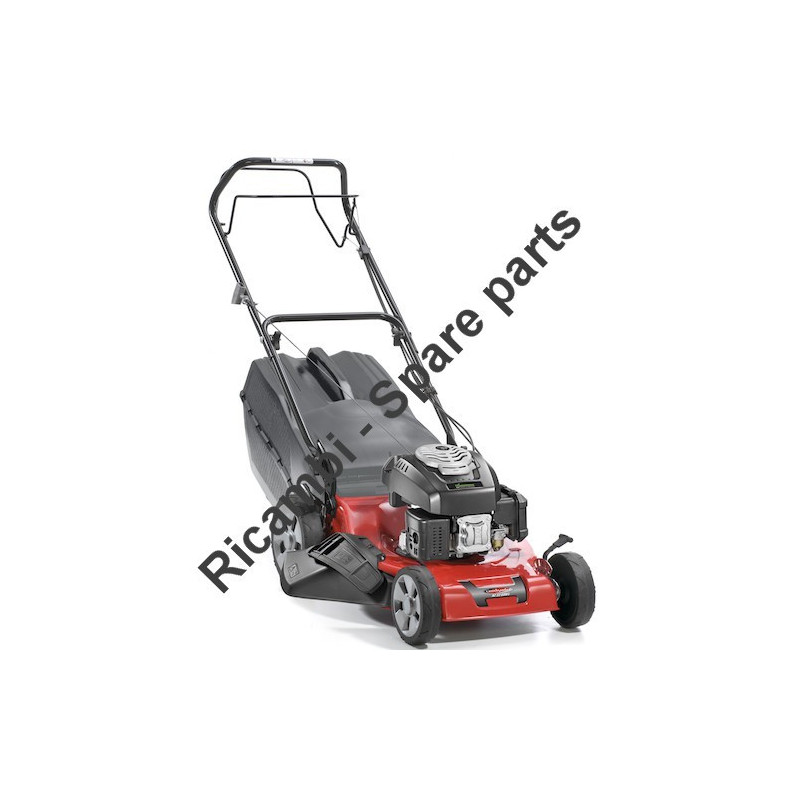

Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4
€139.21
Tax included
Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4
We supply original CASTELGARDEN spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Engine Lawnmower XC 48 GSW4 (2014) - 295496843/C13.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4
We supply original CASTELGARDEN spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Engine Lawnmower XC 48 GSW4 (2014) - 295496843/C13.
In the following table, look for the model of the Brushcutter and the respective parts of the code.
| Castelgarden Lawnmower XC 48 GSW4 (2014) - 295496843/C13 | ||
| Chassis Pag.1 | ||
| # | Part Num. | Description |
| 1 | 381004548/0 | Red chassis |
| 2 | 322108301/0 | Front conveyor To 31-August-2011 |
| 2 | 322108301/1 | Front conveyor From 01-September-2011 |
| 3 | 112728699/0 | Screw |
| 4 | 322108302/0 | Rear conveyor |
| 5 | 112728699/0 | Screw |
| 6 | 322545213/0 | plate |
| 7 | 381005139/0 | Left bracket |
| 8 | 112727801/0 | Lives |
| 9 | 381005137/0 | Right bracket |
| 10 | 322060242/0 | Belt Carter |
| 11 | 322140239/0 | Mulching Deflector Cruiser 48 |
| 12 | 112728530/0 | Screw |
| Cutting Height Adjust Pag.2 | ||
| 1 | 322545189/0 | plate |
| 2 | 322735597/0 | Left Height Adjustment Sector To 31-August-2011 |
| 2 | 322735597/1 | Height Adjustment Sector From 01-September-2011 To S/N 20BA2WBH058855 |
| 2 | 322735611/0 | Height Adjustment Sector From S/N 20BA2WBH058856 |
| 3 | 381005141/0 | Wheel Support To S/N SK6810777 |
| 3 | 381005159/0 | Wheel Support From S/N SK6614968 To S/N 19GA2WBH002978 |
| 3 | 381005253/0 | Wheel Support From S/N 20AA2WBH020538 To S/N 20BA2WBH056549 |
| 3 | 381005265/0 | Wheel Support From S/N 20BA2WBH056550 |
| 4 | 381003354/0 | Height Adjust Lever |
| 5 | 122519811/0 | Pin |
| 6 | 112521350/0 | Washer |
| 7 | 112155000/0 | Nut |
| 9 | 322735595/0 | Right Height Adjust Sector To 31-August-2011 |
| 9 | 322735595/1 | Height Adjust Sector From 01-September-2011 To S/N 20BA2WBH064329 |
| 9 | 322735609/0 | Height Adjust Sector From S/N 20BA2WBH064330 |
| 10 | 322600247/0 | Wheel Protection As Optional |
| 11 | 112728698/0 | Screw |
| 12 | 322545152/0 | plate |
| 13 | 381302817/0 | Rear Wheel Axle To S/N 20BA2WBH061216 |
| 13 | 381302817/1 | Rear Wheel Axle From S/N 20BA2WBH061217 |
| 14 | 122534131/0 | Pin |
| 15 | 381003357/0 | Height Adjust Lever To S/N 20BA2WBH076280 |
| 15 | 381003357/1 | Height Adjust Lever From S/N 20BA2WBH076281 |
| 16 | 122446192/0 | Spring |
| 17 | 112154510/0 | Nut |
| 18 | 322600205/0 | Wheel Protection To 31-August-2014 |
| 18 | 322600205/1 | Wheel Protection From 01-September-2014 |
| 21 | 112521350/0 | Washer |
| 22 | 112155000/0 | Nut |
| Side Exaust Pag.3 | ||
| 1 | 322108295/0 | Side Exit Conveyor Black To 31-August-2011 |
| 1 | 322108309/0 | Black Rear Conveyor From 01-September-2011 To 31-August-2014 |
| 1 | 322108309/1 | Black Rear Conveyor From 01-September-2014 |
| 2 | 322600238/0 | Exit Protection To 31-August-2014 |
| 2 | 322600314/0 | Protection Released From 01-September-2014 |
| 3 | 112727803/0 | Screw |
| 4 | 322806639/0 | Fulcrum pin |
| 5 | 112154510/0 | Nut |
| 6 | 118203853/0 | Cover |
| 7 | 122450456/0 | Spring |
| 8 | 122517869/0 | Pin To 31-August-2014 |
| 8 | 122517869/1 | Pin From 01-September-2014 |
| 9 | 112604896/0 | Crown Fixator |
| Handle Lower Side Pag.4 | ||
| 1 | 381006737/0 | Handle, Lower Part Black Black |
| 2 | 112819110/0 | Screw |
| 3 | 122671651/0 | Washer |
| 4 | 122399900/0 | Black Knob Black |
| 5 | 112293200/0 | Nut |
| 7 | 112818900/0 | Screw |
| 9 | 122399900/0 | Black Knob Black |
| 10 | 112293200/0 | Nut |
| 11 | 112155000/0 | Nut |
| 12 | 112521350/0 | Washer |
| 13 | 112369500/0 | Elastic disc |
| 14 | 112760605/0 | Screw |
| 15 | 381008691/0 | Black screws |
| Handle Upper Side Pag.5 | ||
| 1 | 381006739/0 | Handle, Upper Black without Sponge To 31-August-2011 |
| 1 | 381006739/1 | Handle, Upper Black without Sponge From 01-September-2011 To 31-August-2017 |
| 1 | 381006739/2 | Handle, Upper Black without Sponge From 01-September-2017 |
| 1 | 381006745/0 | Handle, Upper Part. With Black Sponge handle with Sponge To 31-August-2011 |
| 1 | 381006745/1 | Handle, Upper Part with sponge handle Black with Sponge From 01-September-2013 To 31-August-2017 |
| 1 | 381006745/2 | Handle, Upper Part with sponge handle Black with Sponge From 01-September-2017 To 31-August-2018 |
| 1 | 381006745/3 | Handle, Upper Part Black with sponge handle Black with Sponge From 01-September-2018 |
| 2 | 122430313/0 | Guide Spring Not used on Electric Start Models |
| 3 | 112521330/0 | Not used washer on Electric Start Models |
| 4 | 112154510/0 | Nut Not used on Electric Start Models |
| 5 | 118390020/0 | Cable clip |
| 6 | 181003363/0 | Motor Brake Lever Black To 31-August-2010 |
| 6 | 181003363/1 | Motor Brake Lever Black From 01-September-2010 |
| 7 | 181030056/0 | Motor Brake Cable |
| 8 | 112727783/0 | screw |
| 9 | 112154510/0 | Nut |
| 10 | 181003364/0 | Black Traction Control Lever |
| 11 | 381030051/0 | Traction Control Cable |
| 12 | 322551640/0 | Cable fixing plate To S/N 20AA2WBH066503 |
| 12 | 322551685/0 | Cable fixing plate ø22 From S/N 20AA2WBH066504 |
| Traction Assy Pag.6 | ||
| 1 | 112608600/0 | Seeger |
| 2 | 122570120/1 | Ratched Wheel Left |
| 3 | 122570110/1 | Ratched Wheel Right |
| 4a | 322042066/0 | Bushing For wheels ø180 / 200/240 |
| 5 | 112521371/0 | Washer |
| 6 | 181003092/0 | Traction assy |
| 7 | 122601904/0 | Pulley To 31-August-2013 |
| 7 | 122601909/0 | Pulley From 01-September-2013 |
| 8 | 112645705/0 | Elastic pin ø5X32 |
| 9 | 122033283/0 | Adjust rod |
| 10 | 135063800/0 | V- belt |
| 11 | 122041957/1 | Bushing |
| 12 | 122450063/0 | Spring |
| 13 | 322680009/0 | Washer |
| 14 | 112154510/0 | Nut |
| 15 | 122110230/0 | Hubcap |
| 16 | 122753000/0 | Plug |
| Wheels + Hub Cover Pag.7 | ||
| 1 | 381007455/0 | Wheel - Short Long To 31-August-2012 |
| 1 | 381007455/1 | Wheel - Short Long From 01-September-2012 |
| 2 | 119216035/0 | Bearing |
| 3 | 322110636/0 | Gray hubcap |
| 5 | 381007467/0 | Wheel To 31-August-2012 |
| 5 | 381007467/1 | Wheel From 01-September-2012 |
| 6 | 119216035/0 | Ball Bearing |
| 7 | 112728706/0 | Screw |
| 8 | 322120117/0 | Wheel Crown |
| 9 | 322110637/0 | Gray hubcap |
| Blade Pag.8 | ||
| 1 | 112735108/1 | Screw |
| 2 | 122465607/3 | Hub With Pulley, Drive Shaft Ø 22.2 |
| 3 | 181004346/3 | Left Blade Mulching To 31-August-2015 |
| 3 | 181004460/0 | Blade Mulching From 01-September-2015 |
| 4 | 112523080/0 | Washer To 31-August-2015 |
| 4 | 322680021/0 | Washer From 01-September-2015 |
| 5 | 112508125/0 | Spring Washer |
| 6 | 112735698/0 | Screw |
| 7 | 112139100/0 | Tab |
| 8 | 112154210/0 | Nut |
| Grass Bag Pag.9 | ||
| 1 | 322785331/0 | Stones Guard Support Black |
| 2 | 122450464/0 | Spring |
| 3 | 322109557/0 | Stones cover, Gray ( New code 381008163/0 ) |
| 4 | 112728699/0 | Screw |
| 5 | 322600216/0 | stone guards Gray To 31-August-2011 |
| 5 | 322600216/1 | Stone Guard Gray From 01-September-2011 |
| 6 | 322393645/0 | Bag Handle Gray |
| 7 | 322486263/0 | Bag Upper Side Gray Top To 31-August-2016 |
| 8 | 322486267/0 | Bag Lower Side Gray To 31-August-2016 |
| ENGINE - ST. WBE0702 Pag.10 | ||
| 1 | 112292102/0 | Nut |
| 2 | 118550276/1 | Starter assembly |
| 3 | 118550274/0 | Starter handle |
| 4 | 118550779/0 | Starter rope |
| 5 | 118550778/0 | Starter Pulley |
| 6 | 118550275/0 | Starter Pawl Kit |
| 7 | 118550336/0 | Nut |
| 8 | 118550335/0 | Starter cup |
| 9 | 118550254/0 | Flywheel fan |
| 10 | 118550253/0 | Flywheel assy |
| 11 | 118550774/0 | Guard |
| 12 | 112791213/1 | Screw |
| 13 | 118550302/0 | Stud |
| 14 | 118550301/0 | Stud |
| 15 | 118550255/0 | Electronic Ignition coil |
| 16 | 112791500/0 | Screw |
| 17 | 112790500/0 | Screw |
| 18 | 118550378/0 | Oil Vent Gasket Assembly |
| 19 | 112791500/0 | Screw |
| 20 | 118550376/0 | Flywheel Brake Assembly |
| 21 | 118550259/0 | Throttle control |
| 22 | 118550337/0 | Cable clip |
| 23 | 118550338/0 | Screw |
| 24 | 112791213/1 | Screw |
| 25 | 118550260/0 | Spring |
| 26 | 118550266/0 | Throttle Control Lever |
| 27 | 118550397/0 | Throttle rod |
| 28 | 118550263/0 | Spring |
| 29 | 118550264/0 | Air Control Lever |
| 30 | 118550390/0 | Carburetor |
| 31 | 118550738/0 | Air filter gasket |
| 32 | 118550737/0 | Air filter assembly |
| 33 | 118550452/0 | Air filter |
| 34 | 118550739/0 | Air filter cover |
| 35 | 118550377/0 | Vent Pipe |
| 36 | 118550298/0 | Stud |
| 37 | 112292102/0 | Nut |
| 40 | 118550315/0 | Stud |
| 41 | 118550316/0 | Gas tank |
| 42 | 118550339/1 | Tank cap |
| 43 | 112292102/0 | Nut |
| 44 | 118550314/0 | Fuel filter |
| 45 | 118550340/0 | Fuel pipe |
| 50 | 118550407/0 | Complete engine |
| ENGINE - ST. WBE0702 Pag.11 | ||
| 51 | 112674550/0 | Screw |
| 52 | 118550382/0 | Crankcase Assembly |
| 53 | 118550379/0 | Sealing ring |
| 54 | 118550775/0 | grommet |
| 55 | 118550312/0 | Regulator assembly |
| 56 | 118550380/1 | Crankcase Gasket |
| 58 | 118550271/0 | Camshaft |
| 59 | 118550283/0 | Washer |
| 60 | 118550385/0 | Cranck shaft |
| 61 | 118550288/0 | Flywheel key |
| 62 | 118550284/0 | Link Rod Assembly |
| 63 | 118550387/0 | Piston assembly |
| 64 | 118550384/0 | Piston Rings Assembly |
| 65 | 118550280/0 | Ball bearing |
| 66 | 118550308/0 | Governor Shaft Assembly |
| 67 | 118550291/0 | Valve lifter assembly |
| 68 | 118550289/0 | Tappet Rods Assembly |
| 69 | 118550244/0 | Cylinder Head Assembly |
| 70 | 118550296/1 | Valves cover |
| 71 | 112791213/1 | Screw |
| 72 | 9400-0244-00 | Spark Plug |
| 73 | 118550297/0 | Screw |
| 74 | 118550298/0 | STUD |
| 75 | 118550270/0 | MUFFLER GASKET |
| 76 | 118550269/0 | MUFFLER |
| 77 | 118550268/1 | MUFFLER Guard |
| 78 | 112292102/0 | Nut |
| 79 | 118550300/0 | oil Seal |
| 80 | 112674550/0 | Screw |
| 81 | 118550311/0 | Oil Level Cap Assembly |
| 85 | 118550273/0 | Valves Barbell Set |
| 86 | 118550294/0 | Exhaust Valve Assembly |
| 87 | 118550292/0 | Intake valve assembly |
| 88 | 118550389/0 | Repair kit |
| 89 | 118550388/0 | Carburettor Repair Kit |
| 90 | 118550743/0 | Carburettor Gasket Kits |
| 91 | 118550405/0 | Cylinder Head Gaskets Assembly |
| 92 | 118550741/0 | Engine Gaskets Assembly |
| ENGINE - ST. WBE0702 Pag.12 | ||
| 60 | 322055452/0 | Black Cover |
| 61 | 322055450/0 | Black Cover |
| 62 | 322055439/0 | Black Cover |
| 63 | 322055463/1 | hood |
| 65 | 322820078/0 | Plug |
| 71 | 381002068/0 | hood |
| 72 | 381002067/0 | hood |
| 100 | 118550407/0 | Engine Assembly |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Castelgarden websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Castelgarden brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
XC 48 GSW4 (2014) 295496843/C13
