FASA Original Parts for Pressure Cleaner ARTIC 30
Fix Your Hot Water High Pressure Cleaner ARTIC 30 230/50 BLU TS FASA - 8.613.0012. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FASA Original Parts for Pressure Cleaner ARTIC 30
Fix Your Hot Water High Pressure Cleaner ARTIC 30 230/50 BLU TS FASA - 8.613.0012. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.In the following tables, look for the spare part and its respective code.

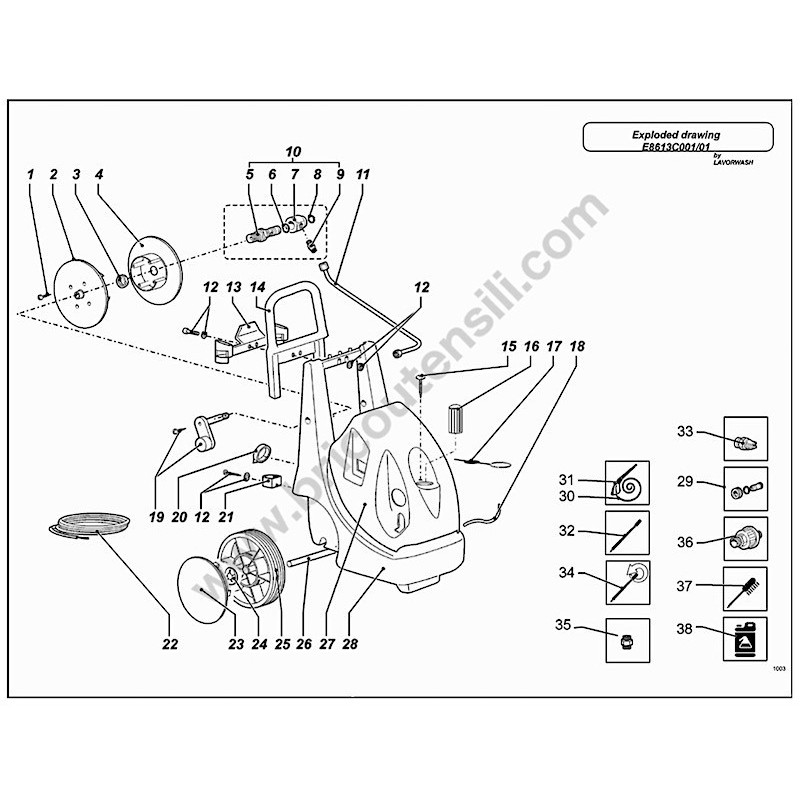

| IDRO ARTIC 30 230/50 BLU TS FASA - 8.613.0012 | ||
| Pag.1 | ||
| # | Part Num | Description |
| 1 | 3.002.0112 | TC-TORX SCREW T15 3.9X25 HI-LOZNT |
| 2 | 4.008.0517 | HALF-WINDOW CRANK SIDE EXP. 03 |
| 3 | 3.099.0158 | IDLE RING 3/8 CH20 REF. E4890003 |
| 4 | 4.008.0516 | HALF-WINDOW INLET SIDE EXP. 01 |
| 5 | 4.606.0097 | BODY FOR SWIVEL CONNECTOR FOR HOSE REEL EXP. 06 |
| 6 | 3.200.0018 | OR SEAL 9.92X2.62 SHORE90 |
| 7 | 4.606.0098 | SWIVEL PIN FOR HOSE REEL 3/8 G EXP. 03 |
| 8 | 3.099.0144 | CIRCLIP FOR SHAFT D. 15 UNI 7435 |
| 9 | 4.606.0096 | HOSE REEL CONNECTOR 1/4 G M14X1.5 EXP. 04 |
| 10 | 5.609.0073 | HOSE REEL PIN ASSEMBLY WITH CONNECTOR M14x1.5 |
| 11 | 4.618.0099 | SHAPED RIGID HOSE WITH CONNECTOR 3/8 G |
| 12 | 5.012.0052 | SCREW KIT EAGLE LANCE HANDLE |
| 13 | 4.008.0280 | LANCE HOLDER WITH FOOT FOR SPACE EXP.02 |
| 14 | 4.008.0494 | LMX-EAGLE BLOWN HANDLE EXP.00 |
| 15 | 3.002.0161 | TCTC SCREW 6X8 UNI 7687 |
| 16 | 4.608.0094 | LTX'96 ADJUSTMENT KNOB EXP.01 |
| 17 | 4.007.0114 | NOZZLE CLEANING NEEDLE D.0.8 EXP.04 |
| 18 | 4.008.0535 | TRANSPARENT HOSE D.6x9 L.430 45' CUT EXP.00 |
| 19 | 5.012.0060 | CRANK HANDLE KIT + SCREW FOR EAGLE HOSE REEL |
| 20 | 3.099.0122 | LMX-EAGLE TANK CAP |
| 21 | 4.008.0506 | NEROX EAGLE LANCE HOLDER CUP EXP.00 |
| 22 | 4.612.0037 | POWER CABLE H05VV-F 3X1.5 L=6000F/F + EYES EXP.03 |
| 23 | 3.099.0127 | BLACK WHEEL COVER CAP, D.250-200, FOR EAGLE/SPARK |
| 24 | 3.099.0019 | WHEEL COVER, DIAM.250 X 55, D.20 |
| 25 | 6.005.0242 | BLACK WHEEL, D.250, HOLE 20, FOR EAGLE |
| 26 | 4.007.0224 | EAGLE WHEEL AXLE, D.20, L=358, EXP.00 |
| 27 | 4.613.0170 | LMX UPPER FAIRING, BLUE RAL.5015 (INJECTION) |
| 28 | 5.611.0089 | LMX LOWER FAIRING ASSEMBLY, GREEN + RUBBER + CAP WITH HOLES |
| 29 | 5.012.0002 | INTAKE HOSE KIT, 3/4" D.16 |
| 30 | 4.618.0053 | 10M HOSE, SWIVEL CONNECTOR, 3/8" F, WITHOUT HOSES, TYPE R1, 1/4" MAX 210 BAR |
| 31 | 6.001.0053 | S'99C GUN, EXP.01 |
| 32 | 3.701.0015 | LANCE, L.700, COATED, RED, QUICK COUPLING M22 41102850 |
| 33 | 3.103.0051 | HIGH PRESSURE NOZZLE 1/8M 1505 |
| MOTOPOMPA LWM 230/50 2P 135 H125 10.37' LMX 120M TS Pag.2 | ||
| 10 | 4.606.0008 | GLAND FOR GMV MOTOR D.150 EXP.03 |
| 13 | 3.200.0027 | OR SEAL 20.24 X 2.62 REF. 3081 |
| 15 | 5.009.0165 | HOBBY SWITCH COVER ASSEMBLY |
| 16 | 3.401.0027 | MICRO CIRCUIT BREAKER 3120-F551-P7T1-W02F- 20A W/O PROTECTION |
| 17 | 3.404.0007 | CAPACTOR 65mF 450V D.50x120 W/CABLE W/REF COVER EXP.01 |
| 18 | 3.200.0033 | OR SEAL 50.47X2.62 REF. 3200 |
| 19 | 3.099.0055 | RING NUT 1/2 F HOLE D.12.5 (REF. 200.020) ITEM SOLD OUT |
| 20 | 3.200.0034 | OR SEAL 9.12X3.53 |
| 21 | 4.008.0125 | ELECTRIC BOX LID STARJET EXP.04 |
| 22 | 3.002.0106 | SELF-TAP SCREW TC-TC 3.9X16 UNI 6954 ZNT |
| 23 | 4.008.0137 | FOAM RUBBER SEAL 124X59X3.2 THICKNESS 3 EXP.01 |
| 24 | 4.008.0124 | ELECTRIC MOTOR BOX L.I. HOLE DISG. EXP.12 (ITEM OUT OF STOCK) |
| 25 | 4.608.0088 | ENGINE FAN COVER D.135 EXP.01 |
| 26 | 3.099.0108 | LOWERED FAN D.150 90V3 WITH HOLE D.19 + CLAMP |
| 27 | 5.606.0046 | CASE LW.M 230/50 2P D.135H.125 THREADED HOLES |
| 28 | 3.001.0001 | RADIAL BALL BEARING 6204-2Z (X EL.MOTOR 150'C) |
| 29 | 5.605.0029 | ROTOR SHAFT D.70 H.130 X 135 FIN GUIDE BODY EXP.01 |
| 30 | 3.002.0015 | TCEI SCREW M6X25 TRILOBAL ZNT |
| 31 | 5.609.0072 | MOTOR FLANGE 135 FOR FINNED GUIDE BODY EXP.05 |
| 32 | 3.201.0019 | OIL SEAL RING D. 25X40X7 DOUBLE LIP |
| 33 | 5.609.0072 | MOTOR FRONT FLANGE 135 FOR FINNED GUIDE BODY |
| 34 | 3.200.0002 | OR SEAL 90 X 2.5 |
| 35 | 3.001.0029 | ANGLE BALL BEARING 7305-BE (25X62X17) |
| 36 | 4.605.0036 | PLATE 10GR. 37' FOR BALL BEARING EXP.02 |
| 37 | 3.002.0003 | TCEI SCREW M8X25 UNI 5931 ZNT |
| 38 | 4.607.0208 | THrust BALL BEARING 30X73X18 FOR PLATE S0610 |
| 39 | 5.009.0088 | LOCKING RING - PISTON - SPRING RETAINER ASSEMBLY D. 15 |
| 40 | 4.007.0011 | RETURN SPRING PISTON D.15 d.3 L.45 EXP.01 |
| 41 | 3.004.0022 | SNHOR WASHER D.8X13 Th.0.8 |
| 42 | 3.002.0032 | TCEI SCREW M8X30 UNI 5931 ZNT |
| 43 | 3.002.0004 | STEI SCREW 3/8 G. DIN 906 (OIL DRAIN PLUG) |
| 44 | 3.099.0003 | OIL LEVEL SIGHT GAUGE SLNS-3/8 HOBBY |
| 45 | 4.005.0029 | BEST GUIDE BODY HOT HYDRO EXP.11 |
| 46 | 5.009.0159 | OIL PLUG 3/8G COMPLETE WITH SEAL |
| 47 | 5.009.0207 | PLUG ASSEMBLY FOR BEST VERTICAL OIL CHAMBER + O-RING SH90 |
| 48 | 3.201.0002 | BADSLSF SEAL RING 15X25.4X5/7 |
| 49 | 3.200.0019 | OR SEAL 12.4X1.78 SHORE90 |
| 50 | 5.009.0346 | INTAKE/DELIVERY VALVE WITH STEEL PLATE AND SEAT EXP.01 |
| 51 | 5.009.0101 | INTAKE/DELIVERY VALVE PLUG WITH O-RING MOUNTED |
| 52 | 5.009.0323 | INTAKE/DELIVERY VALVE CAP WITH M6 FEMALE THREAD + O-RING |
| 53 | 3.099.0136 | CYLINDRICAL PIN 2X12 STAINLESS STEEL UNI 1707 |
| 54 | 4.606.0093 | PRESSURE REGULATION KNOB EXP.03 |
| 55 | 3.200.0046 | OR SEAL 21.95x1.78 REF. 2087 |
| 56 | 4.607.0207 | PRESSURE REGULATOR SPRING L=37 WIRE D.3.6 STEEL EXP.00 |
| 57 | 4.606.0105 | SPACER FOR REGULATOR HEAD. OPT. '99 LMX 120 ENGINE |
| 58 | 4.607.0206 | SPRING PLATE EXP.02 |
| 59 | 5.609.0078 | SEAL ROD ASSEMBLY FOR HEAD. OPT. '99 W/TS EXP.03 |
| 60 | 5.609.0080 | SEAL SEAT ASSEMBLY + O-RING |
| 61 | 5.009.0164 | DETERGENT SUCTION HOSE HOLDER COMPLETE WITH O-RING |
| 62 | 3.005.0001 | 420 STAINLESS STEEL BALL DIAM. 5 (precision grade G 500) |
| 63 | 4.007.0014 | VALVE SPRING CHECK VALVE DETERGENT OD 4.5/6 L=7 THREAD D.0.3 STAINLESS STEEL EXP.03 |
| 64 | 4.606.0085 | BRASS HEAD '99 EXP.10 |
| 65 | 5.609.0041 | CHECK VALVE ASSEMBLY + O-RING |
| 66 | 4.607.0105 | CHECK VALVE SPRING D.4.8-6 L=20 THREAD 0.6 STAINLESS STEEL EXP.01 |
| 67 | 5.609.0079 | OUTLET FITTING ASSEMBLY HEAD BRASS '99 D.2 + O-RING |
| 68 | 4.006.0109 | 1/8 CONICAL CAP EXP.01 |
| 69 | 3.107.0007 | PRESSURE GAUGE D.50 0/315 BAR 1/4 REAR |
| 70 | 4.606.0019 | SUCTION CONNECTOR M22 HYDRO COMPACT EXP.01 |
| 71 | 3.100.0023 | NIPPLE 3/8 CYL. SV. 3/8 CYL. SV |
| 72 | 5.609.0076 | BOX ASSEMBLY + MICRO + CABLE 2X1.5 TEST. BRASS '99 TS |
| 73 | 5.609.0075 | FITTING ASSEMBLY 1/8 G FOR TS ROD TESTED BRASS '99 |
| 75 | 3.002.0078 | TCEI SCREW M8X40 UNI 5931 ZNT |
| 76 | 4.606.0001 | TEE CAP 1/4 GAS EXP. 01 |
| 77 | 3.200.0004 | OR SEAL 12.4X1.78 REF. 2050 SH 70 |
| 78 | 4.008.0391 | OIL SEAL SPACER EXP.00 |
| 79 | 4.606.0041 | SUPPORT RING FOR SECONDARY SEAL 130/8 EXP.04 |
| 80 | 3.201.0003 | SEAL RING N. 15X22X4 WATER |
| 81 | 4.606.0040 | SECONDARY SEAL BUSHING 130/8 BRASS EXP.05 |
| 82 | 3.200.0003 | OR SEAL 25.12 X 1.78 REF. 2100 |
| 83 | 4.608.0106 | ANTI-EXTRACTION RING (FOR SEALS 15x24x5) FOR HEAD OTT'99 EXP.04 |
| 84 | 3.201.0018 | WATER SEAL RING 15X24X5 W11515Q5023 (CLOTH SEALS) |
| 85 | 4.608.0105 | VALVE SPACER FOR BRASS HEAD '99 EXP.01 |
| 86 | 5.606.0046 | ENGINE LW.M 230/50 D.135 2P H125 X LMX EXP.03 |
| 87 | 5.009.0094 | ASSEMBLY BEST FINNED GUIDE BODY WITH SEALS |
| 88 | 5.008.0133 | HEAD OCT. '99 INJECTION D. 2 TS |
| 89 | 4.008.0031 | WATER INTAKE FILTER D. 16 CONICAL EXP. 00 |
