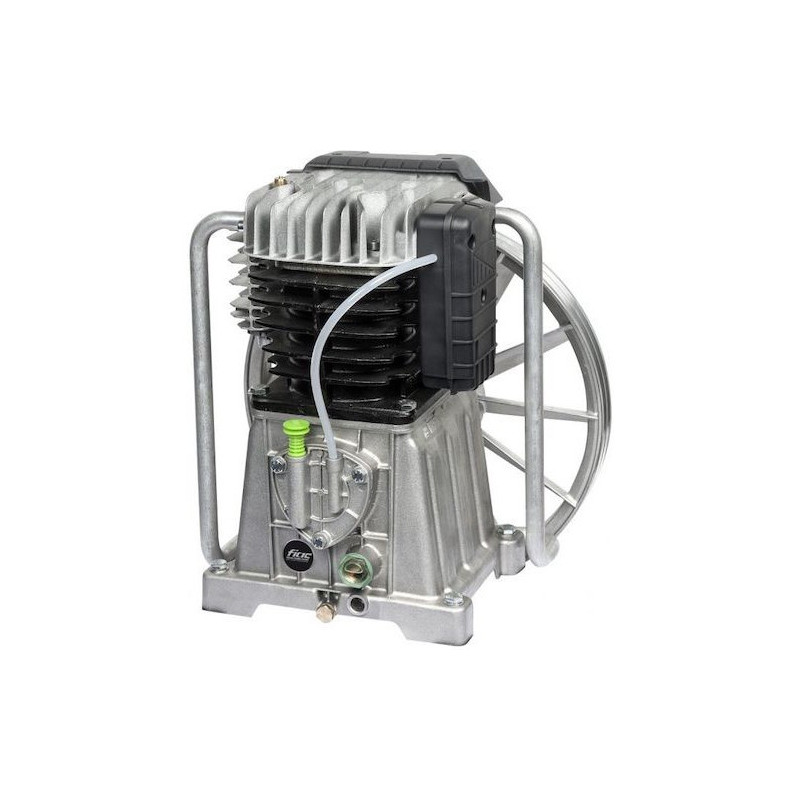

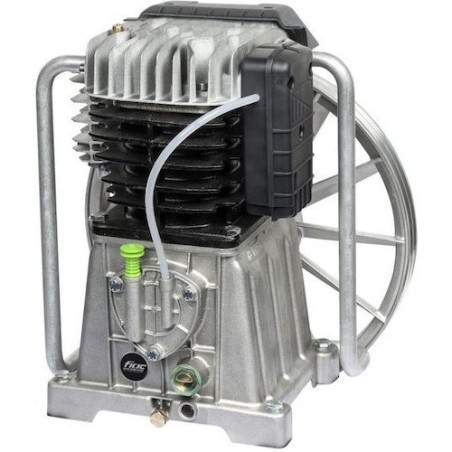

Pumping Unit for air Compressor Mod. AB 858

Pump Unit for air Compressor Mod. AB 808

The AB series distinguishes the oil lubricated twin cylinder compressor pumps with single and two stage belt drive. The Fiac compressor pumps have been designed and tested in compliance with the strictest international standards. Special research has been dedicated to the containment of the noise level and elimination of heat generated during operation.

Code: 1123020552
AB 808
Brand: FIAC
Category: Air compressors pumps  Lubricated air compressor belt driven pumps.


Technical Features :

l /min (Air displ.)	CFM (Air displ.)	m3/h (Air displ.)	l /min (F.A.D.)
800	28,2	48	800
CFM (F.A.D.)	m3/h (F.A.D.)	bar	psi
28	48	10	145
HP	kW	Cil# / St#	min-1
7,5	5,5	2-2	1350
LxPxH_mm / in	kg_lb	Volt/Hz/ph
430x350x510 16.9x13.8x20	40-18	430x2A 16.9x2A
