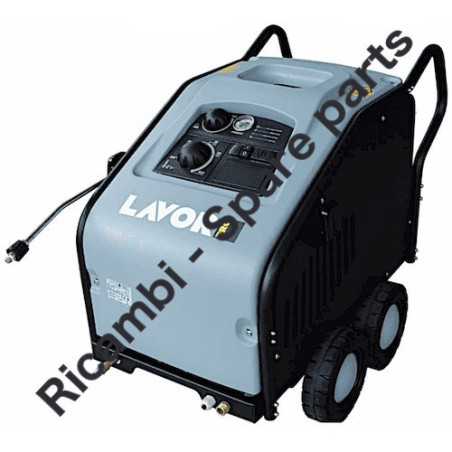

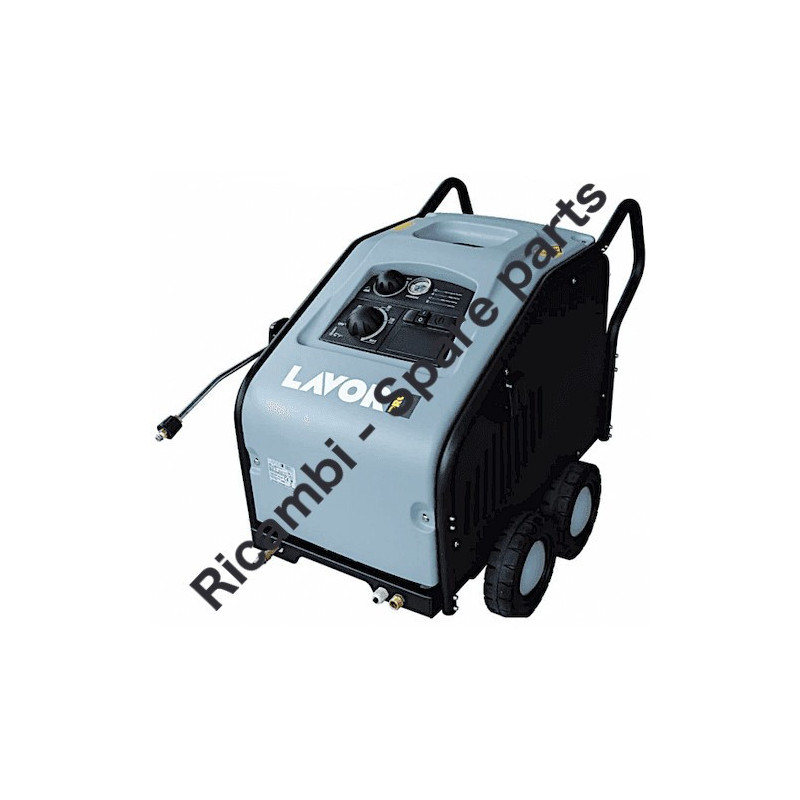

Lavor TORRENS 2015 (KREMER) Parts
€97.98
Tax included
Lavor Original Parts for TORRENS 2015 (KREMER)
Fix Your Pressure Cleaner IDRO TORRENS 2015 400/50-GR-TS(KR-5300HW KREMER) - 8.627.0020C. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Original Parts for TORRENS 2015 (KREMER)
Fix Your Pressure Cleaner IDRO TORRENS 2015 400/50-GR-TS(KR-5300HW KREMER) - 8.627.0020C. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
In the following tables, look for the spare part and its respective code.
| IDRO TORRENS 2015 (KREMER) - 8.627.0020C | ||
| Chassis Pag.1 | ||
| # | Part Num | Description |
| 0 | 8.627.X013 | TORRENS 2015 400/50 TS + THREE-PHASE PLUG |
| 1 | 4.613.0422 | TORRENS TOP HOUSING -GR- RAL.7046 |
| 2 | 4.607.0662 | CAN SUPPORT BRACKET |
| 3 | 4.608.0393 | FUEL TANK FOR TORRENS -N- |
| 4 | 4.608.0538 | FUEL TANK CAP FOR TORRENS -B- |
| 5 | 4.613.0315 | TORRENS LEFT SIDE PANEL -BLACK- |
| 6 | 4.608.0245 | CABLE REEL INSERT FOR VERTICAL |
| 7 | 4.613.0314 | TORRENS RIGHT SIDE PANEL -BLACK- |
| 30 | 3.713.0011 | AL 28 GUN 3/8 M + EXTENSION 55 |
| 31 | 4.618.0012 | HOSE 5/16 R1 310 BAR 10 M |
| 32 | 3.701.0015 | STAINLESS STEEL LANCE L.700 COVERED + RED + QUICK COUPLING |
| 33 | 3.103.0050 | H.P. NOZZLE 1/8M 15045 |
| 34 | TORRENS INLET CONNECTOR D.16 | |
| 35 | 3.102.0011 | WATER FILTER 3/4F-3/4M MESH 140 |
| 36 | 7.700.0537 | KREMER KR-4200HW/KR-5300HW MANUAL |
| TORRENS 2015 400/50 TS+SPINA TRIFASE 34990017 BASE DA FINIRE Pag.2 | ||
| 0 | 5.611.0204 | TORRENS DASHBOARD ASSEMBLY WITHOUT LED BOARD (TAMP.-EN-) |
| 0 | 5.611.0325C | COMPLETE BURNER FLANGE 1.50-60 LH WITH RILSAN CONNECTOR |
| 0 | 5.609.0413 | TORRENS-R BOILER ASSEMBLY WITHOUT BURNER FLANGE (SINGLE-SIDED CYLINDER) |
| 0 | 5.703.0031C | CL4 200/15 1450 LH W/IN-THERMAL VALVE-OUT 3/8 AUTO SUCT |
| 1 | 5.611.0204 | TORRENS DASHBOARD ASSEMBLY W/O LED BOARD (TAMPER-EN-) |
| 2 | 3.402.0045 | THERMAL RELAY DPER21 12-18A |
| 3 | 4.608.0594 | TORRENS-R ELECTRIC BOX |
| 4 | 3.402.0002 | KN22 REMOTE CONTROLLER 24V 50HZ 7.5KW AC3 |
| 5 | TRANSFORMER 220-380V 24V 2A | |
| 6 | 3.403.0034 | ELECTRIC BOARD W/FUEL DELAY (RTD 230/50-60) |
| 8 | 4.607.0572 | TEKNA 4 HANDLE FIXING BRACKET |
| 9 | 4.608.0181 | TEKNA 4 CONVEYOR COVER |
| 10 | 3.099.2085 | 162X63 LH FAN. DM 12.7 HOLE WITH SCREW |
| 11 | 4.608.0404 | HOT AIR CONVEYOR TEXAS |
| 12 | 3.300.0031 | BURNER MOTOR 220V 50HZ 1.6A 250W 2700RPM CL.F S1 IP44 |
| 13 | 3.099.0012C | PLASTIC COUPLING FOR DIESEL PUMP - MOTOR -A- |
| 14 | 3.100.0558 | STRAIGHT CONNECTOR G1/8M - D.4 FOR RILSAN TUBE -C- |
| 15 | 3.551.0062 | DUAL-PIPE DIESEL PUMP RH 230/50-60 |
| 16 | 4.606.0088 | PORT 1/4 G M D.7 |
| 17 | 3.102.0017 | FUEL FILTER FB1 (PAPER 30 MICRONS) |
| 18 | 5.609.0260 | SAFETY VALVE MAX 250BAR 1/8 WITH PORT |
| 19 | 3.100.0514 | 1/8G F/F/F BRASS T-FITTING |
| 20 | 4.618.0003 | 2X630 PRESSURE GAUGE TUBE 70MPA (LOP 120MPA) 1/4 F/GIR-1/4 F/GIR |
| 21 | 3.704.0006C | PR5 PRESSURE SWITCH 25BAR 1/8 L=720 (2 WIRES) |
| 22 | 3.100.0515 | 1/8M-1/8M BRASS NIPPLE CH.12 |
| 25 | 4.612.0029 | POWER CABLE 4X2.5 L=760 H05VV-F |
| 26 | 3.302.0019 | ELECTRIC MOTOR TR. 220-380/50 HP7.5 4P A.C. FL90 S1 CL.F CN |
| 27 | 5.703.0031C | CL4 200/15 1450 LH W/IN-THERMAL VALVE-OUTLET 3/8" AUTO SUCT |
| 30 | 4.618.0175 | HOSE 3/8" R2 400BAR L=520 1/2" G 90G-3/8" G 90G |
| 31 | 4.606.0234 | INLET 3/4" FOR CKX |
| 32 | 4.612.0032 | POWER CABLE H05VV-F 4X2.5 L=6700 |
| 33 | 3.406.0067C | CABLE GLAND PG.16 TEAR-RESISTANT WITH RING NUT |
| 34 | 4.618.0165 | HOSE LP L=750 1/2" CONNECTOR-90G 1/2" SWIVEL CONNECTOR |
| 35 | 3.100.0023 | NIPPLE 3/8" M - 3/8" M |
| 36 | 3.100.0020 | NIPPLE 1/2" G - 3/8" G |
| 37 | 4.606.0087 | PROFESSIONAL THERMOSTAT BULB BODY |
| 38 | 4.618.0176 | 3/8" H.P. PIPE R2 400 BAR L=720 1/2" G 90G - 3/8" G 90G |
| 39 | 3.006.0026 | BLACK SOLID WHEEL D.260X85 |
| 40 | 3.099.0029 | CHROME-PLATED STARLOCK WHEEL LOCKING RING D.20 |
| 41 | 5.613.0291 | TEKNA '04 PAINTED FRAME (4 WHEELS) |
| 42 | 5.613.0292 | TEKNA 4-WHEEL HANDLE |
| 43 | 5.609.0126 | IGNITION TRANSFER 220-240V 50/60HZ WITH PIPET NPX-LKX + CABLE |
| 44 | 5.611.0325C | COMPLETE BURNER FLANGE 1.50-60 LH WITH RILSAN CONNECTOR |
| 45 | 5.609.0413 | TORRENS-R BOILER ASSEMBLY WITHOUT BURNER FLANGE (SINGLE-GROOVED COIL) |
| 46 | 3.004.0015 | FLAT WASHER D.22X39 THICKNESS 3 UNI6592 ZNT |
| 47 | 4.606.0013 | COIL FIXING NUT 1/2" OT SPECIAL |
| 49 | 3.099.0794 | 135mm WHEEL COVER CAP FOR 260mm THREE-PHASE WHEEL COVER - GREY - RAL 9006 |
| 50 | 3.499.0017 | 3-PHASE PLUG 3P+N+E 16A-6H 380/415V |
| ASSIEME CRUSCOTTO TORRENS S/SCHEDA LED(TAMP.-EN-) Pag.3 | ||
| 1 | 4.608.0595 | TORRENS-R SINGLE-PHASE DASHBOARD |
| 2 | 3.401.0178 | 0/1 BLACK PUSH/BUTTON SWITCH IP55 12/10 |
| 3 | 5.611.0161 | BLACK THERMOSTAT KNOB WITH INSERT |
| 4 | 4.608.0530 | TORRENS DETERGENT KNOB |
| 5 | 3.107.0004C | 50MM PRESSURE GAUGE 0/315 BAR 1/4" EXTERNAL CONNECTOR + BRACKET |
| 6 | 3.105.0003C | DET REGULATOR TAP WITH HOLDER D.7 |
| 7 | 3.403.0091 | 30/150MM THERMOSTAT, 6.5MM BULB (3 CLOSED FASTONS) |
| FLANGIA BRUCIAT.COMPL. 1,50-60 SX C/ATT.X RILSAN Pag.4 | ||
| 1 | 4.614.0004C | PAIR OF STANDARD PROFESSIONAL ELECTRODES W/BRACKET |
| 2 | 3.100.0557 | L-SHAPED CONNECTOR G1/8M - D.4 FOR RILSAN TUBE -C- |
| 3 | 4.608.0599C | GLASS COVER |
| 4 | 4.608.0598C | GLASS FOR BURNER FLANGE |
| 5 | 4.605.0001C | MACHINED BURNER FLANGE |
| 6 | 3.104.0033C | OIL NOZZLE 1.50 60 TORRENS-R |
| ASSIEME CALDAIA TORRENS-R S/FL. BRUC. (SERP.MONOG.) Pag.5 | ||
| 1 | 3.099.2093 | BOILER COVER FIXING BAND TORRENS-R |
| 2 | 5.611.0107 | BOILER EXTERNAL COVER FOR BAND WITH 3MM THICKNESS TEKNA'04 |
| 3 | 5.613.0027 | COMBINATION CAM. CHIMNEY INTERNAL COVER L=110 |
| 4 | 4.604.0030 | CKX H425 COIL |
| 5 | 5.613.0445 | BOILER EXTERNAL CASING |
| 6 | 5.613.0230 | COMPLETE BOILER INTERNAL CASING |
| 7 | 4.607.0006 | COIL FIXING BAND 15/10 STAINLESS STEEL SHEET METAL |
| 8 | 6.605.0143 | PRO 'SERIES 4' BOILER REFRACTORY KIT |
| CL4 200/15 1450 SX C/IN.-VALV.TERM-USC.3/8*AUTO SUCT* Pag.6 | ||
| 0 | 5.609.0314 | LAVOR CL4 PUMP KIT D.18 1450 RPM 15LT (1808) OIL-FREE |
| 0 | 5.008.0368C | BRASS HEAD LWS 1808 WITH 2.0 IN - 3/8 OUT - TERMINAL VALVE WITHOUT VALVE |
| 1 | 5.008.0368C | BRASS HEAD LWS 1808 WITH 2.0 IN - 3/8 OUT - TERMINAL VALVE WITHOUT VALVE |
| 2 | 5.609.0314 | LAVOR CL4 PUMP KIT D.18 1450 RPM 15LT (1808) OIL-FREE |
| COP.EST.CALDAIA X FASCIA C/SPESS.3MM TEKNA'04 Pag.7 | ||
| 1 | 5.613.0200 | EXTERNAL COVER FOR '04 BOILER |
| 2 | 5.610.0104 | DEFLECTOR WITH CONE D.81 WITHOUT HOLES |
| KIT GRUPPO POMPA LAVOR CL4 D.18 1450RPM 15LT (1808) S/OLIO Pag.8 | ||
| 1 | 4.605.0096 | BEARING COVER |
| 2 | 3.200.0219 | SEAL OR 44.04X3.53 NBR SH.70 |
| 3 | 3.001.0096 | BALL RADIAL BEARING 6305 (25X62X17) - NSK- |
| 4 | 4.606.0161 | TEE CAP 3/8 GAS |
| 5 | 4.605.0157C | PUMP COVER D18 |
| 6 | 6.605.0180 | ALUMINIUM CONNECTING RODS KIT FOR LP PUMP CL4-15 |
| 7 | 3.200.0249 | SEAL OR 98.02X3.53 NBR SH.70 |
| 8 | 4.605.0174C | REAR COVER FOR CL4 PUMP WITH OR SEAT |
| 9 | 3.001.0097 | 6304 BALL BEARING (20X52X15) HIGH QUALITY - NSK- |
| 10 | 3.099.1480 | TP CRCO OIL FW3 |
| 11 | 6.605.0212 | KIT OF 3 PISTONS + PINS FOR LP CL4-18 PUMP |
| 12 | 4.607.0533 | IN-LINE PUMP SHAFT C=14.4 MACHINED X 1808 |
| 13 | 3.099.0831 | CIRCLIP FOR SHAFT D.25 UNI7435 |
| 14 | 3.099.0750 | INTERIOR CIRCLIP 62 UNI 7437-75 |
| 15 | 3.201.0058 | SEAL RING D.25X62X10 DIN AS |
| 18 | 6.605.0210 | OIL SEAL KIT D.18 FOR CL4 PUMP |
| 19 | 4.608.0472 | OIL SEAL SPACER 22X25.6X14.5 |
| TESTATA OTT.LWS 1808 C/IN.2,0-USC.3/8-VALV.TER. S/TS Pag.9 | ||
| 1 | 6.005.0120 | KIT PRESSURE REGULATOR TESTED OCT. '99 |
| 3 | 5.609.0080 | SEAL SEAT ASSEMBLY + O-RING |
| 4 | 5.609.0154C | GAUGE HOLDER ASSEMBLY D. 1 W/O-RING AND SPRING L=7 |
| 6 | 6.005.0422C | KIT 367 LW EXTERNAL INJECTION-RETURN VALVE-GAUGE HOLDER LWS18 |
| 7 | 3.100.0019 | NIPPLE 1/2 CYL. 1/2 CYL. |
| 8 | 4.606.0223 | HEAD WORK LINE 1808 |
| 9 | 3.100.0030 | REDUCTION 1/2M 1/4F |
| 11 | 4.606.0001 | PLUG T.E. 1/4 BAS |
| 12 | 6.005.0305 | KIT 277 LW WATER SEAL LWS1808 |
| 13 | 6.605.0123 | KIT 3 PUMP BUSHINGS 1808 |
| 14 | 6.005.0578 | KIT 6 AUTO SUCTION VALVES (OR COMPONENTS) TESTED OCT. '99 |
| 15 | 5.009.0101C | PLUG INLET/DELIVERY VALVE WITH O-RING MOUNTED |
| 16 | 5.609.0064 | ASSEMBLY OF INLET VALVE CAP, CAPILLARY DISCHARGE VALVE CAP + O-RING |
| ASSIEME SEDE DI TENUTA+OR Pag.10 | ||
| 1 | 4.607.0203 | SEAL SEAT |
| 2 | 3.200.0057 | OR SEAL 9.25X1.78 SH.90 REF. 2037 |
