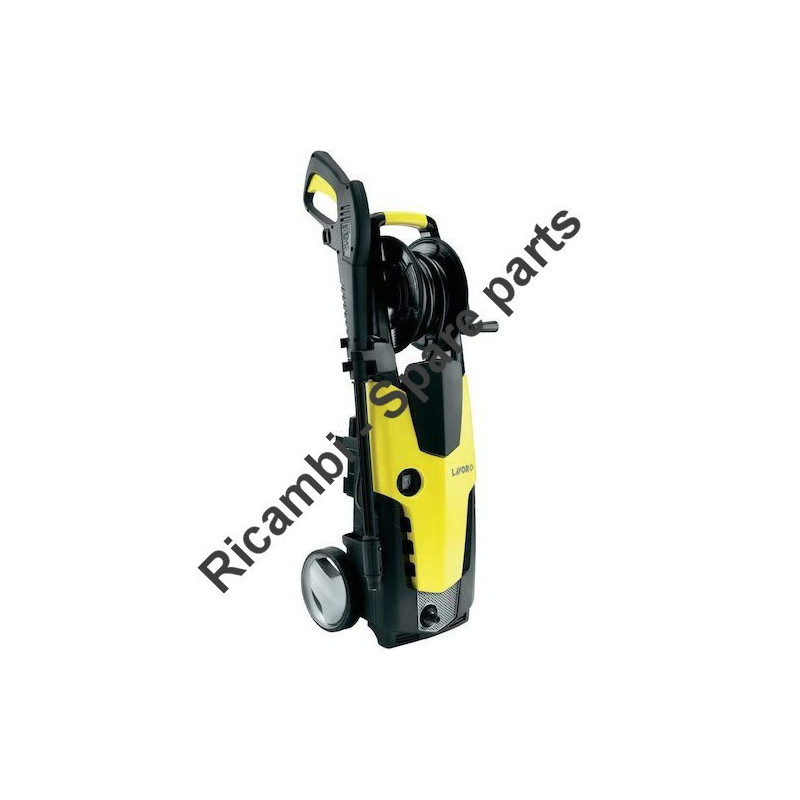

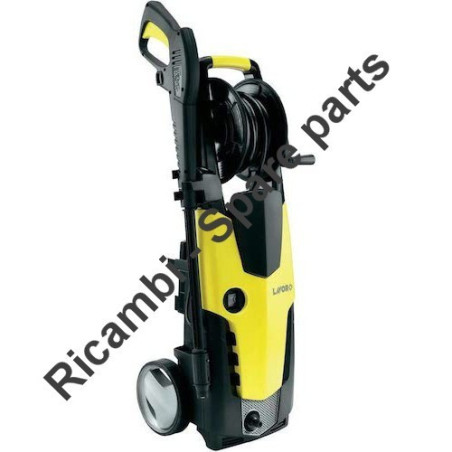

Lavor Original Parts for Pressure Cleaner STM 160 8.086.0003C
€6.84
Tax included
Lavor Original Parts for Pressure Cleaner STM 160 8.086.0003C
Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner STM 160 - 8.086.0003C.Fix Your Pressure Cleaner. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Original Parts for Pressure Cleaner STM 160 8.086.0003C
Fix Your Cold Water High Pressure Cleaner STM 160 - 8.086.0003C. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following tables, look for the spare part and its respective code.
| STM 160 220-240~50/60 -G/N- TS EU 2L C/AVV.+2SP.+SP.L28 - 8.086.0003C Pag.1 | ||
| # | Part Num. | Description |
| 0 | R50010762C | MOTOR PUMP SP.PT'03 230/50 7'10 CON / THERMAL-TS 14.5KG HEAD THREADED PLUGS (8850) |
| 002 | 3.401.0178 | SWITCH 0/1 BLACK BUTTONS PUSH / BOTTON IP55 12/10 |
| 003 | 4.013.0595 | FRONT COVER STM -G- PANT.108C C / TAMP.-LAVOR- (X SWEEP MOTOR) |
| 004 | 4.013.0556C | Replaced by 4.013.0556 STM FRONT FAIRING BLACK (P80.0425) |
| 005 | 4.008.0721 | RIGHT MOTOR CONVEYOR (NO X U96 FL.ALL./9655) |
| 006 | 4.008.1263 | STM BLACK REAR FAIRING (SWEEP MOTOR - P80.0502-U) |
| 007 | 4.008.1259 | REAR ACCESSORIES HOLDER STM / i- CLEAN BLACK (P80.0502) |
| 008 | 4.008.1311 | WHEEL STM / i-CLEAN -GR- PANT.877C (metallic) PAINTED WITH BLACK TREAD |
| 009 | 4.012.0235 | CABLE H05VV-F 2X1,5 MT.5,4 SCHUKO PLUG SPRAY F / F |
| 010 | 6.001.0073 | Replaced by 6.001.0076 S'09 TRIGGER GUN WITH FAST COPLING WITH / LEVER -G- PANT.108C LAVOR |
| 011 | 4.018.0096 | HP HOSE 1/4 18MPa L = 8000 RPM M22x1,5 D.15-FAST COUPLING X S'09 |
| 014 | 6.002.0361 | LANCE S'12 WITHOUT HEAD WITH FST COUPLING - COGETIL + NEDDLE |
| 015 | 6.002.0636 | LANCIA HEAD NOZZLE S'12 D.0.95 (ORANGE) (NEEDLE NOZZLE / FAN) |
| 016 | 6.002.0346 | ROTOX HEAD LANCIA S'12 D.1,025 (BLACK) C / ATT.RAP. |
| 017 | 3.601.0033 | FIXED WASH BRUSH WITH LARGE COGETIL CONNECTION |
| 018 | 3.601.0035 | Replaced by 3.601.0066 ROT. FIXED HANDLE COG.RINF. (5116 ECON.) |
| 019 | 6.002.0259 | Replaced by 6.002.0358 UNIFIED FOAM DIFFUSER (D.4) C / TRANSPARENT TANK |
| 020 | 3.100.0082C | 3/4 BLACK QUICK COUPLING WITH GASKET (THREAD L = 9.5) |
| 021 | 7.100.1659 | SPECIFIC MANUAL STM / TECHNO + CE LAVOR 27L A5 16F |
| 022 | 4.008.1264 | FRONT COVER STM BLACK (P80.0502-U) |
| 023 | 3.601.0102 | FLOOR BRUSH L28 WITH EXTENSION -G / N- (D.1,2) |
| 024 | 5.011.0127 | ASSEMBLY HANDLE X WINDER + PLATE -G- (STM P80.0502) |
| 026 | 6.005.0576 | STM / GALAXY HOSE REEL KIT (S / HOSE) |
| 027 | 4.008.1310 | WATER INLET MASK -GR- PANT.877C (metallic) PAINT. STORM II PLUS) |
| 031 | 5.001.0762C | MTP.SP.PT'03 230/50 7'10 C / TERM.-TS 14.5KG TEST.T.FIL. (8850) |
| STM 160 220-240~50/60 -G/N- TS EU 2L C/AVV.+2SP.+SP.L28 - 8.086.0003C Pag.2 | ||
| 0 | R50091024C | TS 14.5KG + THREADED CAPS HEAD PT'03-TPAV AAS'Y |
| 001 | 5.009.0924 | Replaced by 5.009.0582 MOTOR ASSEMBLY WITH BRUSHES 03 230/50 CON / ANTID.- THERMAL 17 AM-D 140G (8850) |
| 002 | 6.005.0180 | KIT 166 LW WASHERS + NEEDLE BEARINIG 3047 PT'03-SD |
| 003 | 4.007.0205 | PIN 10X70 X PARTNER-ED BRUSH'98 |
| 004 | 5.009.1020 | Replaced by 5.009.0742 WOBBLE PLATE ASSEMBLY 7'10 PT'03 C / INS.PL. + CROWN Z 50 |
| 005 | 4.007.0328 | THRUST BALL BEARING 35X55X12 FOR PT'03 |
| 006 | 5.009.1024C | GUIDE BODY ASSY C / TS 14.5KG + THREADED CAPS HEAD PT'03-TPAV |
| STM 160 220-240~50/60 -G/N- TS EU 2L C/AVV.+2SP.+SP.L28 - 8.086.0003C Pag.3 | ||
| 0 | R50070280C | GUIDE BODY PT'03 C / TS 14.5KG |
| 0 | R50080298C | HEAD PT'03 (TPAV) D.12 C / PLUGS FIL.ALL. |
| 001 | 5.007.0280C | GUIDE BODY PT'03 C / TS 14.5KG |
| 002 | 6.005.0282 | KIT 257 LW RINGS FOR ALUMINUM O-RING + SPACERS PT D.12 |
| 003 | 5.008.0298C | HEAD PT'03 (TPAV) D.12 C / PLUGS FIL.ALL. |
| STM 160 220-240~50/60 -G/N- TS EU 2L C/AVV.+2SP.+SP.L28 - 8.086.0003C Pag.4 | ||
| 001 | 5.009.1022 | COMPLETE VALVE ASSEMBLY WITH / TS PT'03 CABLE L = 530 SPRING 14.5KG (WHITE COVER) |
| 002 | 6.005.0281 | KIT 256 LW ASSEMBLY OF CHECK VALVE WITHOUT / INTAKE PT'03C |
| 003 | 6.005.0226 | KIT 209 O-RING FOR PT'03 |
| 004 | 6.005.0079 | KIT 79 LW OIL SEAL RINGS X PARTNER D.12 / FIBER |
| 005 | 4.005.0234 | GUIDE BODY PIST. PT'03 S / HOLE DET. |
| 006 | 6.005.0181 | KIT 167 LW 3 PISTONS + SPRINGS PT'03 |
| 007 | 4.007.0314 | CYLINDRICAL PLUG 3,5x30 ZNT |
| STM 160 220-240~50/60 -G/N- TS EU 2L C/AVV.+2SP.+SP.L28 - 8.086.0003C Pag.5 | ||
| 001 | 6.005.0595 | SUCTION / DELIVERY VALVE KIT + ALL. THREADED PT '03 |
| 002 | 4.005.0302 | PT'03 HEAD MACHINED WITH / THREAD FOR VALVE CAPS (TPAV) |
| 003 | 6.005.0133 | KIT 124 SEALING O-RINGS WATER PARTNER D.12 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor STM 160 8.086.0003C
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
