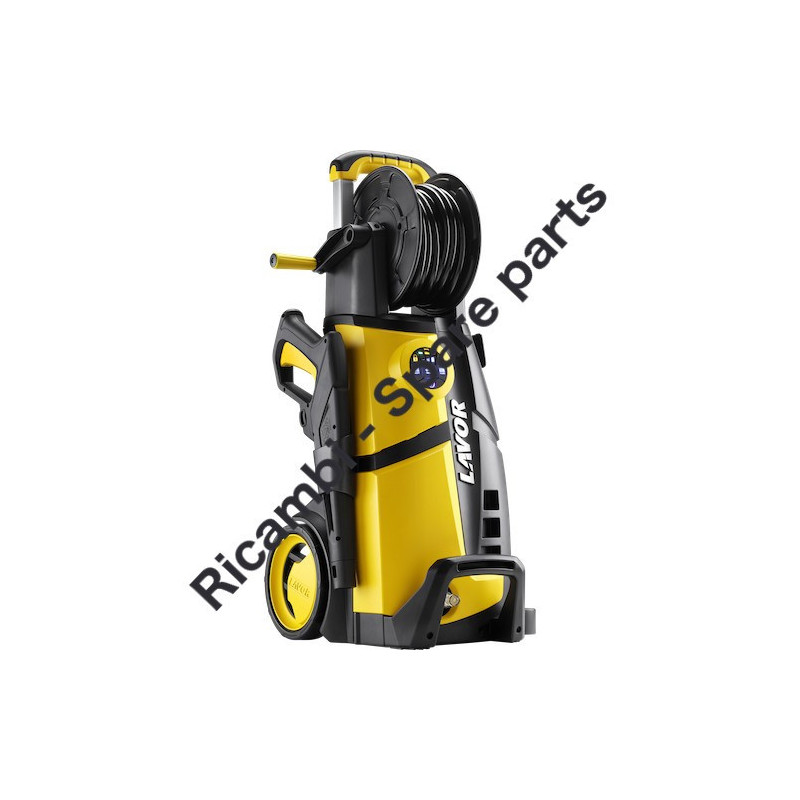

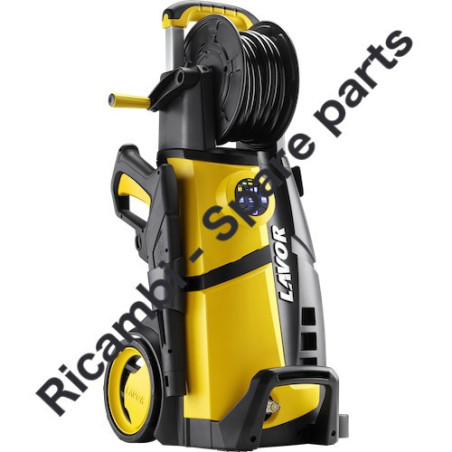

Lavor Pressure Cleaner LVR4 PLUS 160 Parts
€133.67
Tax included
Lavor Original Parts for Pressure Cleaner LVR4 PLUS 160 DIGIT - 8.113.0008C
Lavor original spare parts for to replace broken parts for to fix Hot Water High Pressure Cleaner LVR4 PLUS 160 DIGIT 220-240~50/60-G-TS EU+AVV+L28 LAVORFix Your LVR4 PLUS 160 DIGIT. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Original Parts for Pressure Cleaner LVR4 PLUS 160 DIGIT - 8.113.0008C
Fix Your Hot Water High Pressure Cleaner LVR4 PLUS 160 DIGIT 220-240~50/60-G-TS EU+AVV+L28 LAVOR. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full GuaranteeIn the following tables, look for the spare part and its respective code.
| LVR4 PLUS 160 DIGIT 220-240~50/60-G-TS EU+AVV+L28 LAVOR - 8.113.0008C | ||
| Chassis Pag.1 | ||
| # | Part Num | Description |
| 0 | 5.001.0960C | BRUSH MOTOR PUMP PT03 230/50 6'35 C/TERM.TS 14.5KG (8850-WPS)-LVR- |
| 1 | 5.011.0405 | KEYBOARD SUPPORT ASSY. + DIGITAL BOARD (BRUSH) |
| 2 | 4.008.2267 | FRONT UPPER COVER LVR-G-PANT.108C |
| 3 | 5.011.0450 | FRONT FAIRING ASSY. + LOWER COVER LVR-N/G-C/TAMP.-LAVOR- |
| 4 | 4.008.0277 | FIXED WALL CABLE CLAMP |
| 5 | 4.008.1290 | INLET SIDE HALF-WINDING VERS.'11 C/INTEGRATED SPACER |
| 6 | 4.008.1287 | HANDLE SIDE HALF-WINDING VERS.'11 |
| 7 | 5.011.0443 | HANDLE ASSY. LVR-G- |
| 8 | 4.008.2279 | HOSE REEL STOP HANDLE SIDE |
| 9 | 4.008.2278 | HOSE REEL STOP BLOCK SIDE |
| 10 | 4.008.2277 | UPPER COVER WITH HOSE REEL SUPPORT |
| 11 | 4.008.2270 | SUPPORT FOR UPPER COVER LVR -BLACK- |
| 12 | 4.008.1437 | VERTIGO BLACK ELECTRICAL BOX COVER |
| 13 | 3.403.0379 | ELECTRICAL BOARD X DIGIT 230V(BRUSH) |
| 14 | 4.008.2274 | GUN SUPPORT |
| 15 | 4.013.0895 | REAR FAIRING LVR-BLACK- |
| 16 | 5.011.0431 | LVR HANDLE ASSY. VERSION C/AVV.-G- |
| 17 | 4.008.2282 | HANDLE END STOP |
| 18 | 4.008.2266 | BLACK ACCESSORY HOLDER |
| 19 | 4.008.2276 | LANCE HOLDER |
| 20 | 4.008.2283 | TANK SUPPORT |
| 21 | 5.009.1160 | QUICK COUPLING BLOCK C/ALL. BUSHING (FOR MOTORPUMP) |
| 22 | 5.011.0456 | WHEEL ASSY. COVERED + HUB CAP C/LOGO -LAVOR- G- PANT.108C |
| 23 | 4.012.0235 | CABLE H05VV-F 2X1.5 MT.5.4 SPLASHPROOF SCHUKO F/F + COVER |
| 24 | 4.008.2288 | GUIDE FOR LVR HANDLE -BLACK- |
| 25 | 4.008.2263 | REAR PARTITION FOR BRUSH MOTOR LVR |
| 26 | 5.001.0960C | MTP.SP.PT03 230/50 6'35 C/TERM.TS 14.5KG (8850-WPS)-LVR- |
| 27 | 4.008.2262 | FRONT PARTITION FOR BRUSH MOTOR LVR |
| 28 | 4.008.2275 | LANCE HOLDER CUP |
| 29 | 4.008.2280 | LOWER HANDLE GRIP |
| 30 | 7.100.2561 | SPECIFIC MANUAL LVR/COSMOS 28L A5 52F(BRUSH VERS.)WITHOUT CE |
| 31 | 6.001.0139 | G19 GUN C/INTEGRATED QUICK CONN.C/LEVER-G-PANT.108C |
| 32 | 4.018.0154 | HOSE 1/4 18MPA 8M QUICK CONN.-QUICK CONN. X S'09 C/SPIRAL HANDLE |
| 33 | 6.002.0340 | LANCE S'12 W/O NOZZLE C/QUICK CONN.-COGETIL |
| 34 | 6.002.0637 | LANCE NOZZLE S'12 D.1.00-LIGHT BLUE-C/QUICK CONN.(PIN JET/) |
| 35 | 6.002.0346 | ROTOX LANCE NOZZLE S'12 D.1.025 -BLACK- C/QUICK CONN. |
| 36 | 6.002.0371 | LANCE NOZZLE S'12-V-D.1.2-RED-C/QUICK CONN.(FAN JET) |
| 37 | 3.100.0510 | QUICK CONN.3/4 TRANSP.+GASKET+FILTER |
| 38 | 6.002.0669 | ADJUSTABLE FOAM LANCE -G- C/RECTANGULAR TANK 0.9LT |
| 39 | 3.601.0102 | FLOOR BRUSH L28+EXT.-G/N-(D.1.2) |
| MTP.SP.PT03 230/50 6'35 C/TERM.TS 14.5KG (8850-WPS)-LVR- Pag.2 | ||
| 1 | 5.009.1077 | BRUSH MOTOR ASSY.03 230/50 C/TERM.17AM-D 140G(8850)-WPS- |
| 2 | 6.005.0180 | KIT 166 LW ROLLER CAGE + NEEDLE ROLLER 3047 PT03-SD |
| 3 | 4.007.0205 | PIN 10X70 X PARTNER ED BRUSH '98 |
| 4 | 5.009.0946 | PLATE ASSY. 6'35 PT03 C/INSERT PL.+CROWN Z 50 |
| 5 | 4.007.0328 | THRUST BALL BEARING 35X55X12 FOR PT03 |
| 6 | 5.009.1024C | GR.C.GUIDE C/TS 14.5KG+FILTER CAPS PT'03-TPAV |
| 7 | 3.299.0017 | GASKET FOR M22 EXTENSION |
| 8 | 4.605.0188 | M22F-M22M EXTENSION X MAINE |
| 9 | 4.008.2259 | CONVEYOR (2 PIECES) MOTOR 8850 |
| 10 | 4.008.1077 | LOWER COVER FOR CONVEYOR IN 2 PIECES(8850) |
| GR.C.GUIDA C/TS 14.5KG+TEST.TAPPI FIL.PT'03-TPAV Pag.3 | ||
| 1 | 5.007.0280C | GUIDE C. PT03 PIST.D.12 C/TS 14.5KG |
| 2 | 6.005.0282 | KIT 257 LW BRASS SEALING RINGS + SPACERS PT D.12 |
| 3 | 5.008.0298C | CYLINDER HEAD PT'03 (TPAV) D.12 C/ALL. FILTER CAPS |
| C.GUIDA PT03 PIST.D.12 C/TS 14.5KG Pag.4 | ||
| 1 | 5.009.1022 | ASS.V.COMP.C/TS PT03 CABLE L=530 SPRING 14.5KG(WHITE COVER) |
| 2 | 6.005.0281 | KIT 256 LW CHECK VALVE ASSY. W/O SUCTION PT03C |
| 3 | 6.005.0226 | KIT 'O-RING FOR PT03' |
| 4 | 6.005.0079 | KIT 79 LW OIL SEAL RINGS X PARTNER D.12/FIBER |
| 5 | 4.005.0234 | PISTON GUIDE C. PT03 W/O DET. SUCTION HOLE |
| 6 | 6.005.0181 | KIT 167 LW 3 PISTONS+SPRINGS PT03 |
| 7 | 4.007.0314 | CYLINDRICAL PIN 3.5X30 ZNT |
| TESTATA PT'03 (TPAV) D.12 C/TAPPI FIL.ALL. Pag.5 | ||
| 1 | 6.005.0595 | KIT ASP./DELIVERY VALVES + ALL. FILTER CAPS PT'03 |
| 2 | 4.005.0302 | CYLINDER HEAD PT03 WORK.C/FILTER FOR VALVE CAPS(TPAV) |
| 3 | 6.005.0133 | KIT 124 WATER SEAL RINGS PARTNER D.12 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor LVR4 - 8.113.0008C
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
