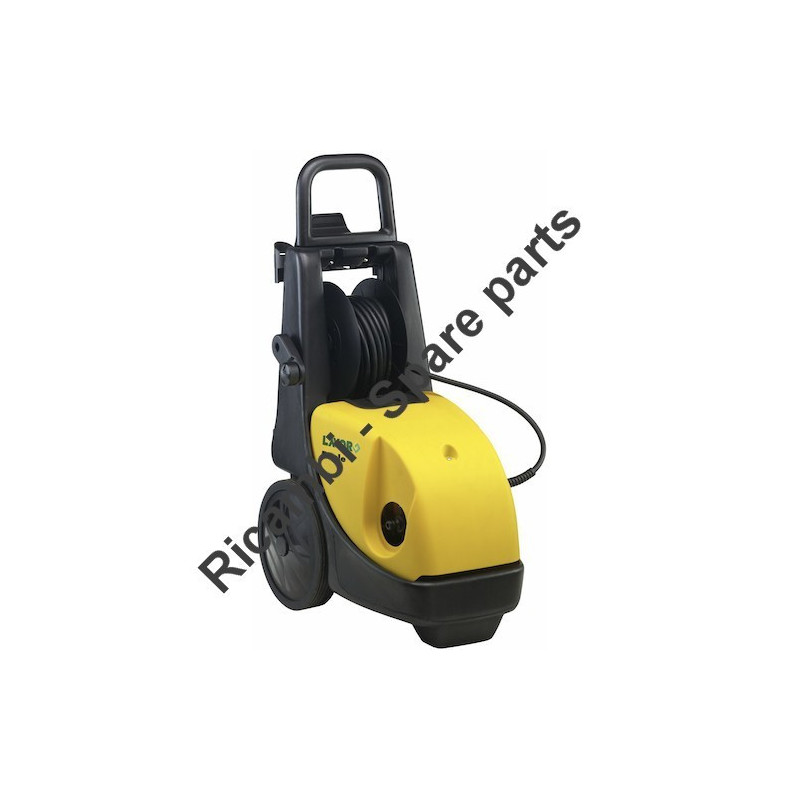

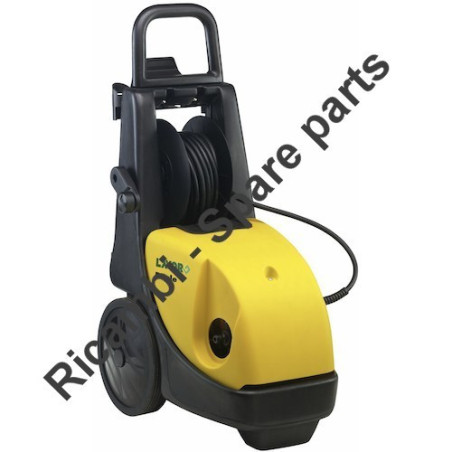

Lavor Original Parts for Pressure Cleaner EAGLE 24 - 8.030.0601
€9.39
Tax included
Lavor Original Parts for Pressure Cleaner EAGLE 24 - 8.030.0601
Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner EAGLE 24 230/50 -G-TS+AVVOLG.+REG.PRESS.-EU - 8.030.0601.Fix Your Pressure Cleaner EAGLE 24. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Original Parts for Pressure Cleaner EAGLE 24 - 8.030.0601
Fix Your Cold Water High Pressure Cleaner EAGLE 24 230/50 -G-TS+AVVOLG.+REG.PRESS.-EU - 8.030.0601. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following tables, look for the spare part and its respective code.
| 80300601-2 - IDRO EAGLE 24 230/50 -G-TS+AVVOLG.+REG.PRESS.-EU Pag.1 | ||
| # | Part Num. | Description |
| 001 | 5.012.0052 | SCREWS SET FOR EAGLE LANCE HOLDER HANDLE |
| 002 | 4.008.0280 | LANCE HOLDER FOR SPACE |
| 003 | 4.008.0494 | EAGLE BLOW HANDLE LMX |
| 004 | 4.007.0114 | NOZZLE CLEANING PIN |
| 005 | 4.008.0281 | ADJUSTING KNOB |
| 006 | 4.006.0038 | TOP 100 FAIRING BLOCKAGE RING NUT |
| 008 | 4.012.0150 | CABLE H05VV-F 3X1,5 MT.5,4 F/F SCHUKO PLUG |
| 009 | 4.008.0506 | BLACK LANCE HOLDER GLASS FOR EAGLE |
| 010 | 4.008.0278 | OUTLET CAP |
| 011 | 3.099.0122 | TANK CAP LMX FOR EAGLE |
| 012 | 4.013.0321 | YELLOW UPPER COVER EAGLE (PANT.108C) |
| 013 | 3.002.0138 | SCREW TCEI M6X20 ZNT UNI 5931 |
| 014 | 3.003.0011 | NUT M6 UNI 5588 |
| 015 | 3.004.0007 | PLAIN WASHER D.6X18X2 UNI6593 |
| 016 | 4.008.0535 | TRANSPARENT HOSE D.6X9 L.430 CUT 45' |
| 017 | 3.099.0127 | BLACK WHEEL COVER D.250-200 FOR EAGLE/SPARK |
| 018 | 3.006.0031 | EAGLE WHEEL D.250 HOLE 20 |
| 019 | 4.007.0224 | EAGLE WHEEL AXLE D.20 |
| 020 | 4.007.0287 | FIXING CLAMP |
| 021 | 4.008.0514 | BLACK EAGLE FOOT FOR MOTOR- PUMP SUPPORT |
| 022 | 5.611.0089 | LOWER BLACK COVER EAGLE |
| 023 | 5.012.0060 | HANDLE + SCREW |
| 024 | 3.002.0112 | CROSS HEAD -TORX SCREW 3,9x25 HI-LO ZNT |
| 025 | 4.008.0517 | SUBSTITUITED BY 4.008.1216 WINDING WHEEL |
| 026 | 3.099.0158 | 3/8 BUSH |
| 027 | 4.008.0516 | SUBSTITUITED BY 4.008.1215 WINDING WHEEL- INLET |
| 028 | 4.606.0098 | ROTATING BOLT |
| 030 | 3.200.0018 | OR-RING GASKET 9.92X2.62 SHORE 90 |
| 031 | 4.606.0097 | ROTATING COUPLUING BODY |
| 032 | 3.099.0144 | SEEGER RING FOR SHAFT |
| 033 | 4.606.0096 | COUPLING FOR HOSE WINDING |
| 034 | 4.018.0046 | 1/4 145bar L=600 GIR.D.15 -M14 |
| 036 | 5.609.0073 | BOLT ASSY FOR HOSE WINDING |
| 038 | 3.100.X005 | QUICK COUPLING 3/4 BLACK WITH GASKET |
| 039 | 4.018.0052 | HOSE 1/4 160 BAR L=8000 1/4F. |
| 040 | 6.001.0038 | S'99 GUN METAL EXTENSION |
| 041 | 6.002.0183 | SY'99 LANCE 1,05 A/B (GREY) |
| 044 | 4.008.0277 | CABLE HOOK |
| 045 | 3.099.0019 | BLOCK WHEEL D.250x55 D.20 |
| 046 | 4.008.0622 | UPPER BLACK COVER FOR EAGLE (2600W) |
| 50010486-1 - MOTOPOMPA PT'02 230_50 9'16 125h110 REG.IN.1,8 TS (EAGLE) Pag.2 | ||
| 001 | 5.009.0213 | SWITCH WITH PROTECTION 12(10) |
| 002 | 3.406.0004 | CABLE TERMINAL PG.11 |
| 003 | 3.406.0011 | BUSHING FOR PG.11 CABLE TERMINAL |
| 004 | 3.002.0135 | SELF-TAPPING CROSS HEAD SCREW 2,9X13 UNI 6954 ZNT |
| 005 | 3.404.0016 | CAPACITOR 45mF 450V D.45X90 WITHOUT CABLE FASTON M |
| 006 | 4.008.0618 | LOWER RUBBER GASKET FOR ELECTICAL BOX |
| 007 | 4.008.0583 | MOTOR FAN COVER '96 WITHOUT GRILL |
| 008 | 3.099.0049 | LOCKING RING D.23 FAN FB80 |
| 009 | 4.008.0092 | FAN FB80 WITH HOLE D.16,5 (PARTNER) |
| 010 | 5.002.0121 | Substituted by 5.006.0197 FRAME '96 D125 H110 230/50 2P 2800W |
| 011 | 3.001.0020 | RADIAL BEARING FOR MOTOR SHAFT 17X40X12 6203 2RS |
| 012 | 5.005.0029 | ROTOR SHAFT 125'96 TAPERED H.110 |
| 013 | 3.002.0115 | SCREW TC M5X35 SWAGEFORM ZNT |
| 014 | 4.005.0183 | Substituted by 5.009.0395 FRONT FLANGE MOTOR D.125 H.110 FOR PARTNER |
| 015 | 3.201.0001 | OIL SEAL 20/35/6/6,5 BABSL |
| 016 | 3.001.0031 | ANTERIOR RADIAL FOR CASING 20X 52X15 - 6304 |
| 017 | 4.005.0125 | CONIC PLATE |
| 018 | 3.001.0003 | DISK AS 4565 |
| 019 | 3.001.0025 | NEEDLE-ROLLER CAGE Axk4565 -STTEL- |
| 020 | 4.007.0001 | BEARING WASHER D.65X30X6 (C10Pb) FINISHED |
| 021 | 5.009.0452 | ASSEMBLY RETAINING RING D.29/PISTON D.12 |
| 022 | 3.200.0014 | O-RING GASKET 85X2,5 NITRILIC |
| 023 | 4.007.0283 | Substituted by 4.007.0025 RECALL PISTON SPRING D.14- 12 |
| 024 | 5.009.0459 | Substituted by 5.009.0516 ASSEMBLY MICRO+CABLE TOTAL STOP PARTNER USA/EU |
| 025 | 4.006.0270 | TS COUPLING |
| 026 | 4.006.0269 | BRASS SPACER FOR SPRING |
| 027 | 4.007.0284 | RECALL SPRING FOR ROD |
| 028 | 3.200.0073 | Substituted by 3.200.0021 OR GASKET |
| 029 | 4.008.0782 | CONTROL ROD FOR MICRO |
| 030 | 4.007.0305 | Substituted by 3.002.0267 SCREW M3M25 A2-70 |
| 031 | 4.008.0779 | SEAL SEAT WITH SPACER |
| 032 | 3.200.0113 | OR GASKET OR 15.08X2.62 |
| 033 | 4.007.0285 | SPRING Di6.6 De10.2 L=23.8 wire D.1.8 |
| 034 | 4.006.0268 | BRASS PISTON D.11 |
| 035 | 3.200.0059 | O-RING 7.66 X1.78 |
| 036 | 4.608.0153 | Substituted by 4.608.0326 ANTIEXTRUSION O-RING D.8X11X1.5 (FOR 2031 O-RING) |
| 037 | 4.008.0780 | PISTON SEAT AND UNLOADER VALVE FOR NEW COMPENSATED VALVE |
| 038 | 3.200.0118 | OR GASKET 14X1.78 NBR SH.90 |
| 039 | 3.200.0029 | O-RING 18,72X2,62 |
| 040 | 5.009.0278 | PRESSURE REGULATOR |
| 042 | 5.009.0503 | RUBBER HOLDER WITH DET. SUCTION M10 WITH ORING |
| 044 | 3.005.0001 | BALL INOX 420 DIAM.5 DEGREE OF ACCURACY G 500 |
| 045 | 4.007.0014 | DETERG.STOP VALVE SPRING 4X8 ESP.3 |
| 046 | 4.005.0209 | BODY GUIDE D.12 |
| 048 | 5.009.0495 | UNLOADER VALVE ASSEMBLY PLAST. + OR |
| 049 | 4.607.0105 | Substituted by 4.007.0324 STOP VALVE SPRING D.6X20 |
| 051 | 5.009.0523 | Substituted by 5.009.0560 D.1,8 INJECTORS ASSEMBLY WITH OR |
| 052 | 3.200.0017 | O-RING GASKET 9,13X2,62 REF.109 |
| 053 | 3.200.0013 | O-RING 11,1X1,78 |
| 054 | 3.201.0014 | OIL SEAL RING D.12X20X5/7 |
| 055 | 3.002.0094 | SCREW TCEI M6X30 ZNT |
| 056 | 5.009.0101 | CAP VALVE SUCTION DELIVERY-OR MOUNTED |
| 057 | 5.009.0005 | DELIVERY SUCTION VALVE LAVOR |
| 058 | 3.200.0019 | O-RING 12.4X1.78 SH.90 |
| 059 | 4.006.0109 | TAPERED 1/8 CAP |
| 062 | 3.200.0018 | OR-RING GASKET 9.92X2.62 SHORE 90 |
| 064 | 4.008.0657 | OIL SPACER D.12 |
| 065 | 4.006.0251 | PIECE FOR SUPPORT PARTNER D.12 |
| 066 | 4.008.0695 | ANTI-EXTRUSION RING 12x18x1 FOR PARTNER D.12 |
| 067 | 3.201.0020 | WATER SEAL 12X18X5 |
| 068 | 5.009.0015 | COMPLETE SUCTION VALVE |
| 069 | 4.005.0187 | PARTNER HEAD '01 FOR PISTONS DIAM. 12 |
| 070 | 3.002.0130 | HEXAGON SOCKET HEAD CAP SCREW M6X70 CL.12,9 UNI5931 DACROMET |
| 071 | 4.008.0031 | INLET WATER FILTER H2O D.16 CONICAL |
| 072 | 4.008.0376 | COVER FOR ELECTRICAL BOX |
| 074 | 4.008.0356 | ELECTRICAL BOX |
| 082 | 5.006.0157 | MOTOR'99 D.125 H110 230/50 2P X PT. |
| 083 | 5.007.0183 | Substituted by 5.007.0149 BODY GUIDE |
| 084 | 5.008.0160 | PARTNER HEAD D.12 |
