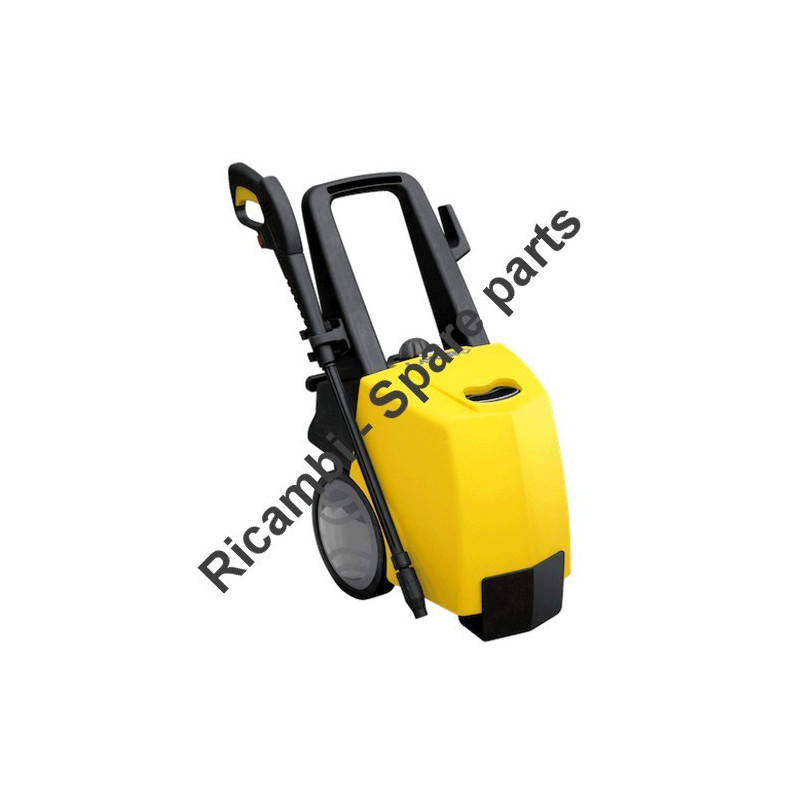

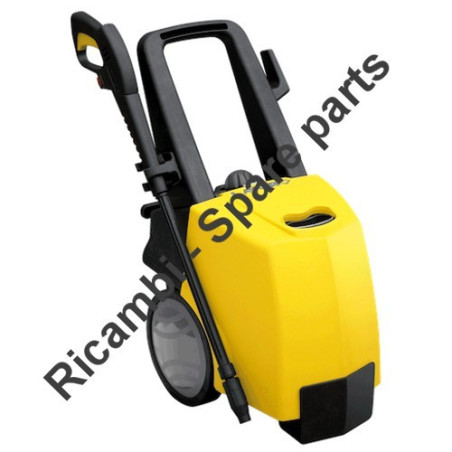

Lavor Original Parts for Pressure Cleaner ADVANCED 1108
€20.52
Tax included
Lavor Original Parts for Pressure Cleaner ADVANCED 1108
We have the original Spares LAVORWASH for Pressure Cleaner ADVANCED 1108 80540001, the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Pressure Cleaner ADVANCED 1108. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Original Parts for Pressure Cleaner ADVANCED 1108
We have the original Spares LAVORWASH for Pressure Cleaner ADVANCED 1108 80540001, the diagram, parts list and tool repair that help you need to get your tools running like new again.In the following tables, look for the spare part and its respective code.
| HPW ADVANCED 1108 80540001 BOILER Pag.1 | ||
| # | Part Num. | Description |
| 001 | 3.099.1560 | CLOSING CLAMP FOR BOILER COVER |
| 002 | 4.005.0194 | BOILER COVER FKX |
| 003 | 4.006.0187 | NOZZLE HOLDER PIN |
| 004 | 3.104.0023 | NOZZLE 0.40 60'S |
| 005 | 3.099.0296 | Substituted by 6.005.0307 COMPLETE ELECTRODE DEFLECTORDI D.2 FKX |
| 006 | 5.013.0027 | DISK HEAD HOLDER |
| 007 | 4.604.0029 | COIL D.202 |
| 008 | 5.013.0061 | BOILER BODY WITH BRACKETS |
| 009 | 4.008.1174 | HEAT RESISTANT CERAMIC FIBER BAND 270X635 TH.4 |
| 010 | 4.008.1269 | REFRACTORY STONE |
| 011 | 4.007.0427 | BOILER PAD FOR FIRE '10 |
| 012 | 5.009.0686 | CLA IGNITION TRANSFORMER WITH CABLES - Substituited by 5.009.1126 -> Rio/FKX |
| 013 | 4.614.0003 | ELECTRODE D.2 FKX PARANA' |
| 014 | 4.208.0313 | L ANTIVIBRATION DEVICE FOR PUMP |
| 015 | 5.011.0121 | FUEL FILTER ASSEMBLY (PAPER 30 micron) |
| 016 | 3.551.0014 | GASOIL PUMP |
| 017 | 3.401.0193 | ROTARY SWITCH - 2 POSITION |
| 018 | 4.008.1228 | ELECTRICAL BOX COVER FOR FIRE '10 SELF-EXTINGUISHING |
| 019 | 4.008.1181 | CONVEYOR FOR FIRE'10 SELF-EXTINGUISHING |
| 020 | 4.008.1180 | LOWER COVER FOR CONVEYOR FIRE'10 SELF-EXTINGUISHING |
| 021 | 4.008.1253 | RIGHT+LEFT CONVEYOR FOR MOTOR FIRE'10 SELF-EXTINGUISHING |
| 022 | 4.007.0425 | FIXING BAND FOR PUMP FIRE'10 |
| 023 | 5.001.0671 | MOTORPUMP PT'03 230/50 7'10 TS 13KG (9350) FKX |
| HPW ADVANCED 1108 80540001 CHASSIS Pag.2 | ||
| 001 | 4.008.1227 | BLACK FOOT FOR FIRE'10 |
| 002 | 4.013.0579 | YELLOW UPPER CABINET FOR ADVANCED (FIRE'10) PANT.108C |
| 003 | 4.007.0424 | TUBOLAR HANDLE SUPPORT FIRE'10 esp.02 |
| 004 | 6.005.0386 | KIT 352 LW LOCKING CLIPS FOR PIPE |
| 005 | 6.005.0384 | KIT 350 LW HANDLEBAR+GUN HOLDER ADVANCED |
| 006 | 6.005.0385 | KIT 351 LW DIESEL TANK + CAP ADVANCED |
| 007 | 6.005.0242 | KIT 225 LW WHEELS+WHEEL COVER+ EAGLE |
| 008 | 4.608.0380 | GREY KNOB FOR ROTARY SWITCH (PANT.432C) |
| 009 | 4.008.1224 | GREY CABLE HOLDER |
| 010 | 4.008.1223 | BLACK BACK CABINET FOR FIRE'10 |
| 011 | 4.012.0150 | CABLE H05VV-F 3X1,5 MT.5,4 F/F SCHUKO PLUG |
| 012 | 6.001.0078 | GUN S'10Y WITH QUICK CONNECTION LAVOR |
| 013 | 4.018.0003 | HOSE 1/4 R1 210BAR L.8000 1/4F.G+ D.15 RUBBER |
| 014 | 6.002.0209C | FIXED LANCE S'99 1,05 L=46cm. (GREY) |
| 015 | 3.100.0082 | QUICK COUPLING INLET CONNECTOR (THREAD=11.5) |
| 016 | 5.011.0070 | Substituted by 6.002.0358 FOAM SPRAYER (D.4) |
| 017 | 4.008.0803 | TANK FOR FOAM SPRAYER -WHITE TRANSPARENT- |
| 018 | 7.100.1682 | MANUAL ADVANCED/WARM UP/KING LAVOR |
| HPW ADVANCED 1108 80540001 MOTORPUMP Pag.3 | ||
| 000 | 5.001.0671 | MOTORPUMP PT'03 230/50 7'10 TS 13KG (9350) FKX |
| 001 | 5.009.0762 | UNIVERSAL MOTOR .'03 230/50 C/FL. INT.ALL. F.L=600 X FKX (9350) |
| 002 | 6.005.0180 | KIT 166 FOOTSTEP BEARING 3047 PT' 03-SD |
| 003 | 4.007.0205 | PIN 10X70 |
| 004 | 5.009.0742 | 7'10 WOBBLE PLATE ASSEMBLY W/CROWNZ 50 (PT'03) |
| 005 | 4.007.0328 | THRUST BEARING 35X55X12 PT'03 |
| 006 | 6.005.0181 | KIT 167 LW PISTON |
| 007 | 6.005.0226 | KIT 209 O-RING |
| 008 | 6.005.0184 | KIT 170 LW HEAD VALVE KIT |
| 009 | 4.005.0210 | '03 PARTNER HEAD |
| 010 | 6.005.0133 | KIT 124 O-RING WATER SEAL PARTNER D.12 |
| 011 | 6.005.0282 | KIT 257 O-RING SEAL |
| 012 | 6.005.0079 | KIT 79 LW OIL SEALS |
| 014 | 4.008.0031 | INLET WATER FILTER H2O D.16 CONICAL |
| 015 | 4.005.0211 | PISTON BODY GUIDE PT'03 WITH HOLE FOR SUCTION |
| 016 | 5.009.0716 | COMPLETED VALVE TS PT'03 CABLE L=530 SPRING 13KG (WHITE FASTON COVER) |
| 017 | 5.007.0192 | GUIDE BODY PARTNER'03 PISTON D.12 W/TS-WOUT/VACUUM-COMP.VAL |
| 018 | 5.008.0182 | Substituted by 5.008.0182C '03 PARTNER HEAD D.12 |
| 13A | 6.005.0281 | KIT 256 VALVE GUIDE RID. W/O SUCTION PT'03C |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ADVANCED 1108 - 80540001
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
