Lavor Original Parts for Pressure Cleaner HOT130 - 8.617.0015-1
€275.94
Tax included
Lavor Original Parts for Pressure Cleaner HOT130 - 8.617.0015-1
Fix Your HOT Water High Pressure Cleaner 8.617.0015-1 -IDRO HOT130 230/50 TS -A- (STARTEK). All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Original Parts for Pressure Cleaner HOT130 - 8.617.0015-1
Fix Your HOT Water High Pressure Cleaner 8.617.0015-1 -IDRO HOT130 230/50 TS -A- (STARTEK).. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
In the following tables, look for the spare part and its respective code.

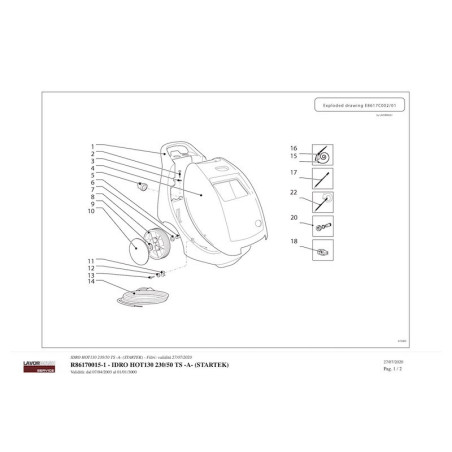

| 86170015-1 - IDRO HOT130 230/50 TS -A- (STARTEK)- Pag.1 | ||
| # | Part Num. | Description |
| 1 | 4.608.0142 | PLASTIC BASE FOR PARANA' |
| 2 | 3.002.0176 | SCREW M5X16 7985 |
| 3 | 3.004.0017 | PLAIN WASHER D.5X10X1 GALVANIZED UNI6592 |
| 4 | 4.613.0174 | CARENATURA SUPERIORE PARANA' -A- RAL 1007 (TERMOF.) |
| 5 | 4.608.0027 | BLACK PLUG D.30 FOR TANK |
| 6 | 4.607.0220 | AXLE FOR VICTORIA-PARANA' |
| 7 | 3.004.0044 | PLAIN WASHER D.22X60X5 UNI6593 |
| 8 | 3.006.0004 | WHEEL D.250x55 HOLE 20 |
| 9 | 3.099.0019 | BLOCK WHEEL D.250x55 D.20 |
| 10 | 3.099.0036 | HUB COVER FOR COVER D.250X55 BLACK |
| 11 | 3.099.0156 | CLIP FOR SCREW |
| 12 | 3.004.0026 | PLAIN WASHER D.4.3X12 UNI6593 |
| 13 | 3.002.0106 | SELF TAPPING CROSS HEAD SCREW 3.9X16 |
| 14 | 5.009.0431 | WIRING PARTN. 3X1,5 PVC MT 5 SCHUKO PLUG |
| 15 | 4.618.0049 | HOSE R1 1/4 8MT 3/8F-M22 (MAX 21MPa) |
| 16 | 6.001.0053 | HP SPRAY GUN S'02 3/8' |
| 17 | 3.701.0015 | LANCE INOX L.700 +PL4/1+WASHER+ QUICK CONN.M22 |
| 18 | 3.103.0049 | HIGH PRESSURE NOZZLE 15040 1/8M (C25040) |
| 20 | 5.009.0340 | QUICK COUPLING ASSY +GASKET+RING NUT |
| 86170015-1 - IDRO HOT130 230/50 TS -A- (STARTEK)- Pag.2 | ||
| 001 | 5.009.0538 | SWITCH ASSY + PROTECTION COVER 14 (14) |
| 002 | 3.406.0004 | CABLE TERMINAL PG.11 |
| 004 | 3.002.0135 | SELF-TAPPING CROSS HEAD SCREW 2,9X13 UNI 6954 ZNT |
| 005 | 3.404.0016 | CAPACITOR 45mF 450V D.45X90 WITHOUT CABLE FASTON M |
| 007 | 4.008.0583 | MOTOR FAN COVER '96 WITHOUT GRILL |
| 008 | 3.099.0049 | LOCKING RING D.23 FAN FB80 |
| 009 | 4.008.0714 | PARTNER FAN H20 |
| 010 | 5.002.0121 | FRAME '96 D125 H110 230/50 2P 2800W |
| 011 | 3.001.0020 | RADIAL BEARING FOR MOTOR SHAFT 17X40X12 6203 2RS |
| 012 | 5.005.0029 | ROTOR SHAFT 125'96 TAPERED H.110 |
| 013 | 3.002.0115 | SCREW TC M5X35 SWAGEFORM ZNT |
| 014 | 4.005.0183 | FRONT FLANGE MOTOR D.125 H.110 FOR PARTNER |
| 015 | 3.201.0001 | OIL SEAL 20/35/6/6,5 BABSL |
| 016 | 3.001.0002 | OBLIQUE SPHERE BEARING 20x52x15 7304 B |
| 017 | 4.005.0054 | INCLINED PLATE 9.95 11,35' SEP.01 - DISCONTINUED |
| 018 | 3.001.0003 | DISK AS 4565 |
| 019 | 3.001.0025 | NEEDLE-ROLLER CAGE Axk4565 -STTEL- |
| 020 | 4.007.0001 | THRUST SHOE D.65X30X6 (C10PB) FINISHED |
| 021 | 5.009.0466 | TURNED LOCK ASSY/CERAMIC PISTO N D.12 |
| 022 | 3.200.0014 | O-RING GASKET 85X2,5 NITRILIC |
| 023 | 4.007.0283 | NEW CODE 4.007.0025 RECALL PISTON SPRING D.14- 12 |
| 024 | 5.009.0516 | MICRO ASSY+CABLE TS MACH USA/EU |
| 025 | 4.006.0270 | TS COUPLING |
| 026 | 4.006.0269 | BRASS SPACER FOR SPRING |
| 027 | 4.007.0284 | RECALL SPRING FOR ROD |
| 028 | 3.200.0073 | OR GASKET |
| 029 | 4.008.0782 | CONTROL ROD FOR MICRO |
| 030 | 4.007.0305 | SCREW M3M25 A2-70 |
| 031 | 4.006.0272 | SEAL SEAT WITH SPACER |
| 032 | 3.200.0113 | OR GASKET OR 15.08X2.62 |
| 033 | 4.007.0285 | SPRING Di6.6 De10.2 L=23.8 wire D.1.8 |
| 034 | 4.006.0268 | BRASS PISTON D.11 |
| 035 | 3.200.0059 | O-RING 7.66 X1.78 |
| 036 | 4.608.0153 | ANTIEXTRUSION O-RING D.8X11X1.5 (FOR 2031 O-RING) |
| 037 | 4.006.0273 | PISTON SEAT AND VALVE |
| 038 | 3.200.0118 | OR GASKET 14X1.78 NBR SH.90 |
| 039 | 3.200.0029 | O-RING 18,72X2,62 |
| 042 | 5.009.0503 | RUBBER HOLDER WITH DET. SUCTION M10 WITH ORING |
| 044 | 3.005.0001 | BALL INOX 420 DIAM.5 DEGREE OF ACCURACY G 500 |
| 045 | 4.007.0014 | DETERG.STOP VALVE SPRING 4X8 ESP.3 |
| 046 | 4.005.0217 | BODY GUIDE D.12 COMPLETE VALVE '02 S/REG.ING.WATER M20 |
| 048 | 5.609.0041 | NON RETURN VALVE + OR ASSEMBLY |
| 049 | 4.607.0105 | STOP VALVE SPRING D.6X20 |
| 051 | 5.009.0497 | INJECTOR ASSY D.1,9 +OR |
| 052 | 3.200.0017 | O-RING GASKET 9,13X2,62 REF.109 |
| 053 | 3.200.0013 | O-RING 11,1X1,78 |
| 054 | 3.201.0014 | OIL SEAL RING D.12X20X5/7 |
| 055 | 3.002.0094 | SCREW TCEI M6X30 ZNT |
| 056 | 5.009.0101 | CAP VALVE SUCTION DELIVERY-OR MOUNTED |
| 057 | 5.009.0005 | DELIVERY SUCTION VALVE LAVOR 1 |
| 058 | 3.200.0019 | O-RING 12.4X1.78 SH.90 |
| 059 | 3.107.0006 | D.40 0/300 BAR 1/8 GLYCERIN MANOMETER |
| 062 | 3.200.0018 | OR-RING GASKET 9.92X2.62 SHORE 90 |
| 064 | 4.008.0657 | OIL SPACER D.12 |
| 065 | 4.006.0251 | PIECE FOR SUPPORT PARTNER D.12 |
| 066 | 4.008.0695 | ANTI-EXTRUSION RING 12x18x1 FOR PARTNER D.12 |
| 067 | 3.201.0021 | WATER SEAL O-RING 12X18X4,5 |
| 068 | 5.009.0015 | COMPLETE SUCTION VALVE |
| 069 | 4.006.0256 | BRASS PARTNER HEAD D.18 |
| 070 | 3.002.0130 | HEXAGON SOCKET HEAD CAP SCREW M6X70 CL.12,9 UNI5931 DACROMET |
| 071 | 4.008.0031 | INLET WATER FILTER H2O D.16 CONICAL |
| 082 | 5.006.0156 | 99 MOTOR D. 125 H110 230/50 |
| 083 | 5.007.0166 | PISTON BODY GUIDE D.12 +IN.1,9 S/REX. TS ING.M20 CER |
| 084 | 5.008.0173 | BRASS PARTNER HEAD D.12 |
| 087 | 3.406.0011 | BUSHING FOR PG.11 CABLE TERMINAL |
| 088 | 5.009.0315 | CAP FOR VALVE 1/8 INL./OUTL. WITH OR |
| 089 | 3.100.0025 | ELBOW 1/8 M-1/8 F |
| 86170015-1 - IDRO HOT130 230/50 TS -A- (STARTEK)- Pag.3 | ||
| 001 | 3.002.0159 | SCREW M6X6 |
| 002 | 3.100.0075 | CONIC CONNECTION M 1/8 F D.4 CURVED FOR GASOIL HOSE VITON O- RING |
| 003 | 4.608.0145 | RILSAN GASOIL HOSE X PARANA' L =500 |
| 004 | 4.005.0194 | BOILER COVER FKX |
| 005 | 3.099.0124 | RING LOCKER X SHAFT D.42 UNI 7435 |
| 006 | 4.607.0236 | HOSE D40 L=410 |
| 007 | 3.003.0011 | NUT M6 UNI 5588 |
| 008 | 3.004.0010 | WASHER D6X11 Sp0,7 DIN6798A ZN T |
| 009 | 4.607.0238 | ROD FOR BOILER |
| 010 | 4.008.0465 | PVC PIPE |
| 011 | 3.100.0057 | CONNECTION D.4X1/8'M VITON O-RING |
| 012 | 4.008.0748 | BOILER LOCKING CAP FOR FKX REG ULATION |
| 013 | 4.007.0185 | SPACER FOR FIXING CLAMP |
| 014 | 3.099.0452 | WRAPPER D.20 CLAMP 20 W2 |
| 015 | 3.002.0085 | SCREW M6X40 UNI 5739 |
| 016 | 3.004.0001 | PLAIN WASHER D.6X11X0.8 UNI1736 |
| 017 | 4.008.0749 | AIR REGULATION THROTTLE FOR FK X |
| 018 | 3.551.0023 | DIESEL PUMP V.P. E153823 230 /50 CABLES L=400mm W/BY-PASS |
| 019 | 5.011.0058 | DIESEL FILTER ASSY |
| 020 | 3.002.0048 | AUTOTHREAD. SCREW TC-TC 3,9X38 UNI 6954 |
| 021 | 3.004.0002 | PLAIN WASHER 4.3X9X0.8 UNI6592 |
| 022 | 3.400.0027 | TRANSFORMER 230-240/50-60 |
| 023 | 4.012.0102 | CABLE L=600 SEC.0,75 IEC227-3/1979 |
| 024 | 3.003.0005 | SELF-LOCKING NUT M6 UNI7474 |
| 025 | 4.008.0470 | FAN MOTOR COVER |
| 026 | 3.304.0005 | Substituited by 3.304.0056 BURNER MOTOR 230/50 C/W FAN, FLANGE, CABLES AND COVER |
| 027 | 3.002.0138 | SCREW TCEI M6X20 ZNT UNI 5931 |
| 029 | 4.606.0115 | THERMOSTAT BODY FOR PARANA' |
| 030 | 3.004.0036 | COPPER WASHER 3/8 17X22 SP.1.5 |
| 031 | 3.100.0094 | ANGLE CONNECTOR 3/8 -3/8 |
| 034 | 4.007.0200 | WASHER20.2X26X3 |
| 035 | 4.007.0184 | COUPLING PIPE FOR PARANA' |
| 036 | 4.008.0449 | THERMORESISTANT COUPLING BOW 17X23XL40 |
| 037 | 4.007.0158 | BOILER PAD |
| 038 | 4.008.0503 | BAND IN CERAMIC FIBER |
| 039 | 4.605.0042 | BASE FOR PARANA' BOILER |
| 041 | 4.607.0237 | RUBBER HOSE COUPLING FOR COIL |
| 042 | 4.618.0067 | HOSE 5/16 R1 150DEG. 250 BAR 3/8 F ROT.-3/8 F ROT. |
| 043 | 5.613.0154 | MOTOPUMP-BOILER SUPPORT FOR PARANA' |
| 044 | 4.008.0450 | THERMORESISTANT PAD |
| 045 | 4.008.0658 | THERMORESISTANT FELT BOTTOM PL ATE X FKX/PARANA' |
| 046 | 4.008.0514 | BLACK EAGLE FOOT FOR MOTOR- PUMP SUPPORT |
| 047 | 5.001.0455 | MOTORPUMP PT'02 125h110 230/50 D.12 11'35 TS IN.1,9 |
| 048 | 3.704.0007 | PRESSURE SWITCH PR5 25BAR 1/8M L.550 |
| 049 | 3.100.0023 | NIPPLE 3/8 CIL.SV. 3/8 CIL.SV |
| 050 | 4.008.0031 | INLET WATER FILTER H2O D.16 CONICAL |
| 051 | 4.006.0181 | WATER INLET SPACER |
| 052 | 3.004.0007 | PLAIN WASHER D.6X18X2 UNI6593 |
| 054 | 4.007.0287 | FIXING CLAMP |
| 056 | 4.007.0307 | JUNCTION - NEW 6.005.0319 |
| 057 | 3.106.0004 | SECURITY VALVE G1/8 M D6 200BAR MTM 00036021 |
| 058 | 4.608.0141 | ELECTRICAL BOX BASE FOR MOTOPUMP |
| 059 | 4.608.0140 | ELECTRICAL BOX COVER FOR MOTOPUMP |
| 060 | 5.613.0155 | BOILER BODY FOR PARANA' |
| 061 | 4.604.0017 | Substituited by 4.604.0031 COIL D.202 FOR PARANA' |
| 062 | 5.013.0027 | DISK HEAD HOLDER |
| 063 | 4.012.0177 | CABLE AND EYELET |
| 064 | 3.099.0297 | COMPLETE DEFLECTOR |
| 065 | 3.104.0007 | DIESEL FUEL NOZZLE 0.75 60/A |
| 066 | 4.006.0187 | NOZZLE HOLDER PIN |
| 068 | 5.611.0101 | CABLE |
| 069 | 3.002.0110 | SCREW 3,9X19 |
| 070 | 4.608.0071 | GUIDING CABLE COVER DASHBOAR D '93 |
| 071 | 3.004.0017 | PLAIN WASHER D.5X10X1 GALVANIZED UNI6592 |
| 073 | 3.002.0176 | SCREW M5X16 7985 |
| 074 | 3.405.0011 | TERMINAL BOARD PA 32/6 |
| 075 | 5.009.0538 | SWITCH ASSY + PROTECTION COVER 14 (14) |
| 076 | 4.608.0019 | BLACK THERMOSTATE KNOB 3079/1 |
| 078 | 4.608.0065 | BOX DASHBOARD '93 |
| 079 | 3.404.0016 | CAPACITOR 45mF 450V D.45X90 WITHOUT CABLE FASTON M |
| 080 | 3.403.0032 | THERMOSTAT 30/90 FOR PARANA' |
| 081 | 4.608.0120 | ELECTRICAL BOX COVER |
| 082 | 4.608.0078 | GASKET |
| 083 | 4.006.0283 | FERRULE M22x1,5 L=16. |
| 084 | 3.200.0001 | O-RING GASKET 9,92X2,62 RIF.11 2 |
| 085 | 4.606.0088 | RUBBER HOLDER 1/4 G M D.7 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
HOT130 - 86170015
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
