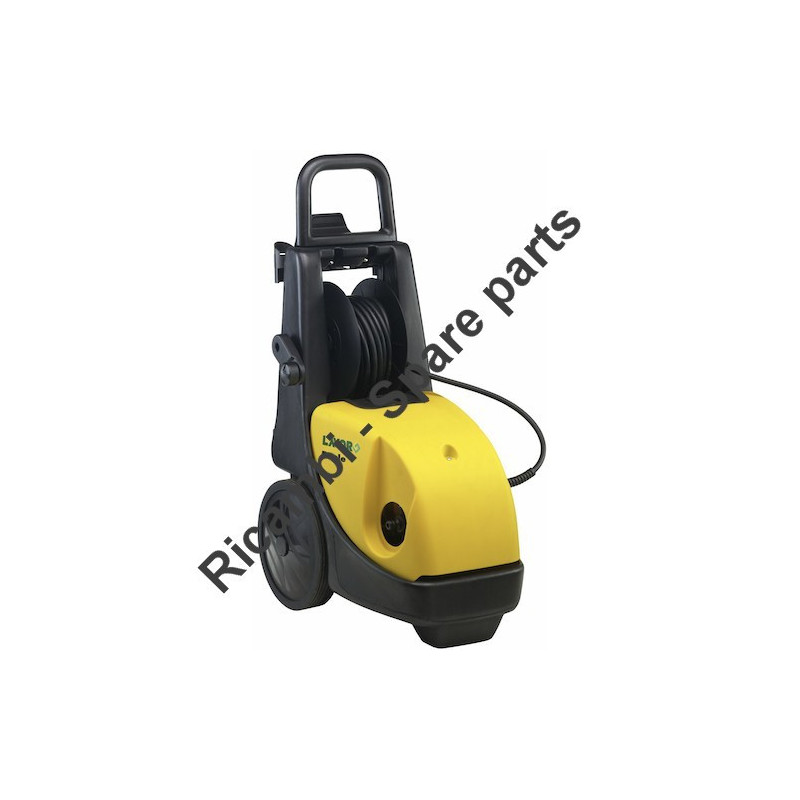

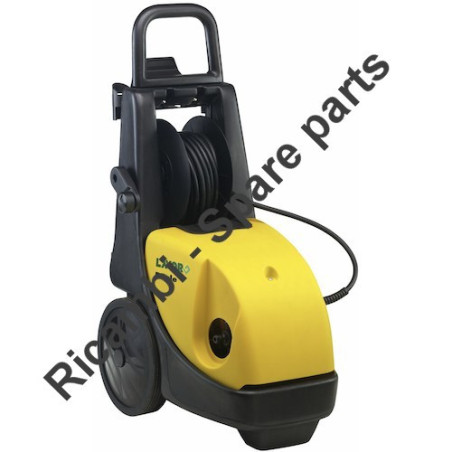

Lavor Original Parts for Pressure Cleaner EAGLE 24 - 8.030.0807
€5.20
Tax included
Lavor Original Parts for Pressure Cleaner EAGLE 24 - 8.030.0807
Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner EAGLE 24 '03 230/50 -G- TS EU AVV. +L.PR.REG. LWS - 8.030.0807.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Original Parts for Pressure Cleaner EAGLE 24 - 8.030.0807
Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner EAGLE 24 '03 230/50 -G- TS EU AVV. +L.PR.REG. LWS - 8.030.0807.
In the following tables, look for the spare part and its respective code.
| 8.030.0807 - IDRO EAGLE 24 '03 230/50 -G- TS EU AVV. +L.PR.REG. LWS CHASSIS Pag.1 | ||
| # | Part Num. | Description |
| 002 | 4.008.0280 | LANCE HOLDER FOR SPACE |
| 003 | 4.008.0494 | EAGLE BLOW HANDLE LMX |
| 007 | 4.008.0505 | BLACK PARTS HOLDER FOR EAGLE |
| 008 | 4.012.0150 | CABLE H05VV-F 3X1,5 MT.5,4 F/FSCHUKO PLUG |
| 009 | 4.008.0506 | BLACK LANCE HOLDER GLASS FOR EAGLE |
| 010 | 4.008.0278 | OUTLET CAP |
| 012 | 4.013.0300 | YELLOW UPPER COVER FOR EAGLE RAL.1018 (PANT.108C) |
| 017 | 6.005.0242 | KIT 225 LW WHEELS+WHEEL COVER+EAGLE |
| 019 | 4.007.0224 | EAGLE WHEEL AXLE D.20 |
| 020 | 4.007.0287 | FIXING CLAMP |
| 021 | 4.008.0514 | BLACK EAGLE FOOT FOR MOTOR- PUMP SUPPORT |
| 022 | 5.611.0089 | LOWER BLACK COVER EAGLE |
| 023 | 5.012.0060 | HANDLE + SCREW |
| 025 | 4.008.0517 | SUBSTITUITED BY 4.008.1216 WINDING WHEEL |
| 027 | 4.008.0516 | SUBSTITUITED BY 4.008.1215 WINDING WHEEL- INLET |
| 034 | 4.018.0046 | 1/4 145bar L=600 GIR.D.15 -M14 |
| 035 | 4.008.0467 | ASS SPRING HOLDER |
| 036 | 5.609.0073 | BOLT ASSY FOR HOSE WINDING |
| 039 | 4.018.0052 | HOSE 1/4 160 BAR L=8000 1/4F. |
| 040 | 6.001.0038 | Substituted by 6.001.0085 S'99 GUN METAL EXTENSION |
| 041 | 6.002.0304 | Substituted by 6.002.Z304 LANCE SY'03 D.1,15 (YELLOW)-BLACK HANDLE (PRESS. REGULATION |
| 044 | 4.008.0277 | FIX PAD CABLE HOLDER |
| 045 | 3.099.0019 | BLOCK WHEEL D.250x55 D.20 |
| 046 | 4.008.0622 | UPPER BLACK COVER FOR EAGLE (2600W) |
| 8.030.0807 - IDRO EAGLE 24 '03 230/50 -G- TS EU AVV. +L.PR.REG. LWS MOTOR PUMP Pag.2 | ||
| 001 | 5.009.0213 | SWITCH WITH PROTECTION 12(10) |
| 002 | 3.406.0004 | CABLE TERMINAL PG.11 |
| 004 | 3.002.0111 | SCREW TC-TORX M4X10 ZNT |
| 005 | 3.404.0016 | CAPACITOR 45mF 450V D.45X90 WITHOUT CABLE FASTON M |
| 006 | 4.008.0613 | ELECTRIC-BOX SEAL |
| 007 | 4.008.0583 | MOTOR FAN COVER '96 WITHOUT GRILL |
| 009 | 4.008.0092 | FAN FB80 WITH HOLE D.16,5 (PARTNER) |
| 010 | 5.002.0134 | MOTOR CASING '96 D125 H100 230/50 2P |
| 011 | 3.001.0020 | RADIAL BEARING FOR POSTERIOR FLANGE 17X40X12 6203 2RS |
| 012 | 5.005.0053 | ROTOR D.65 H.100 x MOT.125 PT'03 |
| 013 | 3.002.0115 | SCREW TC M5X35 SWAGEFORM ZNT |
| 014 | 5.X09.0587 | FLANGE FOR PT'03 D.125H100 W/THREADS |
| 015 | 3.201.0008 | OIL SEALING RING D. 17X35X7 |
| 016 | 3.001.0031 | ANTERIOR RADIAL FOR CASING 20X52X15 - 6304 |
| 017 | 4.005.0218 | WOBBLE PLATE 9'35 PT'03 |
| 018 | 4.007.0328 | THRUST BEARING 35X55X12 PT'03 |
| 021 | 5.009.0536 | Substituted by 6.005.0181 ASSEMBLY RETAINING RING D.22.5/PISTON D.12 (PT'03) |
| 022 | 3.200.0130 | GASKET OR 67x2,50 NBR SH.70 |
| 023 | 4.007.0312 | PISTON SPRING INSIDE DIAM.17.2L=37 FILO 2,4 65Mn |
| 024 | 3.406.0011 | BUSHING FOR PG.11 CABLE TERMINAL |
| 026 | 4.008.0642 | COVER FOR ELECTRIC BOX W/HOLE FOR SWITCH (EAGLE 26) |
| 027 | 4.008.0620 | ELECTRIC BOX PARTNER WITHOUT HOLE FOR SWITCH |
| 028 | 5.009.0596 | COMPLETED VALVE TS PT'03 CABLEL=530 SPRING 17KG (GREEN FAST |
| 029 | 4.007.0301 | RETAINER CLAMP FOR INJECTOR PT'03 |
| 030 | 5.008.0182 | Substituted by 5.008.0182C - HEAD PARTNER PT'03 D.12 |
| 031 | 5.007.0216 | Substituted by 5.007.0230 BODY GUIDE |
| 032 | 5.009.0495 | UNLOADER VALVE ASSEMBLY PLAST.+ OR |
| 033 | 4.607.0105 | Substituted by 4.007.0324 STOP VALVE SPRING D.6X20 |
| 034 | 5.009.0560 | Substituted by 5.009.Z560 INIECTOR ASSEMBLY D.1,7 |
| 035 | 3.201.0014 | OIL SEAL RING D.12X20X5/7 |
| 036 | 3.200.0131 | GASKET OR 17,13x2,62 NBR SH.90 |
| 037 | 5.009.0535 | DELIVERY VALVES FOR HEAD '03 |
| 038 | 4.005.0210 | '03 PARTNER HEAD |
| 039 | 4.007.0320 | ZNT SELF-LOCKING SCREW M6x75 UNI 59313M SCOTCH-GRIP |
| 040 | 5.009.0534 | Substituted by 5.009.0534C SUCTION VALVE ASSEMBLY FOR '03HEAD |
| 041 | 3.201.0020 | WATER SEAL 12X18X5 |
| 042 | 4.006.0247 | RING FOR SUPPORT SEAL PARTNERD.12 |
| 043 | 4.008.0657 | OIL SPACER D.12 |
| 044 | 4.005.0223 | BODY GUIDE |
| 045 | 4.008.0031 | ORD INLET WATER FILTER H2O D.16 CONICAL |
| 046 | 5.006.0181 | COMPLETE MOTOR'99 D.125 H.100230/50 2P |
| 047 | 3.403.0054 | THERMAL PROTECTOR CD2A170D F/FF/M 6,3 |
| 048 | 4.007.0314 | PIN 3,5x30 ZNT |
| 049 | 5.009.0496 | RUBBERHOLDER FOR SHAMPOO + ORING |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor EAGLE 24 - 80300807
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
