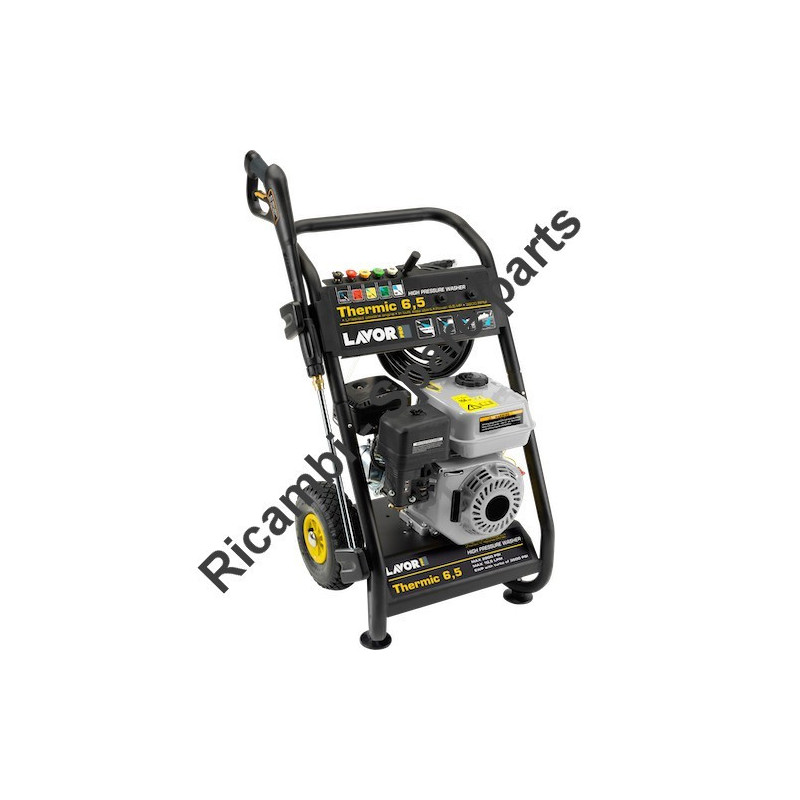

Lavor Parts for Petrol Engine Pressure Cleaner Idro Thermic 6,5 Hp
Lavor original spare parts for to replace broken parts for to fix Petrol Engine Cold Water Pressure Cleaner R86010053-1 - IDRO THERMIC 6,5 C/RID.-LWS.
In the following tables, look for the spare part and its respective code.
| Idropulitrice a scoppio Lavor Pro Thermic 6,5 con motore 196 cc a benzina - 180 bar | ||
| R86010053-1 - IDRO THERMIC 6,5 C/RID.-LWS- pag.1 | ||
| 001 | 5.613.0012 | FRAME HANDLE |
| 002 | 3.099.0096 | WHEEL COVER |
| 003 | 3.099.0019 | BLOCK WHEEL D.250x55 D.20 |
| 004 | 3.006.0026 | WHEEL D.260X85 BLACK |
| 008 | 4.607.0069 | THERMAL CARRIAGE BASE PAINTED |
| 009 | 3.600.0013 | INT.COMB.ENGINE HONDA GX200 QX-4 6.5 HP SHAFT 19 |
| 010 | 3.099.0026 | ANTI SHOCK SUPPORT D.30X20XM8 |
| 011 | 5.613.0157 | CARRIAGE WITH HEAT PROTECTION 6.5 HP |
| 012 | 3.749.0322 | REDUCER D.24 (UP TO 6.5HP) |
| 013 | 3.556.0005 | PUMP SSTHC 370 LW SX 140/14 1450 |
| 015 | 3.100.0022 | REDUCTION M.GAS/M.GAS 3/8 1/4 |
| 016 | 3.100.0023 | NIPPLE 3/8 CIL.SV. 3/8 CIL.SV |
| 017 | 3.749.0157 | Y FILTER FYO G3/8 THR.BRASS + ST.ST.(mult.5 pcs) |
| 018 | 3.100.0095 | NIPPLE 3/4 M-3/8 M |
| 019 | 4.618.0072 | HIGH PRESS.TUBO.5/16 L=385 2CONNECT.90 gr.3/8 GIR. |
| 020 | 3.707.0001 | BY-PASS VALVE W/ EASY START.THERM.SAFETY VALVE |
| 021 | 4.606.0001 | 1/4G CAP |
| 024 | 4.618.0079 | LOW PR. TUBE D.10X19 L=590 3/8F+ELBOW |
| 025 | 4.007.0181 | 3/8F+ ELBOW PIVOTTING CONNECTION FOR COIL |
| 026 | 3.107.0006 | D.40 0/300 BAR 1/8 GLYCERIN MANOMETER |
| 027 | 3.702.0002 | FIXED INJECTOR |
| 028 | 3.100.0042 | QUICK COUPLING 3/8 F |
| 030 | 6.001.0053 | HP SPRAY GUN S'02 3/8' |
| 031 | 4.618.0016 | HOSE 5/16 210BAR MT.10 C/M AP1031 3/8 |
| 032 | 3.701.0015 | LANCE INOX L.700 +PL4/1+WASHER+ QUICK CONN.M22 |
| 034 | 5.611.0078 | HOSE FITTING |
| 035 | 3.103.0052 | HIGH PRESSURE NOZZLE 1/8M 15055 (C25055) |
| 036 | 3.100.0043 | 3/8 M ROTATING QUICK COUPLING |
| R86010053-1 - IDRO THERMIC 6,5 C/RID.-LWS- pag.2 | ||
| 001 | 3.557.0062 | GUARD VERSION SST |
| 002 | 3.557.0005 | GUIDE ROD FOR PISTON 060201 |
| 003 | 3.557.0006 | O-RING SEAL ROD PISTON 16/24X5000103 |
| 004 | 3.557.0007 | OR 2125 (1,78X31,47) 060107 |
| 005 | 3.557.0063 | PRESSURE PAD D.18 |
| 006 | 3.557.0065 | V WASHER D.18x30 |
| 007 | 3.557.0067 | DIFFUSER D.18 |
| 008 | 3.557.0069 | INTERMEDIATE DIFFUSER D.18 |
| 009 | 3.557.0012 | BRASS CAP G 3/8 160117 |
| 010 | 3.557.0014 | COPPER GASKET G 3/8 060306 |
| 011 | 3.557.0071 | HEAD SERIES SST |
| 012 | 3.557.0072 | O-RING 2062 D.1.78x15.6 |
| 013 | 3.557.0073 | COMPLETE INTAKE/OUTLET VALVE |
| 014 | 3.557.0018 | OR 3075 (2,62X18,72) |
| 015 | 3.557.0074 | INTAKE/OUTLET VALVE CAP SERIES SST |
| 016 | 3.557.0023 | WASHER D.8,5/15X1,5 |
| 017 | 3.557.0075 | TCEI SCREW M8x55 UNI 5931 |
| 018 | 3.557.0076 | INTAKE/OUTLET VALVE SEAT |
| 019 | 3.557.0025 | VALVE PLATE |
| 020 | 3.557.0077 | INTAKE/OUTLET VALVE SPRING |
| 021 | 3.557.0078 | INTAKE/OUTLET VALVE CAGE |
| 022 | 3.557.0079 | TE SCREW M6x14 UNI 5739 |
| 023 | 3.557.0080 | BEARING COVER 020318 2 23 |
| 024 | 3.557.0081 | OIL LEVEL WARNING LIGHT SST |
| 025 | 3.557.0082 | O-RING 159 D.3.53x55.56 |
| 026 | 3.557.0083 | ELASTIC SEEGER RING D.25 |
| 027 | 3.557.0084 | BALL BEARING 6305 |
| 028 | 3.557.0085 | OIL OUTLET CAP G.3/8 |
| 029 | 3.557.0086 | PISTON STOP NUT |
| 030 | 3.557.0087 | CERAMIC PISTON D.18 |
| 030 | 3.557.0034 | BEARING WITH TAPERED ROLLER 30205 020003 |
| R86010053-1 - IDRO THERMIC 6,5 C/RID.-LWS- pag.3 | ||
| 001 | 3.749.0325 | O-RING 1,78x63,22 (pack.10 pcs) |
| 002 | 3.749.0385 | FLANGE 50060244 1 02 |
| 003 | 3.749.0386 | ROSETTE SEAL M6 |
| 004 | 3.749.0196 | MOT.HEAD FOR TANKS CLEANING+ NOZZLE+CONVERTER |
| 005 | 3.749.0387 | O-RING 2.62x88.57mm |
| 006 | 3.749.0356 | SCREW M8x10mm |
| 007 | 3.749.0388 | GEAR WHEEL B5 z.30 |
| 008 | 3.749.0358 | OIL WARNING LIGHT |
| 009 | 3.749.0359 | SAFETY ROSETTE.8.4mm |
| 010 | 3.002.0003 | HEXAGON SOCKET HEAD CAP SCREWM8X25 UNI 5931 ZNT |
| 011 | 3.749.0120 | PLUG |
| 012 | 3.749.0119 | WASHER D. 16,7 |
| 013 | 3.749.0389 | GUARD B5 |
| 014 | 3.749.0390 | SEAL RING 30mm |
| 015 | 3.749.0391 | EL. RING E30mm |
| 016 | 3.749.0392 | EL. RING I62mm |
| 017 | 3.001.0044 | ROLLER BEARING 6206 2RS(30X62X16) |
| 018 | 3.749.0393 | PINION z.13 |
| 019 | 3.749.0394 | ALUMINIUM ROSETTE 8mm |
| 020 | 3.749.0376 | SCREW 5/16 x1 |
| 021 | 3.749.0366 | OIL CAP + WASHER |
| 022 | 3.749.0367 | PL. CAP 3/8 |
| R86010053-1 - IDRO THERMIC 6,5 C/RID.-LWS- pag.4 | ||
| 001 | 3.748.0025 | PL KNOB FOR DIS BY-PASS VALVE |
| 003 | 3.748.0023 | NUT FOR FIXED BY-PASS KNOB |
| 004 | 3.748.0041 | SPRING-PUSHER PLATE B1015 |
| 005 | 3.748.0026 | SPRING LOW PR.200B-HIGH PR.10 |
| 006 | 3.748.0045 | NUT M8X1 UNI 5588 Z.G. MEDIUM |
| 007 | 3.748.0030 | O-RING SEAL OR2050NBR 12.42x |
| 008 | 3.748.0047 | BY-PASS PUSHER ROD STANDARD B |
| 009 | 3.748.0033 | BY-PASS BODY BP90 RECIRCULATION 1/ |
| 010 | 3.748.0024 | BY-PASS INSERT SEAL X 17/32 |
| 011 | 3.748.0043 | SPHERE 17/32”IX ST.ST. 420 GRAD.A |
| 012 | 3.748.0031 | O-RING SEAL OR206062NBR 70SH 1 |
| 013 | 3.748.0036 | EASY-STARTER CONN.&SAFETY VALVE |
| 014 | 3.748.0044 | SPHERE 5/32” DELRIN MG2001 BP90 |
| 015 | 3.748.0040 | NIPLEX MG2001 FOR BP90 DRAW.A0 |
| 016 | 3.748.0028 | SPRING FOR MG2001 290BAR DRAW.M032 |
| 017 | 3.748.0039 | CONNECT.MG2001 FOR BP90 DRAW.A00 |
| 018 | 3.748.0038 | IN/OUT OT CONN. 3/8”GF FOR BY-PASS |
| 031 | 3.748.0027 | SPRING FOR NON-RET. PISTON D.6402 |
| 033 | 3.748.0029 | SPRING FOR THERMAL VAVE TRV DI |
| 034 | 3.748.0022 | HEAT SENSITIVE ELEMENT 63/71 |
| 035 | 3.748.0032 | O-RING SEAL OR109NBR 70SH 9 |
| 036 | 3.748.0035 | SOCKET HOLDER CONN. TRV FOR BP90 D |
| 037 | 3.748.0034 | SOCKET HOLDER WASHER BLOCK TRV |
