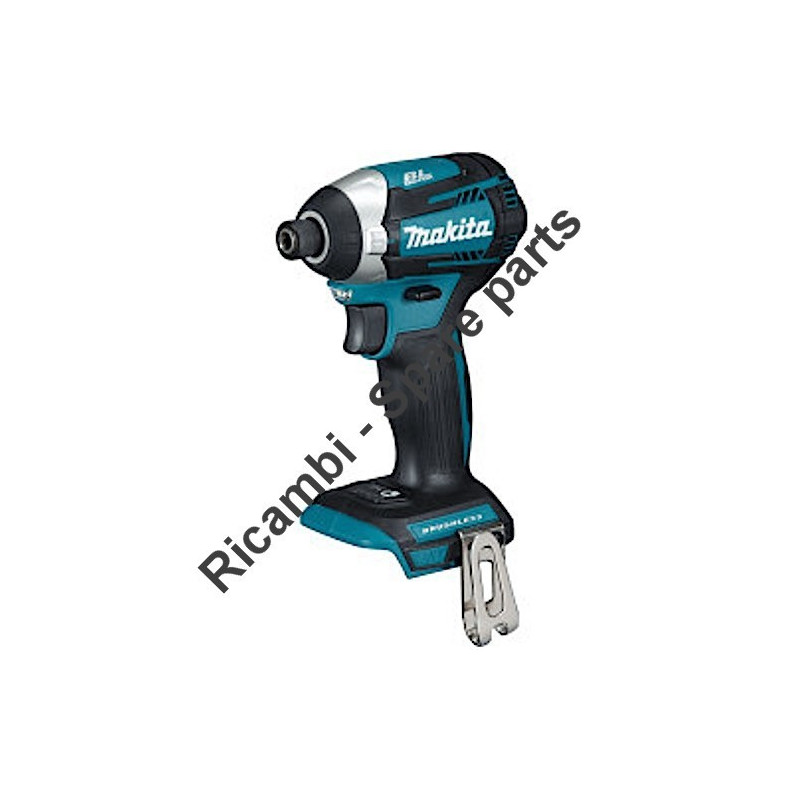

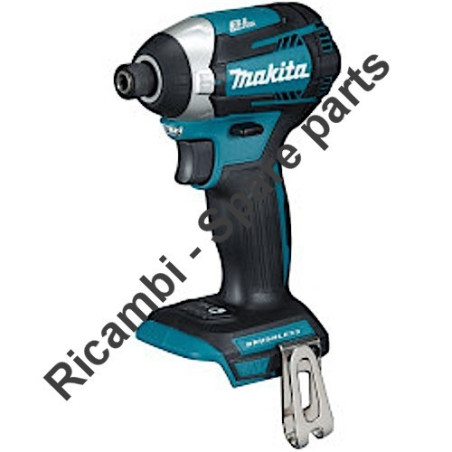

Makita Spare Parts for Cordless Impact Driver DTD154
€1.47
Tax included
Makita Spare Parts for Cordless Impact Driver DTD154
MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for DTD154 Cordless Brushless 3-speed Impact Driver 18v
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Cordless Impact Driver DTD154
MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for DTD154 Cordless Brushless 3-speed Impact Driver 18vIn the following table, look for the model of Cordless Impact Screwdriver and the respective parts of the code.
| DTD154 Cordless Brushless 3-speed Impact Driver 18v | ||
| # | Part Num. | Description |
| 1 | 263005-3 | RUBBER PIN 6 |
| 1 | 252126-6 | HEX LOCKING NUT M4-7 BHS630 |
| 2 | 852L16-1 | DTD154 NAME PLATE |
| 3 | 266429-2 | TAPPING SCREW 3X16 |
| 4 | 455053-8 | Change Lever |
| 5 | 143975-1 | Switch Comp |
| 6 | 619408-3 | Rotor |
| 7 | 629217-2 | Stator |
| 8 | 620557-1 | Led Circuit |
| 9 | 643860-3 | Terminal Dhp480/Ddf480/Dfl650 |
| 10 | 231951-8 | Ring Spring 11 Btd/Td126/Tl064 |
| 11 | 267085-1 | Flat Washer |
| 12 | 233005-7 | Compression Spring 13 Td126 |
| 13 | 326072-0 | Bit Sleeve |
| 14 | 424873-1 | Bumper |
| 16 | 143951-5 | Hammer Case Comp |
| 17 | 261155-8 | Nylon Washer 24 |
| 19 | 326508-9 | Anvil M |
| 20 | 326711-2 | Hammer |
| 21 | 216001-0 | Steel Ball 3.5 Bpj/Dtd154/Tl06 |
| 22 | 267175-0 | Flat Washer 24 Hr1840/Hr1841F |
| 23 | 234331-7 | Compression Spring 24 |
| 25 | 216041-8 | Steel Ball 5.6 Td126/Dtd154 |
| 26 | 227338-0 | Spur Gear 22 |
| 27 | 326783-7 | Spindle |
| 28 | 268311-1 | Pin 5 |
| 29 | 253314-8 | Shim Washer 15 |
| 30 | 221457-4 | Internal Gear 51 |
| 32 | 213507-9 | O Ring 40 |
| 33 | 143976-9 | Bearing Box Comp |
| 35 | 252126-6 | Hex Locking Nut M4-7 Mt/Td126 |
| 35 | 183E36-5 | Housing Set |
| 35 | 263005-3 | Rubber Pin 6 Dur/Dhr/Dtw/Dg |
| 37 | 457069-9 | Rear Cover |
| 38 | 266429-2 | Tapping Screw 3X16 Td126/Dum |
| 39 | 266490-9 | Tapping Screw Pt 2X6 Djv |
| 40 | 652069-6 | Flat Hd Screw M3X6 Dtd170/863L |
| 41 | 620564-4 | Controller |
| A01 | 266622-8 | Truss Head Screw M4X12/Bap182 |
| A02 | 346317-0 | HOOK |
| A03 | 450128-8 | BATTERY COVER |
| A04 | 195584-2 | FAST CHARGER |
| A05 | 197600-6 | BATTERY BL1830B SET |
| A06 | 197280-8 | BATTERY BL1850B SET |
| A07 | 453974-8 | Latch |
| A08 | 821550-0 | CONNECTOR PLASTIC CASE (TYPE2) |
| A09 | 837670-0 | Inner Tray |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
