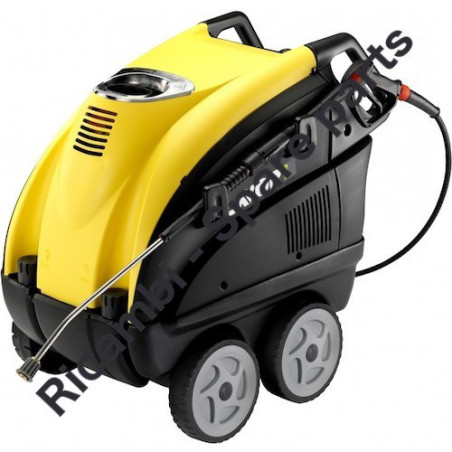

Lavor Pressure Cleaner LKX 2015LP Spare Parts
€5.65
Tax included
Lavor Pressure Cleaner LKX 2015LP Spare Parts
Lavor original spare parts for to replace broken parts for to fix Hot Water High Pressure Cleaner LKX 2015LP T 400-415/50 -GR- -LAVOR- 8.621.2935.Fix Your Pressure Cleaner LKX 2015LP T 400-415/50 -GR- -LAVOR. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Pressure Cleaner LKX 2015LP Spare Parts
Fix Your Hot Water High Pressure Cleaner LKX 2015LP T 400-415/50 -GR- -LAVOR- 8.621.2935.. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
In the following tables, look for the spare part and its respective code.
| Pressure Cleaner LKX 2015LP T 400-415/50 -GR- -LAVOR- 8.621.2935 Pag.1 | ||
| # | Part Num. | Description |
| . | R8621X148 | IDRO LKX4 2015LP 400/50 TS (CL3.5) R.A. B.D.F. (TS2) |
| . | RW80SE6064 | WIRING DIAGRAM |
| 001 | 4.608.0184 | WINDING SEAT CLOSURE CAP. NPX'04 BLACK |
| 002 | 6.605.0087 | KIT N.3 HOOKS WITH SCREWS |
| 003 | 5.611.0285 | LEFT SIDE SIDE NPX-LKX -BLACK- W/HOOKS W/PAD.-DEEP WORK- |
| 004 | 4.613.0289 | UPPER FAIRING NPX-LKX04 -GR- RAL.7046 |
| 005 | 4.608.0082 | DIESEL TANK CAP-CHEM -N- |
| 006 | 3.200.0038 | OR GASKET 53.65x2.62 REF.3212 |
| 007 | 5.611.0286 | RIGHT SIDE PANEL NPX-LKX -BLACK- W/HOOK W/PAD-DEEP WORK- |
| 008 | 4.613.0182 | REAR FAIRING NPX-LKX'04 -BLACK- |
| 009 | 3.700.0030 | AL55 GUN 350bar 45l/min 160°C+sw8 3/8M+S7+M22 (30129100) |
| 010 | 4.618.0143 | HOSE 5/16 R2 315BAR L=10000 C/ATT.RAP.1/2 ROUND-3/8 |
| 011 | 3.701.0015 | STAINLESS STEEL LANCE L.700 COATED. +ROS.+ATT. RAP. M22 41102850 |
| 012 | 5.612.0014 | NOZZLE KIT 15045 HOSE HOLDER BRASS FOR 3/4 RING |
| 014 | 7.700.0596 | MANUAL LKX/HYPER L-LR/HLR LAVOR A5 196F 19L |
| 015 | 4.607.0726 | PROTECTIVE STAINLESS STEEL SHEET NPX/LKX CHIMNEY |
| 8621X148 - IDRO LKX4 2015LP 400/50 TS (CL3.5) R.A. B.D.F. (TS2) Pag.2 | ||
| # | part Num. | Description |
| . | R56010792 | MTP. R.A. 400/50 4P HP7.5 SX X HOT (CL3.5) |
| . | R56110221 | ELECTRICAL SYSTEM ASSEMBLY TS2 KN12 400V RELAY BOARD 12-18 (internal mounting) |
| .. | R56090128 | THERMOSTAT BULB BODY ASSEMBLY LKX/NPX'04 EXIT.INN.RAP. ZNT BRASS |
| .. | R56110169 | EXT. BOILER COVER FOR PERFORATED CONE BAND |
| .. | R56110192 | COMPLETE BURN FLANGE 1.50-45B (RILSAN) C/PRED. CONTR. FLAME |
| 001 | 5.609.0344 | IGNITION TRANSF.220-240V 50/60Hz C/PIPET.NPX-LKX +CABLE (POWER) |
| 002 | 4.608.0271 | ISOL.GASKET FOR H.T. TRANSFER PROF. |
| 003 | 5.611.0192 | COMPLETE BURN FLANGE 1.50-45B (RILSAN) C/PRED. CONTR. FLAME |
| 004 | 3.099.0719 | HEATING BAND/330/G8 FIXING OF HEATING COVER TEKNA'04 |
| 005 | 5.611.0169 | EXT. BOILER COVER FOR PERFORATED CONE BAND |
| 006 | 5.613.0028 | INT. COVER CAM.COMB. CHIMNEY L=120 |
| 007 | 4.604.0003 | LOW COIL H.415 L=30m |
| 008 | 5.613.0396 | BOILER BODY LKX'04 MOT. R.A. CL4 PUMP FOR PAINTED BAND. |
| 009 | 3.099.0028 | FAN 146x72 LEFT. HOLE DM 12.7 |
| 010 | 3.300.0003 | ENGINE FOR BURN. 100W/230-240/50Hz IP55 |
| 011 | 6.605.0173 | PLASTIC JOINT KIT FOR DIESEL PUMP (3pcs.) |
| 012 | 3.100.0075 | FITTING M 1/8 CONICAL F D.4 CURVED CODE E2L39C02 |
| 013 | 4.606.0088 | HOSE HOLDER 1/4 G M D.7 |
| 014 | 4.612.0043 | CABLE FOR DIESEL PUMP L=1000 STRIPPED TERMINALS |
| 015 | 3.414.0009 | COIL 24V/50Hz FOR GAS PUMP. DANFOSS(071N006200) |
| 016 | 3.551.0063 | RIGHT DOUBLE PIPE DIESEL PUMP 24V 50/60Hz |
| 017 | 5.611.0067 | DIESEL FILTER GROUP (NYLON) TEKNA'95 -LKX |
| 018 | 3.102.0005 | DIESEL FILTER FB15/P (AK3012) W/BRASS PLATE |
| 019 | 6.605.0247 | PRO NPX/LKX BOILER REFRACTORY KIT |
| 020 | 4.607.0006 | SERP FIXING BAND. IN ERA 15/10 AISI 430 STAINLESS STEEL SHEETS |
| 021 | 4.608.0162 | INSULATING ROPE FOR BOILER BASE L=990 |
| 022 | 5.613.0116 | JOLLY 5/LKX BOILER BASE -PAINTED- |
| 023 | 3.403.0078 | INDICATED. DIESEL LEVEL L=185 W/CABLE L=1320 W/FASTON |
| 024 | 4.608.0073 | SHORT SPACER FOR TANK. WILD 4/93 |
| 025 | 6.605.0168 | WHEEL KIT 30060155 +STUD+LOCKING COLUMBIA-HYPER C-HYPER L |
| 026 | 5.613.0402 | NPX/LKX FRONT AXLE |
| 027 | 5.613.0403 | REAR AXLE NPX/LKX |
| 028 | 4.608.0203 | NPX4/LKX4 DIESEL/DETERGENT TANK |
| 029 | 4.008.0031 | H2O SUCTION FILTER D.16 CONICAL |
| 030 | 4.006.0088 | INTAKE FITTING ADAPTER L=26 M22-3/4G |
| 031 | 4.606.0019 | SUCTION CONNECTION L=60 M22 - 3/8G |
| 032 | 4.618.0043 | PIPE R1 3/8 L=375 C.1/2F.GIR 90' / C.3/8F GIR 90' |
| 033 | 4.608.0448 | LONG SPACER FOR TANK. JOLLY 4/93 mm57.5 |
| 034 | 4.608.0448 | LONG SPACER FOR TANK. JOLLY 4/93 mm57.5 |
| 035 | 4.606.0013 | SERPENT FIXING NUT. 1/2 O T SPEC. |
| 036 | 3.004.0015 | FLAT WASHER D.22X39 Th.3 ZNT UNI6592 |
| 037 | 5.609.0023 | VENT PROTECTION GRILLE ASSEMBLY |
| 038 | 4.606.0028 | NIPPLE 1/2 M. 3/4 M. |
| 039 | 4.618.0210 | HOSE R1 250BAR L=600 W/CONNECTION 1/2-3/8F 90° (RACC.SFALS.60°)-PUMP/ SERP. |
| 040 | 5.609.0128 | THERMOSTAT BULB BODY ASSEMBLY LKX/NPX'04 EXIT.INN.RAP. ZNT BRASS |
| 041 | 4.618.0126 | L.P. HOSE R1 L=400 CONNECTION 3/8M-ELBOW (MOTOR R.A.-LKX INPUT) |
| 042 | 6.605.0220 | L.P. HOSE L=400 SERP.-MOTOR PUMP. R.A. LW18 |
| 043 | 6.605.0223 | KIT STOPPERS FOR ENGINE HOSES. R.A. (46080480/482) |
| 044 | 3.403.0003 | THERMAL PROTECTOR L01.080.05. *UL* CABLES L=1200 |
| 045 | 3.704.0009 | PRESSURE SWITCH PS2 1/4M 25BAR RED P/N 4090000006 |
| 046 | 4.608.0071 | DASHBOARD CABLE COVER '93 |
| 047 | 4.612.0032 | POWER CABLE H05VV-F 4X2.5 L=6700 |
| 048 | 4.608.0199 | BUSH THICKNESS NEW PROFILE HANDLES. |
| 049 | 4.608.0170 | LEFT HANDLE NPX'04-GR-RAL.7021 |
| 050 | 4.608.0191 | NPX'04 BLACK DASHBOARD FRAME |
| 051 | 4.608.0169 | RIGHT HANDLE NPX'04-GR-RAL.7021 |
| 052 | 5.613.0192 | DASHBOARD SUPPORT/HANDLES NPX/LKX'04 |
| 56010792 - MTP. R.A. 400/50 4P HP7,5 SX X CALDO (CL3.5 Pag.3 | ||
| # | part Num. | Description |
| . | R56060104 | LW R.A. MOTOR 400/50 D.152x135 WORK LINE |
| . | R57050001 | PUMP LW CL3.5 200/15 1450 SX D.18CER.C/IN.-TS-USC.3/8 (X HOT) |
| 001 | 5.606.0104 | LW R.A. ENGINE 400/50 D.152x135 WORK LINE |
| 002 | 4.605.0070 | CABLE GLAND M22 FOR MOTOR. R.A. |
| 003 | 4.605.0071 | FRONT FLANGE MOTOR D.152 FOR PUMP D.90 MACHINED |
| 004 | 5.705.0001 | PUMP LW CL3.5 200/15 1450 SX D.18CER.C/IN.-TS-USC.3/8 (X HOT) |
| 56060104 - MOTOR LW R.A. 400/50 D.152x135 LAVOR LINEA Pag.4 | ||
| # | part Num. | Description |
| 001 | 5.602.0084 | CASING R.A.400/50 4P D.152 H135 |
| 002 | 3.099.0805 | COMPENSATION RING 61X51X 0.4 H.3.5 -62d- |
| 003 | 3.001.0066 | RADIAL BALL BEARING 6305 2RS (25X62X17) (KBC) |
| 004 | 5.605.0055 | ROTARY SHAFT 90X135 R.A. LAV.LIN EA |
| 57050001 - PUMP LW CL3.5 200/15 1450 SX D.18CER.C/IN.-TS-USC.3/8 (X CALDO) Pag.5 | ||
| # | part Num. | Description |
| . | R50080364 | OPTICAL HEAD LWS 1808 C/IN.2,0 OUTLET 3/8 C/TS (X HOT) |
| ... | R56090399 | WORK PUMP GROUP KIT CL3.5 D.18CER. 1450rpm 15lt WITHOUT OIL AND WITHOUT BUSHES |
| 001 | 5.008.0364 | OPTICAL HEAD LWS 1808 C/IN.2,0 OUTLET 3/8 C/TS (X HOT) |
| 002 | 6.605.0259 | PUMP KIT CL3.5 D.18CER. 1450rpm 15lt |
| 50080364 - HEAD BRASS LWS 1808 C/IN.2,0 USC.3/8 C/TS (X CALDO) Pag.6 | ||
| # | part Num. | Description |
| 001 | 6.005.0120 | KIT 111 LW PRESSURE REGULATOR TEST OCT.'99 |
| 002 | 6.005.0289 | KIT 264 LW REPAIR. WORK BY-PASS. TS LINE |
| 003 | 6.605.0123 | KIT OF 3 PUMP BUSHINGS 1808 |
| 004 | 6.005.0305 | KIT 277 LW WATER SEALS LWS1808 |
| 005 | 6.005.0571 | 2 WIRE MICRO BOX KIT + SCREWS (MICRO GRAY) |
| 006 | 6.005.0219 | KIT 202 LW 2.0 INJECT. - PORT.RET.VALVE (5609Y154) LWS18 |
| 007 | 4.607.0311 | WORK RETAINING VALVE SPRING 18 |
| 008 | 5.609.0143 | RETURN VALVE ASSEMBLY WITH/O-RING LAVOR 18 |
| 009 | 4.606.0223 | LAVOR HEADBOARD 1808 LINE |
| 010 | 5.609.Y154 | HOSE PORT ASSEMBLY D.1 W/OR-SPRING L=7 wire D.0.4-BALL D.5.5 |
| 011 | 3.100.0143 | T FITTING 1/8G M/F/F (ART.466) |
| 012 | 5.009.0101 | SUCTION/DELIVERY VALVE CAP WITH O-RING FITTED |
| 013 | 6.005.0578 | KIT 6 VALVES *AUTO SUCTION* (COMP.OR) TEST.OCT.'99 |
| 014 | 4.606.0160 | T.E. PLUG 1/2 GAS |
| 015 | 5.609.0064 | SUCTION DELIVERY VALVE CAP ASSEMBLY CAPILL +OR |
| 016 | 3.714.0071 | SAFETY VALVE VLP 100-250bar - 12-17 l/min 110°C 1/8M (4073500019) |
| 56090399 - PUMP GROUP KIT LAVOR CL3.5 D.18CER. 1450rpm 15lt S/OLIO E WITHOUT/BUSH Pag.7 | ||
| # | part Num. | Description |
| 001 | 4.605.0096 | PUMP BEARING COVER 1808 |
| 002 | 3.200.0219 | O-RING 44.04x3.53 NBR SH.70 |
| 003 | 3.001.0096 | RADIAL BALL BEARING 6305 (25X62X17) -NSK- |
| 004 | 4.606.0161 | T.E. PLUG 3/8 GAS |
| 005 | 4.605.0171C | CL4-18 MACHINED IN-LINE PUMP CARTER for CERAMIC PISTONS |
| 006 | 6.605.0258 | KIT OF 3 CERAMIC PISTONS FOR CL3.5-18 PUMP |
| 007 | 4.607.0826 | PIN FOR CL4-15 PUMP PISTON GUIDE PIN |
| 008 | 4.605.0156C | ALUMINUM CONNECTING ROD FOR CL4-15 PUMP |
| 009 | 3.200.0249 | OR GASKET 98.02x3.53 NBR SH.70 |
| 010 | 4.605.0174C | REAR COVER. PUMP CASE CL4-15 BLACK FOR GUARN.OR |
| 011 | 3.099.1480 | OIL FILLER CAP W/PIPE AND VENT (ROD L=58) |
| 012 | 4.607.0533 | INLINE PUMP SHAFT C=14.4 WORKED X 1808 |
| 013 | 3.001.0097 | RADIAL BALL BEARING 6304 (20X52X15) HIGH QUALITY -NSK- |
| 014 | 6.605.0113 | KIT 5 SEEGER D.25 FOR TREES |
| 015 | 6.605.0114 | KIT 3 SEEGER D.62 |
| 016 | 6.005.0306 | SHAFT SEAL RING D.25X62X10 DIN AS |
| 017 | 6.005.0306 | KIT 278 LW OIL SEALS +OR LWS1508/1808 |
| 56110221 - ELECTRICAL SYSTEM BOARD ASSEMBLY TS2 KN12 400V RELE' 12-18 Pag.8 | ||
| # | part Num. | Description |
| . | R56110155 | DASHBOARD ASSEMBLY LKX4-T4 FOR TS2 (TAMP.-EN-) |
| 001 | 6.605.0250 | TOTAL STOP TS2 BOARD |
| 002 | 3.402.0051 | AC CONTACTOR SWITCH KN22 400/50HZ 7.5 KW AC3 |
| 003 | 4.607.0230 | DIN BAR FOR ELECTRICAL BOX L=50 |
| 004 | 3.402.0045 | THERMAL RELAY DPER21 12-18A |
| 005 | 3.403.0172 | TS2 LED BOARD |
| 006 | 4.608.0168 | NPX4/LKX4/T4 ELECTRICAL BOX |
| 56110155 - DASHBOARD ASSEMBLY LKX4-T4 PER TS2 (TAMP.-EN-) Pag.9 | ||
| # | part Num. | Description |
| 001 | 4.608.0332 | DASHBOARD LKX4-TEKNA TS 2 BOARD -GR- RAL7021 C/TAMP.-EN- |
| 002 | 3.107.0004 | PRESSURE GAUGE D.50 0/315 BAR 1/4 POST+BRACKET |
| 003 | 4.618.0003 | PRESSURE GAUGE TUBE 2X630 70MPa(B.P.120MPa) 1/4 F/GIR-1/4 F/GIR |
| 004 | 3.105.0003 | TAP REG.DET.C/HOLDER D.7 (DIS.N.6990A 3/4 TURN) |
| 005 | 3.401.0177 | SWITCH 0/1 GREEN/RED PUSH/BUTTON IP55 12/10 |
| 006 | 3.403.0091 | THERMOSTAT 30/150 BULB D. 6.5 (3 FASTONS CLOSED) |
| 007 | 5.611.0161 | BLACK THERMOSTAT KNOB WITH/INSERT |
| 008 | 4.608.0164 | THERMOSTAT ADJUSTMENT KNOB. -N- PARANA' |
| 56090128 - THERMOSTAT BULB BODY ASSEMBLY LKX/NPX'04 BRASS QUICK COUPLING OUTLET ZNT Pag.10 | ||
| # | part Num. | Description |
| 001 | 4.606.0087 | THERMOSTAT BULB BODY PROFESS. |
| 002 | 3.004.0004 | ALUMINUM WASHER 21x30xSP.1, 5 |
| 003 | 3.100.0020 | NIPPLE 1/2G-3/8G |
| 004 | 5.613.0191 | THERMOSTAT/ALARM BULB SUPPORT. NPX/LKX'04 |
| 005 | 3.100.0018 | QUICK COUPLING 3/8M-1/2M 08 ZNT |
| 56110169 - BOILER EXTERNAL COVER FOR PERFORATED CONE BAND Pag.11 | ||
| # | part Num. | Description |
| 001 | 5.613.0200 | EXTERNAL COVER OF AISI 430 BA TEKNA 4 STAINLESS STEEL BOILER |
| 002 | 5.610.0105 | DEFLECTOR WITH CONE D.82 WITH HOLES |
| 56110192 - COMPLETE BURNER FLANGE 1.50-45B (RILSAN) WITH FLAME CONTROL PREPARATIO Pag.12 | ||
| # | part Num. | Description |
| 001 | 4.614.0004 | PAIR OF PROFESSIONAL UNIFIED ELECTRODES WITH/BRACKET |
| 002 | 3.100.0075 | FITTING M 1/8 CONICAL F D.4 CURVED CODE E2L39C02 |
| 003 | 3.555.1098 | EXTERNAL SEEGER ZJ D.22 (3019003500) |
| 004 | 3.555.1099 | CAP D21,75X2 (3200007400) |
| 005 | 4.605.0223 | UNIFIED BURNER FLANGE |
| 006 | 3.104.0027 | DIESEL NOZZLE 1.50 45/B |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
LKX2015LP 8.621.2935
4 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
New
You might also like
Comments (0)
No customer reviews for the moment.
Viewed products
Customers who bought this product also bought:
16 other products in the same category:
Lavor Pressure Cleaner LKX 2015LP Spare Parts
Lavor original spare parts for to replace broken parts for to fix Hot Water High Pressure Cleaner LKX 2015LP T 400-415/50 -GR- -LAVOR- 8.621.2935.Fix Your Pressure Cleaner LKX 2015LP T 400-415/50 -GR- -LAVOR. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
