FASA LTX-30 Pressure Cleaner Parts
€1.68
Tax included
FASA Original Parts for Pressure Cleaner IDRO LTX-30
Fix Your Hot Water High Pressure Cleaner IDRO LTX-30 230/50 -BLU- FASA (ATLAS 30) - 8.650.0082. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FASA Original Parts for Pressure Cleaner IDRO LTX-30
Fix Your Hot Water High Pressure Cleaner IDRO LTX-30 230/50 -BLU- FASA (ATLAS 30) - 8.650.0082. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following tables, look for the spare part and its respective code.
| IDRO LTX-30 230/50 -BLU- FASA (ATLAS 30) - 8.650.0082 | ||

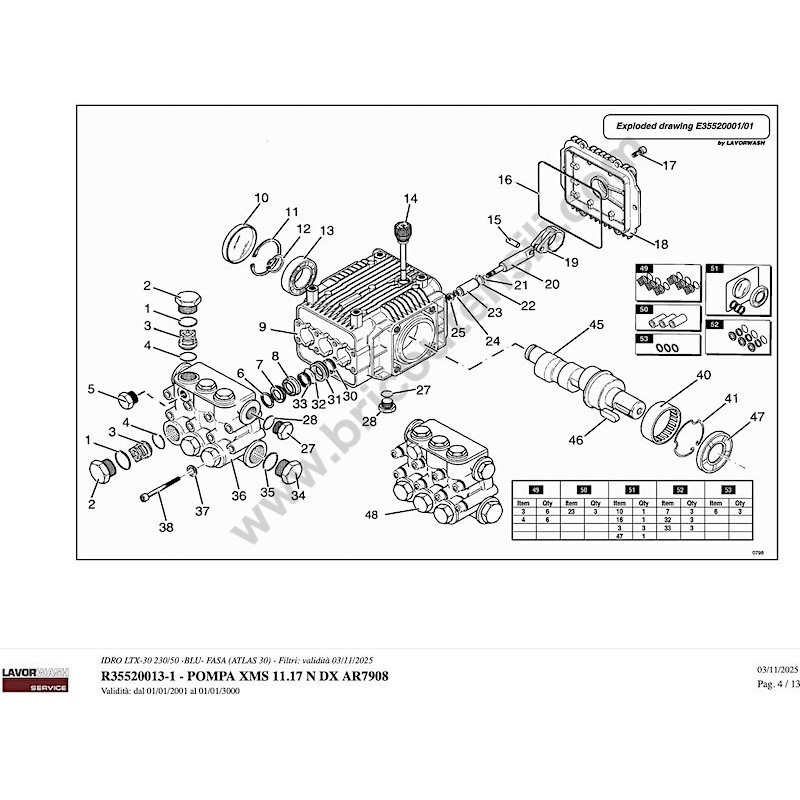

| POMPA XMS 11.17 N DX AR7908 Pag.1 | ||
| # | Part Num | Description |
| 1 | 3.200.0023 | OR D. 17.86X2.62 |
| 2 | 3.553.0058 | PLUG |
| 3 | 3.553.0134 | AR VALVE |
| 4 | 3.553.0059 | OR 15.54X2.62 |
| 5 | 3.553.0060 | PLUG |
| 6 | 3.553.0061 | SUPPORT RING |
| 7 | 3.553.0063 | GASKET |
| 8 | 3.553.0065 | PISTON GUIDE |
| 9 | 3.553.0067 | PUMP BODY |
| 10 | 3.553.0038 | CLOSING CAP 52X7 |
| 11 | 3.553.0039 | CIRCLIP DI 52 UNI 7437-75 |
| 12 | 3.553.0040 | SNAP RING DE 20 UNI 7435-75 |
| 13 | 3.553.0041 | BEARING 6304 |
| 14 | 3.553.0025 | AR OIL FILLER PLUG |
| 15 | 3.553.0052 | PIN DE 9X22 |
| 16 | 3.553.0045 | OR 107.62X2.62 |
| 17 | 3.553.0068 | SCREW |
| 18 | 3.553.0069 | COMPLETE COVER |
| 19 | 3.553.0046 | CONNECTING ROD |
| 20 | 3.553.0047 | GUIDE PISTON |
| 21 | 3.553.0048 | OR 4.48X1.78 2018 |
| 22 | 3.553.0049 | SEPARATOR DISC |
| 23 | 3.553.0070 | PISTON |
| 24 | 3.553.0050 | PISTON WASHER 8X13X0.50 RAM AND ANNEALED |
| 25 | 3.553.0051 | M8 STAINLESS STEEL NUT WITH EDGES ROUNDED |
| 26 | 3.553.0119 | FOOT AR |
| 27 | 3.553.0072 | OR |
| 28 | 3.553.0127 | PLUG |
| 29 | 3.553.0118 | AR SCREW |
| 30 | 3.553.0014 | SEAL RING 1260460 OIL SEAL XM |
| 31 | 3.553.0074 | REAR PISTON GUIDE |
| 32 | 3.553.0076 | OR |
| 33 | 3.553.0077 | GASKET |
| 34 | 3.553.0079 | PLUG |
| 35 | 3.553.0080 | OR |
| 36 | 3.553.0089 | HEAD |
| 37 | 3.553.0081 | WASHER |
| 38 | 3.553.0082 | SCREW |
| 40 | 3.553.0043 | BEARING HK 4516 |
| 41 | 3.553.0044 | CIRCLIP |
| 45 | 3.553.0093 | ECCENTRIC SHAFT |
| 46 | 3.099.0483 | KEY A8X7X25 UNI 6604/69 |
| 47 | 3.553.0017 | SEAL RING (OIL SEAL) |
| 48 | 3.553.0136 | PRE-ASSEMBLED PUMP HEAD AR |
| 49 | 3.553.0002 | KIT AR1864 XM.S.A VALVES (6 pcs. 1269050+880830) |
| 50 | 3.553.0012 | EXTERNAL KIT AR2739 DIAM. 15 PISTONS |
| 51 | 3.553.0130 | KIT AR2786 OIL SEALS FOR VERSION N |
| 52 | 3.553.0013 | KIT AR2741 DIAM. 15 WATER SEALS |
| 53 | 3.553.0011 | KIT AR2740 DIAM. 15 SUPPORT RINGS |
| MOTOPOMPA LWM 230/50 2P HP3 XMS 11.17 L2 Pag.2 | ||
| 0 | 5.601.0045 | LWM 230/50 2P HP3 XMS 11.17 L2 MOTOR PUMP |
| 7 | 3.200.0034 | OR SEAL 9.12x3.53 |
| 8 | 3.099.0055 | RING NUT 1/2 F HOLE D. 12.5 |
| 9 | 3.200.0033 | OR SEAL 50.47x2.62 |
| 10 | 3.404.0007 | CAPACITATOR 65mF 450V D. 50x120 |
| 11 | 3.401.0027 | EXTERNAL MICRO-BREAKER 3120-F551-P7T 1-W02F-20A |
| 12 | 5.009.0165 | HOBBY SWITCH COVER ASSEMBLY |
| 13 | 4.008.0125 | STARJET ELECTRIC BOX COVER |
| 14 | 4.008.0137 | FOAM RUBBER SEAL 124X59X3.2 |
| 15 | 4.606.0008 | CABLE GLAND FOR GMV MOTOR D. 150 |
| 16 | 4.008.0124 | ELECTRIC BOX FOR L.I. MOTOR DISG. HOLE |
| 27 | 3.200.0027 | O-RING 20.24x2.62 SH70 |
| 40 | 4.608.0088 | MOTOR FAN COVER D.135 |
| 41 | 3.099.0103 | STOP RING D.30 MEC90 FAN |
| 42 | 3.099.0108 | MEC90 FAN |
| 43 | 5.602.0027 | LWM 230/50 2P HOUSING D.135 H.125 |
| 44 | 3.001.0001 | RADIAL BALL BEARING 6204-2Z |
| 45 | 5.605.0015 | ROTOR SHAFT D.70 H.125 R.E. |
| 46 | 3.002.0011 | M8X22 TCEI SCREW CL 8.8 WHITE ZNT |
| 47 | 3.004.0008 | FLAT WASHER D.8.4x16 Th.1.6 ZNT |
| 48 | 4.605.0022 | MOTOR FLANGE D.135 CENTERING D.61 |
| 49 | 3.004.0001 | FLAT WASHER D.6x11 Th.0.8 ZNT |
| 50 | 3.002.0015 | M6X25 TCEI SCREW TRILOBAL ZNT |
| 51 | 3.552.0013 | XMS 11.17 PUMP N DX AR7908 |
| 52 | 3.553.0016 | PLUG FOR XMS 13.17 PUMP WITH 1/4 DRILL |
| 53 | 3.100.0069 | MF EXTENSION 1/4-1/4 L=24 CHROME PLATED BRASS |
| 54 | 3.107.0004 | PRESSURE GAUGE D.50 0/315 BAR 1/4 REAR |
| 55 | 3.200.0081 | OR SEAL 15.88x2.62 SH70 |
| 56 | 4.605.0020 | EYE CONNECTOR 1/2 INLET FOR VALVE WITH MICRO |
| 57 | 3.100.0046 | REDUCTION 3/8F CYLINDER 1/2M CYLINDER SV. ZNT |
| 58 | 4.606.0213 | DRILLED CONNECTOR 1/2 INLET V.L. BLIND AVP ZNT |
| 59 | 5.009.0109 | 3/4 HOBBY INTAKE CONNECTOR WITH MOUNTED O-RING |
| 60 | 4.008.0031 | ORDER WATER INLET FILTER D.16 CONICAL |
| 61 | 4.608.0093 | KNOB COVER FOR LTX'96 |
| 62 | 4.608.0094 | ADJUSTMENT KNOB LTX'96 |
| 63 | 3.003.0018 | NUT E. M8X1 MEDIUM CLASS 8 UNI 5588 ZNT |
| 64 | 6.605.0014 | COMPENSATED VALVE L2 |
| 65 | 3.702.0001 | FIXED INJECTOR 3/8 M.M. D.1.8 (471) 21000018 |
| 66 | 3.100.0042 | QUICK COUPLING 3/8F 06 (464) 26070040 |
| 67 | 4.606.0212 | DRILLED CONNECTOR 3/8 MAND. BLIND VALVE IP |
| 68 | 3.200.0021 | OR SEAL 6.75x1.78 NBR SH.70 REF. 106 |
| 69 | 4.606.0059 | EXHAUST PIPE L.33.5 AR |
| 70 | 4.606.0070 | KNOB INSERT |
| VALVOLA COMPENSATA L2 '99 +INIETT.D.1,8 Pag.3 | ||
| 1 | 3.003.0014 | M8x1 SELF-LOCKING NUT, LOW, ZNT |
| 2 | 4.606.0048 | SPRING GUIDE WASHER FOR COMPENSATED VALVE |
| 3 | 4.607.0107 | SPRING FOR REGULATORY VALVE, DIAMETER 15, L=55, THREAD DIAMETER 5.5 |
| 4 | 3.099.0058 | SPRING PIN 3x12 |
| 5 | 4.606.0051 | PISTON GUIDE FITTING |
| 7 | 4.608.0076 | ANTI-EXTRUSION RING PTFE D.8x11 |
| 8 | 3.200.0010 | OR SEAL 7.66x1.78 SH.70 |
| 9 | 5.609.0041 | EXT. CHECK VALVE ASSEMBLY + OR |
| 10 | 4.607.0259 | EXT. VALVE SPRING CHECK VALVE D.4.8x5.8 L=20 THREAD 0.5 |
| 11 | 3.200.0080 | OR SEAL 15.6x1.78 SH.90 |
| 12 | 4.606.0090 | INJECTOR CONNECTOR D.1.8 |
| 13 | 5.609.0042 | ROD ASSEMBLY FOR L2 VALVE PISTON + CONTROL PISTON |
| 14 | 4.608.0077 | ANTI-EXTRUSION RING FOR CONTROL PISTON |
| 15 | 3.200.0001 | OR SEAL 9.92x2.62 |
| 16 | 4.606.0089 | EXTERNAL VALVE BODY L2'99 FOR HORIZONTAL CHECK VALVE |
| 17 | 3.002.0148 | STEERING SCREW M6X6 CONICAL FLAT TIP |
| 18 | 3.200.0013 | OR SEAL 11.1x1.78 |
| 19 | 4.607.0098 | STAINLESS STEEL SEALING SEAT L2 VALVE |
| 20 | 3.005.0009 | BALL 11/32 STAINLESS STEEL 420B |
| 21 | 4.607.0095 | SPRING D.8X16 THREAD 0.8 |
| 22 | 4.606.0060 | SPRING GUIDE CAP FOR L2 VALVE |
| 31 | 4.007.0014 | EXTERNAL VALVE SPRING DETERGENT RETAINER D.4.5/6 L=7 THREAD D.0.3 |
| 32 | 3.005.0001 | BALL D.5 STAINLESS STEEL 420 |
| 33 | 6.005.0030 | HOSE HOLDER FOR DETERGENT SUCTION COMP. L. OF OR |
| IDRO LTX-30 230/50 -BLU- FASA(ATLAS 30) Pag.4 | ||
| 1 | 4.008.0625 | TANK HANDLE FOR VULKER ES P.01 |
| 2 | 4.608.0027 | PLUG DIAM. 30 FOR FIRE 100 TANK -N- |
| 3 | 4.613.0146 | UPPER FAIRING LTX'96 -B LU- RAL 5015 |
| 4 | 3.002.0112 | HI-LO TC-TORX SCREW P 3.9X25 ZNT |
| 5 | 5.601.0045 | MOTOR PUMP LWM 230/50 2P HP3 XMS 11.17 L2 |
| 7 | 5.613.0129 | RH FRAME FOR LTX ENGINE SUPPORT - FINISHED |
| 8 | 5.613.0128 | LH FRAME FOR LTX ENGINE SUPPORT - FINISHED |
| 9 | 3.004.0035 | SPRING WASHER D.6 DIN 127 TYPE B ZNT WHITE |
| 10 | 3.002.0040 | TE SCREW M6X20 UNI 5739 ZNT |
| 11 | 4.008.0379 | TRANSPARENT TUBE 6x9 L=730mm |
| 12 | 3.002.0015 | TCEI SCREW M6X25 TRILOBAL ZNT |
| 13 | 3.004.0007 | FLAT WASHER D.6X18 Th.2 mm ZNT UNI6593 |
| 14 | 3.003.0007 | M6 MEDIUM NUT UNI 5588 CL10 ZNT |
| 15 | 3.099.0104 | D.3.5X40 SPLIT PIN UNI1336 |
| 16 | 3.002.0106 | 3.9X16 SELF-TAPPING SCREW TC-TC UNI 6954 ZNT |
| 17 | 4.008.0277 | FIXED WALL CABLE CLIP (LWS) |
| 18 | 4.607.0246 | D.15 AXLE FOR LTX'96 |
| 19 | 4.008.0296 | D.200 WHEEL, D.15 MOTION SPI200 STRAIGHT BEAT |
| 20 | 3.099.0020 | D.28.3 WHEEL CLIP FOR D.15 AXLE |
| 21 | 3.099.0101 | WHEEL BOSS FOR SP200 - BLACK - |
| 22 | 4.612.0046 | POWER CABLE H05VV-F 4X1.5 L=6000 |
| 23 | 5.613.0117 | THREE-PHASE MOTOR SUPPORT |
| 24 | 4.608.0090 | SHOCK ABSORBER BUSHING |
| 25 | 4.608.0091 | CIRCULAR SHOCK ABSORBER |
| 26 | 3.004.0033 | SHIM WASHER 17.2X24X0.5 DIN988 ZNT |
| 27 | 4.608.0519 | PIPE CAP D.20 |
| 28 | 3.004.0002 | FLAT WASHER 4.3X9 Th. 0.8 ZNT UNI6592 |
| 29 | 3.002.0010 | TC-TC SCREW M4X8 UNI 7687 ZNT |
| 30 | 4.608.0095 | OUTLET COVER L2 AND XM |
| 31 | 4.613.0157 | LOWER FAIRING LTX'96 -N- |
| 32 | 4.618.0016 | EXT. PRESSURE PIPE L=10,000 250 BAR WITH 5/16 HOSES |
| 33 | 3.700.0036 | EXT. RL200 GUN 3/8M + S4 + RAP ATTACHMENT |
| 34 | 3.701.0015 | EXT. STAINLESS STEEL LANCE L.700 COVERED + RED + RAP ATTACHMENT M22 |
| 35 | 5.012.0002 | HOSE HOSE SUCTION KIT 3/4 D.16 |
| 36 | 3.103.0051 | HIGH PRESSURE NOZZLE ORD 1/8M |
| 37 | 3.100.0043 | SWIVEL QUICK COUPLING 3/8 M MV G8 (461) |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
FASA LTX-30 - 8.650.0082
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
