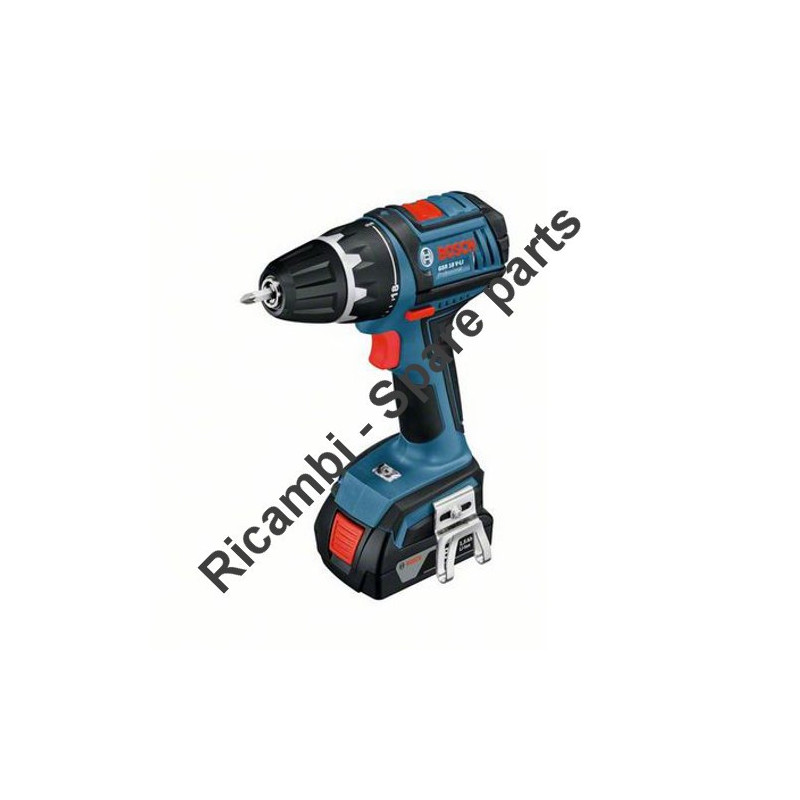

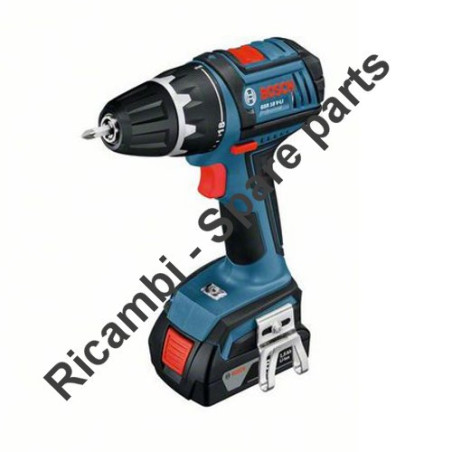

Bosch Spare Parts for Cordless Drill Driver GSR
€113.26
Tax included
Bosch Spare Parts for Cordless Drill Driver GSR
Bosch genuine spare parts for replacing or repairing Cordless Drill Driver GSR 18 V-LI/3 601 H60 300 - GSR 14,4 VE-2LI/3 601 H61 T00 - GSR 18 VE-2LI/3 601 H61 S00 - GSR 36 V-LI/3 601 J12 100 - GSR 14,4 V/0 601 915 420 - GSR 14,4 VE-2/0 601 912 420.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Cordless Drill Driver GSR
Bosch genuine spare parts for replacing or repairing Cordless Drill Driver GSR 18 V-LI/3 601 H60 300 - GSR 14,4 VE-2LI/3 601 H61 T00 - GSR 18 VE-2LI/3 601 H61 S00 - GSR 36 V-LI/3 601 J12 100 - GSR 14,4 V/0 601 915 420 - GSR 14,4 VE-2/0 601 912 420
In the following table, look for the model of the Cordles Drill and the respective parts of the code.
| Cordless Drill GSR 18 V-LI/3 601 H60 300 | ||
| 1 | 2605105134 | Housing Section BLUE |
| 4 | 1607233302 | Electronics Module |
| 5 | 2601099188 | Adjusting Slide |
| 9 | 2601115607 | Manufacturer's nameplate GSR 18 V-LI |
| 20 | 2601115608 | Nameplate |
| 22 | 2609110634 | Screw |
| 25 | 2608572251 | Keyless Chuck 13 MM |
| 32 | 2601099189 | Adjusting Slide RED |
| 45 | 2606200263 | Planetary Gear Train |
| 46 | 2604690055 | Compression Spring |
| 91 | 2607336091 | Slide-In Accu Package 18V, 2,6Ah, LI, MS |
| 2607336169 | Slide-In Accu Package 18V, 1,3Ah, LI, MS | |
| 2607336235 | Slide-In Accu Package BBS MR 18V, 3,0Ah, LI | |
| 93 | 1609200147 | Screwdriver Blade 6 MM |
| 101 | 2609110201 | Torx Flat-Head Screw 3x16 |
| 107 | 2609110635 | Pan head screw M 6x30 |
| 653 | 2607225321 | Charger EU 230/10,8-18V, 30 MIN |
| 2607225323 | Charger GB 230/10,8-18V, 30 MIN | |
| 2607225325 | Fast Charger AUS 240/10,8-18V, 30 MIN | |
| 2607225423 | Fast Charger EU 230/10,8-18V, 1h | |
| 2607225425 | Fast Charger GB 230/10,8-18V, 1h | |
| 802 | 2607022832 | DC motor 18V |
| 804 | 1609280478 | Contact retainer |
| 821 | 2609110633 | Tab Washer |
| Cordless Drill GSR 14,4 VE-2LI/3 601 H61 T00 | ||
| 1 | 2605105140 | Housing Section BLUE |
| 2 | 2607022319 | DC motor 14,4V |
| 4 | 1607233331 | Electronics Module |
| 5 | 2601099196 | Adjusting lever RED |
| 9 | 2601115736 | Manufacturer's nameplate GSR 14,4 VE-2LI |
| 11 | 2600508066 | End cap BLACK |
| 12 | 2600510011 | Front Cap |
| 20 | 2601115737 | Nameplate |
| 45 | 2606200256 | Planetary Gear Train |
| 46 | 1609280477 | Compression Spring |
| 47 | 2605190895 | Lens |
| 62 | 2600202067 | Retaining snap ring |
| 91 | 2607336077 | Slide-In Accu Package 14,4V, 2,6Ah, LI, MS |
| 2607336223 | Slide-In Accu Package BBS-MR XL-PACK 14,4V, LI | |
| 93 | 1609200147 | Screwdriver Blade 6 MM |
| 101 | 2603490018 | Torx Oval-Head Screw 3x18 |
| 107 | 2603421229 | Countersunk-Head Screw M6x23 |
| 653 | 2607225321 | Charger EU 230/10,8-18V, 30 MIN |
| 2607225323 | Charger GB 230/10,8-18V, 30 MIN | |
| 2607225325 | Fast Charger AUS 240/10,8-18V, 30 MIN | |
| 2607225333 | Fast Charger ROK 220/10,8-18V, 30 MIN | |
| 655 | 2602025158 | Auxiliary Handle |
| 804 | 1609280474 | Contact retainer |
| 813 | 2600510012 | Locating ring |
| 816 | 2607034904 | Carbon-Brush Set |
| 1607000488 | Carbon-Brush Set 10 x 2 607 034 904 | |
| 825 | 2608572901 | Keyless Chuck |
| 832 | 2601099213 | Adjusting lever |
| Cordless Drill GSR 18 VE-2LI/3 601 H61 S00 | ||
| 1 | 2605105140 | Housing Section BLUE |
| 2 | 2607022320 | DC motor 18V |
| 4 | 1607233332 | Electronics Module |
| 5 | 2601099196 | Adjusting lever RED |
| 9 | 2601115738 | Manufacturer's nameplate GSR 18 VE-2LI |
| 11 | 2600508066 | End cap BLACK |
| 12 | 2600510011 | Front Cap |
| 20 | 2601115739 | Nameplate |
| 45 | 2606200256 | Planetary Gear Train |
| 46 | 1609280477 | Compression Spring |
| 47 | 2605190895 | Lens |
| 62 | 2600202067 | Retaining snap ring |
| 91 | 2607336091 | Slide-In Accu Package 18V, 2,6Ah, LI, MS |
| 2607336235 | Slide-In Accu Package BBS MR 18V, 3,0Ah, LI | |
| 93 | 1609200147 | Screwdriver Blade 6 MM |
| 101 | 2603490018 | Torx Oval-Head Screw 3x18 |
| 107 | 2603421229 | Countersunk-Head Screw M6x23 |
| 653 | 2607225321 | Charger EU 230/10,8-18V, 30 MIN |
| 2607225323 | Charger GB 230/10,8-18V, 30 MIN | |
| 2607225325 | Fast Charger AUS 240/10,8-18V, 30 MIN | |
| 2607225333 | Fast Charger ROK 220/10,8-18V, 30 MIN | |
| 655 | 2602025158 | Auxiliary Handle |
| 804 | 1609280478 | Contact retainer |
| 813 | 2600510012 | Locating ring |
| 816 | 2607034904 | Carbon-Brush Set |
| 1607000488 | Carbon-Brush Set 10 x 2 607 034 904 | |
| 825 | 2608572901 | Keyless Chuck |
| 832 | 2601099213 | Adjusting lever |
| Cordless Drill GSR 36 V-LI/3 601 J12 100 | ||
| 1 | 2605105089 | Housing Section BLUE |
| 4 | 1607233279 | Electronics Module |
| 5 | 2601099149 | Adjusting Slide |
| 11 | 2600508056 | Cover |
| 12 | 2600508057 | Cover |
| 32 | 2601099152 | Adjusting Slide RED |
| 61 | 2608040190 | Support |
| 70 | 2605190571 | Push-Button RED |
| 71 | 2604610104 | Compression Spring |
| 91 | 2607336001 | Battery Pack 36V, 1,3Ah, LI |
| 2607336003 | Battery Pack 36V, 2,0Ah, LI | |
| 2607336711 | Slide-In Accu Package J 36V. 2,6Ah, LI | |
| 2607336173 | Battery Pack 36V, 2,6Ah, LI, XL | |
| 93 | 1609200147 | Screwdriver Blade 6 MM |
| 101 | 2603490018 | Torx Oval-Head Screw 3x18 |
| 107 | 2603421229 | Countersunk-Head Screw M6x23 |
| 200 | 2601119110 | Warning Plate JAPAN |
| 2601119112 | Warning Plate JAPAN CAUTION | |
| 653 | 2607225111 | Fast Charger ROK 220/18-36V, 1h |
| 2607225113 | Fast Charger BR 220/18-36V, 1h | |
| 2607225099 | Fast Charger EU 230/18-36V, 1h | |
| 2607225103 | Fast Charger AUS 240/18-36V, 1h | |
| 2607225109 | Fast Charger J 100/18-36V, 1h | |
| 2607225101 | Fast Charger GB 230/18-36V, 1h | |
| 655 | 2602025135 | Auxiliary Handle |
| 802 | 2607022837 | DC motor |
| 809 | 2601116945 | Manufacturer's nameplate |
| 816 | 2607034904 | Carbon-Brush Set |
| 1607000488 | Carbon-Brush Set 10 x 2 607 034 904 | |
| 820 | 2601116946 | Nameplate |
| 825 | 2608572900 | Keyless Chuck |
| 845 | 2606200935 | Planetary Gear Train |
| Cordless Drill GSR 14,4 V/0 601 915 420 | ||
| 1 | 2605105003 | Motor Housing |
| 42279 | 2606316229 | Pinion |
| 5 | 2601099055 | Adjusting Slide RED |
| 20 | 1619P00117 | Manufacturer's nameplate GSR 7,2-1 |
| 45 | 2606200090 | Planetary Gear Train |
| 91 | 1617S0004W | Accumulator Battery 14,4V, 1,5Ah, NiCd |
| 93 | 2607000366 | Screwdriver Bit |
| 96 | 2604690030 | Bit holder |
| 101 | 2603490018 | Torx Oval-Head Screw 3x18 |
| 653 | 2607224425 | Fast Charger EU 230/7,2-24V, 1h |
| 2607224393 | Fast Charger GB 230/7,2-14,4V, 1h | |
| 2607224395 | Fast Charger AUS 240/7,2-14,4V, 1h | |
| 2607224727 | Fast Charger CN 220/7,2-14,4V, 1h | |
| 802 | 1619P00142 | DC motor 14,4V |
| 804 | 2607200463 | On-Off Switch |
| 807 | 2609110721 | Countersunk-Head Screw M5x20 |
| 809 | 1619P00953 | Nameplate |
| 825 | 1619P01024 | Keyless Chuck 0,8-10 MM |
| Cordless Drill GSR 14,4 VE-2/0 601 912 420 | ||
| 4 | 2607200456 | On-Off Switch |
| 5 | 2601099112 | Adjusting Slide RED |
| 10 | 2600508051 | Cover BLACK |
| 11 | 2600508052 | Cover BLACK |
| 12 | 2606316222 | Pinion |
| 32 | 2601099127 | Adjusting Slide |
| 61 | 2608040190 | Support |
| 91 | 2607335685 | Slide-In Accu Package 14,4V, 2,6Ah, NiMH |
| 2607335693 | Slide-In Accu Package 14,4V,3,0Ah,NiMh | |
| 2607335699 | Slide-In Accu Package 14,4V, 2,0Ah, NiMH | |
| 2607335699 | Slide-In Accu Package 14,4V, 2,0Ah, NiMH | |
| 101 | 2603490018 | Torx Oval-Head Screw 3x18 |
| 107 | 2603421229 | Countersunk-Head Screw M6x23 |
| 108 | 2604690035 | Spring Element |
| 653 | 2607224983 | Fast Charger BR 220/7,2-24V, 1h |
| 2607224701 | Fast Charger EU 230/7,2-14,4V, 30 MIN. | |
| 2607224427 | Fast Charger GB 230/7,2-24V, 1h | |
| 2607224703 | Fast Charger GB 230/7,2-14,4V, 30 MIN. | |
| 2607224443 | Fast Charger AUS 240/7,2-14,4V, 1h | |
| 2607224425 | Fast Charger EU 230/7,2-24V, 1h | |
| 2607224709 | Fast Charger RC 115/7,2-14,4V, 30 MIN. | |
| 801 | 2605105908 | Housing Section BLUE |
| 802 | 2607022864 | DC motor 14,4V |
| 816 | 2607034904 | Carbon-Brush Set |
| 818 | 2604690026 | Spring Element |
| 825 | 2608572900 | Keyless Chuck |
| 845 | 2606200931 | Planetary Gear Train |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
GSR 18 V-LI - 3 601 H60 300
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N BOSCH:
- BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
