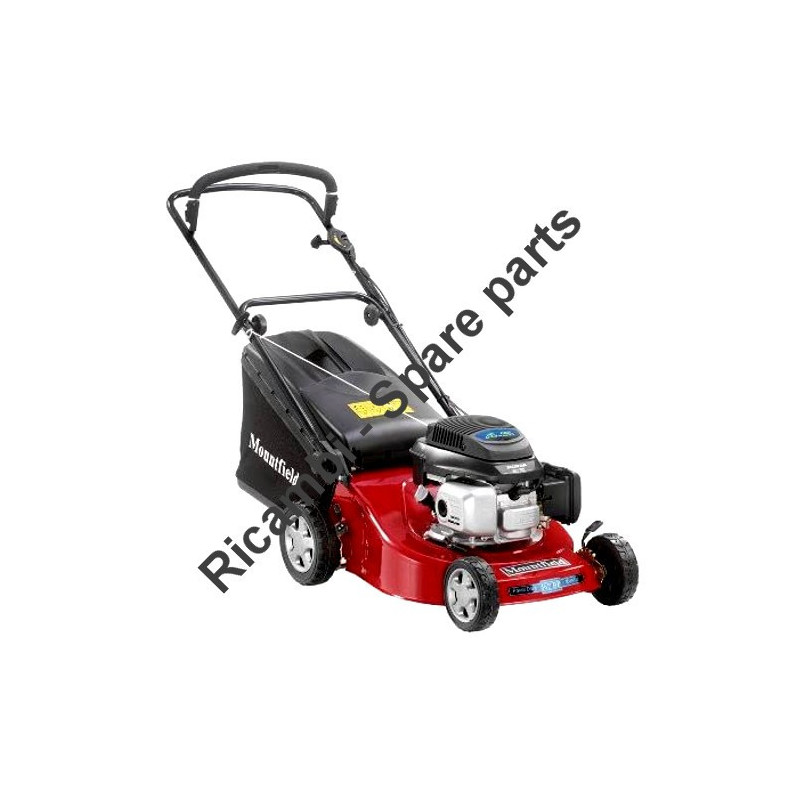

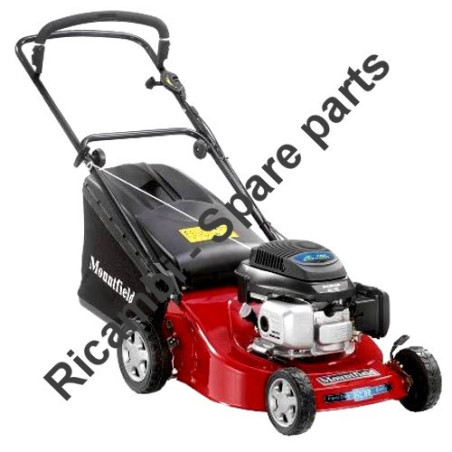

Mountfield Spare Parts for Petrol Lawnmower M 462 HP
€1.72
Tax included
Mountfield Spare Parts for Petrol Lawnmower M 462 HP
We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Lawnmower M 462 HP/294484033/CAI - 2013.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Mountfield Spare Parts for Petrol Lawnmower M 462 HP
We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Lawnmower M 462 HP/294484033/CAI - 2013.
In the following table, look for the model of the Petrol Lawnmower and the respective parts of the code.
| Mountfield Lawnmower M 462 HP/294484033/CAI - 2013 | ||
| Deck And Height Adjusting Pag.1 | ||
| # | Part Num. | Description |
| 1 | 381001339/0 | STEEL DECK TD48 [RED] - DISCONTINUED |
| 2 | 112293200/0 | NUT |
| 3 | 112583500/0 | WASHER M8 |
| 4 | 112523070/0 | WASHER M8 8.5 x 32 x 2.5 |
| 5 | 322735547/0 | HEIGHT ADJUST QUADRANT |
| 6 | 381005082/0 | STUB AXLE |
| 7 | 481003285/1 | HEIGHT ADJUST LEVER |
| 8 | 122519811/0 | WHEEL BOLT |
| 9 | 381005084/0 | STUB AXLE |
| 10 | 481003286/0 | HEIGHT ADJUST LEVER |
| Handle Lower Part Pag.2 | ||
| 1 | 381006510/0 | HANDLE LOWER PART |
| 1 | 381006532/0 | HANDLE LOWER PART |
| 2 | 122785081/0 | EXTERNAL SUPPORT |
| 2 | 322785081/1 | EXTERNAL SUPPORT |
| 3 | 122785082/0 | RIGHT INTERNAL SUPPORT |
| 4 | 122785083/1 | LEFT INTERNAL SUPPORT |
| 6 | 122551575/0 | INSIDE PLATE |
| 7 | 112793301/0 | HEX-HEAD SCREW M8 x 25 |
| 8 | 112155000/0 | LOW SELF-LOCKING NUT M8 |
| 9 | 112521350/0 | WASHER M8 8.4 x 16 x 1.6 |
| 10 | 112691810/0 | SCREW TE M8 x 60 |
| 11 | 122399803/0 | KNOB |
| 12 | 112293202/0 | HEXAGONAL NUT M8 UNI 5588 |
| 13 | 181008623/1 | KIT COMPONENTS FOR LAWN MOWER PAN |
| 13 | 381008596/1 | OUTFIT SCREWS |
| 13 | 381008622/0 | KIT COMPONENTS FOR LAWN MOWER PAN |
| 14 | 112293200/0 | NUT |
| 15 | 122399900/0 | 3 SPOKE HANDWHEEL [BLACK] |
| 16 | 181003801/1 | BOLT/PULL CORD GUIDE |
| 17 | 122680006/1 | PLASTIC WASHER |
| 18 | 112819201/0 | CARRIAGE BOLT M8 x 60 |
| Handle Upper Part Pag.3 | ||
| 1 | 381006979/2 | HANDLE UPPER PART |
| 2 | 112689500/0 | SELF-TAP SCREW 4.8 x 25 |
| 3 | 322551640/0 | CABLE HOLDER BLOCK |
| 6 | 181000754/0 | ENGINE BRAKE CABLE L=985 |
| 7 | 381003298/0 | BRAKE CONTROL LEVER |
| 7 | 381003298/1 | BRAKE CONTROL LEVER |
| 8 | 112154510/0 | LOW SELF-LOCKING NUT (M6) |
| Control Pag.4 | ||
| 1 | 112291000/0 | Nut |
| 2 | 112581500/0 | Grower |
| 3 | 122171005/0 | Spacer |
| 4 | 112521360/0 | Washer |
| 5 | 112508100/0 | Cup Spring |
| 6 | 381007279/1 | Throttle lever |
| 7 | 481007080/0 | Throttle cable |
| 8 | 112815000/0 | SCREW |
| 9 | 114356702/0 | THROTTLE LABEL |
| Wheel and Hub Cap Pag.5 | ||
| 1 | 122122200/0 | BEARING |
| 2 | 381007351/0 | WHEEL D=170 |
| 3 | 322110381/0 | HUB CAP D=170 [GREY] |
| 4 | 181007343/0 | WHEEL D=210 |
| 5 | 322110382/0 | HUB CAP D=210 [GREY] |
| 6 | 112523060/0 | WASHER M8 8.4 x 24 x 2 |
| 7 | 112155000/0 | LOW SELF-LOCKING NUT M8 |
| 8 | 112530150/0 | SPRING WASHER M12 |
| Blade Pag.6 | ||
| 2 | 181004346/2 | BLADE |
| 2 | 181004346/3 | BLADE MULCHING 46 CM |
| 2 | 181004397/0 | WINGED BLADE 46 CM |
| 3 | 122160400/0 | SPRING WASHER 50 x 2 x 10.2 |
| 4 | 112523080/0 | WASHER M10 11 x 30 x 2.5 |
| 5 | 112735698/0 | HEX-HEAD SCREW 3/8"X2" |
| 7 | 112691115/0 | HEX-HEAD SCREW 8X40 |
| 8 | 112154210/0 | SELF-LOCK WINGED NUT M8 |
| Grass-Catcher Pag.7 | ||
| 1 | 381008021/1 | DEFLECTOR ASSEMBLY [BLACK] |
| 1 | 381008021/2 | DEFLECTOR ASSEMBLY [BLACK] |
| 2 | 122450420/1 | LH DEFLECTOR SPRING |
| 3 | 122517906/1 | DEFLECTOR ROD |
| 4 | 122450410/1 | RH DEFLECTOR SPRING |
| 5 | 112000930/0 | CIRCLIP D=6 |
| 6 | 322486101/0 | GRASSCATCHER TOP-FULL INDICATOR [BLACK] |
| 7 | 122608525/0 | GRASSCATCHER FRAME |
| 7 | 122608525/1 | GRASSCATCHER FRAME |
| 8 | 181002211/0 | GRASSBAG [BLACK] |
| 9 | 112728680/0 | FLANGED SCREW D=5 x 25 |
| 10 | 112523050/0 | WASHER M6 6.6 x 24 x 2 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Castelgarden websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Castelgarden brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
