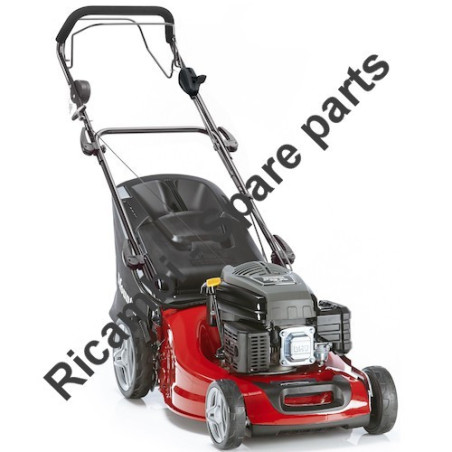

Mountfield Spare Parts for Lawnmower S481 PD ES (2016)
€31.78
Tax included

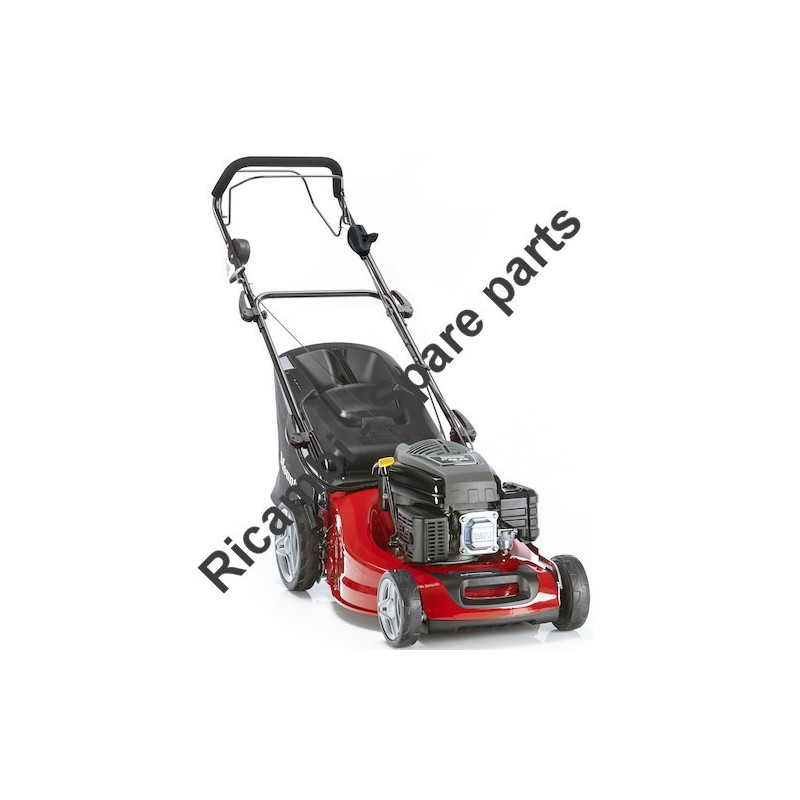

Mountfield Spare Parts for Lawnmower S481 PD ES (2016)
We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Self-Propelled Lawnmower S481 PD ES (2016) 294502543/M16.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Mountfield Spare Parts for Lawnmower S481 PD ES (2016)
We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Self-Propelled Lawnmower S481 PD ES (2016) 294502543/M16.
In the following table, look for the model of the Brushcutter and the respective parts of the code.
| LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.1 | ||
| # | Part Num. | Description |
| 1 | 381302881/0 | Front Wheels Axle from 01.02.2016 front axle 381302913/0 will be unified for all models |
| 1 | 381302913/0 | Front Wheel Axle To S / N 20BA2WBH080823 |
| 1 | 381302913/1 | Front Wheel Axle From S / N 20BA2WBH080824 |
| 2 | 322785305/0 | Axle Support To 31-August-2015 |
| 2 | 322785305/1 | Axle Support From 01-September-2015 |
| 3 | 112728697/0 | Screw |
| 4 | 322869695/0 | HEIGHT ADJUST TIE BARTo S / N 20BA2WBH090896 |
| 4 | 322869695/1 | HEIGHT ADJUST TIE BAR From S / N 20BA2WBH090897 |
| 5 | 122519820/0 | Pin |
| 6 | 112436051/0 | pin plate |
| 7 | 322778475/0 | HEIGHT ADJUST BRACKET |
| 8 | 122450480/0 | Spring |
| 9 | 122517873/0 | BUSH |
| 10 | 322055329/0 | HEIGHT ADJUST COVER [BLACK] |
| 11 | 112815270/0 | Screw M6X25 |
| 12 | 112523040/0 | WASHER M6 6.6 x 18 x 1.6 |
| 13 | 112154510/0 | LOW SELF-LOCKING NUT M6 |
| 14 | 381302895/0 | Rear Wheel Axle To S / N 20BA2WBH091142 |
| 14 | 381302895/1 | Rear Wheel Axle From S / N 20BA2WBH091143 |
| 15 | 322545152/0 | AXLE BRACKET |
| 16 | 112728697/0 | SELF-TAP SCREW PT TORX K50 x 16 |
| 17 | 122446192/0 | Spring |
| 18 | 122534131/0 | Pin |
| 19 | 322322855/0 | HEIGHT ADJUST LEVER To S / N 20BA2WBH068104 |
| 19 | 322322915/0 | HEIGHT ADJUST LEVER From S / N 20BA2WBH068105 |
| 20 | 322394506/0 | HEIGHT ADJUST KNOB |
| 21 | 112728699/0 | SELF-TAPPING SCREW K60 x 22 |
| 22 | 135063900/0 | Belt Z28 |
| 23 | 322778473/0 | Stop Bracket To 31-August-2018 |
| 23 | 322778473/1 | Stop Bracket From 01-September-2018 |
| 24 | 122450478/0 | Spring |
| 25 | 181003115/0 | GEARBOX [BLACK] |
| 26 | 122753000/0 | PIN D=5.2 x 25.65 |
| 27 | 112608600/0 | CIRCLIP D=12 |
| 28 | 119216035/0 | BEARING 6001 2RS (12 x 28 x 8) |
| 29 | 122570110/1 | Right pinion Gear |
| 30 | 122570120/1 | Left pinion Gear |
| 31 | 322042066/0 | Axle Bush |
| 32 | 112521371/0 | WASHER M12 13 x 20 x 2 |
| 33 | 322600205/1 | INNER WHEEL COVER D=240 |
| 34 | 322600247/0 | INNER WHEEL COVER D=180 |
| 35 | 122601909/0 | Pulley |
| 37 | 381003357/0 | Height Adjust Lever To S / N 20BA2WBH076280 |
| 37 | 381003357/1 | Height Adjust Lever From S / N 20BA2WBH076281 |
| 37 | 381003457/1 | Height AdjustLever From S / N 20BA2WBH073719 |
| LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.2 | ||
| 1 | 322500111/0 | FRONT DECK COVER [BLACK] |
| 2 | 112728697/0 | SELF-TAP SCREW PT TORX K50 x 16 |
| 3 | 112728699/0 | SELF-TAPPING SCREW K60 x 22 |
| 4 | 322055524/0 | FRONT PLASTIC INSERT [BLACK] To 31-December-2018 |
| 4 | 322055524/1 | FRONT PLASTIC INSERT [BLACK] From 01-January-2019 |
| 5 | 322226215/0 | FRONT TOP COVER [RED] Light Red |
| 5 | 322226229/0 | FRONT COVER BLACK |
| 5 | 322226243/0 | FRONT TOP COVER [DARK RED] |
| 6 | 322393742/0 | FRONT HANDLE [BLACK] To 31-December-2018 |
| 6 | 322393742/1 | FRONT HANDLE [BLACK] From 01-January-2019 |
| 7 | 381004776/0 | STEEL DECK MP1 504 [RED] To 31-August-2016 |
| 7 | 381004792/0 | STEEL DECK MP1 504 [RED] From 01-September-2016 To 31-August-2018 |
| 7 | 381004853/0 | STEEL DECK MP1 504 GREY From 01-September-2018 |
| LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.3 | ||
| 1 | 381005195/0 | RIGHT HANDLE BRACKET Black To 31-August-2017 |
| 1 | 381005195/1 | RIGHT HANDLE BRACKET Black From 01-September-2017 To 31-August-2018 |
| 1 | 381005195/2 | RIGHT HANDLE BRACKET Black From 01-September-2018 |
| 2 | 381005197/0 | LEFT HANDLE BRACKET Black To 31-August-2017 |
| 2 | 381005197/1 | LEFT HANDLE BRACKET Black From 01-September-2017 To 31-August-2018 |
| 2 | 381005197/2 | LEFT HANDLE BRACKET Black From 01-September-2018 |
| 3 | 112727801/0 | SCREW TCB TORX M6 x 20 |
| 4 | 322545213/0 | FIXING PLATE |
| 5 | 322600310/0 | REAR DOOR (Not For Electric Start Models) |
| 6 | 381102204/0 | Rear conveyor assembly To S / N 19JA2WBH017664 |
| 6 | 381102204/1 | Rear conveyor assembly From S / N 19JA2WBH017665 |
| 7 | 112728699/0 | SELF-TAPPING SCREW K60 x 22 |
| 8 | 322060270/0 | Belt Protection Guard Mulching To S / N SK6112205 |
| 8 | 322060270/1 | Belt Protection Guard Mulching To S / N SK6112095 |
| 8 | 322060270/2 | Belt Protection Guard Mulching From S / N SK8153833 To S / N 19JA2WBH023208 |
| 8 | 322060270/3 | Belt Protection Guard Mulching From S / N 19JA2WBH023209 |
| 9 | 112728530/0 | Screw To 31-August-2015 |
| 9 | 112728531/0 | Screw From 01-September-2015 To 31-August-2016 |
| 9 | 112735645/0 | Screw From 01-September-2016 |
| 10 | 112154510/0 | LOW SELF-LOCKING NUT M6 |
| 11 | 112815205/0 | Screw |
| 12 | 112521330/0 | Washer |
| 13 | 119035000/0 | O-Ring |
| 14 | 112728697/0 | Screw |
| 15 | 322034002/0 | Water washing connection |
| 16 | 322140245/0 | MULCHING PLUG [MP1 504] |
| 18 | 122042073/0 | BUSH From 01-September-2018 |
| LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.4 | ||
| 1 | 381006739/1 | Upper Handle [Black] without Sponge To 31-August-2017 |
| 1 | 381006739/2 | Upper Handle [Black] without Sponge From 01-September-2017 |
| 1 | 381006745/1 | Upper Handle [Black] with sponge grip Black with Sponge To 31-August-2017 |
| 1 | 381006745/2 | Upper Handle [Black] with sponge grip Black with Sponge From 01-September-2017 To 31-August-2018 |
| 1 | 381006745/3 | Upper Handle [Black] with sponge grip Black with Sponge From 01-September-2018 |
| 2 | 122430313/0 | PULL CORD GUIDE |
| 3 | 112521330/0 | Washer |
| 4 | 112154510/0 | Nut |
| 5 | 118390020/0 | Cable clip |
| 6 | 181003363/1 | ENGINE BRAKE LEVER |
| 7 | 181030057/0 | ENGINE BRAKE CABLE L=1385 |
| 7 | 181030106/0 | ENGINE BRAKE CABLE |
| 8 | 112727788/0 | Screw |
| 9 | 112154510/0 | Nut |
| 10 | 181003364/0 | CLUTCH DRIVE LEVER BLACK |
| 11 | 381030104/0 | CLUTCH DRIVE CABLE |
| 12 | 181005539/0 | THROTTLE DRIVE CABLE |
| 13 | 381007563/0 | Lower Handle Black To S / N SK8177202 |
| 13 | 381007563/1 | Lower Handle Black From S / N SK8177203 |
| 14 | 322399835/0 | HANDLE KNOB Black |
| 15 | 122131750/0 | Nut |
| 16 | 322680016/0 | HANDLE FIXING WASHER |
| 17 | 381103350/0 | UPPER LOCK HANDLE LEVER [BLACK] |
| 18 | 381003253/0 | UPPER LOCK HANDLE LEVER [BLACK] |
| LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.5 | ||
| 1 | 112728702/0 | Screw |
| 2 | 112728691/0 | Screw |
| 3 | 322722801/0 | LEFT IGNITION COVER |
| 4 | 118450051/0 | IGNITION SWITCH ASSEMBLY |
| 5 | 322722800/0 | RIGHT IGNITION COVER |
| 6 | 118204121/0 | Battery charger BS plug To 31-August-2015 |
| 6 | 118204121/1LC | Battery charger BS Plug |
| 7 | 133320015/0 | Cable Clamp To 31-August-2016 |
| 7 | 133320022/0 | Cable Clamp from 01-September-2016 |
| 8 | 118204196/0 | ELECTRIC START CABLE For B&S Engines |
| 10 | 118390021/0 | Cable Clip Caproeurope (28-1496) |
| 11 | 322109533/0 | Battery holder |
| 12 | 118120052/0 | BATTERY c/w CABLE 12V 5AH |
| 13 | 112728706/0 | SELF-TAP SCREW PT TORX K40 |
| 14 | 325160039/0 | Spacer |
| LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.6 | ||
| 1 | 381007448/1 | DELTA WHEEL ASSEMBLY D=180mm |
| 2 | 119216035/0 | BEARING 6001 2RS (12 x 28 x 8) |
| 3 | 322110687/0 | DELTA HUB CAP D=200 [GREY] |
| 5 | 381007463/1 | WHEEL ASSEMBLY D=240mm [DELTA] |
| 6 | 119216035/0 | BEARING 6001 2RS (12 x 28 x 8) |
| 7 | 112728706/0 | SELF-TAP SCREW PT TORX K40 |
| 8 | 322120117/0 | PLASTIC DRIVE GEAR D=240 |
| 9 | 322110689/0 | DELTA HUB CAP D=240 [GREY] |
| 10 | 122170848/0 | Spacer |
| LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.7 | ||
| 1 | 122465607/3 | BLADE BOSS, Crankshaft Ø 22.2 To 31-December-2018 |
| 1 | 122465607/4 | BLADE BOSS, Crankshaft Ø 22.2 From 01-January-2019 |
| 2 | 181004366/2 | MULCHING BLADE 48cm |
| 3 | 122160400/0 | SPRING WASHER 50 x 2 x 10.2 |
| 4 | 112523080/0 | WASHER M10 11 x 30 x 2.5 Only for 554 Models To 31-August-2016 |
| 4 | 322680021/0 | Washer Only for 554 Models From 01-September-2016 To 31-August-2019 |
| 4 | 322680021/1 | Washer Only for 554 Models From 01-September-2019 |
| 5 | 112735698/0 | HEX-HEAD SCREW 3/8" x 2" |
| 6 | 112139100/0 | WOODRUFF KEY 4 x 6.5 D=16 |
| 7 | 112735108/1 | TELF-FORM SCREW 3/8" x 1�" UNC |
| LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.8 | ||
| 1 | 181006411/0 | RASSCATCHER FRAME To 31-August-2019 |
| 1 | 181006411/1 | RASSCATCHER FRAME From 01-September-2019 |
| 2 | 322557177/0 | Fixing plate |
| 3 | 112728697/0 | SELF-TAP SCREW PT TORX K50 x 16 |
| 4 | 122517884/0 | DEFLECTOR ROD |
| 5 | 181102349/0 | GRASSBAG MP1 50-55 [BLACK] without Logo |
| 6 | 381486039/0 | GRASSCATCHER TOP-FULL INDICATOR [BLACK] |
| 7 | 122450479/0 | Spring |
| 8 | 322600308/0 | DEFLECTOR [BLACK] |
| 9 | 322109569/0 | DEFLECTOR SUPPORT [BLACK] |
| LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.9 | ||
| 1 | 112292102/0 | HEXAGON NUT M6 |
| 2 | 118550276/1 | Recoil Starter 140/160cc [WBE] assembly |
| 3 | 118550274/0 | Recoil Starter handle |
| 4 | 118550779/0 | Recoil Starter rope |
| 5 | 118550778/0 | RECOIL ASSEMBLY RECOIL PULLEY & SPRING |
| 6 | 118550275/0 | STARTER PAWL KIT |
| 7 | 118550336/0 | Nut |
| 8 | 118550335/0 | Starter cup |
| 9 | 118550254/0 | Flywheel Fan To 31-August-2016 |
| 10 | 118550392/1 | Flywheel To 31-August-2016 |
| 10 | 118551363/0 | Flywheel From 01-September-2016 |
| 11 | 118550401/1 | Starter Motor Assembly To 31-August-2016 |
| 11 | 118551365/0 | Starter Motor Assembly From 01-September-2016 |
| 12 | 112674550/0 | SCREW TE M6 x 30 |
| 13 | 118550907/0 | STUD BOLT |
| 14 | 118550301/0 | STUD BOLT |
| 15 | 118550255/1 | Electronic Ignition coil |
| 16 | 112791500/0 | Screw M6x25 |
| 17 | 118551274/0 | SPARK PLUG CAP |
| 18 | 118551288/0 | Tension Spring To 31-August-2016 |
| 18 | 118551367/0 | Tension Spring From 01-September-2016 |
| 19 | 118550400/0 | MICRO SWITCH [KEY START] |
| 20 | 118551206/0 | FLYWHEEL BRAKE/STOP ASSEMBLY To 31-August-2016 |
| 20 | 118551366/0 | FLYWHEEL BRAKE/STOP ASSEMBLY From 01-September-2016 |
| 21 | 118550259/0 | THROTTLE CONTROL ASSEMBLY |
| 22 | 118550337/0 | CASING CLAMP |
| 23 | 118550338/0 | Screw |
| 24 | 112791213/1 | Screw |
| 25 | 118550260/0 | Spring |
| 26 | 118550266/0 | GOVERNOR ARM |
| 27 | 118550397/0 | GOVERNOR LINK |
| 28 | 118550263/0 | Spring |
| 29 | 118550264/0 | CHOKE CONTROL ROD |
| 30 | 118550390/0 | Carburetor |
| 31 | 118550738/0 | Carburetor gasket |
| 32 | 118550737/0 | Air filter assembly |
| 33 | 118550257/0 | Paper Air filter |
| 34 | 118550739/0 | Air filter cover |
| 35 | 118550377/0 | BREATHER FUEL PIPE |
| 36 | 118550930/0 | Stud Bolt |
| 37 | 112292102/0 | HEXAGON NUT M6 |
| 38 | 118550929/0 | Gasket |
| 39 | 118550928/0 | CARBURETOR INSULATOR |
| 40 | 118550315/0 | Stud Bolt |
| 41 | 118550316/1 | Fuel Tank |
| 42 | 118550943/0 | Fuel Tank cap |
| 43 | 118550806/0 | Nut |
| 44 | 118550314/0 | Fuel filter |
| 45 | 118550340/0 | Fuel pipe |
| 46 | 118551264/0 | Carburetor gasket |
| 47 | 118551266/0 | Carburetor gasket |
| 48 | 118550388/0 | Carburettor Float Kit |
| 49 | 118550389/0 | Carburettor Repair kit |
| 50 | 118550805/0 | Screw |
| 51 | 118550806/0 | Nut |
| 52 | 118550918/0 | Pipe Clip |
| 53 | 112791500/0 | Screw M6x25 |
| 54 | 118550395/0 | Starter Motor Cables To 31-August-2016 |
| 54 | 118551368/0 | Starter Motor Cables From 01-September-2016 |
| 55 | 118550420/0 | CHARGE COIL ASSEMBLY To 31-August-2016 |
| 55 | 118551364/0 | CHARGE COIL ASSEMBLYFrom 01-September-2016 |
| 56 | 112791500/0 | Screw M6x25 |
| 57 | 118550393/0 | Switch Wires |
| 58 | 118550402/0 | DRIVE STARTER KIT |
| 60 | 118550411/0 | ENGINE ASSEMBLY 160cc WBE0701-ES |
| LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.10 | ||
| 1 | 112674550/0 | SCREW TE M6 x 30 |
| 2 | 118551208/0 | Crankcase Cover |
| 3 | 118550379/0 | Oil Seal |
| 4 | 118550775/0 | Rubber grommet |
| 5 | 118550312/1 | SPEED GOVERNOR |
| 6 | 118550380/1 | Crankcase Gasket |
| 8 | 118550283/0 | Washer |
| 9 | 118550271/0 | Camshaft |
| 10 | 118550385/0 | CRANKSHAFT |
| 11 | 118550288/0 | Woodruff key |
| 12 | 118550284/0 | Connecting Rod Assembly |
| 13 | 118551213/0 | Piston |
| 14 | 118550286/0 | Piston Ring Set |
| 15 | 118550280/0 | Ball bearing |
| 16 | 118550936/0 | GOVERNOR ARM SHAFT |
| 17 | 118550291/0 | Valve lifter assembly |
| 18 | 118551251/0 | Push Rod |
| 19 | 118551212/0 | Cylinder head |
| 20 | 118550296/2 | Cylinder head cover |
| 21 | 118551277/0 | Screw M6x14 |
| 22 | 9400-0244-00 | SPARK PLUG [CHAMPION RC12YC] |
| 23 | 118550297/0 | Screw |
| 24 | 118550298/0 | Stud Bolt |
| 25 | 118550270/0 | Muffler Gasket |
| 26 | 118550269/0 | Muffler |
| 27 | 118550268/1 | Muffler Guard |
| 28 | 118550806/0 | Nut |
| 29 | 118550300/0 | Oiul Seal |
| 30 | 112674550/0 | Screw TE M6 x 30 |
| 31 | 118550311/1 | Oil Level Plug Assembly |
| 32 | 118551210/0 | BREATHER CAP |
| 33 | 118551211/0 | BREATHER Chamber Gasket |
| 34 | 118550303/0 | plate |
| 35 | 118550273/0 | Valves Arm Set |
| 36 | 118550910/0 | Intake + Exhaust Valve Kit Assembly |
| 37 | 118551300/0 | Valve Spring |
| 38 | 118550895/0 | RETAINER VALVE SPRING |
| 39 | 118551253/0 | plate |
| 43 | 112790500/0 | HEX-HEAD SCREW M6 x 10 |
| 44 | 118550935/0 | Oil Seal |
| 45 | 118550856/0 | Lock Pin |
| 46 | 118551237/0 | Cylinder Head Gasket |
| 47 | 118551233/0 | Cylinder Gasket |
| 48 | 118551269/0 | Plate, Governor Holder |
| 49 | 118550915/0 | Piston pin |
| 50 | 118550914/0 | Piston pin clip |
| LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.11 | ||
| 1 | 322055463/1 | ENGINE BASE COVER [BLACK] |
| 3 | 322055452/0 | TOP ENGINE COVER [BLACK-OBLONG] |
| 4 | 322055450/0 | TOP ENGINE COVER [BLACK-OBLONG] |
| 5 | 322055439/0 | TOP ENGINE COVER [BLACK-OBLONG] |
| 6 | 381002068/0 | ENGINE COVER [BLACK/RED] |
| 7 | 381002067/0 | ENGINE COVER [BLACK/YELLOW] |
| 8 | 112728680/0 | FLANGED SCREW D=5 x 25 |
| 10 | 322055516/0 | TOP ENGINE COVER [GREY] |
| 11 | 112728099/1 | SELF-TAPPING SCREW 4.2 x 16 |
| 12 | 322055517/0 | ENGINE BASE COVER [YELLOW] |
| 12 | 322055552/0 | ENGINE BASE COVER BLACK |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Castelgarden websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Castelgarden brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
S481 PD ES (2016) 294502543/M16
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N ALPINA:
- STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
New
You might also like
Comments (0)
No customer reviews for the moment.
Viewed products
Customers who bought this product also bought:
16 other products in the same category:
Mountfield Spare Parts for Lawnmower S481 PD ES (2016)
We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Self-Propelled Lawnmower S481 PD ES (2016) 294502543/M16.
