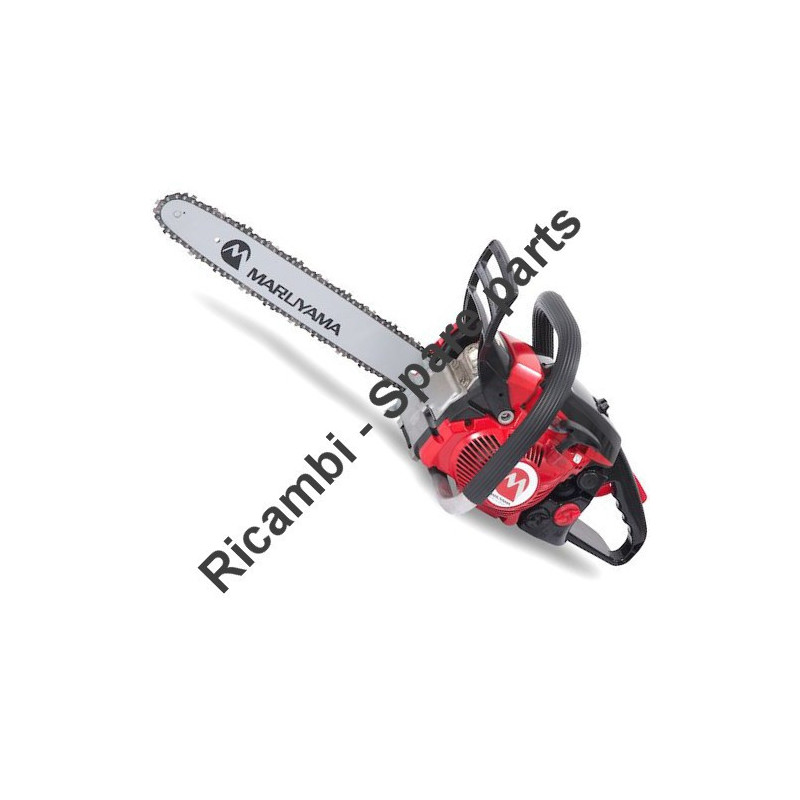

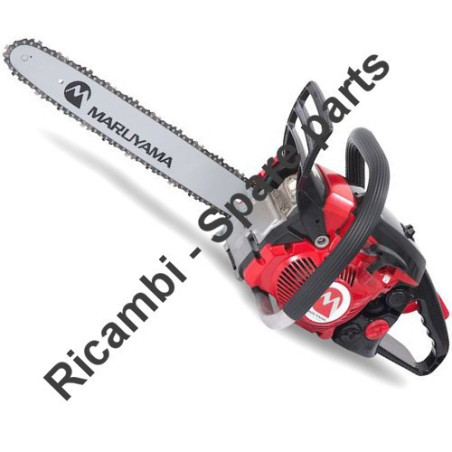

Maruyama Parts for Chainsaw MCV3501S(16)-01

€1.42
Tax included

Maruyama Parts for Chainsaw MCV3501S(16)-01

Maruyama Genuine spare parts or replacement parts for to repair Chainsaw MCV3501S(16)-01.
ITEM CODE: 231871
Quantity
Usually Ships in: 10/15 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Maruyama Parts for Chainsaw MCV3501S(16)-01

Maruyama Genuine spare parts or replacement parts for to repair Chainsaw MCV3501S(16)-01.

In the following tables, look for the spare part and its respective code.
Maruyama MCV3501S

Chainsaw MCV3501S(16)-01
# Part Num. Description
1-4 261250 Cap Screw
1-13 274027 Ignition Coil Ass'y
1-18 261075 Connector
1-19 261072 Cap
1-20 285553 Starter Pawl
1-21 020299 E-Ring
1-22 285552 Spring
1-23 261076 Woodruff Key
1-24 261417 Nut,Rotor
2-5 261385 Oil Seal
2-6 016732 Snap Ring
2-7 285560 Pin
2-10 231871 Bolt
2-12 286803 Chain Catcher Ass'y
2-13 285583 Chain Catcher
2-16 272814 Brake Ass'y
2-19 285560 Pin
2-24 285970 Stud Bolt
2-37 285582 Buffer
3-1 285915 Clutch Ass'y
3-4 285896 Clutch Drum
3-6 285890 Washer
3-7 285736 Nut
3-8 272830 Oil Pump Ass'y
3-9 285899 Pump Body
3-10 285909 Wheel Gear
3-11 286801 Washer
3-12 014759 O-Ring
3-13 285551 Spring
3-16 285630 Screw
3-22 285891 Gear Comp
3-26 261117 Clip
3-33 283041 Nut
4-7 261117 Clip
4-9 282299 Primer Pump
4-16 285644 Screw
4-18 261246 Cap Screw
4-19 286782 Ring
5-1 274865 Carburetor Ass'y
5-3 287168 Pump Cover
5-5 287170 Diaphragm
5-6 287171 Gasket
5-8 263727 Gasket
5-10 283905 Diaphragm, Meterring
5-11 263726 Cover Plate
5-16 287178 Spring
5-17 287179 Idle Adjust Screw
5-35 285924 Cleaner A
5-36 285923 Cleaner B
6-5 285636 Screw
6-23 285644 Screw
7-3 272857 Reel
7-4 283275 Spring Ass'y
7-5 272858 Damper Spring
7-6 285597 Cam Plate
7-7 267213 Screw
8-1 273563 Handle
8-2 285582 Buffer
8-3 285474 Stopper Bolt
8-4 285473 Cap
8-5 285501 Oil Cap Ass'y
8-9 285574 Breather
8-10 285526 Element
8-14 261339 Grommet
8-18 261117 Clip
8-19 286051 Fuel Cap Ass'y
8-22 285636 Screw
8-23 285832 Breather Ass'y
8-24 285573 Breather Grommet
