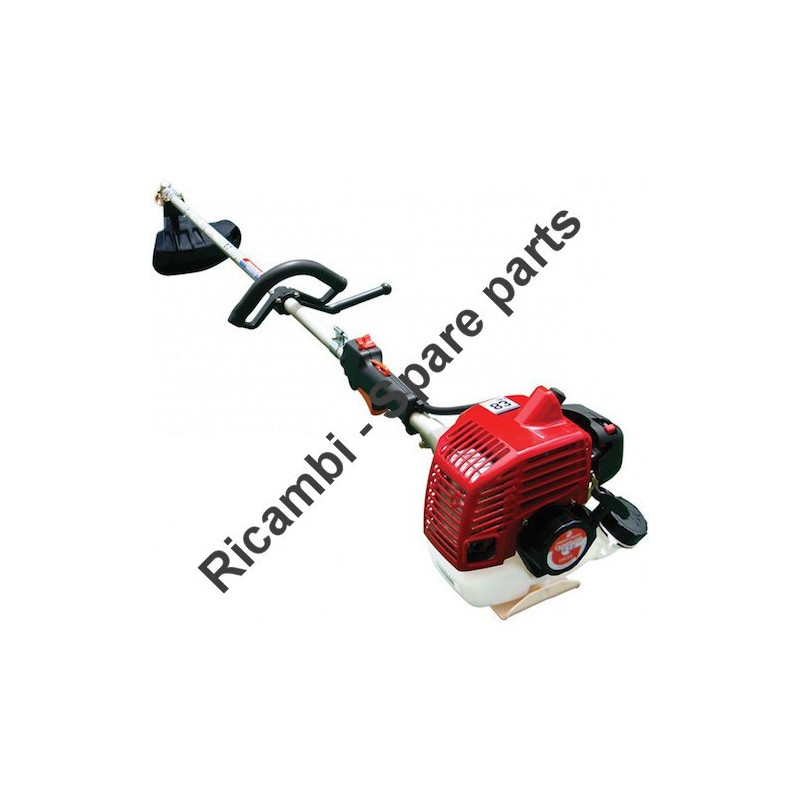

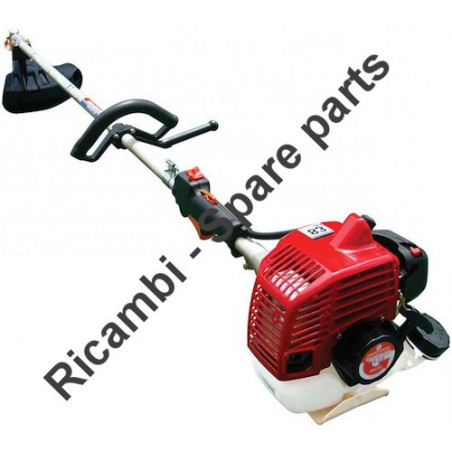

Maruyama Parts for Brushcutter BC2300RS
€1.80
Tax included
Maruyama Parts for Brushcutter BC2300RS
Fix Your Brushcutter Maruyama BC2300RS. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Maruyama Parts for Brushcutter BC2300RS
Fix Your Brushcutter Maruyama BC2300RS. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following tables, look for the spare part and its respective code.
| Maruyama Brushcutter BC2300RS Spare Parts Pag.1 |
||
| # | Part Num. | Description |
| 1-2 | 221473 | Clutch Case Ass'y |
| 1-3 | 221474 | Clutch Case |
| 1-7 | 224123 | Driveshaft Tube |
| 1-8 | 226399 | Driveshaft Ass'y |
| 1-9 | 229091 | Clutch Drum |
| 1-10 | 223153 | Throttle Trigger |
| 1-11 | 054691 | Hanging Bracket Ass'y |
| 1-14 | 223188 | Label |
| 1-15 | 228043 | Label |
| 1-16 | 222454 | Loop Handle Ass'y |
| 1-19 | 222142 | Screw |
| 1-20 | 081027 | Nut |
| 1-21 | 220533 | Hanging Strap Ass'y |
| 1-22 | 228392 | Safety Cover Ass'y |
| 1-26 | 228301 | String Cutter Ass'y |
| 1-27 | 227823 | String Cutter |
| 1-28 | 817002 | Bolt |
| 1-29 | 228325 | Nut |
| 1-31 | 817002 | Bolt |
| Pag.2 | ||
| 2-1 | 225835 | Gearcase Ass'y |
| 2-2 | 226284 | Gearcase |
| 2-7 | 054676 | Snap Ring |
| 2-8 | 225898 | Collar |
| 2-10 | 228477 | Snap Ring |
| 2-11 | 140270 | Snap Ring |
| 2-13 | 225891 | Blade Boss A |
| 2-14 | 225892 | Blade Boss B |
| 2-15 | 225893 | Nut |
| Pag.3 | ||
| 3-2 | 266249 | Cylinder |
| 3-3 | 283420 | Gasket |
| 3-4 | 267290 | Cap Screw |
| 3-5 | 263772 | Insulator |
| 3-6 | 267049 | Gasket |
| 3-8 | 281524 | Muf?er |
| 3-10 | 280409 | Gasket |
| 3-11 | 280846 | Top Cover |
| 3-12 | 283983 | Hook |
| 3-16 | 280488 | Bearing |
| 3-17 | 261492 | Oil Seal |
| 3-18 | 261386 | Oil Seal |
| 3-19 | 055185 | Snap Ring |
| 3-21 | 263569 | Piston |
| 3-22 | 263789 | Piston Ring |
| 3-23 | 261036 | Piston Pin |
| 3-24 | 263957 | Bearing, Needle |
| 3-25 | 261576 | Clip, Piston Pin |
| 3-26 | 267193 | Crankshaft/Conn.Rod Ass'y |
| 3-27 | 269168 | Clutch Ass'y |
| 3-30 | 269647 | Clutch Bolt |
| 3-32 | 261777 | Wave Washer |
| 3-33 | 283386 | Fan Cover |
| 3-36 | 261356 | Rotor/Fan |
| 3-43 | 261076 | Woodruff Key |
| 3-44 | 261417 | Nut, Rotor |
| 3-48 | 267492 | Wire, Lead |
| 3-50 | 267561 | Label |
| 3-52 | 282404 | Recoil Starter Ass'y |
| 3-53 | 282405 | Recoil Ass'y |
| 3-56 | 280930 | Spring |
| 3-57 | 280931 | Spiral Spring |
| 3-58 | 267213 | Set Screw |
| 3-62 | 280934 | Starter Pawl Ass'y |
| 3-66 | 265694 | Label |
| Pag.4 | ||
| 4-1 | 283893 | Carburetor Ass'y |
| 4-4 | 262991 | Purge Body |
| 4-5 | 262992 | Cover Plate |
| 4-6 | 261874 | Primer Bulb |
| 4-7 | 283905 | Diaphragm, Metering |
| 4-8 | 262993 | Gasket |
| 4-9 | 262994 | Diaphragm, Fuel Pump |
| 4-10 | 282576 | Gasket |
| 4-13 | 261876 | E-Ring |
| 4-14 | 261658 | Swivel |
| 4-16 | 261117 | Clip |
| 4-17 | 261864 | Gasket |
| 4-18 | 264691 | O-Ring |
| 4-19 | 266420 | Cleaner Ass'y |
| 4-20 | 264709 | Cover |
| 4-21 | 266433 | Case Ass'y |
| 4-22 | 264695 | Filter |
| 4-24 | 280020 | Swivel Ring |
| 4-26 | 282401 | Fuel Tank |
| 4-27 | 281564 | Fuel Tank Cap Ass'y |
| 4-28 | 269377 | Gasket |
| 4-29 | 261696 | Breather Ass'y |
| 4-31 | 283300 | Fuel Pipe Ass'y |
| 4-32 | 261115 | Grommet |
| 4-35 | 264653 | Filter Ass'y |
| 4-36 | 261117 | Clip |
| Pag.5 | ||
| 5-6 | 226182 | Semi-Auto Head(L) |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Maruyama websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Maruyama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
