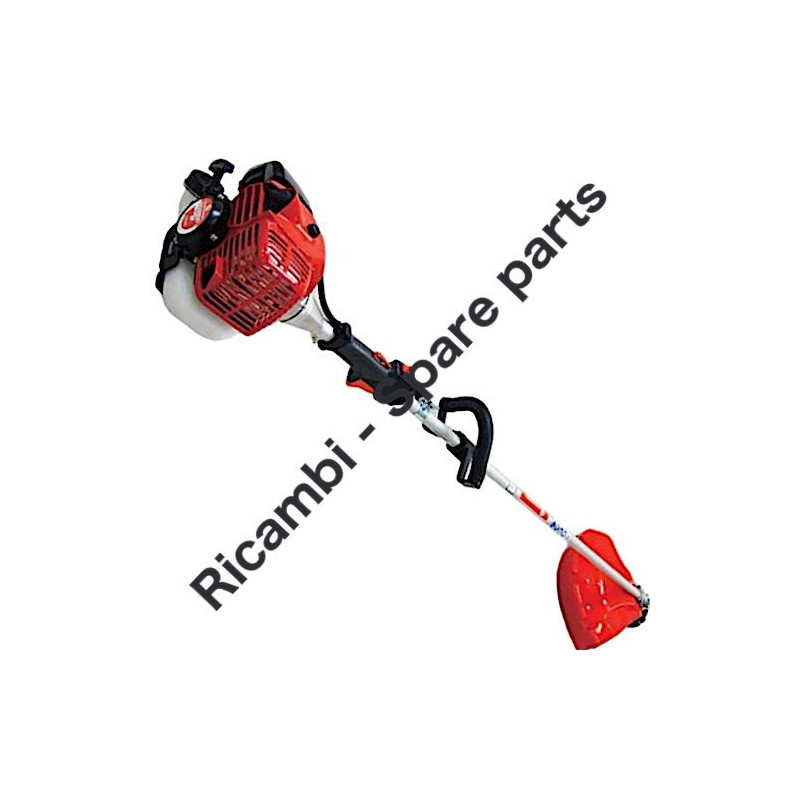

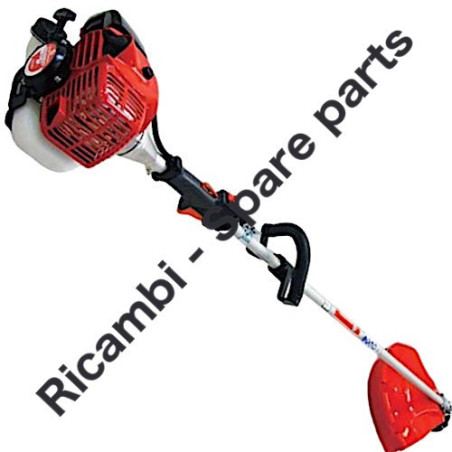

Maruyama Brushcutter BC2630RS Parts

€2.57
Tax included

Maruyama Parts for Brushcutter BC2630RS

Maruyama Genuine spare parts or replacement parts for to repair Brushcutter BC2630RS.
ITEM CODE: 261250
Quantity
Usually Ships in: 10/15 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Maruyama Parts for Brushcutter BC2630RS

Maruyama Genuine spare parts or replacement parts for to repair Brushcutter BC2630RS.

In the following tables, look for the spare part and its respective code.
Maruyama BC2630RS

Maruyama Brushcutter BC2630RS Parts
Main Body Pag.1
# Part Num. Description
1-2 261250 Cap Screw
1-3 215512 Clutch Case Ass'y Incl. 4-10
1-4 214592 Bearing Case
1-5 214161 Bearing
1-6 054676 Snap Ring
1-7 214162 Buffer
1-8 214163 Washer
1-9 092033 Screw
1-10 214593 Driveshaft Tube Adapter
1-11 261246 Cap Screw
1-12 229091 Clutch Drum
1-13 219268 Driveshaft Ass'y
1-14 224122 Driveshaft Tube
1-15 235079 Throttle Trigger
1-16 215533 Hanging Bracket Ass'y Incl.17
1-17 261762 Cap Screw
1-18 233285 Label
1-19 223188 Label
1-20 228043 Label
1-21 220533 Hanging Strap Ass'y Incl.22
1-22 231657 Hook
1-23 224324 Loop Handle Ass'y Incl.24-27
1-24 222520 Loop Handle
1-25 213171 Packing
1-26 215608 Cap Screw
1-27 081027 Nut
1-28 232086 Safety Cover Ass'y Incl.29-35
1-29 231252 Safety Cover Ass'y Incl.30,31
1-30 227819 Bracket
1-31 221580 Screw
1-32 232087 Bracket Ass'y Incl.33-35
1-33 227822 Bracket
1-34 220632 Cap Screw
1-35 231704 Washer
1-36 231882 String Cutter Ass'y Incl.37-39
1-37 230747 String Cutter
1-38 261250 Cap Screw
1-39 228325 Nut
1-40 230748 Cover Extention
GearCase Pag.2
2-1 231880 Gearcase Ass'y Incl.2-17
2-2 225960 Gearcase
2-3 234109 Bolt
2-4 227990 Bearing
2-5 228416 Gear Set
2-6 219087 Cap Screw
2-7 227991 Bearing
2-8 055185 Snap Ring
2-9 227992 Bearing
2-10 227993 Bearing
2-11 228477 Snap Ring
2-12 140270 Snap Ring
2-13 261246 Cap Screw
2-14 212986 Boss Adapter
2-15 140275 Clamping Washer
2-16 215547 Stabilizer
2-17 215610 Bolt
Gear Case GT-Turbo Pag.3
2-1 232926 Gearcase Ass'y     Incl.2-17
2-2 232719 Gearcase
2-3 234109 Bolt
2-4 261246 Cap Screw
2-5 210560 Bearing
2-6 233332 Gear Set
2-7 232724 Cap Screw
2-8 012381 Bearing
2-9 210560 Snap Ring
2-10 140268 Bearing
2-11 228477 Snap Ring
2-12 140270 Snap Ring
2-13 232927 Boss Adapter
2-14 232928 Clamping Washer
2-15 210308 Stabilizer
2-16 215610 Bolt
2-17 219087 Cap Screw
Engine Pag.4
2-1 859841 Engine
2-2 273153 Cylinder
2-3 282330 Gasket
2-4 261250 Cap Screw
2-5 282579 Insulator
2-6 267049 Gasket
2-7 269826 Screw
2-8 276315 Muffler Ass'y
2-9 266402 Cap Screw
2-10 273147 Gasket
2-11 273618 Under Cover
2-12 269827 Screw
2-13 276319 Top Cover
2-14 280144 Tapping Screw
2-15 273673 Crankcase
2-16 280488 Bearing
2-17 261492 Oil Seal
2-18 261386 Oil Seal
2-19 055185 Snap Ring
2-20 261612 Cap Screw
2-21 273155 Piston
2-22 261496 Piston Ring
2-23 261497 Piston Pin
2-24 261037 Bearing,Needle
2-25 261576 Clip,Piston
2-26 282323 Crankshaft/Conn.Rod Ass'y
2-27 269168 Clutch Ass'y Incl.28,29
2-28 269169 Clutch Shoe
2-29 269173 Spring, Clutch
2-30 269647 Clutch Bolt
2-31 269175 Washer
2-32 261777 Wave Washer
2-33 283386 Fan Cover
2-34 269831 Screw
2-35 282692 Magneto Ass'y Incl.36-42
2-36 261356 Rotor/Fan
2-37 282693 Ignition Coil Ass'y Incl.38-42
2-38 267401 Coil
2-39 282694 Spark Plug Wire Ass'y Incl.40-42
2-40 261074 Plug Boot
2-41 261075 Connector
2-42 282695 Spark Plug Wire
2-43 261076 Woodruff Key
2-44 261417 Nut,Rotor
2-45 280381 Spacer
2-46 261256 Cap Screw
2-47 288264 Spark Plug
2-48 267492 Lead
2-49 282880 Wire, Lead
2-50 282404 Recoil Starter Ass'y Incl.51-60
2-51 282405 Recoil Ass'y Incl.52-59
2-52 283411 Reel
2-53 283412 Cam Plate
2-54 280930 Spring
2-55 280931 Spiral Spring
2-56 267213 Screw
2-57 280932 Starter Rope Ass'y Incl.58,59
2-58 280933 Starter Rope
2-59 267219 Starter Grip
2-60 280934 Starter Pawl Ass'y
2-61 280489 Screw
2-62 269833 Screw
2-63 276330 Label
2-64 284587 Label
2-65 286122 Label
Carburetor - Fuel Tank Pag.5
3-1 276328 Carburetor Ass'y Incl.2-15
3-2 281597 Pump Body
3-3 262991 Purge Body
3-4 262992 Cover Plate
3-5 261874 Primer Bulb
3-6 283905 Diaphragm, Meterring
3-7 262993 Gasket
3-8 262994 Diaphragm,Fuel Pump
3-9 282576 Gasket
3-10 285030 Main Jet
3-11 261871 O-Ring
3-12 261876 E-Ring
3-13 261658 Swivel
3-14 264682 Screw
3-15 262996 Screw
3-16 261864 Gasket
3-17 289048 Case Ass'y Incl.18-24
3-18 269050 Case Body
3-19 289019 Valve
3-20 284803 Lever
3-21 284816 Washer
3-22 269032 Screw
3-23 126993 Nut
3-24 269051 Sleeve
3-25 269030 Element
3-26 281777 Screw
3-27 269580 Cleaner Cover
3-28 269031 Screw
3-29 276310 Fuel Tank Ass'y Incl.30-40
3-30 273467 Fuel Tank
3-31 275306 Fuel Tank Cap Ass'y Incl.41
3-32 274875 Gasket
3-33 261696 Breather Ass'y
3-34 265752 Fuel Pipe Pick-up Ass'y Incl.35-40
3-35 264031 Fuel Pipe Ass'y Incl.36-38
3-36 261115 Grommet
3-37 261690 Fuel Pipe
3-38 263038 Return Pipe
3-39 264653 Filter Ass'y
3-40 261117 Clip
3-41 261117 Clip
3-42 269828 Screw
3-43 281208 Screw
Accessories Pag.6
5-1 210418 Box Spanner
5-2 022865 Double-ended Wrench
5-3 210181 Lever Handle
5-4 219432 Wrench
5-5 219433 Wrench
5-6 232226 Semi-Auto Head (L)
5-7 234954 Colgate Tube
5-8 234955 Band
5-9 233234 Instruction Manual
5-10 233326 Instruction Manual
5-11 233336 Instruction Manual
5-12 523268 Parts List
