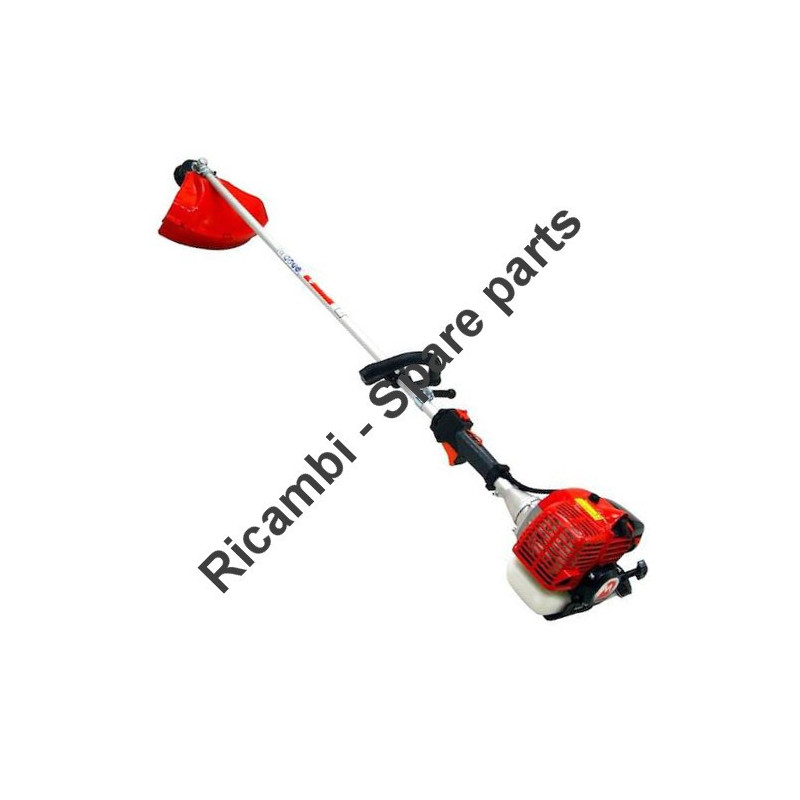

Maruyama Parts for Brushcutter BC3021RS-01
€1.80
Tax included
Maruyama Parts for Brushcutter BC3021RS-01
Fix Your Brushcutter Maruyama BC3021RS-01. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Maruyama Parts for Brushcutter BC3021RS-01
Fix Your Brushcutter Maruyama BC3021RS-01. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following tables, look for the spare part and its respective code.
| Brushcutter Maruyama BC3021RS-01 Spare Parts Pag.1 |
||
| # | Part Num. | Description |
| 1-2 | 261250 | Cap Screw |
| 1-3 | 215512 | Clutch Case Ass'y |
| 1-4 | 214592 | Bearing Case |
| 1-5 | 214161 | Bearing |
| 1-6 | 054676 | Snap Ring |
| 1-7 | 214162 | Buffer |
| 1-8 | 214163 | Washer |
| 1-10 | 214593 | Driveshaft Tube Adapter |
| 1-11 | 261246 | Cap Screw |
| 1-12 | 054677 | Clutch Drum |
| 1-13 | 219268 | Driveshaft Ass'y |
| 1-14 | 224122 | Driveshaft Tube |
| 1-19 | 223188 | Label |
| 1-21 | 228086 | Hanging Strap Ass'y |
| 1-22 | 230748 | Cover Extention |
| 1-23 | 231955 | Loop Handle Ass'y |
| 1-25 | 081027 | Nut |
| 1-27 | 232086 | Safety Cover Ass'y |
| 1-28 | 231252 | Safety Cover Ass'y |
| 1-32 | 227822 | Bracket |
| 1-35 | 231882 | String Cutter Ass'y |
| 1-36 | 230747 | String Cutter |
| 1-37 | 261250 | Cap Screw |
| 1-38 | 228325 | Nut |
| Pag.2 | ||
| 2-1 | 231880 | Gearcase Ass'y |
| 2-4 | 227990 | Bearing |
| 2-5 | 228416 | Gear Set |
| 2-7 | 227991 | Bearing |
| 2-8 | 055185 | Snap Ring |
| 2-9 | 227992 | Bearing |
| 2-10 | 227993 | Bearing |
| 2-11 | 228477 | Snap Ring |
| 2-12 | 140270 | Snap Ring |
| 2-13 | 261246 | Cap Screw |
| 2-14 | 212986 | Boss Adapter |
| 2-15 | 140275 | Clamping Washer |
| 2-16 | 215547 | Stabilizer |
| 2-17 | 215610 | Bolt |
| Pag.3 | ||
| 3-2 | 286791 | Cylinder |
| 3-3 | 286846 | Gasket |
| 3-4 | 261250 | Cap Screw |
| 3-6 | 267049 | Gasket |
| 3-8 | 283007 | Muffler Ass'y |
| 3-18 | 281434 | Top Cover |
| 3-19 | 286300 | Knob |
| 3-20 | 261020 | Spacer |
| 3-21 | 261734 | Snap Ring |
| 3-23 | 280488 | Bearing |
| 3-24 | 261492 | Oil Seal |
| 3-25 | 261386 | Oil Seal |
| 3-26 | 055185 | Snap Ring |
| 3-29 | 268782 | Piston |
| 3-30 | 265067 | Piston Ring |
| 3-31 | 265068 | Piston Pin |
| 3-32 | 265225 | Bearing,Needle |
| 3-33 | 261393 | Clip,Piston Pin |
| 3-35 | 267327 | Clutch Ass'y |
| 3-37 | 267345 | Spring,Clutch |
| 3-38 | 264505 | Bolt |
| 3-39 | 261777 | Wave Washer |
| 3-40 | 261189 | Washer |
| 3-41 | 281433 | Fan Cover |
| 3-42 | 261250 | Cap Screw |
| 3-44 | 287902 | Rotor/Fan |
| 3-49 | 261076 | Woodruff Key |
| 3-50 | 261417 | Nut,Rotor |
| 3-58 | 283477 | Recoil Ass'y |
| 3-59 | 283504 | Reel |
| 3-60 | 283505 | Cam Plate |
| 3-61 | 283506 | Spring |
| 3-62 | 280931 | Spiral Spring |
| 3-63 | 267213 | Screw |
| 3-66 | 261725 | Starter Grip |
| 3-67 | 283511 | Rope Stopper |
| 3-68 | 283575 | Starter Pawl Ass'y |
| 3-69 | 284698 | Adapter Ass'y |
| 3-75 | 265694 | Label |
| 3-76 | 267561 | Label |
| Pag.4 | ||
| 4-1 | 284111 | Carburetor Ass'y |
| 4-3 | 262991 | Purge Body |
| 4-4 | 262992 | Cover Plate |
| 4-5 | 261874 | Primer Bulb |
| 4-6 | 283905 | Diaphragm, Meterring |
| 4-7 | 262993 | Gasket |
| 4-8 | 262994 | Diaphragm,Fuel Pump |
| 4-9 | 282576 | Gasket |
| 4-10 | 261876 | E-Ring |
| 4-11 | 261658 | Swivel |
| 4-12 | 261875 | Screw |
| 4-14 | 261657 | Packing |
| 4-20 | 269762 | Gasket |
| 4-21 | 268055 | Air Filter Case Ass'y |
| 4-30 | 265026 | Screen |
| 4-31 | 265027 | Foam Element |
| 4-32 | 268058 | Air Filter Cover Ass'y |
| 4-33 | 268059 | Air Filter Cover |
| 4-34 | 281438 | Knob |
| 4-35 | 261734 | Snap Ring |
| 4-37 | 281439 | Fuel Tank |
| 4-38 | 281564 | Fuel Tank Cap Ass'y |
| 4-39 | 269377 | Gasket |
| 4-40 | 282538 | Fuel Pipe Pick-up Ass'y |
| 4-42 | 268065 | Grommet |
| 4-44 | 261590 | Breather |
| 4-45 | 261117 | Clip |
| 4-46 | 264653 | Filter Ass'y |
| 4-47 | 261117 | Clip |
| 4-48 | 261117 | Clip |
| Pag.5 | ||
| 5-6 | 232226 | Semi-Auto Head (L) |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Maruyama websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Maruyama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
