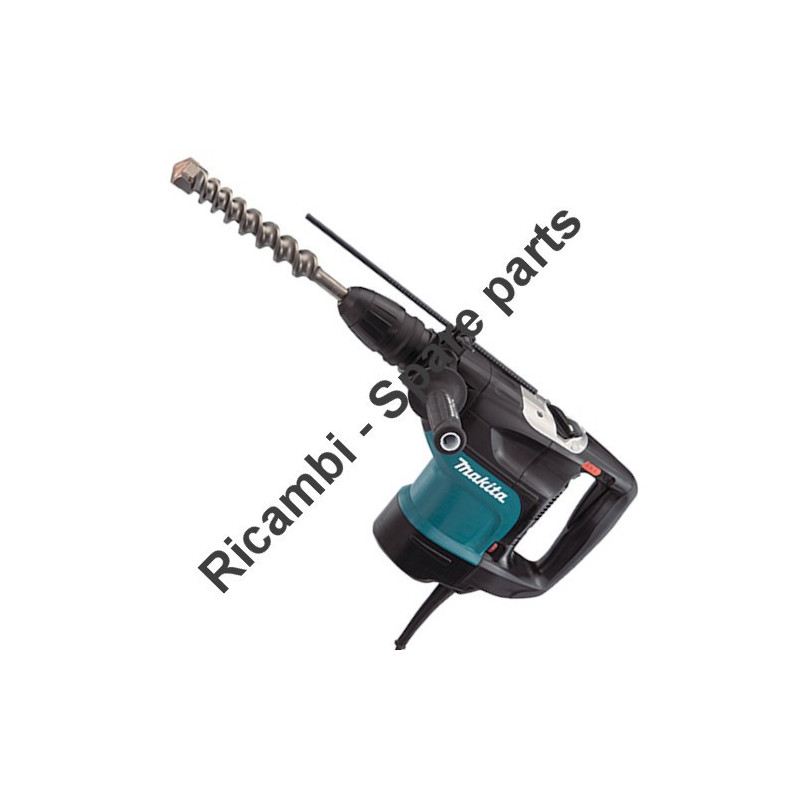

Makita Spare Parts for Rotary Hammer 45 mm HR4501C
€146.69
Tax included
Makita Spare Parts for Rotary Hammer 45 mm HR4501C
MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer 45 mm HR4501C.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Rotary Hammer 45 mm HR4501C
MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer 45 mm HR4501C.
In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
| Rotary Hammer 45 mm HR4501C | ||
| # | Part Num. | Description |
| 1 | 286285-4 | TOOL HOLDER CAP HR4001C / 4010C |
| 2 | 233948-3 | RING 25 X HR5201C |
| 3 | 257280-1 | RING 28 X HR5201C |
| 4 | 450064-8 | CHUCK VOVER HR4501C |
| 5 | 419002-9 | SPACER HR4001C / HR4010C |
| 6 | 233948-3 | RING SPRING 25 X HR5201C |
| 7 | 324752-2 | CHUCK RING HR5201C |
| 8 | 450030-5 | RELEASE COVER HR4501C |
| 9 | 310178-4 | TOOL RETAINER HR5201C |
| 10 | 345804-6 | SPRING GUIDE HR5201C |
| 11 | 233496-2 | COMRESSION SPRING 49 X HR5201C |
| 12 | 345804-6 | SPRING GUIDE HR5201C |
| 13 | 922148-7 | SCREW TCCEI M4X25 X HR5201C |
| 14 | 158301-1 | BARREL COVER HR4501C |
| 15 | 922353-6 | SCREW M6 X30 X HM1202C |
| 16 | 158576-2 | BARREL COMPLETE HR4501C |
| 17 | 213754-2 | O-RING 71 X HM1200 |
| 18 | 267357-4 | WASHER 36 X HR4501C |
| 19 | 262135-7 | URETHANE RING 36 X HR4501C |
| 20 | 267357-4 | WASHER 36 X HR4501C |
| 21 | 324872-2 | TOOL HOLDER HR4501C |
| 22 | 213980-3 | RING 21 X HR4501C |
| 23 | 213431-6 | O-RING 23 HR5001C |
| 24 | 213394-6 | O-RING RUBBER X HR5001C |
| 25 | 324802-3 | IMACT BOLT HR4501C |
| 26 | 324805-7 | RING 19 X HR4501C |
| 27 | 424032-7 | RUBBER RING 20 X HR4501C |
| 28 | 450024-0 | SLIDE SLEEVE HR4501C |
| 29 | 213656-2 | O-RING 53 X HM1200 |
| 30 | 450031-3 | LOCK SLEEVE HR4501C |
| 31 | 165465-4 | LINK ARM HR4501C |
| 32 | 450032-1 | LINK ARM GUIDE HR4501C |
| 34 | 324800-7 | DRIVING SLEEVE HR4501C |
| 35 | 331599-7 | RING 38 X HR4500C |
| 36 | 234024-6 | COMPRESSION SPRING 39 X HR4501C |
| 37 | 227526-9 | STRAIGHT BEVEL GEAR 35 HR4511C HR4501C |
| 38 | 324804-9 | STRIKER X HR4501C |
| 39 | 213981-1 | RING 27 X HR4501C |
| 40 | 324803-1 | CYLINDER 34 X HR4501C |
| 41 | 233956-4 | CIRCLIP 37 X HR4501C |
| 42 | 213460-9 | O RING 35 HM1303B/LS800DWB/HR1 HK / HR1800 / HM12 |
| 43 | 257283-5 | RING 38 X HR4501C |
| 44 | 233955-6 | CIRCLIP 36 X HR4501C |
| 45 | 331598-9 | PIPE 10 HR4500C |
| 46 | 450025-8 | PISTON X HR4501C |
| 47 | 213407-3 | O-RING 26 X 3901 |
| 48 | 450026-6 | CONNECTING ROD HR4501C |
| 49 | 213981-1 | RING 27 X HR4501C |
| 64 | 922353-6 | SCREW M6 X30 X HM1202C |
| 65 | 266192-7 | SCREW 4 X 14 X HR4001C /HR4010C |
| 66 | 419020-7 | CHANGE LEVER X HR4001C/HR4010C |
| 67 | 233436-0 | COMPRESSION SPRING 3 X HR4001C/HR4010C |
| 68 | 419009-5 | LOCK BUTTON HR4001C |
| 69 | 266192-7 | SCREW 4 X 14 X HR4001C /HR4010C |
| 70 | 318171-2 | CRANK CAP COVER HR4501C |
| 71 | 450687-2 | CRANK LEVER HR5201C |
| 72 | 213534-6 | RING 36 X HR5201C |
| 73 | 233506-5 | TORSION SPRING 16 X HR5201C |
| 74 | 310207-3 | LINK LEVER HR5201C |
| 75 | 911133-5 | SCREW M4X18 |
| 76 | 455525-3 | CRANK CAP |
| 77 | 345778-1 | RETAINER PLATE HR5201C |
| 78 | 265014-8 | SCREW M4 X 12 |
| 79 | 424034-3 | SEAL RING HR4501C |
| 80 | 345822-4 | LINK PLATE X HR4501C |
| 81 | 450029-0 | LINK PLATE GUIDE HR4501C |
| 82 | 158298-4 | CRANK HOUSING COMP. HR4501C |
| 83 | 419008-7 | FIX GUIDE HR4001C |
| 84 | 423345-3 | CUSHION PLATE HR4001C |
| 85 | 324801-5 | CRANK SHAFT HR4501C |
| 86 | 211279-0 | BALL BEARING 6303LLU X HR4501C |
| 87 | 961057-5 | EXT DIN 471 CIRCLIP-17 |
| 88 | 254220-0 | KEY 5 X HR4501C |
| 89 | 227181-7 | SPUR GEAR 19 X HR4501C |
| 90 | 226655-5 | HELICAL GEAR 36 X HR4501R |
| 91 | 961054-1 | EXT DIN 471 CIRCLIP-14 |
| 92 | 253180-3 | FLAT WASHER 10 X 6221DW |
| 93 | 125415-1 | TORQUE LIMITER ASSY HR4511C |
| 98 | 424033-5 | SEAL RING HR4501C |
| 99 | 158299-2 | GEAR HOUSING CPL X HR4501C |
| 100 | 419796-6 | HANDLE COVER HR5201C |
| 101 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 102 | 650567-4 | Switch,. TG73B-1 HR4001C HR4011C HR4001C HR4511C HR3210C HR3540C |
| 103 | 154626-1 | SWITCH HOLDER XOMPL. HR4001C |
| 104 | 419028-1 | SWITCH LEVER HR4001C/HR4010C |
| 107 | 266041-8 | PT SCREW 5x25 |
| 108 | 450039-7 | GRIP X HR4501C |
| 111 | 864088-2 | LABEL HR4501C |
| 117 | 450037-1 | CRANK HOUSING COVER HR4501C |
| 118 | 631751-0 | CONTROLLER HR4501C |
| 119 | 266192-7 | SCREW 4 X 14 X HR4001C /HR4010C |
| 120 | 638510-3 | LEAD UNIT HR5201C |
| 121 | 687169-3 | STRAIN RELIEF HP1620 |
| 122 | 266192-7 | SCREW 4 X 14 X HR4001C /HR4010C |
| 123 | 419024-9 | CORD CLAMP BASE HR4001C |
| 124 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 125 | 266192-7 | SCREW 4 X 14 X HR4001C /HR4010C |
| 126 | 419774-6 | LENS FOR HR5201C |
| 127 | 682560-0 | CORD GUARD 10 HM1202C / 9079S |
| 129 | 266041-8 | PT SCREW 5x25 |
| 130 | 450035-5 | REAR COVER HR4501C |
| 131 | 252178-7 | NUT M 8-12 X 4112HS |
| 132 | 253165-9 | FLAT WASHER 8 |
| 133 | 240016-5 | FAN 90 HR5001C |
| 134 | 419782-7 | FAN GUIDE HR5201C |
| 135 | 195844-2 | CARBON BRUSHE SET CB-175 |
| 136 | 638447-4/HR | CARBON BRUSHE HOLDER HR5201C |
| 137 | 450041-0 | MOTOR HOUSING HR4501C |
| 138 | 636313-9 | STATOR FIELD 240V HR4501C |
| 139 | 266046-8 | SCREW M5x50 HR2010 |
| 140 | 210059-1 | BALL BEARING 6000 HR2010 |
| 141 | 681642-5 | INSULATION WASHER X LS1013 |
| 142 | 517768-6 | ARAMTURE ASSY 240V HR4501C |
| 143 | 267025-9 | FLAT WASHER 15 6912D |
| 144 | 211238-4 | BALL BEARING 6202LLU |
| 145 | 331596-3 | SLEEVE 12 X HR4500C |
| 146 | 213231-4 | OIL SEAL 15 HR4500C |
| 147 | 450033-9 | BAFFLE PLATE HR4501C |
| 148 | 266192-7 | SCREW 4 X 14 X HR4001C /HR4010C |
| 149 | 419786-9 | SWITCH BOX HR5201C |
| 150 | 263027-3 | RUBBER PIN 4 X HM0860C |
| 151 | 651418-4 | SWITCH ST115A-40 X 9541 |
| 152 | 232209-8 | LEAF SPRING HM0860C |
| 153 | 154635-0 | SLIDE LEVER COMPL. HR4001C / HR4010C |
| 154 | 450042-8 | CONTROL PLATE HR4501C P04 |
| 155 | 331840-8 | SHOULDER SLEEVE 19 HR4511C HR4501C P10 |
| 999 | 195210-3 | SERVICE KIT HR4501C/4510/11C P22 |
