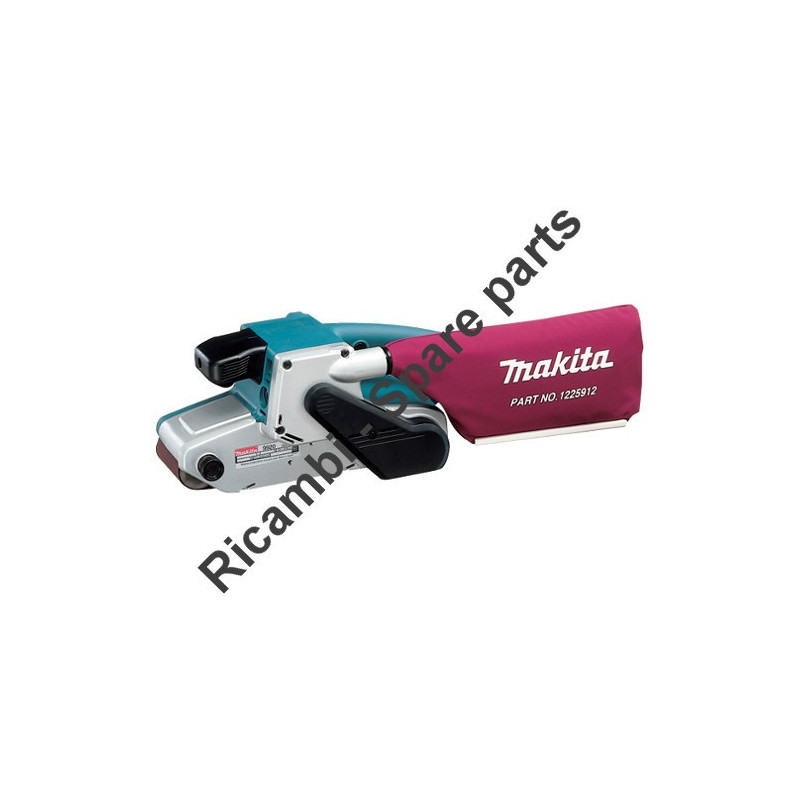

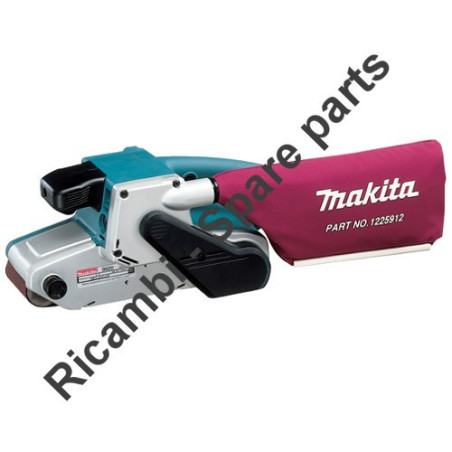

Makita Spare Parts for Belt Sander 9920X
€56.85
Tax included
Makita Spare Parts for Belt Sander 9920X
Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Belt Sander 9920X.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Belt Sander 9920X
Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Belt Sander 9920X.
In the following table, look for the model of the Belt Sander and the respective parts of the code.
| Belt Sander 9920X | ||
| # | Part Num. | Description |
| 1 | 650230-9 | SWITCH TGL115CDT EQ-2 |
| 2 | 151743-8 | MOTOR HOUSING COMPL. 9920 |
| 3 | 654532-5 | TERMINAL BLOCK 6E / 1DS |
| 4 | 417049-7 | FRONT HANDLE HT2256D |
| 5 | 266173-1 | PT SCREW 5X30 |
| 7 | 682503-2 | SLEEVE PROTECTING_COVER X HM1500 |
| 8 | 687063-9 | RETAINER X 4304T |
| 9 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 10 | 211088-7 | BEARING 6000-9527PB 9528PB |
| 11 | 681649-1 | INSULATING WASHER 9403 |
| 12 | 523404-4 | STATOR 220 X 9920 |
| 13 | 266056-5 | SCREW M 5 X 45 |
| 14 | 643750-0 | PLUG BRUSH HOLDER |
| 15 | 191963-2 | CARBON BRUSHESCB-303 |
| 16 | 513339-7 | ARMATURE 9920 |
| 17 | 417050-2 | VANE X 9920 |
| 18 | 240026-2 | FAN X 9920 |
| 19 | 210023-2 | BEARING 9910/11 |
| 20 | 417048-9 | MOTOR COVER X 9920 |
| 22 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 23 | 417051-0 | COVER HANDLE X 9920 |
| 24 | 417052-8 | COVER BELT X 9920 |
| 25 | 252153-3 | HEX NUT 9910/11 |
| 26 | 225084-9 | BELT TRANSMISSION X 9920 |
| 27 | 241663-5 | FAN X 9920 |
| 28 | 251815-0 | KNOB SCREW M6 |
| 29 | 253707-9 | WASHER P.16 99B / 6000R / 8410B |
| 30 | 231225-7 | SPRING 16 99 B / 9924DB |
| 31 | 266050-7 | PT SCREW 4X30 |
| 32 | 931402-8 | NUT M8 X LS1013 |
| 33 | 222156-1 | PULLEY X 9920 |
| 34 | 317273-1 | COVER GEAR 9920 |
| 35 | 211092-6 | BALL BEARING 629DD |
| 36 | 226520-8 | GEAR TWISTED X 9920 |
| 37 | 151755-1 | GEAR TWISTED X 9920 |
| 39 | 151747-0 | FRAME COMPLETE X 9920 |
| 40 | 211088-7 | BEARING 6000-9527PB 9528PB |
| 41 | 162217-4 | REAR ROLLER 9920 |
| 42 | 252154-1 | NUT ESAG. 9910/11 |
| 43 | 961052-5 | RETAINING RING S12 |
| 44 | 323931-9 | SHAFT ROLL ANT. X 9920 |
| 45 | 253922-5 | WASHER 12 9401/02 / 99B |
| 46 | 151753-5 | SHAFT ROLL ANT. CPL. X 9920 |
| 47 | 344823-9 | LEVER X 9920 |
| 48 | 267731-6 | WASHER X 9910/11 |
| 49 | 265059-6 | SCREW 9910/11 |
| 50 | 416417-1 | WHEEL X 9910/11 |
| 51 | 233249-9 | SPRING COMPRESSION 7 X 9920 |
| 52 | 151744-6 | ARM ROLLER X ANT. X 9920 |
| 53 | 267746-3 | SOCKET X 9920 |
| 54 | 233250-4 | SPRING OF COMPRESSION 12 X9920 |
| 55 | 266034-5 | SCREW 4X16 CT |
| 56 | 344822-1 | PROTECTION COVER X 9920 |
| 57 | 911116-5 | SCREW M4X12 X AM4024LG |
| 60 | 631380-9 | CONTROL X 9920 |
| 61 | 423316-0 | CARBON PLATE X 9920 |
| 64 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 65 | 266034-5 | SCREW 4X16 CT |
| 66 | 266034-5 | SCREW 4X16 CT |
| 67 | 266034-5 | SCREW 4X16 CT |
| 68 | 193071-5 | MOUNTING BASE 9920X |
| 69 | 423313-6 | RUBBER CORK BASE 9920X |
| 122591-2 | DUST BAG | |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
