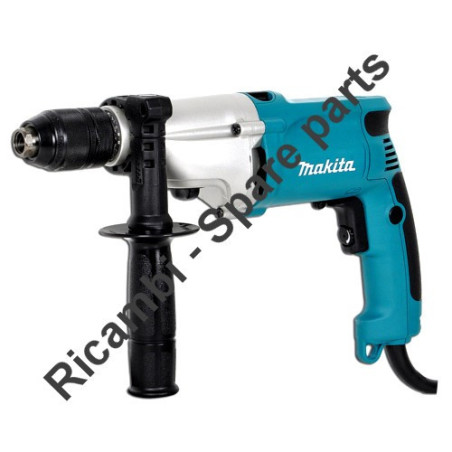

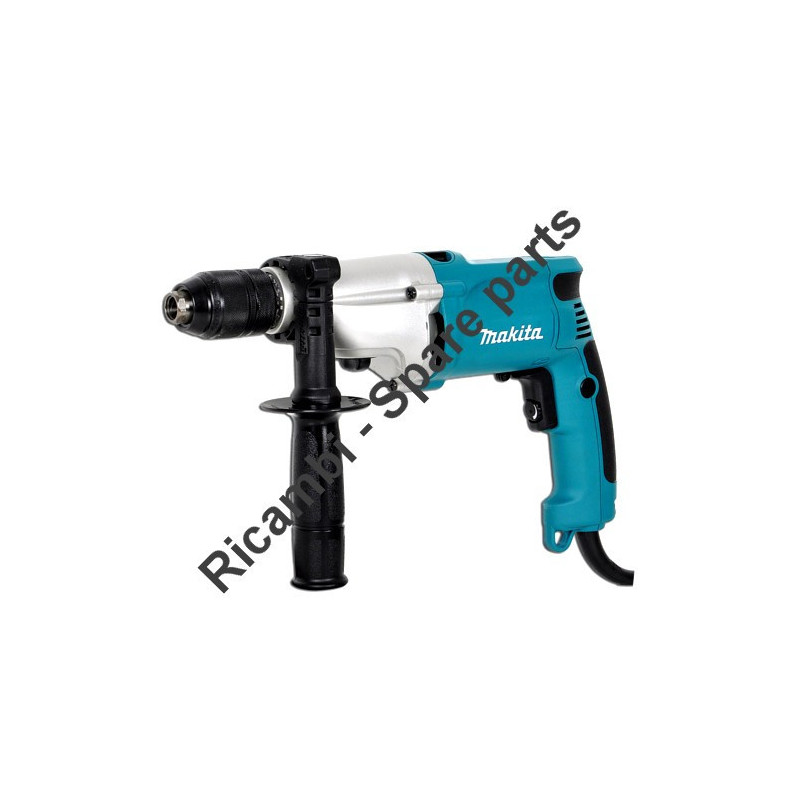

Makita Spare Parts for Percussion Drill HP2051

€15.20
Tax included

Makita Spare Parts for Percussion Drill HP2051

MAKITA repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Percussion Drill HP2051.
ITEM CODE: 153284-0
Quantity
on 7/10 Business Days Approx

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Makita Spare Parts for Percussion Drill HP2051

MAKITA repair center and original spare parts

 Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Percussion Drill HP2051.

In the following table, look for the model of Drill and the respective parts of the code.
Makita HP2051

IMPACT DRILL 720W 20m HP2051
# Part Num. Description
1 194254-0 CHUCK CHUCK 13
2 285839-4 RETAINING BEARING
3 324247-5 POST
4 213314-0 SEAL OIL 19 HP2030
5 233921-3 COMPRESSION SPRING
6 345224-4 WASHER 15
7 211206-7 BEARING 6202V
8 223137-8 A CAM
9 233920-5 SNAP RING 11
10 921923-8 SCREW M 8 X 120 X HR2020
11 417630-4 HANDLE BASE X X HR2020
12 153503-4 GRIP X MT811
13 266048-4 SCREW M 4 X 40 X 4334D
14 153379-9 GEAR HOUSING
15 227119-2 GEAR 29-37 X HP2071F
16 216001-0 BALL 3.5
17 256251-5 PIN 4 HP1500
18 418083-0 CHANGE LEVER A X HP2071F
19 417802-1 SUPPORT LEVER A
20 211012-0 BEARING X 9524NB
21 153622-6 GEAR CPL X HP2071F
22 211012-0 BEARING X 9524NB
23 421810-6 SEALING RING
24 153620-0 COVER BOX ING. HP2071F
25 213122-9 RING 12 X HP2071F
26 417805-5 LEVER B
27 345225-2 LOCKOUT LEVER
28 256251-5 PIN 4 HP1500
29 232143-2 SPRING CROSSBOW HP2030
30 417804-7 SUPPORT 12
31 268092-7 PIN 4
32 345223-6 SUPPORT LEVER B
33 262087-2 RING 8 X 6823
34 210005-4 BALL BEARING 608DDW
35 241881-5 FAN 52 X 6408
36 517414-1 ARMATURE
37 681636-0 INSULATING WASHER
38 211021-9 BEARING 607LLB
39 421494-0 RUBBER 19 X 9521NB
40 417803-9 DEFLECTOR
41 266060-4 SCREW M4 X 65 JN1601
42 633528-9 FIELD ASSY
43 417807-1 CASING MOTOR DP4011
45 643989-5 BRUSH X HR2020
46 191962-4 CARBON BRUSHE CB-419 (406.407) 6408
48 689111-0 DISTANCE X HR2020
49 643988-7 BRUSH X HR2020
50 645006-7 CAPACITOR X LS1013
51 646133-3 COIL
52 650524-2 TG813ALB-2 SWITCH
53 153284-0 COVER GRIP X HR2020
54 265999-8 4X25 SCREW
55 687052-4 CLAMP cable clamp X 6408
56 265995-6 SCREW M4X18 X 6408 / 6221DW
57 645253-0 CAPACITOR X 6408
58 682559-5 SAVE CABLE X 6822
60 345280-4 WASHER HEXAGON
61 263002-9 RUBBER PIN 4

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
