Makita Spare Parts for Jigsaw DJV182

€30.93
Tax included

Makita Spare Parts for Jigsaw DJV182

We have the original Makita Parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your Jigsaw DJV182. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
ITEM CODE: 187706-8
Quantity
Usually Ships in: 7/10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Makita Spare Parts for Jigsaw DJV182

Fix Your Jigsaw DJV182. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of jackhammers and the respective parts of the code.
Makita DJV182

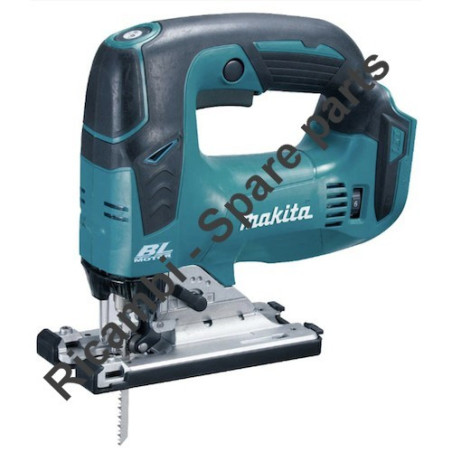

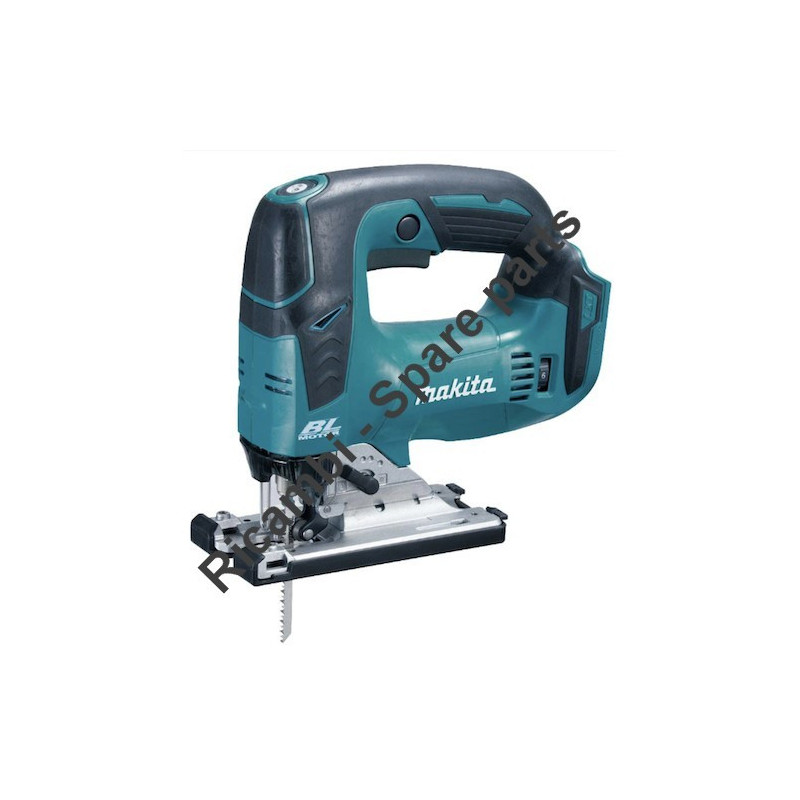

Makita DJV182 18V Cordless Jig Saw
# Part Num. Description
1 187706-8 HOUSING SET
2 265995-6 TAPPING SCREW4x18/HR2440F/HR2450F
3 814V65-6 DJV182 NAME PLATE
5 142303-7 SWITCH PLATE COMPLETE
6 650251-1 SWITCH SGEL106C-4 /DJV182
7 632B56-3 SWITCH UNIT /DJV182
8 266034-5 TAPPING SCREW CT 4X16/DHS680/UX36
9 142112-4 GEAR HOUSING COVER COMP /DJV181/D
10 326302-9 SAFETY WIRE
11 911104-2 PAN HEAD SCREW M4X6
12 454483-0 TOOL OPENER
13 265026-1 + P.H SCREW M4 /DJV180/3901/4340T
14 231659-4 TORSION SPRING 6/DJV180/4340T/434
15 346687-7 LINEAR GUIDE/DJV181/DJV182
16 232207-2 LEAF SPRING /DJV180/DJV181/DJV182
17 911111-5 P.H.SCREW M4X10/5057KB/BO3700/992
18 256117-9 PIN 4 /DJV180/JV100D/JR3010/4340T
19 214031-5 PLANE BEARING 4 /DJV180/6913DWA/4
20 961017-7 STOP RING E-3-DBN500/HR262/DPJ180
21 310548-7 SLIDER /DJV181/DJV182
22 268090-1 PIN 4 /DJV180/JV0600/4340T/4340CT
23 442195-7 GASKET /DJV181/DJV182
24 267854-0 CAP WASHER 8
25 421815-6 DUST SEAL 8
27 424569-4 DUST COVER /DJV181/DJV182
28 962063-3 RETAINING RING R-13
29 165724-6 ROD
30 257347-5 RING 21
31 233591-8 TORSION SPRING 10/DJV181/DJV182/J
32 233314-4 COMPRESSION SPRING 4 /JV0600/6827
33 310485-5 LOCK PIN /DJV181/DJV182/JV0600
34 310547-9 BLADE HOLDER
35 256528-8 PIN 2 /DJV181/DJV182/JV0600
36 961002-0 RETAINING RING S-6/DVR450/JV0600/
37 253715-0 FLAT WASHER 6/JV0600/DP4700/4304T
38 212014-9 NEEDLE BEARING 407 /4340T/4351FCT
39 142109-3 GEAR COMPLETE /DJV181/DJV182
40 313260-8 BALANCE PLATE
41 346688-5 PUSH PLATE /DJV181/DJV182
42 253196-8 FLAT WASHER 6 /DJV181/DJV182/9741
43 454484-8 SEAL PLATE
44 272244-4 LEVER 17 /4340T/4351FCT
45 233139-6 COMPRESSION SPRING 3/DJV180/181/1
46 286032-3 CAP 5 /DJV180/DJV181/DJV182/4341C
47 268063-4 PIN 4 /DJV180/DJV181/DJV182/4340T
48 142111-6 GEAR HOUSING COMPLETE/DJV181/DJV1
49 961018-5 STOP RINGE-5 /4304T/LS800DWA/4331
50 210059-1 BALL BEARING/GS5000/DTM50/HR4000C
51 519329-8 ROTOR ASSY/DJV181/DJV182
52 210022-4 BALL BEARING 626DDW/DH
53 266490-9 TAPPING SCREW PT 2X6
54 629998-8 STATOR - DJV182
55 620248-4 CONTROLLER - DJV182
56 643899-6 TERMINAL /DGA505/DGA504/DCL500/DP
57 252171-1 SQUARE NUT M5-8/DJV180/DJV181/DJV
58 142110-8 RETAINER COMPLETE
59 319016-7 BASE - DJV182
60 345237-5 CRANK PLATE /4340T/4351FCT
61 922231-0 H.S.H M5X20 /EM4350UH/DUR362LZ/UX
62 232208-0 LEAF SPRING /DJV180/4340T/4351FCT
63 346685-1 BASE PLATE
64 265085-5 C.H.S SCREW M4 X 8 /5057KB/DJV181
65 135602-4 ROD ASSY /DJV181/DJV182
A01 126331-0 DUST NOZZLE ASS DJV MODELS
A02 415524-7 ANTI SPLINTERING DEVICE
A03 417852-6 COVER PLATE
A04 A-85737 JIGSAW BLADE B22
A05 A-85628 JIGSAW BLADE B10
A06 A-85793 JIGSAW BLADE BR13
A07 783202-0 HEX WRENCH 4 DUR/X360/DBC260L
A08 821550-0 CONNECTOR PLASTIC CASE (TYPE2)
A08 453974-8 Makita Latch
A09 837639-4 INNER TRAY
A10 802D99-3 PLASTIC CASE LABEL
A11 FAST CHARGER
A12 196399-0/BULK BATTERY BL1840 18V4A BULK
A13 450128-8 BATTERY COVER
A14 802D98-5 INDICATION LABEL
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
