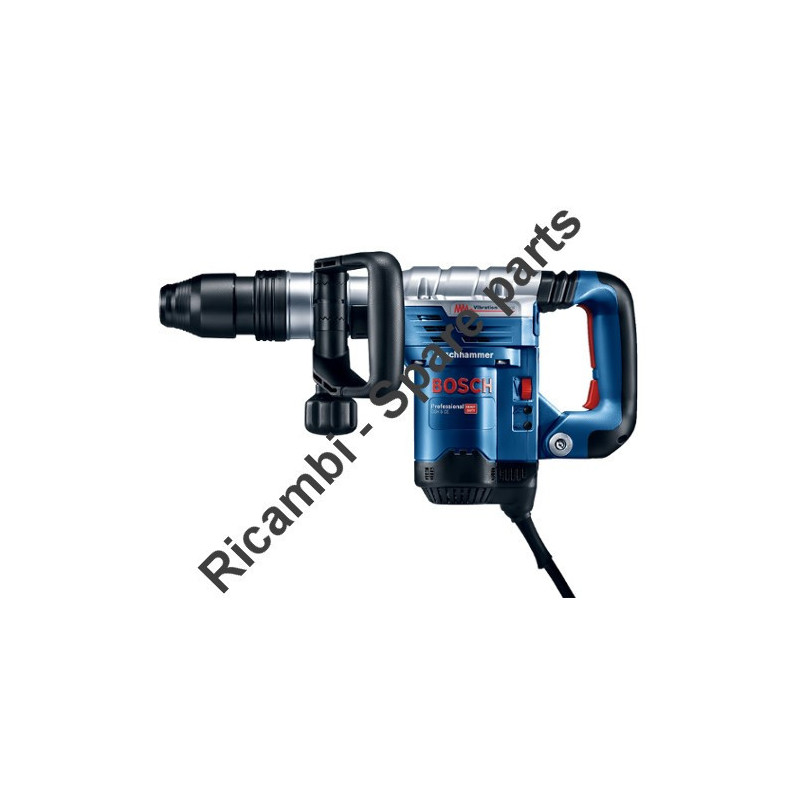

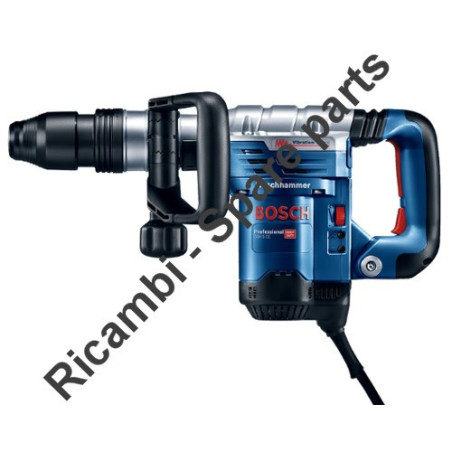

Bosch Spare Parts for Demolition Hammer SDS-Max GSH 5 CE
€3.80
Tax included
Bosch Spare Parts for Demolition Hammer SDS-Max GSH 5 CE
We are BOSCH original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Demolition Hammer GSH 5 CE - 0611309703.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Demolition Hammer SDS-Max GSH 5 CE
We are BOSCH original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Demolition Hammer GSH 5 CE - 0611309703.
In the following table, look for the model of the Demolition Hammer and the respective parts of the code.
| Demolition Hammer GSH 5 CE/0 611 309 703 | ||
| # | Part Num. | Description |
| 1 | 1615102142 | Motor Housing BLUE |
| 2 | 1604220343 | Field 220-230V |
| 4 | 1617200048 | Switch |
| 4/10 | 2910011088 | Socket head cap screw DIN 84-AM3,5x12-5.8 |
| 6 | 1610703053 | Grommet Ø9,7-Ø12x89 MM |
| a | 3600703011 | |
| 7 | 1601302018 | Fastening Clamp |
| 9 | 1611110704 | Manufacturer's nameplate |
| 13 | 1610900025 | groove ball bearing 7x22x7 |
| 14 | 1610905027 | groove ball bearing 15x32x9 |
| 15 | 1616610071 | Fan |
| 16 | 1610499016 | Ratchet Sleeve |
| 17 | 1610590002 | Retaining snap ring |
| 18 | 2916660016 | Spring retaining ring DIN 472 37x1,5MM |
| 19 | 1615700033 | Clamping-Flange |
| 20 | 1617000984 | Tool Holder Set |
| 21 | 1610508017 | Protective Cap |
| 22 | 1610499015 | Protection Sleeve |
| 23 | 1610520001 | Stop Sleeve |
| 25 | 1612300027 | Stopping Device |
| 26 | 1610290025 | Indexing Disk |
| 27 | 2910141201 | Hex Socket Head Cap Screw DIN 912-M6x20-8.8 |
| 28 | 1614621000 | Compression Spring |
| 29 | 1614615002 | Compression Spring |
| 30 | 1610210092 | O-Ring 60,0x1,5 MM |
| 31 | 1610390015 | Spacer Tube |
| 32 | 1610202016 | Cylinder Sleeve |
| 34 | 1610390030 | Spacer Tube - NO LONGER AVALAIBLE |
| 35 | 1615806086 | Hammer Pipe |
| 36 | 1610210022 | O-Ring 48,0x2,0 MM |
| 37 | 1900210131 | O-Ring 30x2,5 MM |
| 38 | 1615190023 | Covering hood BLACK |
| 39 | 1610283027 | Rotary shaft lip seal |
| 41 | 1618710052 | Striker Pin |
| 45 | 1615500286 | Housing Cover |
| 47 | 1610591012 | Cover |
| 54 | 1610190010 | Control Disc - NO LONGER AVALAIBLE |
| 55 | 1610420004 | Control Bushing |
| 56 | 1618700057 | Hammer Piston BLACK |
| 57 | 1618710077 | Striker |
| 70 | 1612001031 | Connecting Rod |
| 71 | 1613101005 | Straight Pin |
| 72 | 1616317037 | Eccentric Cog Wheel Z=43 |
| 75 | 1615132043 | Handle BLACK |
| 76 | 1612026029 | Control Lever |
| 77 | 1617000297 | Shift Plate GRAY |
| 78 | 1617000297 | Shift Plate GRAY |
| 79 | 1615819016 | Bearing Pedestal |
| 80 | 1617233026 | Speed governor 220-240V |
| 82 | 1615510000 | Light Conductor |
| 84 | 1615132044 | Strap-Shaped Handle BLACK |
| 86 | 2911011270 | Hex Screw DIN 931-M8x130-8.8 |
| 88 | 1613349017 | Star Knob M8 BLACK |
| 89 | 1618040068 | Clamping Piece |
| 103 | 1610210091 | O-Ring 24,0x4,0 MM |
| 104 | 1610210093 | O-Ring 17,0x8,0 MM |
| 111 | 1610210081 | O-Ring 10,0x1,0 MM |
| 112 | 1610210090 | Clamping Ring |
| 113 | 1610328013 | Backup ring |
| 122 | 1610910069 | Needle bearing |
| 123 | 1610910072 | Nozzle Socket |
| 124 | 1610101008 | Thrust Bearing Disc 1,0 MM THICK |
| 125 | 2912401036 | Tapping Screw DIN7981-ST4,8x25-C-Z |
| 126 | 2910211019 | Tapping Screw DIN 7971-ST3,9x16-F |
| 127 | 2914555131 | Microencapsulated Screw DIN 912 M 4x8-8.8 |
| 129 | 2912401036 | Tapping Screw DIN7981-ST4,8x25-C-Z |
| 130 | 1601110265 | Sticker |
| 131 | 1611110705 | Manufacturer's nameplate |
| 135 | 1611110387 | Reference Plate |
| 136 | 2910211236 | Tapping Screw DIN 7971-ST4,8x25-C |
| 137 | 1610210101 | O-Ring 26,0x2,0 MM GREEN |
| 138 | 1610210103 | O-Ring 33,0x2,0 MM |
| 139 | 1610205006 | Felt Washer |
| 140 | 1611098004 | Support Plate |
| 141 | 1610322007 | Headed Bush |
| 751 | 1618600023 | Pointed Chisel Ø18x280 MM |
| 751/1 | 1618600011 | Pointed Chisel Ø18x400 MM |
| 751/2 | 1618600012 | Pointed Chisel Ø18x600 MM |
| 752 | 1618600202 | Cold Chisel 25x400 MM |
| 752/1 | 1618600203 | Cold Chisel 25x600 MM |
| 753 | 1618601006 | Spade-Shaped Chisel 50x400 MM |
| 753/1 | 1618601008 | Wide chisel 80x300 MM |
| 753/2 | 1618601007 | Wide chisel 115x350 MM |
| 754 | 1618601302 | Toothed Chisel 32x7x300 MM |
| 755 | 1618601303 | Mortar raking chisel 28x8x300 MM |
| 756 | 1618601101 | Gouge 26x300 MM |
| 757 | 1618601102 | Gouge 32x300 MM |
| 758 | 1618601018 | Tile Chisel 50x300 MM |
| 758/1 | 1618601019 | Wide chisel 80x300 MM |
| 760 | 1618609003 | Chisel Holder 65x220 MM |
| 761 | 1618623205 | Bush Hammer 60x60 MM, Z= 5x5 |
| 761/1 | 1618623206 | Bush Hammer 60x60 MM, Z= 7x7 |
| 762 | 1618633101 | Tamping Tool 120x130 MM |
| 762/1 | 1618633102 | Tamping Tool 150x150 MM |
| 784 | 2602025063 | Auxiliary Handle Ø 43 MM |
| 805 | 1617000723 | Power supply cord |
| 808 | 160111A3H3 | Nameplate |
| 820 | 1617000984 | Tool Holder Set |
| 824 | 1617000239 | Ball DIN 5401-5 MM-III-ST |
| 830 | 1614010180 | Armature 220-240V |
| 840 | 1617000948 | Assembly Of Service Parts |
| 842 | 1614336009 | Brush Holder |
| 842/020 | 1614336043 | Brush Guide |
| 842/040 | 1617014122 | Carbon-Brush Set |
| 842/050 | 1613212004 | Rubber Buffer |
| 842/080 | 2912401005 | Tapping Screw DIN7981-ST2,9x9,5C-Z |
| 843 | 1615808072 | Bearing cover BLUE |
| 877 | 1617000297 | Shift Plate GRAY |
| 887 | 1617000171 | Clamping Band Ø 43 MM |
| 897 | 1617000185 | Wear and Tear Part Set |
| 898 | 1617000186 | Wear and Tear Part Set |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
