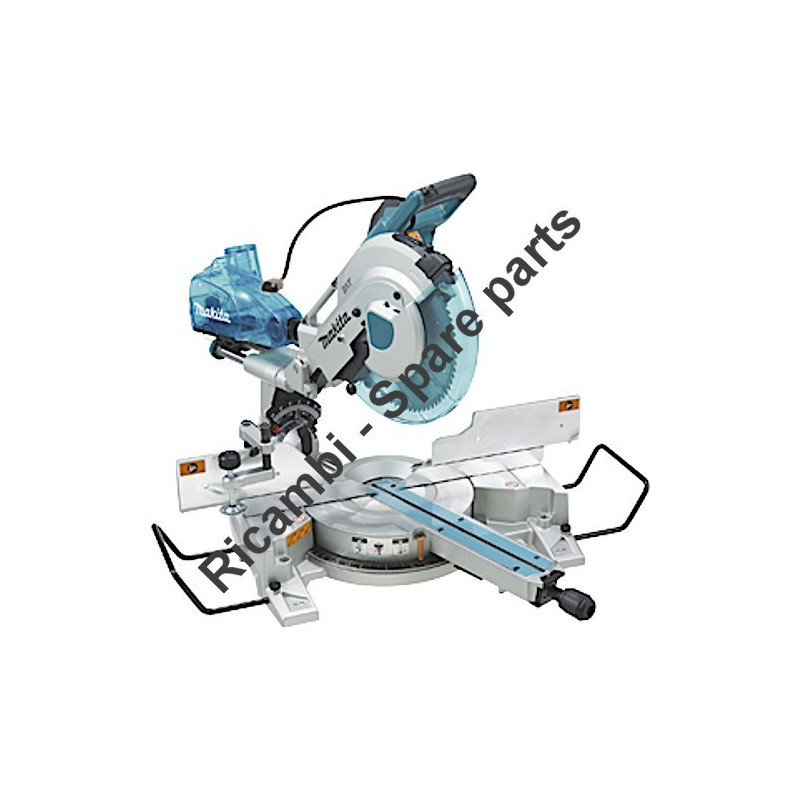

Makita Spare Parts for Slide Compound Mitre Saw LS1216FL
€1.36
Tax included
Makita Spare Parts for Slide Compound Mitre Saw LS1216FL
Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Slide Compound Mitre Saw with Lighting LS1216FL.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Slide Compound Mitre Saw LS1216FL
Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Slide Compound Mitre Saw with Lighting LS1216FL.
In the following table, look for the model Bench Saw and the respective parts of the code.
| Slide Compound Miter Saw LS1216FL | ||
| # | Part Num. | Description |
| 001 | 265995-6 | SCREW 4X18 |
| 002 | 450999-3 | REAR COVER 1911B |
| 003 | 631866-3 | CONTROLLER |
| 004 | 265995-6 | SCREW 4X18 |
| 005 | 665865-3 | CABLE (NO 3) |
| 006 | 687052-4 | FIXING BAR 20mm |
| 007 | 868333-7 | LS1216FL NAME PLATE |
| 007-1 | 869414-0 | LS1216FL NAME PLATE |
| 008 | 266329-6 | SCREW 5X60 |
| 009 | 318471-0 | ENGINE SUPPORT |
| 010 | 451194-8 | CROWN |
| 011 | 961057-5 | CIRCLIP MOD S EXT 17 |
| 012 | 211275-8 | BALL BEARING 6003DDW |
| 013 | 240001-8 | FAN 80 |
| 014 | 517844-6 | INDUCTION PLC 240V |
| D10 | INC. 13,15,16 | |
| 015 | 681642-5 | INSULATION WASHER |
| 016 | 210067-2 | BEARING 6000ZZ |
| 017 | 596359-6 | INDUCTOR |
| C10 | 654020-2 | CB5 CONNECTION |
| C20 | 654502-4 | NON INSULATED 2.0 CRIMP SLEEVE |
| 018 | 158958-8 | COMPLETE CRANKCASE |
| C10 | 643660-1 | CARBON HOLDER 6.5-13.5 |
| 019 | 643650-4 | CARBON PLUG CB5 |
| 019-1 | 643650-4 | CARBON PLUG CB5 |
| 020 | 181044-0 | COAL SET CB-153 <9100 |
| 021 | 911948-0 | SCREW M6X80 |
| 022 | 631933-4 | LED CIRCUIT |
| 023 | 265995-6 | SCREW 4X18 |
| 024 | 140324-3 | HANDLE COVER |
| C10 | 809643-3 | SWITCH INDICATION |
| 025 | 631867-1 | CIRCUIT |
| 026 | 451003-1 | SWITCH LEVER |
| 027 | 650618-3 | SWITCH TG72B-1 |
| 028 | 416356-5 | SAFETY LEVER |
| 029 | 231026-3 | SPRING 4 |
| 030 | 265995-6 | SCREW 4X18 |
| 031 | 140049-9 | COMPLETE HANDLE |
| C10 | 810486-8 | SAFETY MARKING |
| 032 | 265995-6 | SCREW 4X18 |
| 033 | 451037-4 | SWITCH PUSH |
| 034 | 451000-7 | LID HOLDER |
| 035 | 265995-6 | SCREW 4X18 |
| 036 | 451199-8 | PINCH |
| 037 | 231928-3 | SPRING WASHER 8 |
| 038 | 256633-1 | AXIS 6 |
| 039 | 231240-1 | SPRING 7 |
| 040 | 911113-1 | SCREW HEX M4X10 |
| 041 | 262001-8 | SPACER |
| 042 | 265717-4 | SCREW M6X43 |
| 043 | 266488-6 | SCREW |
| 044 | 922332-4 | SCREW M6x20 |
| 045 | 687042-7 | BARETTE |
| 046 | 266026-4 | SELF-DRILLING SCREW 4X12 |
| 047 | 419277-0 | SUCTION TIP |
| 048 | 213460-9 | O’RING 35 |
| 049 | 266321-2 | HEX.SOCKET SCREW M6X16 |
| 050 | 922331-6 | M6X20 HOLLOW HEAD SCREW |
| 051 | 253804-1 | FLAT WASHER 6 |
| 052 | 257163-5 | SPACER 6 LS1013 |
| 053 | 140164-9 | LINK PLATE |
| 054 | 257163-5 | SPACER 6 LS1013 |
| 055 | 253804-1 | FLAT WASHER 6 |
| 056 | 961018-5 | CIRCLIP E-5 |
| 057 | 911113-1 | SCREW HEX M4X10 |
| 058 | 346050-4 | GATE GUARD |
| 059 | 231675-6 | TORSION SPRING 11 |
| 060 | 451198-0 | PROTECTION |
| 060-1 | 453635-0 | PLATE <=451198-0 |
| 061 | 325645-6 | RIVET |
| 062 | 265324-3 | SCREW HEX FLANGE M8X12 |
| 062-1 | 266283-4 | SCREW HEX M8 X 20 |
| 063 | 140148-7 | BLADE GUARD |
| C10 | 263005-3 | RUBBER ANCHOR 6 |
| C20 | 810064-4 | LABEL |
| 064 | 210005-4 | BALL BEARING 608DDW |
| 065 | 961052-5 | CIRCLIP MOD S EXT 12 |
| 066 | 253744-3 | WASHER 12 |
| 067 | 261104-5 | RUBBER WASHER 12 |
| 068 | 253744-3 | WASHER 12 |
| 069 | 227550-2 | TOOTHED CROWN 32 |
| 070 | 254001-2 | KEY WOODR M4X13 |
| 071 | 266026-4 | SELF-DRILLING SCREW 4X12 |
| 072 | 451002-3 | OILER HOLDER |
| 073 | 227701-7 | PINION 14 |
| 074 | 227702-5 | PINION 27 |
| 075 | 216024-8 | STEEL BALL 4 |
| 076 | 325643-0 | AXIS |
| 077 | 210067-2 | BEARING 6000ZZ |
| 078 | 210005-4 | BALL BEARING 608DDW |
| 079 | 961055-9 | CIRCLIP MOD EXT S 15 |
| 080 | 227703-3 | PINION 28 |
| 081 | 442147-8 | MEMBRANE |
| 082 | 911223-4 | SCREW HEX M5X16 |
| 083 | 210005-4 | BALL BEARING 608DDW |
| 084 | 267010-2 | FLAT WASHER 5 |
| 085 | 942101-7 | WASHER GROWER 5 |
| 086 | 931202-6 | NUT M5 |
| 087 | 285847-5 | BEARING SUPPORT |
| 088 | 158957-0 | BEARING HOUSING |
| C10 | 263002-9 | RUBBER ANCHOR 4 |
| 089 | 211236-8 | BALL BEARING 6002DDW |
| 090 | 325644-8 | AXIS |
| 091 | 285732-2 | CRANKCASE COVER 51 |
| 092 | 265034-2 | M5 COUNTERSUNK HEAD SCREW |
| 093 | 224434-5 | INNER FLANGE 62 |
| 093-1 | 224464-6 | INNER FLANGE 62 |
| 094 | 224433-7 | OUTER FLANGE 62 |
| 095 | 265405-3 | SCREW HEX. COL.M10X20 LS1214 |
| 095-1 | 266755-9 | SCREW HEX M10 X 20 |
| 096 | 158959-6 | BLADE GUARD |
| 096-1 | 158959-6 | BLADE GUARD |
| 097 | 233554-4 | SPRING 45 |
| 098 | 424190-9 | RUBBER STOP |
| 099 | 265985-9 | M6 SOCKET HEAD SCREW |
| 100 | 346048-1 | LID |
| 101 | 253932-2 | LOCK WASHER 10 |
| 102 | 344539-6 | CENTRAL FLAT WASHER |
| 103 | 346047-3 | CENTERING PLATE |
| 104 | 266034-5 | SCREW M4X16 |
| 105 | 266020-6 | SHOULDERED SELF-FORMING SCREW 4X12 |
| 106 | 941051-3 | MX4 FLAT WASHER |
| 107 | 424193-3 | ROLL |
| 108 | 451197-2 | BLADE GUARD |
| 109 | 266026-4 | SELF-DRILLING SCREW 4X12 |
| 110 | 418104-8 | GOAL |
| 111 | 419378-4 | BLOCK B |
| 112 | 911003-8 | SCREW M3X6 |
| 113 | 231664-1 | SPRING 9 LS0714FL |
| 114 | 266318-1 | HEX SOCKET SCREW M4X6 |
| 115 | 266306-8 | SCREW M5 |
| 116 | 419379-2 | BLOCK C |
| 117 | 233471-8 | SPRING 6 LS0714FL |
| 118 | 638651-5 | LASER |
| 119 | 231664-1 | SPRING 9 LS0714FL |
| 120 | 266318-1 | HEX SOCKET SCREW M4X6 |
| 121 | 266229-0 | SCREW M5X8 |
| 122 | 451195-6 | LASER COVER |
| 123 | 266034-5 | SCREW M4X16 |
| 124 | 451038-2 | PROTECTION |
| 125 | 265753-0 | SCREW M5X24 |
| 126 | 253807-5 | WASHER 5 |
| 127 | 265026-1 | SCREW ROUND HEAD M4 |
| 128 | 941102-2 | MX5 FLAT WASHER |
| 129 | 233267-7 | COMPRESSION SPRING 7 |
| 130 | 941102-2 | MX5 FLAT WASHER |
| 131 | 272261-4 | LEVER 45 |
| 132 | 325651-1 | CONNECTION |
| 133 | 253804-1 | FLAT WASHER 6 |
| 134 | 140160-7 | UPPER STOP R CPLE |
| C10 | 810503-4 | SAFETY MARKING |
| 134-1 | 142815-0 | UPPER FENCE R COMPLETE |
| C10 | 810503-4 | SAFETY MARKING |
| 135 | 346058-8 | GUIDE PLATE |
| 136 | 318476-0 | LOWER STOP R |
| 136-1 | 318476-0 | LOWER STOP R |
| 137 | 265783-1 | SCREW M6X18 |
| 138 | 318411-8 | GUIDE STOP |
| 138-1 | 318411-8 | GUIDE STOP |
| 139 | 922443-5 | HEX HEAD SCREW M8X25 |
| 140 | 256226-4 | PIN 4 |
| 141 | 266264-8 | HEXAGONAL SCREW M5X6 |
| 142 | 265783-1 | SCREW M6X18 |
| 143 | 318475-2 | LOWER STOP LEFT |
| 143-1 | 318863-3 | LOWER STOP L |
| 143-2 | 318863-3 | LOWER STOP L |
| 144 | 140156-8 | UPPER STOP L CPL |
| C10 | 810503-4 | SAFETY MARKING |
| 144-1 | 142814-2 | UPPER FENCE L COMPLETE |
| C10 | 810503-4 | SAFETY MARKING |
| 145 | 346049-9 | ELBOW |
| 146 | 253948-7 | WASHER 8 |
| 147 | 253835-0 | FLAT WASHER 8 |
| 148 | 251267-5 | SCREW ROUND HEAD M6 |
| 149 | 451202-5 | SHEATH 17 |
| 150 | 323740-6 | AXIS 16 |
| 151 | 271601-3 | BUTTON 20 |
| 152 | 213011-8 | O’RING 7 |
| 153 | 322629-5 | AXIAL STOP |
| 154 | 233542-1 | SPRING 40 |
| 155 | 266026-4 | SELF-DRILLING SCREW 4X12 |
| 156 | 158962-7 | CPLTE STOP RING |
| C10 | 263002-9 | RUBBER ANCHOR 4 |
| 157 | 140711-6 | COMPLETE FRONT ARM |
| 157-1 | 140976-0 | TUBING |
| 157-2 | 140976-0 | TUBING |
| 158 | 265783-1 | SCREW M6X18 |
| 159 | 231240-1 | SPRING 7 |
| 160 | 266034-5 | SCREW M4X16 |
| 161 | 140155-0 | COMPLETE ARM |
| C10 | 262077-5 | RING 25 |
| C20 | 263005-3 | RUBBER ANCHOR 6 |
| C30 | 344638-4 | CAP 35 |
| 162 | 318403-7 | TUBE STOP |
| 162-1 | 318403-7 | TUBE STOP |
| 163A | 266208-8 | HEX.SOCKET SCREW M6X8 |
| 163B | 913336-7 | ANCHOR M6X20 |
| 164 | 266026-4 | SELF-DRILLING SCREW 4X12 |
| 165 | 687042-7 | BARETTE |
| 166 | 911113-1 | SCREW HEX M4X10 |
| 167 | 252130-5 | NUT HEX M10 |
| 168 | 253024-7 | FLAT WASHER 10 |
| 169 | 216413-7 | BALL STOPPER 1024 |
| 170 | 451019-6 | LEVER 105 |
| 171 | 265589-7 | HEX HEAD SCREW M10 |
| 172 | 253024-7 | FLAT WASHER 10 |
| 173 | 415208-7 | SAFETY BUTTON |
| 174 | 233031-6 | SPRING 12 |
| 175 | 266488-6 | SCREW |
| 176 | 318405-3 | STOP |
| 177 | 961052-5 | CIRCLIP MOD S EXT 12 |
| 178 | 253744-3 | WASHER 12 |
| 179 | 231646-3 | SPRING 14 |
| 180 | 262158-5 | RUBBER RING 9 |
| 181 | 346071-6 | PLAQUE |
| 182 | 266488-6 | SCREW |
| 183 | 451200-9 | ARM COVER |
| 184 | 266034-5 | SCREW M4X16 |
| 185 | 343678-9 | NEEDLE |
| 186 | 266034-5 | SCREW M4X16 |
| 187 | 158964-3 | COMPLETE SLIDING TUBING |
| C10 | 263005-3 | RUBBER ANCHOR 6 |
| C20 | 816927-2 | ANGLE SCALE |
| C30 | 816937-9 | LABEL |
| 188 | 266488-6 | SCREW |
| 189 | 961011-9 | STOP RING-4 |
| 190 | 451044-7 | CAM |
| 191 | 325656-1 | ROD 6 |
| 192 | 272262-2 | LEVER 22 |
| 193 | 911113-1 | SCREW HEX M4X10 |
| 194 | 234122-6 | COMPRESSION SPRING 6 |
| 195 | 325865-2 | PIN 8 |
| 196 | 232250-1 | RING SPRING |
| 197 | 325646-4 | CENTRAL AXIS |
| 198 | 451039-0 | POSITION PLATE |
| 199 | 451070-6 | ARM PROTC SUPPORT |
| 200 | 266034-5 | SCREW M4X16 |
| 201 | 158967-7 | COUPLING STRIP |
| C10 | 263005-3 | RUBBER ANCHOR 6 |
| 202 | 925251-3 | SCREW HEX M5X30 |
| 203 | 266026-4 | SELF-DRILLING SCREW 4X12 |
| 204 | 451201-7 | CENTRAL BORDER |
| 205 | 265585-5 | HEXAGONAL SCREW M8X30-45 |
| 206 | 253762-1 | FLAT WASHER 8 |
| 207 | 140166-5 | TURNTABLE |
| C10 | 816930-3 | LABEL |
| 208 | 266026-4 | SELF-DRILLING SCREW 4X12 |
| 209 | 451009-9 | RULER |
| 210 | 451011-2 | SUPPORT |
| 211 | 266385-6 | SCREW 4X14 |
| 212 | 941051-3 | MX4 FLAT WASHER |
| 213 | 266026-4 | SELF-DRILLING SCREW 4X12 |
| 214 | 346052-0 | SLIDE |
| 215 | 286275-7 | HANDLE |
| 216 | 961013-5 | CIRCLIP E-7 |
| 217 | 313165-2 | CAM |
| 218 | 231131-6 | SPRING 11 |
| 219 | 267047-9 | FLAT WASHER 10 |
| 220 | 273666-1 | HANDLE 50 |
| 221 | 318410-0 | SUPPORT |
| 222 | 266034-5 | SCREW M4X16 |
| 223 | 451010-4 | LOCKING LEVER |
| 224 | 345272-3 | LEVER PLATE |
| 225 | 266034-5 | SCREW M4X16 |
| 226 | 266505-2 | SCREW M6X14 |
| 228 | 346094-4 | LOCKING PLATE A |
| 229 | 234104-8 | SPRING 13 |
| 230 | 266306-8 | SCREW M5 |
| 231 | 231325-3 | SPRING 6 |
| 232 | 256158-5 | AXIS 3 |
| 233 | 325695-1 | PIN 8 |
| 234 | 158968-5 | LINEAR BEARING |
| 235 | 451018-8 | STRAIGHT GEAR 43 |
| 236 | 232249-6 | LEAF SPRING |
| 237 | 266026-4 | SELF-DRILLING SCREW 4X12 |
| 238 | 922441-9 | HEX HEAD SCREW M8X25 |
| 239 | 421845-7 | FOOT |
| 240 | 267195-4 | FLAT WASHER 4 |
| 241 | 266026-4 | SELF-DRILLING SCREW 4X12 |
| 242 | 140054-6 | BASIC CPL. |
| D10 | INC. 243,246,252 | |
| 242-1 | 140054-6 | BASIC CPL. |
| D10 | INC. 243,246,252 | |
| 243 | 810495-7 | SAFETY MARKING |
| 246 | 817283-3 | LABEL |
| 247 | 816920-6 | CORNER SECTOR |
| 248 | 451012-0 | PLAQUE |
| 249 | 266026-4 | SELF-DRILLING SCREW 4X12 |
| 250 | 266034-5 | SCREW M4X16 |
| 251 | 232075-3 | U SPRING |
| 252 | 817283-3 | LABEL |
| 254 | 257785-1 | SPACER 6 |
| 255 | 922226-3 | HEX HEAD SCREW M5X18 |
| 256 | 216024-8 | STEEL BALL 4 |
| 257 | 253874-0 | FLAT WASHER 4 |
| 258 | 266042-6 | SCREW 4X20 |
| 261 | 421589-9 | CAP |
| 262 | 346097-8 | LOCKING LEVER |
| 263 | 922111-0 | HOLLOW HEAD SCREW M4X10 |
| 264 | 941051-3 | MX4 FLAT WASHER |
| 265 | 325664-2 | AXIS 8 |
| 266 | 231633-2 | COMPETENCE |
| 267 | 451129-9 | ROD SUPPORT |
| 268 | 961012-7 | CIRCLIP E-6 |
| 269 | 266034-5 | SCREW M4X16 |
| 271 | 140165-7 | LOCKING PLATE B |
| 272 | 256246-8 | PIN 6 |
| 273 | 346096-0 | PLAQUE |
| 274 | 266034-5 | SCREW M4X16 |
| 275 | 942151-2 | WASHER GROWER MX6 |
| 276 | 266318-1 | HEX SOCKET SCREW M4X6 |
| 277 | 253313-0 | WASHER 14 |
| 278B | 931302-2 | NUT HEX.M6 |
| 279B | 168424-7 | PLAQUE |
| 280 | 346474-4 | PLAQUE |
| 281 | 266026-4 | SELF-DRILLING SCREW 4X12 |
| 282 | 424438-9 | DUST FILTER |
| 283 | 266318-1 | HEX SOCKET SCREW M4X6 |
| A01A | 122852-0 | DUST BAG |
| C10 | 410602-8 | CLOSING |
| A01B | 194175-6 | CYCLONE SYSTEM |
| A02 | 122854-6 | ARTICULATED VERTICAL VICE |
| C11 | 140037-6 | A-ARM |
| C16 | 140038-4 | B-ARM |
| C21 | 168522-7 | PLAQUE |
| C26 | 251370-2 | M5 ROUND HEAD SCREW |
| C31 | 251887-5 | SCREW M6X10 |
| C36 | 253744-3 | WASHER 12 |
| C41 | 253804-1 | FLAT WASHER 6 |
| C46 | 266026-4 | SELF-DRILLING SCREW 4X12 |
| C51 | 271328-5 | BUTTON 4 |
| C56 | 313163-6 | UPPER THREADED GUIDE |
| C61 | 313164-4 | LOWER THREADED GUIDE |
| C66 | 343651-9 | VICE BIT |
| C71 | 346053-8 | NUT BRACKET |
| C76 | 346054-6 | PROTECTIVE |
| C81 | 961052-5 | CIRCLIP MOD S EXT 12 |
| A03 | 762001-3 | SQUARE |
| A04 | 783208-8 | BTR 2.5 KEY |
| A05 | 265786-5 | SCREW M5X16 |
| A06 | 325673-1 | SERVANT 200 |
| A07 | 782232-8 | SOCKET WRENCH |
| A07-1 | 783204-6 | BTR KEY 6 |
| A08 | B-04606 | TCT SAW BLADE 305X30X70T |
| E01 | 257262-3 | RING 16 |
| E02 | 651941-9 | SWITCH V-15-2A5 |
| E03 | 654531-7 | LOGIN |
| E04 | 410047-0 | KEY RING 5.6 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita LS1216FL
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 7/10 BUSINESS DAYS APPROX
- MORE INFO:
- info@bricoutensili.com
New
You might also like
Comments (0)
No customer reviews for the moment.
Viewed products
Customers who bought this product also bought:
16 other products in the same category:
