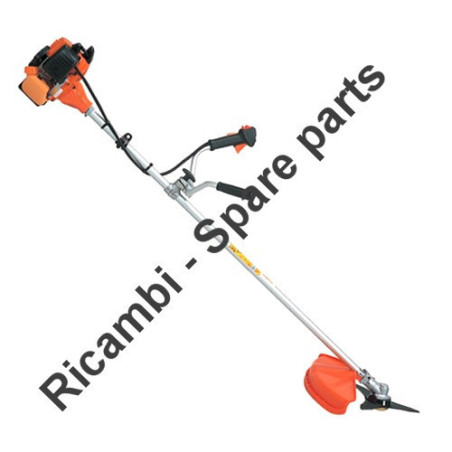

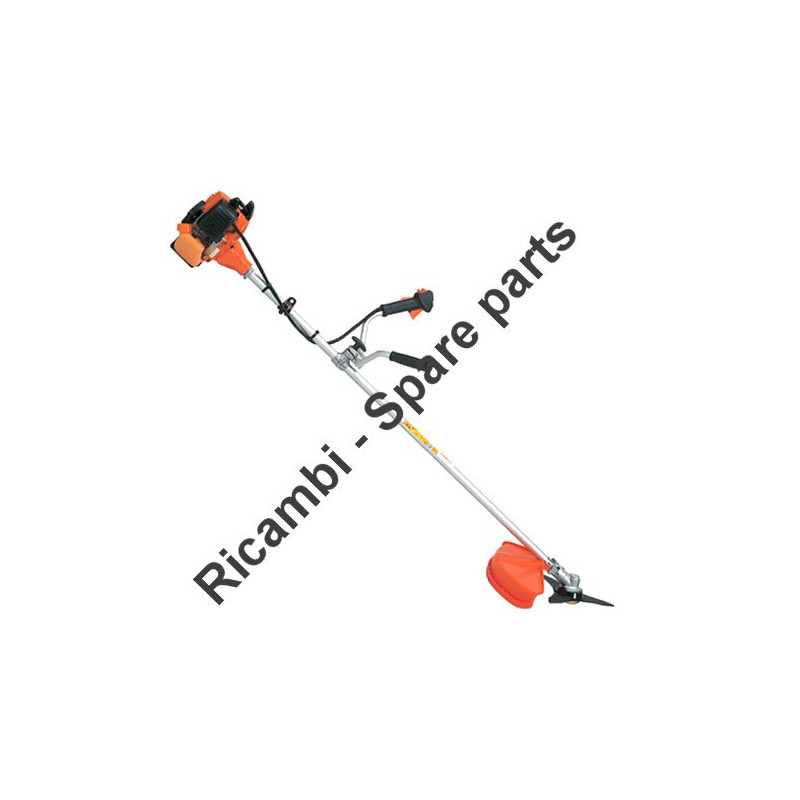

Hitachi Spare Parts for Engine Brush Cutter CG40EJ-T
€8.64
Tax included
Hitachi Spare Parts for Engine Brush Cutter CG40EJ-T
Hitachi-HIKOKI Tanaka authorized repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Bush Cutter CG40EJ-T.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Engine Brush Cutter CG40EJ-T
Hitachi-HIKOKI Tanaka authorized repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Bush Cutter CG40EJ-T.
In the following table, look for the model of the chainsaw and ripettivo spare part.
| ENGINE BRUSH CUTTER CG40EJ-T | ||
| B40-01 CYLINDER/PISTON/CRANK SHAFT Pag.1 | ||
| # | Part Num. | Description |
| 6 | 6687466 | SPARK PLUG CAP ASS'Y |
| 8 | 6685086 | SPARK PLUG BPMR6A |
| 11 | 6685474 | CYLINDER SET |
| 12 | 6684668 | HEX.HOLE BOLT M5X20/S |
| 14 | 6685740 | CYLINDER GASKET |
| 15 | 6686123 | PISTON RING |
| 16 | 6685888 | PISTON SET |
| 17 | 6686007 | PISTON PIN 10X30 |
| 18 | 6686032 | PISTON PIN CIRCLIP |
| 21 | 6686191 | CRANK SHAFT COMP. |
| 31 | 6686457 | WOODRUFF KEY 3X13X5 |
| 43 | 6687655 | IGNITION COIL COMP. |
| 44 | 6684602 | RUBBER CAP |
| 45 | 6687885 | HIGHT TENSION CORD |
| 50 | 6687970 | LEAD WIRE ASS'Y |
| 55 | 6687657 | IGNITION COIL ASS'Y |
| 56 | 6684599 | HEX.HOLE BOLT M4X18/WS |
| 63 | 6688011 | CORD CLAMP COMP. |
| B40-02 CRANK CASE Pag.2 | ||
| 7 | 6688346 | SPARK PLUG COVER |
| 9 | 6684634 | HEX.HOLE BOLT 5X20/PS |
| 23 | 6695139 | SMALL NUT 10 |
| 26 | 6686556 | CRANK CASE ASS'Y |
| 27 | 6686714 | CRANK CASE GASKET |
| 28 | 6695637 | OIL SEAL UD15257 |
| 29 | 6695557 | BALL BEARING #6202, 35MM/OD |
| 32 | 6686472 | CRANK SHAFT SHIM 0.20 |
| 32 | 6686473 | CRANK SHAFT SHIM 0.30 |
| 36 | 6684786 | HEX. SOCKET HD. BOLT M5X30 S |
| 51 | 6687372 | MAGNETO ROTOR COMP. |
| 52 | 6695198 | WASHER 10 |
| 54 | 6695139 | SMALL NUT 10 |
| 66 | 6686982 | FAN CASE |
| 67 | 6684668 | HEX.HOLE BOLT M5X20/S |
| 69 | 6688057 | PRIMARY CORD GROMMET |
| B40-03 ENGINE - 1 Pag.3 | ||
| 31 | 6689885 | INLET MANIFOLD GASKET |
| 32 | 6689955 | CARB.INSULATOR SET, SPARE 1 |
| 33 | 6689833 | CARBURETOR GASKET |
| 34 | 6690430 | COLLAR |
| 35 | 6690802 | COLLAR |
| 36 | 6690099 | CLEANER BODY COMP. |
| 37 | 6691258 | CHOKE VALVE |
| 38 | 6690843 | BLOW OVER CHECK BOARD |
| 39 | 6690352 | CLEANER ELEMENT 6T |
| 40 | 6684658 | WAVE WASHER 8 |
| 41 | 6690397 | CLEANER COVER ASS'Y |
| 42 | 6689737 | SPECIAL SCREW |
| 43 | 6695353 | SCREW 5X57/S |
| 45 | 6690474 | CARBURETOR SET WYJ389 |
| 49 | 6695515 | HEX. HOLE BOLT 5X25WS |
| 63 | 6684618 | FUEL PIPE |
| 64 | 6684619 | CLIP,6.3 DIA. |
| 65 | 6692273 | PUMP FILTER BODY ASS'Y |
| 66 | 6691533 | TANK |
| 68 | 6684623 | COLLAR C |
| 70 | 6691763 | TANK CAP D ASS'Y, BLACK |
| 76 | 6684634 | HEX.HOLE BOLT 5X20/PS |
| 77 | 6694785 | ENGINE BED |
| 78 | 6684880 | FUEL PIPE 3X5X80 |
| 80 | 6688156 | FUEL PIPE GROMMET |
| 86 | 6684625 | TANK CAP CHAIN |
| 87 | 6684918 | WASHER M5 |
| 88 | 6695492 | HEX. HOLE BOLT 5X22/S |
| B40-04 ENGINE - 2 Pag.4 | ||
| 1 | 6692780 | MUFFLER PROTECTOR |
| 3 | 6684667 | HEX.HOLE BOLT M5X12/S |
| 4 | 6695512 | HEX. HOLE BOLT 5X15 WS |
| 5 | 6695067 | HEX.HOLE BOLT 6X65 |
| 6 | 6684639 | WASHER 6 |
| 7 | 6692468 | MUFFLER SET P/N |
| 8 | 6684918 | WASHER M5 |
| 14 | 6692741 | MUFFLER GASKET |
| 16 | 6687243 | HEAT SHIELD |
| 81 | 6689645 | CLUTCH WASHER B |
| 82 | 6688614 | CLUTCH ARM COMP. |
| 83 | 6689428 | CLUTCH SPRING |
| 84 | 6695203 | WAVE WASHER 10 |
| 85 | 6689632 | CLUTCH STEP BOLT |
| B40-05 RECOIL STARTER Pag.5 | ||
| 0 | 6692970 | RECOIL STARTER BODY ASS'Y |
| 1 | 6693025 | RECOIL STARTER BODY COMP. |
| 2 | 6693007 | STARTER ROPE REEL |
| 3 | 6693114 | RECOIL SPRING |
| 9 | 6693165 | STARTER ROPE |
| 12 | 6693607 | STARTER HANDLE CAP |
| 14 | 6693232 | STARTER HANDLE |
| 17 | 6693634 | SET SCREW |
| 19 | 6693302 | STARTER PAWL |
| 20 | 6684683 | STOP RING E5 |
| 23 | 6684634 | HEX.HOLE BOLT 5X20/PS |
| 24 | 6693345 | STARTER PAWL SPRING |
| 25 | 6693395 | STARTER PULLEY |
| B40-06 CARBURETOR Pag.6 | ||
| 2 | 6684879 | PUMP BODY COMP. |
| 3 | 6684687 | PRIMING PUMP COMP. |
| 4 | 6684688 | DIAPHRAGM COVER |
| 5 | 6684689 | PRIMING BODY |
| 6 | 6690827 | METERING DIAPHRAGM COMP. |
| 7 | 6684691 | DIAPHRAGM GASKET |
| 8 | 6684693 | PUMP DIAPHRAGM |
| 9 | 6691457 | PUMP GASKET |
| 11 | 6684695 | ORING |
| 12 | 6684696 | STOP RING |
| 13 | 6684697 | SWIVEL |
| 15 | 6684870 | THROTTLE SET SCREW |
| 16 | 6684873 | CABLE ADJUSTER STAY |
| 17 | 6684872 | LOCK NUT M6 |
| 18 | 6684871 | CABLE ADJUSTER |
| 19 | 6684875 | CLEANER PACKING |
| 20 | 6684699 | SET SCREW |
| 21 | 6684874 | THRUST WASHER |
| 201 | 6684700 | INLET SCREEN |
| B40-07 CLUTCH CASE Pag.7 | ||
| 1 | 6688607 | CLUTCH SHAFT COMP. |
| 2 | 6695295 | STOP RING C32, INNER |
| 3 | 6695537 | BALL BEARING #6002ZZ, 32MM/OD |
| 4 | 6689185 | WASHER |
| 5 | 6695285 | STOP RING C15, OUTER |
| 6 | 6695305 | STOP RING C45,OUTER |
| 7 | 6689229 | CLUCH CASE |
| 8 | 6691905 | CUSHION RUBBER |
| 9 | 6689663 | PIPE HOLDER |
| 10 | 6695042 | HEX. HOLE BOLT 5X10 |
| 11 | 6695082 | HEX HOLE SCREW 6X30 |
| 12 | 6695499 | HEX.HOLE BOLT 6X30/S |
| 13 | 6684826 | S.WASHER 6 |
| B40-08 OPERATION PIPE Pag.8 | ||
| 1 | 6689474 | DRIVE SHAFT 1542L |
| 2 | 6689404 | DRIVE SHAFT PIPE COMP.1500L |
| 3 | 6689524 | BUSH ASS'Y |
| 16 | 6689278 | HANGER |
| 17 | 6689279 | LIFTING METAL ASS'Y |
| 18 | 6689293 | HANGER FIXING BRACKET |
| 19 | 6695515 | HEX. HOLE BOLT 5X25WS |
| 63 | 6684708 | HANDLE GRIP |
| 64 | 6691208 | HANDLE KNOB COMP. |
| 65 | 6692955 | MOUNTING WASHER 1.0 |
| 66 | 6691144 | HANDLE BRACKET A |
| 67 | 6691150 | HANDLE BRACKET B |
| 68 | 6691190 | CUSHION RUBBER |
| 69 | 6691175 | HANDLE BRACKET C |
| 70 | 6691160 | HANDLE BRACKET B |
| 71 | 6695515 | HEX. HOLE BOLT 5X25WS |
| 72 | 6689291 | HIP PAD |
| 74 | 6688024 | CORD CLAMP |
| 75 | 6691089 | HANDLE LEFT ASS'Y |
| 84 | 6687546 | PROTECTION TUBE |
| 91 | 6696184 | SHOULDER BELT ASS'Y OR |
| 92 | 6691080 | RIGHT HANDLE |
| 95 | 6693766 | THROTTLE LEVER ASS'Y 19 |
| 98 | 6684721 | SAFETY LEVER |
| 100 | 6684722 | RETURN SPRING |
| 101 | 6684723 | THROTTLE LEVER |
| 106 | 6684725 | SCREW M4X20 (BLACK) |
| 107 | 6684726 | SCREW 5X30 (BLACK) |
| 108 | 6684727 | CONTAL NUT 5 |
| 110 | 6687461 | STOP SWITCH |
| 120 | 6694023 | THROTTLE WIRE |
| 125 | 6693980 | THROTTLE WIRE COMP. |
| B40-09 GEAR CASE Pag.9 | ||
| 1 | 6688799 | GEAR CASE ASS'Y 28 DIA |
| 2 | 6695497 | HEX.HOLE BOLT 6X25S |
| 4 | 6684741 | STOP RING C28,INNER |
| 5 | 6684664 | STOP RING C12 OUTER |
| 6 | 6695532 | BALL BEARING #6001Z, 28MM/OD |
| 7 | 6695535 | BALL BEARING 6001 C3 |
| 9 | 6688798 | GEAR CASE |
| 11 | 6695510 | HEX HOLE BOLT 5X12 |
| 12 | 6694979 | BOLT 6X8 |
| 13 | 6695535 | BALL BEARING 6001 C3 |
| 15 | 6688943 | GEAR SHAFT LM10X1.25 |
| 16 | 6696297 | BALL BEARING #6202DD, 35MM/OD |
| 17 | 6695296 | STOP RING C35, INNER |
| 18 | 6689029 | CUTTER HOLDER |
| 19 | 6689051 | CUTTER HOLDER CAP |
| 20 | 6688995 | PROTECTION COVER B |
| 21 | 6695418 | SCREW 5X16/WS |
| 22 | 6689073 | FIXING NUT M10X1.25 |
| 26 | 6695082 | HEX HOLE SCREW 6X30 |
| 28 | 6690313 | SAFETY GUARD BRACKET |
| 29 | 6690265 | GUARD |
| 30 | 6690342 | SAFTY COVER HOLDER |
| 31 | 6690374 | COVER GUARD |
| 32 | 6693386 | KNIFE |
| 34 | 6684753 | TAPPING SCREW 5X20 |
| 35 | 6688879 | GEAR PINION SET,SPARE |
| 36 | 6697604 | GEAR CASE COVER COMP |
| 37 | 6695042 | HEX. HOLE BOLT 5X10 |
| B40-10 TOOL/OPTIONAL PARTS Pag.10 | ||
| 1 | 6684813 | HEX. BAR WRENCH 4MM |
| 3 | 6684766 | WRENCH 8X10 |
| 7 | 6693575 | COMBI,BOX WRENCH 17X19 |
| 10 | 6693503 | CUTTING BLADE 3TX305XT3.0 |
| 30 | 6684765 | SAFETY GLASSES |
| 35 | 6692016 | CUTTER COVER |
| 500 | HGA781307 | Nylon Head Semi-Automatic 130mm M10x1.25 Lh |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
