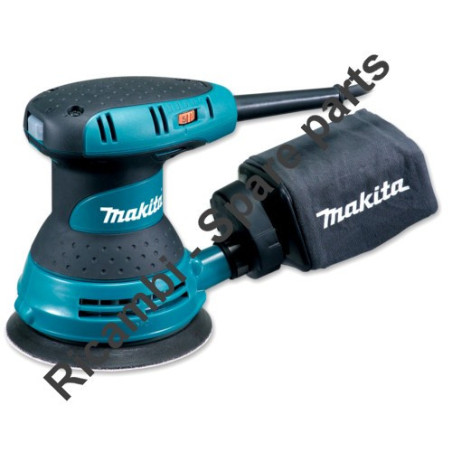

. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Orbital Sander BO5031.
In the following table, look for the model of Orbital Sander and the respective parts of the code.![]()
| Orbital Sander Makita BO5031 | ||
| # | Part Num. | Description |
| 1 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 2 | 450810-9 | TOP COVER BO5031 |
| 3 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 4 | 645006-7 | CAPACITOR X LS1013 |
| 5 | 687052-4 | CABLE CLAMP X 6408 |
| 6 | 682502-4 | SLEEVE CABLE 8/85 6408 |
| 8 | 191962-4 | CARBON BRUSH SET CB-419 (406.407) 6408 |
| 9 | 643995-0 | BRUSH HOLDER BO4555 |
| 10 | 654532-5 | TERMINAL BLOCK 6E / 1DS |
| 11 | 651527-9 | SWITCH X BO4555 |
| 12 | 424039-3 | SWITCH COVER BO4555 |
| 13 | 450809-4 | CASING MOTOR BO5031 |
| 14 | 866159-1 | B05031 LABEL |
| 15 | 633674-8 | STATOR FOR BO5030 |
| 16 | 266147-2 | SCREW M3 X10 4306 |
| 17 | 210017-7 | 607DDW BEARING |
| 18 | 681652-2 | INSULATING WASHER X JR180D |
| 19 | 515734-7 | ARMATURE BO5030 |
| 20 | 267806-1 | WASHER 9 BO4555 |
| 21 | 211092-6 | BALL BEARING 629DD |
| 22 | 450672-5 | HOLDER FOR BO5030 |
| 23 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 24 | 241673-2 | FAN 88 X BO5030 |
| 25 | 267164-5 | WASHER 15 HP2040-2041-2042 |
| 26 | 188579-2 | EDGE LOWER X BO5030 |
| 27 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 29 | 318304-9 | BOX BEARING BO5030 |
| 30 | 211228-7 | BALL BEARING 6202DD |
| 31 | 424131-5 | RING FOR BO5030 |
| 32 | 318303-1 | COVER BOX BEARING BO5030 |
| 33 | 253739-6 | PLATE 4 X 6510SB |
| 34 | 911128-8 | SCREW M4x16 X HR4000C |
| 35 | 743081-8 | BASE 123 X BO5030 / 5031 |
| 36 | 911128-8 | SCREW M4x16 X HR4000C |
| 37 | 631832-0 | REGULATOR FOR BO5031 |
