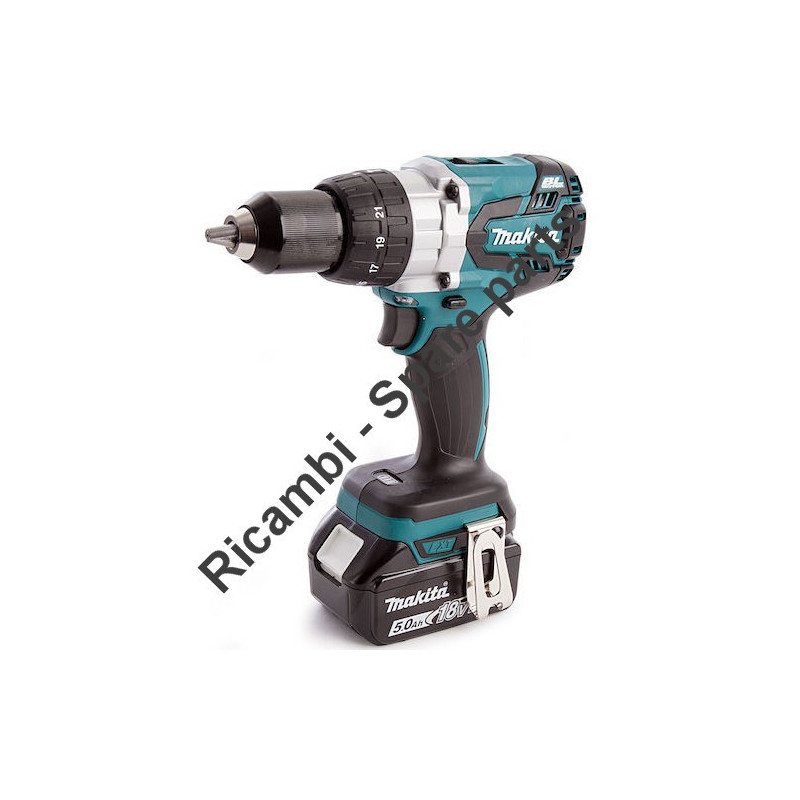

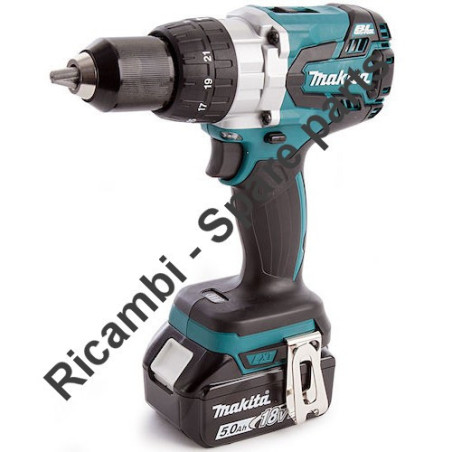

at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Drill Diver DHP481.
In the following table, look for the model of the Cordless Drill and the respective parts of the code.![]()
| Cordless Drill DHP481 | ||
| # | Part Num. | Description |
| 1 | 187921-4 | HOUSING SET INC. 21 |
| 2 | 815S71-6 | DHP481 NAME PLATE |
| 3 | 266130-9 | TAPPINGSCREWBINDPT3X16 |
| 4 | 232220-0 | LEAFSPRING |
| 5 | 126411-2 | SPEED CHANGE LEVER ASSEMBLY |
| 6 | 419250-0 | F/RCHANGELEVER |
| 7 | 650710-5 | SWITCH C3JW-4B |
| 8 | 251468-5 | FLAT HEAD SCREW M6X22 |
| 9 | 763248-2 | KEYLESS DRILL CHUCK 13 |
| 10 | 265995-6 | TAPPINGSCREW4X18 |
| 11 | 126410-4 | GEAR ASSEMBLY |
| 12 | 142263-3 | INDICATOR PANEL COMPLETE |
| 13 | 424517-3 | CUSHION |
| 14 | 629116-8 | STATORCOMPLETE |
| 15 | 619336-2 | ROTOR |
| 16 | 266130-9 | TAPPINGSCREWBINDPT3X16 |
| 17 | 455011-4 | REAR COVER |
| 18 | 620283-2 | LED CIRCUIT |
| 19 | 643899-6 | TERMINAL |
| 21 | 187921-4 | HOUSING SET INC. 1 |
| A01 | 122576-8 | STOPPERPOLEASS'Y |
| A02 | 126413-8 | GRIP ASSEMBLY |
| A03 | 251314-2 | SCREW M4X12 |
| A04 | 346317-0 | HOOK |
| A0S | 452947-8 | BITHOLDER |
| A06 | 784637-8 | BIT2-45 |
| A07 | 821524-1 | PLASTIC CARRYING CASE |
