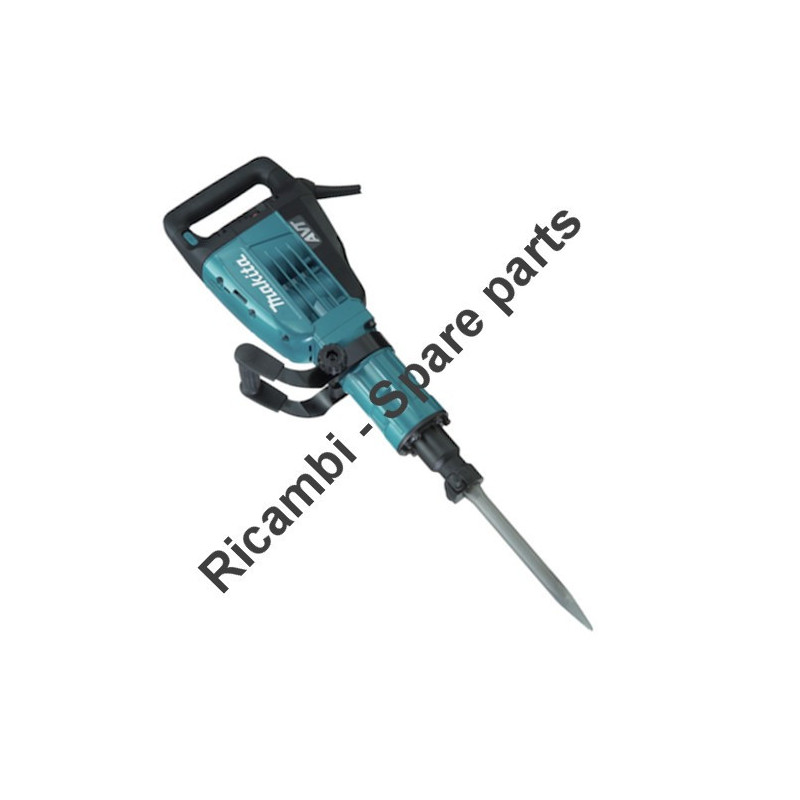

Makita original spare parts for to replace broken parts for to fix HM1317C 1-3/16″ : 30mm Hex Shank – Electric Breaker.

Ripara il tuo Electric Breaker, tutti i pezzi di ricambio sono fornibili per una rapida consegna. I nostri ricambi sono ricambi originali e sono dotati di una garanzia completa.
ITEM CODE: 140056-2
Quantity
Usually Ships in: 7/10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Makita Spare Parts for Electric Breaker HM1317C

Makita genuine spare parts or replaciments parts for to repair HM1317C 1-3/16″ : 30mm Hex Shank – Electric Breaker.

In the following table, look for the model of the Hammer and the respective parts of the code.

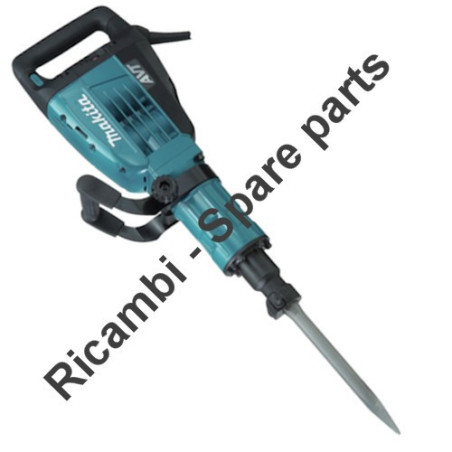

Makita HM1317C

HM1317C ELECTRIC BREAKER Pag.1
# Part Num. Description
1 266512-5 SET BOLT M10X142
2 163506-0 SIDE HANDLE
3 451331-4 HANDLE BASE
4 451331-4 HANDLE BASE
5 252654-1 THUMB NUT M10
6 253194-2 FLAT WASHER 5
7 922221-3 HEX. SOCKET HEAD BOLT M5X16
12 324099-4 TOOL RETAINER
13 331866-0 TOOL HOLDER
14 266011-7 HEX. SOCKET HEAD BOLT M8X35
15 233309-7 COMPRESSION SPRING 17
16 324135-6 RETAINER SLEEVE
17 213720-9 O RING 67
18 262150-1 URETHAN RING
19 267401-7 FLAT WASHER 24
20 257782-7 SLEEVE 43
21 213569-7 O RING 45
22 213192-8 X-RING 36
23 213150-4 O-RING 36
24 325682-0 IMPACT BOLT
25 325683-8 WASHER 30
26 424206-0 RUBBER RING 36
27 325684-6 SHOULDER RING 32
28 318458-2 BARREL
29 325685-4 STRIKER
30 213193-6 O-RING 42
31 233977-6 RING SPRING 55
32 331870-9 CYLINDER 52
33 451168-9 SHOULDER SLEEVE
34 234111-1 COMPRESSION SPRING 66
35 265367-5 HEX. SOCKET HEAD BOLT M8X40
36 451169-7 WEIGHT GUIDE
37 331867-8 COUNTER WEIGHT
38 451169-7 WEIGHT GUIDE
39 234111-1 COMPRESSION SPRING 66
40 331868-6 SLIDE SLEEVE
41 233977-6 RING SPRING 55
42 213569-7 O RING 45
43 213569-7 O RING 45
44 256238-7 PIN 12
45 213193-6 O-RING 42
46 318459-0 PISTON
47 213569-7 O RING 45
48 451164-7 CONNECTING ROD
49 268241-6 PIN 6
50 213806-9 O RING 90
51 318462-1 GEAR COVER
52 266499-1 H.S HEAD BOLT M6X30 WITH GM
53 227709-1 HELICAL GEAR 47
54 211306-3 BALL BEARING 6204LLB
56 267166-1 FLAT WASHER 14
57 226156-3 GEAR COMPLETE 31-43
58 212159-3 NEEDLE CAGE 1412
59 262157-7 NYLON RING 14
60 212159-3 NEEDLE CAGE 1412
61 267166-1 FLAT WASHER 14
62 424207-8 SEAL RING
63 140056-2 CRANK HOUSING COMPLETE
64 211373-8 BALL BEARING 6205LLU
65 331871-7 CRANK SHAFT
66 331869-4 COUNTER SHAFT
67 212264-6 NEEDLE ROLLER BEARING 1813
68 325686-2 SHOULDER WASHER 8
69 213809-3 O RING 87
70 268240-8 PIN 10
71 140057-0 BEARING BOX COMPLETE
72 961004-6 RETAINING RING S-8
73 213261-5 O RING 17
74 265844-7 HEX. SOCKET HEAD BOLT M6X20
75 211032-4 BALL BEARING 608ZZ
76 962112-6 RETAINING RING R-22
77 443127-7 FILTER
78 213758-4 O RING 74
79 451166-3 CRANK CAP COVER
81 451167-1 REAR COVER
82 266499-1 H.S HEAD BOLT M6X30 WITH GM
83 331855-5 SEALING SCREW
84 211249-9 BALL BEARING 6302LLU
85 267397-2 FLAT WASHER 15
86 240003-4 FAN 80
87 517788-0 ARMATURE ASSEMBLY 220-240V
88 681642-5 INSULATION WASHER
89 210059-1 BALL BEARING 6000DDW
90 451107-9 WASHER GUIDE
91 267809-5 WAVE WASHER 19
92 451111-8 BAFFLE PLATE
93 266044-2 TAPPING SCREW 5X60
94 636333-3 FIELD 220-240V
95 451117-6 MOTOR HOUSING
96 632D00-2 BRUSH HOLDER UNIT
97 195844-2 CARBON BRUSH SET CB-175
98 265995-6 TAPPING SCREW 4X18
99 158986-3 CONTROLLER COVER COMPLETE
100 263027-3 RUBBER PIN 4
101 651423-1 SWITCH
102 265995-6 TAPPING SCREW 4X18
103 687169-3 STRAIN RELIEF
104 265995-6 TAPPING SCREW 4X18
105 692623-4 POWER SUPPLY CORD 1.5-2-4.0
106 682560-0 CORD GUARD 10
107 620230-3 CONTROLLER
108 266834-3 H.S.H.BOLT M4X18 WITH GM
109 232209-8 LEAF SPRING
110 451112-6 SLIDE LEVER
111 263027-3 RUBBER PIN 4
112 451105-3 LENS
113 451118-4 HANDLE
114 265995-6 TAPPING SCREW 4X18
115 451106-1 SWITCH LEVER
116 265995-6 TAPPING SCREW 4X18
117 266499-1 H.S HEAD BOLT M6X30 WITH GM
118 867300-9 HM1317C NAME PLATE
119 451119-2 HANDLE COVER
120 265995-6 TAPPING SCREW 4X18
Accessories Pag.2
999 195103-4 HAMMER SERVICE KIT
1000 181490-7 HAMMER GREASE 30G
1001 824897-1 PLASTIC CARRYING CASE
1002 198993-4 Grease vessel for bit 100 ml
1003 A-31485 Rammer, 30 mm Hex shank, Ø 200 mm
1004 D-15285 BULL POINT 400
1005 D-15300 Cold Chisel 30 x 400 mm
1006 P-05549 Bull point 30 x 400 mm
1007 P-05555 Hex Spade Chisel Bit
1008 P-05561 30 x 700mm Bull Point Chisel Bit
1009 P-05583 30 x 700mm Flat Chisel Bit
1010 P-13518 Spoon chisel
1011 162271-8 LATCH
