Makita HP2031 Spare Parts
€80.10
Tax included

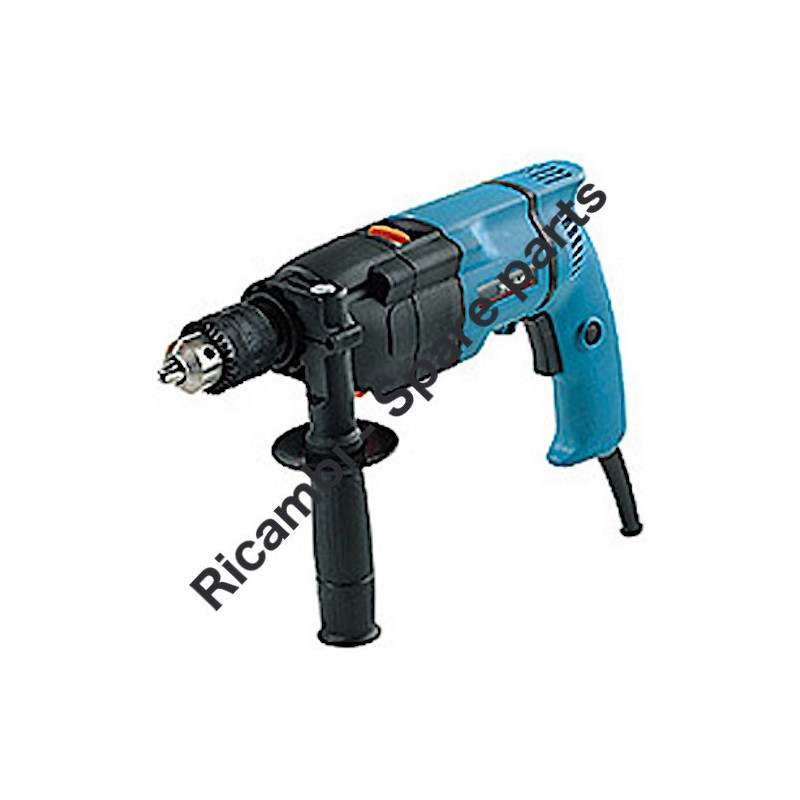

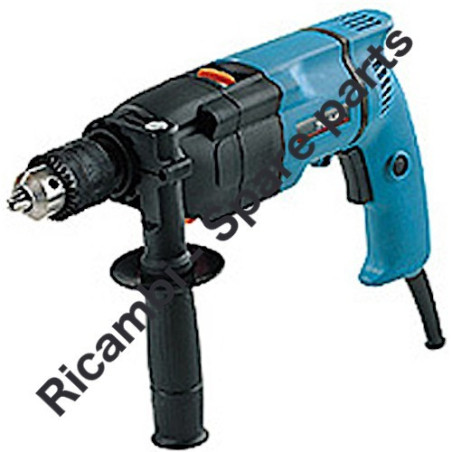

Makita Spare Parts for Percussion Drill HP2031
MAKITA repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Percussion Drill HP2031.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Percussion Drill HP2031
MAKITA repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Percussion Drill HP2031.
In the following table, look for the model of Drill and the respective parts of the code.
| Makita HP2031 2-SPEED HAMMER DRILL Spares | ||
| # | Part. Num. | Description |
| 2 | 192521-7 | KEYLESS DRILL CHUCK 13MM |
| 2-1 | 192664-5 | KEYLESS DRILL CHUCK |
| 2-2 | 194254-0 | KEYLESS DRILL CHUCK SET |
| 3 | 322786-9 | SPINDLE |
| 3-1 | 323854-1 | SPINDLE |
| 4 | 921919-9 | HEX.BOLTM8X11 |
| 4-1 | 921923-8 | HEX.BOLTM8X12 |
| 5 | 415485-1 | GRIPBASE |
| 6 | 415614-6 | GEAR HOUSING |
| 6-1 | 415614-6 | GEAR HOUSING |
| 7-1 | 211104-6 | BALL BEARING66 |
| 8 | 226818-3 | GEARCOMPLETE8-19-25 |
| 9-1 | 211014-6 | BALL BEARING66 |
| 10 | 213314-0 | OIL SEAL 19 |
| 11 | 344177-4 | CUP WASHER26 |
| 12 | 233091-8 | COMPRESSION SPRING16 |
| 13 | 211026-7 | BALL BEARING |
| 14 | 962153-2 | RETAININ GRINGR-35 |
| 15 | 961055-9 | RETAININ GRINGS-15 |
| 16 | 226289-4 | SPUR GEAR27-38 |
| 16-1 | 226342-6 | SPUR GEAR27-38 |
| 17 | 223104-3 | CAMA |
| 18 | 216018-3 | STEELBALL5. |
| 18-1 | 216001-0 | STEELBALL3.5 |
| 19 | 213759-2 | ORING72 |
| 20 | 232053-3 | LEAF SPRING |
| 21 | 415619-6 | CHANGE LEVERA |
| 22 | 344178-2 | LOCKPLATE |
| 23 | 213162-7 | ORING14 |
| 24 | 322787-7 | CHANGE PIN8 |
| 25 | 159793-7 | CAM HOUSING COMPLETE |
| 25-1 | 151764-0 | CAM HOUSING COMPLETE |
| 26 | 256226-4 | PIN4 |
| 26-1 | 256251-5 | PIN4 |
| 27 | 415621-9 | RACK12 |
| 28 | 344179-0 | CHANGE PLATE |
| 29 | 344178-2 | LOCK PLATE |
| 30 | 232143-2 | LEAFSPRING |
| 31 | 415620-1 | CHANGE LEVERB |
| 32 | 213162-7 | ORING14 |
| 33A | 152489-9 | GRIP36COMPLETE |
| 34 | 415615-4 | CAM HOUSING COVER |
| 35 | 253707-9 | FLAT WASHER 16 |
| 36 | 210005-4 | BALL BEARING 608DDW |
| 37 | 241850-6 | FAN6 |
| 38C | 517103-8 | ARMATURE ASS'Y 220V |
| 39 | 681614-0 | INSULATION WASHER |
| 40 | 211026-9 | BALL BEARING |
| 40-1 | 210025-8 | BALL BEARING |
| 41 | 253707-9 | FLAT WASHER16 |
| 42 | 415618-8 | BAFFLE PLATE |
| 43 | 633298-0 | FIELD 220V |
| 43B1 | 633413-6 | FIELD 220V |
| 44 | 415601-5 | MOTOR HOUSING |
| 45 | 643923-5 | BRUSH HOLDER |
| 46A | 191962-4 | CARBON BRUSH CB-419 |
| 46A | 119515-1 | CARBON BRUSH SET CB-419 |
| 47A | 858234-7 | NAME PLATE HP231 |
| 48 | 415622-7 | BRUSH HOLDER PLATE |
| 49 | 266007-8 | TAPPING SCREW BINDPT3X1 |
| 50 | 421505-1 | CUSHION RUBBER |
| 51A | 266121-0 | TAPPING SCREW FLANGEPF4X18 |
| 51A1 | 265995-6 | TAPPING SCREW4X18 |
| 52 | 182724-1 | HANDLE SET D1INC.59 |
| 52-1 | 182724-1 | HANDLE SET D1INC.59 |
| 53B | 651952-4 | SWITCH 8653C721AD2V-24V |
| 53B1 | 651987-5 | SWITCH |
| 53B2 | 651987-5 | SWITCH |
| 53B3 | 651986-7 | SWITCHT G83TLB-1 |
| 54B | 645256-4 | NOISE SUPPRESSOR |
| 54B1 | 645144-5 | NOISE SUPPRESSOR |
| 55A | 266121-0 | TAPPING SCREW FLANGED 4X18 |
| 55A1 | 265995-6 | TAPPING SCREW 4X18 |
| 56A | 687052-4 | STRAIN RELIEF |
| 57A | 682502-4 | CORD GUARD 8-85 |
| 58H | 665394-6 | POWER SUPPLY CORD 1.-2-2.5 |
| 59 | 182724-1 | HANDLE SET D1INC.52 |
| 59-1 | 182724-1 | HANDLE SET D1INC.52 |
| 60 | 819063-3 | MAKITA LABEL |
| 61A | 266113-9 | TAPPING SCREW FLANGED 4X65 |
| 61A1 | 266060-4 | TAPPING SCREW4X65 |
| 62A | 266108-2 | TAPPING SCREWFLANGED 5X7 |
| 62A1 | 266308-7 | TAPPING SCREW5X7 |
| 63 | 251464-3 | FLAT HEAD SCREW M6X22 |
| 64 | 256251-5 | PIN4 |
| AO1 | 415486-9 | DEPTH GAUGE |
| A02A | 824485-4 | PLASTIC CARRYING CASE |
| C1 | 183091-7 | SLIDE LATCHRLS ET |
| E3 | 654128-2 | EARTH TERMINAL |
